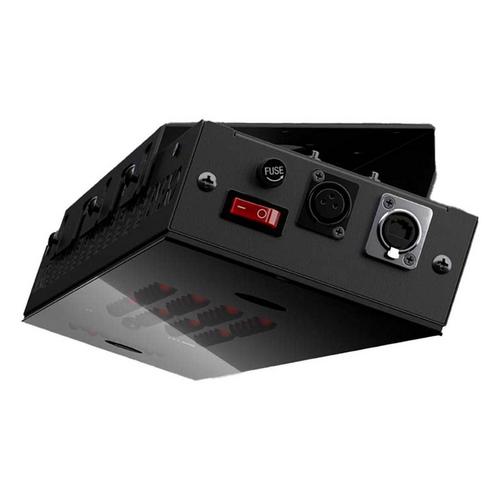

Uneekor Eye XO Launch Monitor

20718-EYX-SNS-001

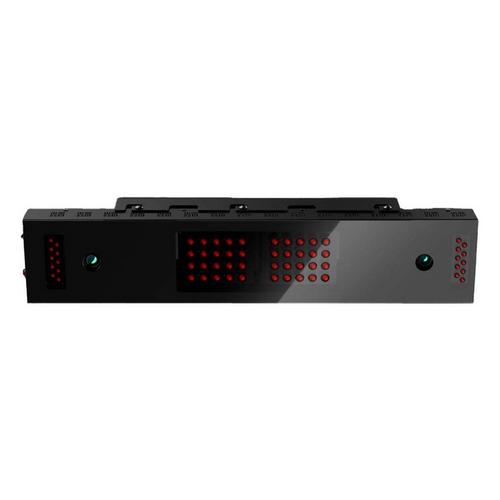

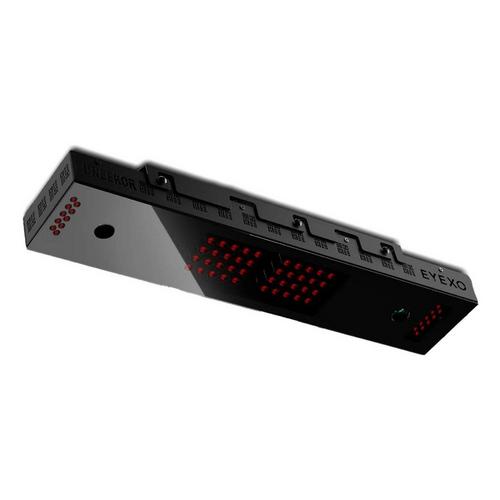

Elevate your game with the EYE XO’s front-mounted design, dual high-speed cameras, and Dimple Optix.

PC Requirements:

• Intel i5 8400*
• 8 GB RAM (16 GB RAM for Swing Optix)
• GeForce GTX 1060**
• Windows 10 (64 bit) Version 1803 or higher
• Ethernet port required
• Not compatible with Mac iOS
• AMD: 3rd gen Ryzen or higher and AMD Ryzen 3600 or higher (AMD 2700 is not compatible)

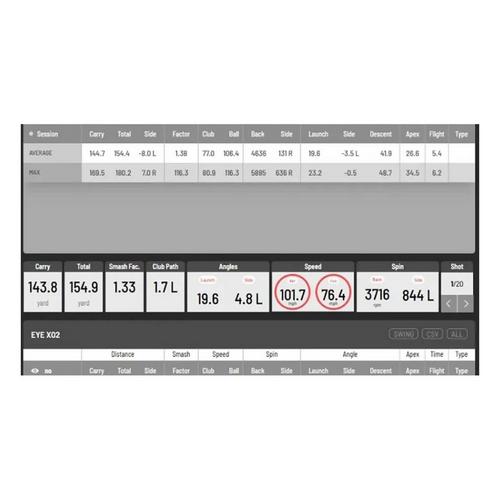

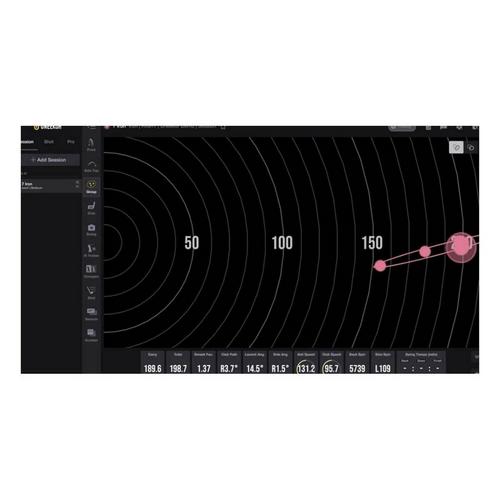

24 Data Points:

• Ball Speed - Velocity at which the ball is traveling when it leaves the club face after impact.
• Side Spin - Horizontal spin measurement affecting golf ball movement left or right in flight.
• Back Spin - The amount of spin on the golf ball immediately after impact, measured in revolutions per minute (RPM). It plays a crucial role in determining the height, distance, and control of a shot by influencing the ball's lift and trajectory through the air.
• Side Angle - Angle at which the ball starts its flight, relative to a straight target line (Horizontal launch angle).
• Side Total - Deviation left or right of the target while the ball is in the air.
• Launch Angle - The initial vertical launch angle of the golf ball post-clubface impact (relative to the ground).
• Angle of Descent - The descent angle of the golf ball after reaching its peak trajectory.
• Flight Time - The total amount of time the golf ball is in the air.
• Spin Axis - The tilt angle of the golf ball's rotational axis after it leaves the clubface. This angle determines the curvature of the ball's flight. A positive spin axis results in a flight that curves right. A negative spin axis results in a flight that curves left.
• Distance to Apex - The distance covered by the ball in the air until it reaches the highest point of its trajectory.
• Apex - The peak height of the ball's trajectory.
• Ball Flight Type - Description of the balls initial start direction and shot shape.
• Carry Distance - Total distance the ball traveled in the air.
• Run - Distance the ball travels after making contact with the ground.
• Total Distance - Total distance the golf ball travels including the carry and run.
• Club Speed - The speed of the club at impact.
• Smash Factor - Quantifies the efficiency of impact between the club face and the golf ball. It is calculated by dividing the speed of the ball by the speed of the club head at impact. A higher smash factor indicates a more efficient transfer of energy from the club to the ball, typically resulting in greater distance and accuracy.
• Face to Path - The angular difference between the face angle and club path.
• Attack Angle - A negative attack angle means the clubhead is descending into the ball, while a positive angle indicates the clubhead is ascending or sweeping upwards.
• Club Path - The in to out, or out to in movement of the club head's geometric center at the center at the time of impact. Club Path is the direction (right or left) the club head is moving at impact and is measured relative to the target line.
• Face Angle - The angular direction of the clubface at impact with the golf ball.
• Dynamic Loft - Dynamic loft refers to the effective loft angle of a golf club at the moment of impact with the ball during a swing. Dynamic loft influences the launch angle and trajectory of the ball, playing a significant role in distance and accuracy in golf shots.
• Club Lie Angle - Lie angle refers to the angle between the shaft of a golf club and the ground when the club is in its address position. It is measured relative to the ground and influences the direction in which the clubface points at impact.
• Impact Point (Vertical, Horizontal) - The precise location on the clubface where the golf ball makes contact during a swing. It is a critical factor in determining the trajectory, spin, and overall performance of the shot. The position of the impact point relative to the center of the clubface can greatly influence the outcome of the shot, with off-center impacts resulting in less desirable ball flight characteristics.
