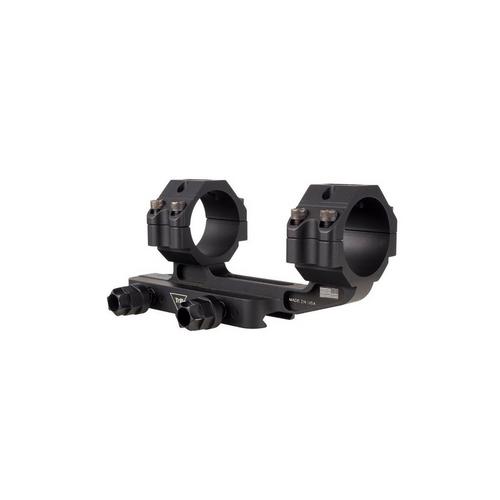

Trijicon 30mm Riflescope Cantilever Mount with Q-LOC Technology

71930-AC22047

The Trijicon Cantilever Mount w/ Q-LOC™ Technology features a 30mm tube, and is designed to keep the optic as low as possible for hunting and long range precision rifle applications. Featuring a Mil-Spec drop test rated 6061-T6 aluminum design and an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Designed specifically for variable power optics, this lightweight mount is perfect for mounting Trijicon Variable power optics with an objective lens up to 56mm on any weapon platform with a full Picatinny rail. Trijicon Cantilever Mounts w/ Q-LOC Technology at a height of 1.535 will also match the standard height above rail for all clip-on devices.

- Matte black anodized finish
- Made in the USA

Distance From Top of Mounting Rail to Optical Axis:
1.535"


Cant: 20MOA
Matches height above rail for all potential clip-on devices

Torque Spec (Rail):
Spring Tension Only: 12-16 in. / lbs.
Can be Tightened To: 30-38 in. / lbs.

Torque Spec (Ring Caps): 14-16 in. / lbs.

NOTE: Fits Objective lens up to 56mm

INCLUDES
1 - Mount
2- Ring Caps
8 - Screws
1 - Hex Key
