AGM Global Vision

AGM Rattler TS35-640 Thermal Riflescope

Item No. 81002777919
itemprop="price">3495.0 $3,495.00

Select Delivery Method:

Free Shipping

Est. Delivery Thur. 6/8 - Sat. 6/10

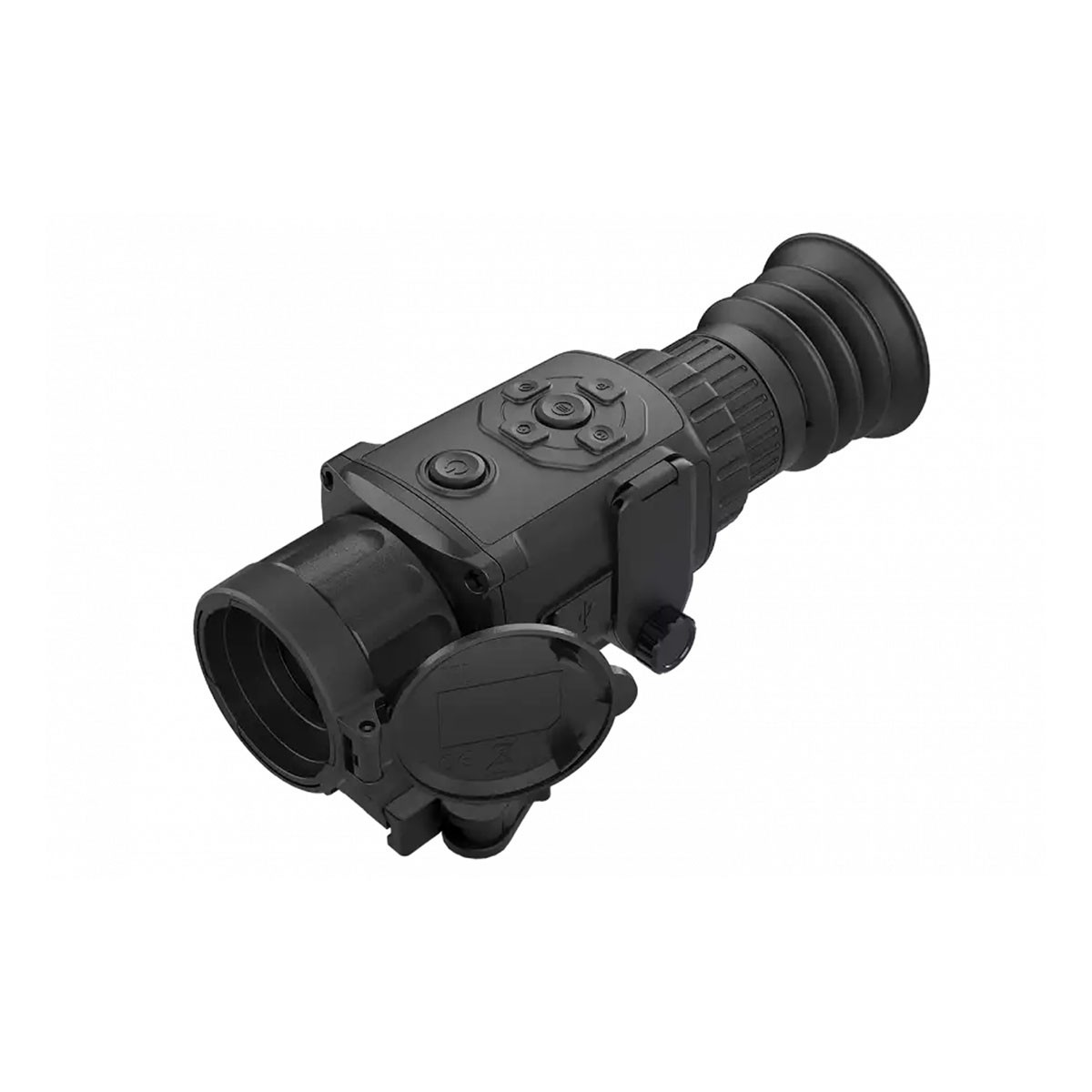

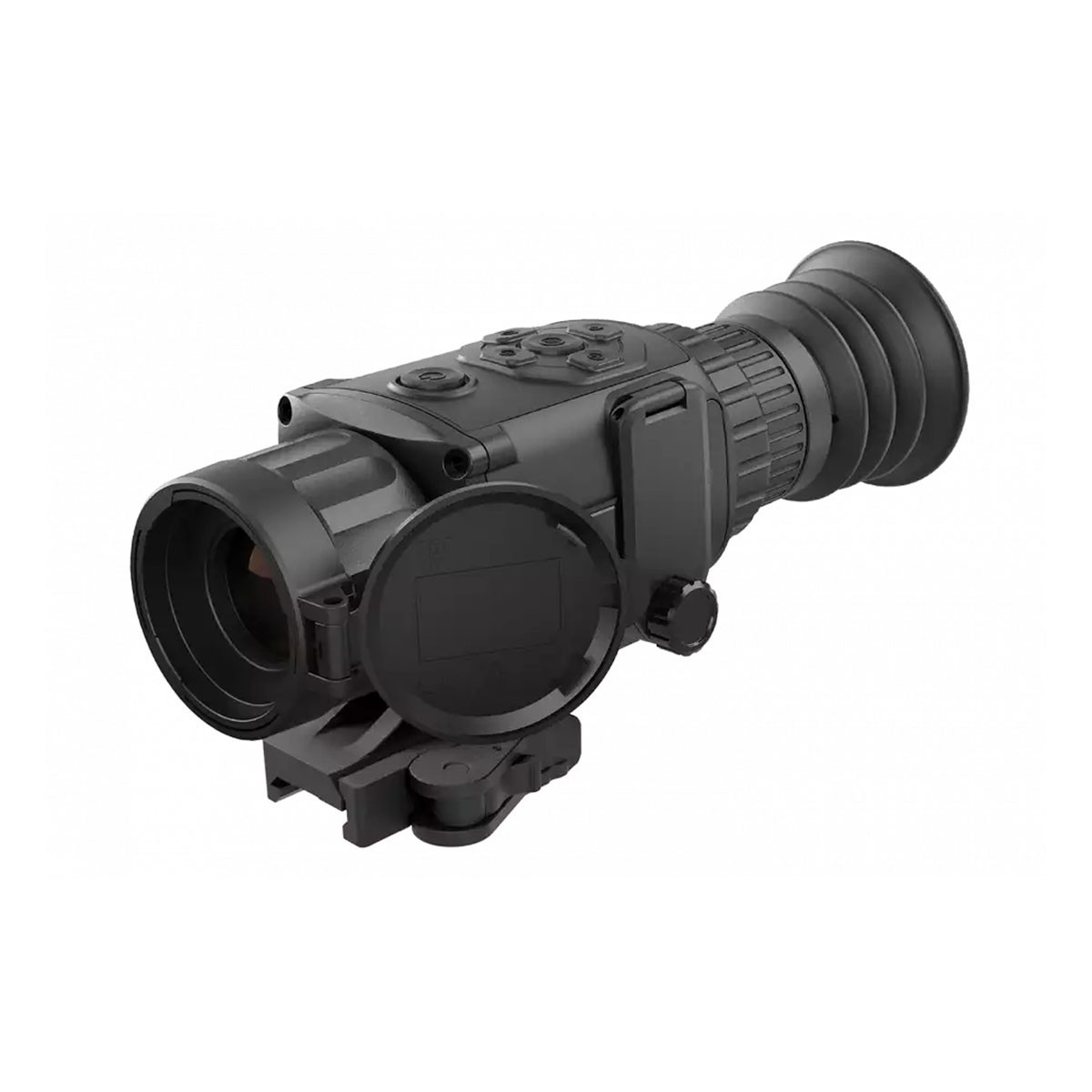

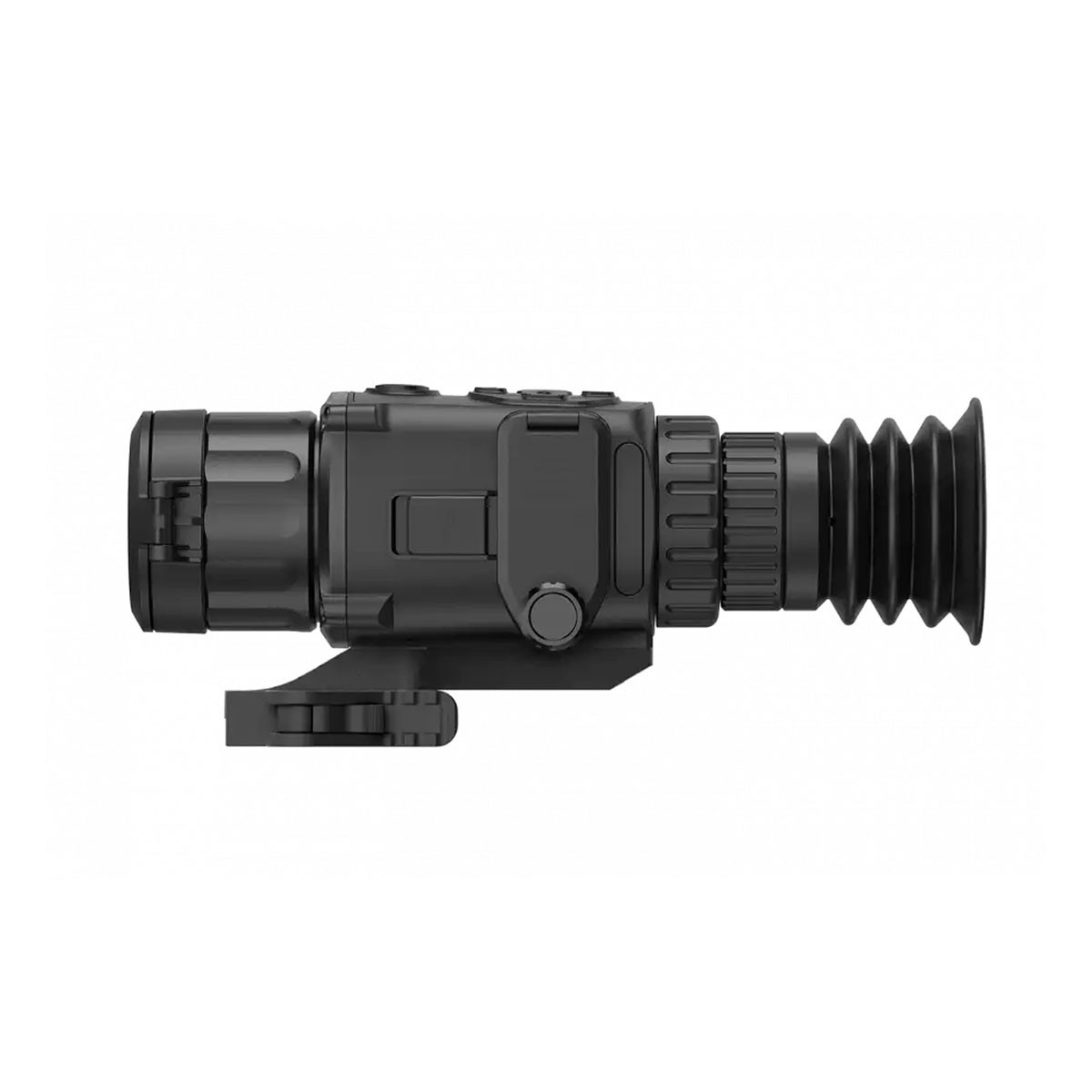

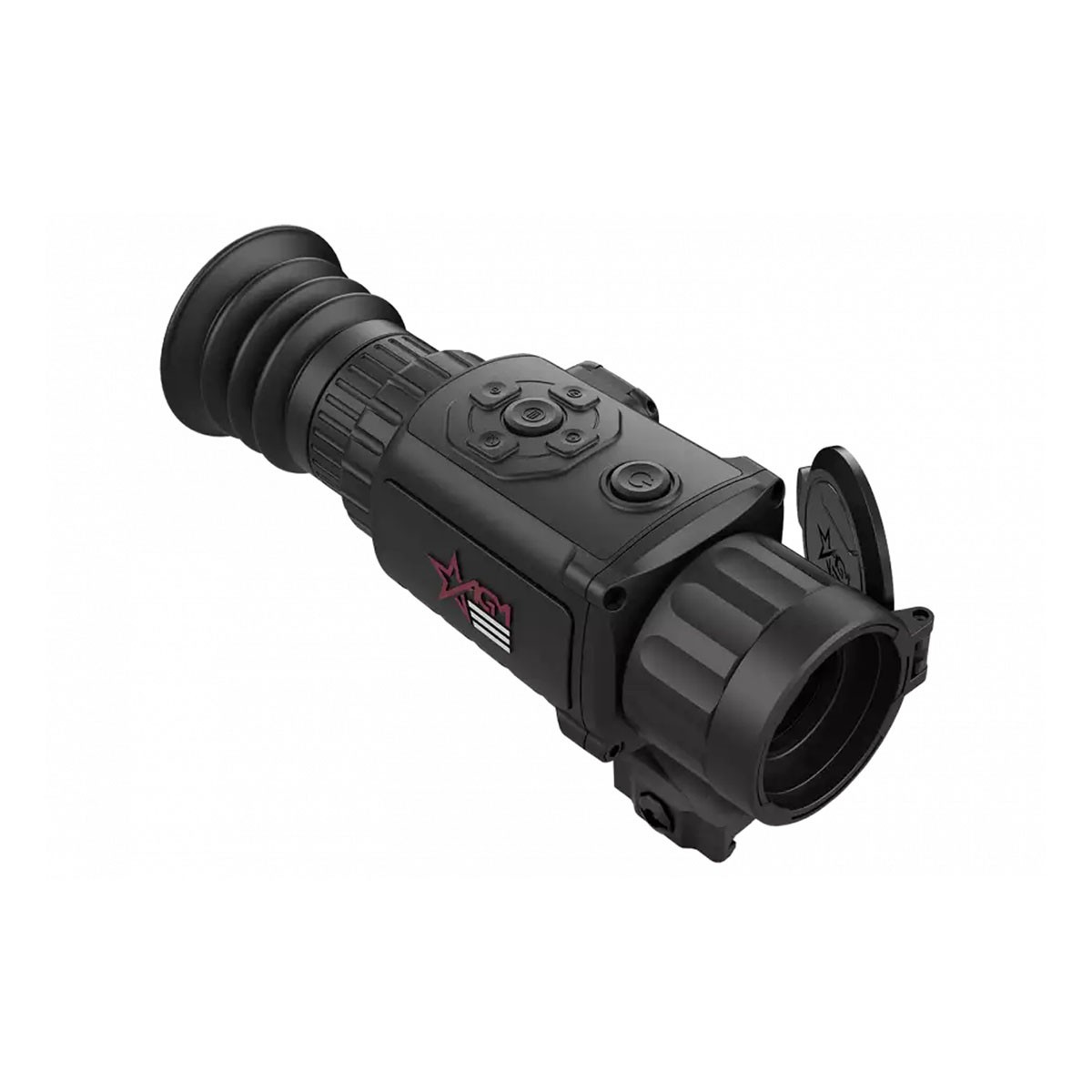

AGM Rattler TS35-640 Thermal Riflescope


AGM Rattler TS35-640 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Powered with two CR123 batteries the AGM Rattler gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase in operating time. This AGM thermal image riflescope has a 640x512, 12m thermal detector and 1024x768 OLED monitor, which provides a clear image under harsh environmental conditions. Plus, this device can be used as a thermal rifle scope or handheld monocular. As a bonus, the AGM Rattler TS35-640 has an onboard Wi-Fi module that allows for live video streaming, and video and image recording.

  • Standby mode
  • Fast 50Hz imaging
  • Limited 3-year warranty
  • 2x optical magnification
  • Waterproof, shockproof
  • Wi-Fi data transmission
  • Adjustable color palettes
  • Stadiametric rangefinder
  • 1x, 2x, 4x, 8x Digital zoom
  • 640×512 thermal resolution
  • Various reticle types and colors
  • External power supply capability
  • Up to 4.5 hours of continuous power
  • Digital image processing technology
  • 1024×768 resolution, 0.39-inch OLED display
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Detector type: 12μm, Uncooled, 50 Hz
  • Defective Pixels Correction (DPC): Yes
  • Boresight Adjustment: Digital Controlled
  • Display: 0.39-inch, OLED, 1024×768, 50 Hz
  • Picture In Picture Mode (PIP): Yes (2× Zoom)
  • Palettes: Black Hot, White Hot, Red Hot, Fusion
  • Distance Measurement: Yes (Stadiametric Rangefinder)
  • Uniformity Correction: Auto, Manual, External Correction
  • Overall Dimensions: 187× 63 × 80 mm (7.4 × 2.5 × 3.1 in)
  • External power supply: 5 VDC/2 A, USB Type-C interface
  • Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)
  • Package Includes: Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
  • Battery Type: Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
  • Battery Life (Operating): Up to 4.5 hr
  • Field of view (H × X): 12.5° × 10.0°
  • Eye relief: 45 mm
  • Standby Mode: Yes
  • Weight: 535 g (1.18 lb)
  • Resolution: 640 × 512
  • Video Recording: Yes
  • Optical magnification: 2x
  • CVBS Output: Yes (via USB)
  • Lens system: 35 mm; F/1.0
  • Detection Range: 1,750m/yd
  • Storage: Built-in EMMC (16 GB)
  • Reticle: 5 types, 4 colors, on/off
  • Drop Test Height: 1.5m (4.9 feet)
  • Scene Mode: Jungle, Recognition
