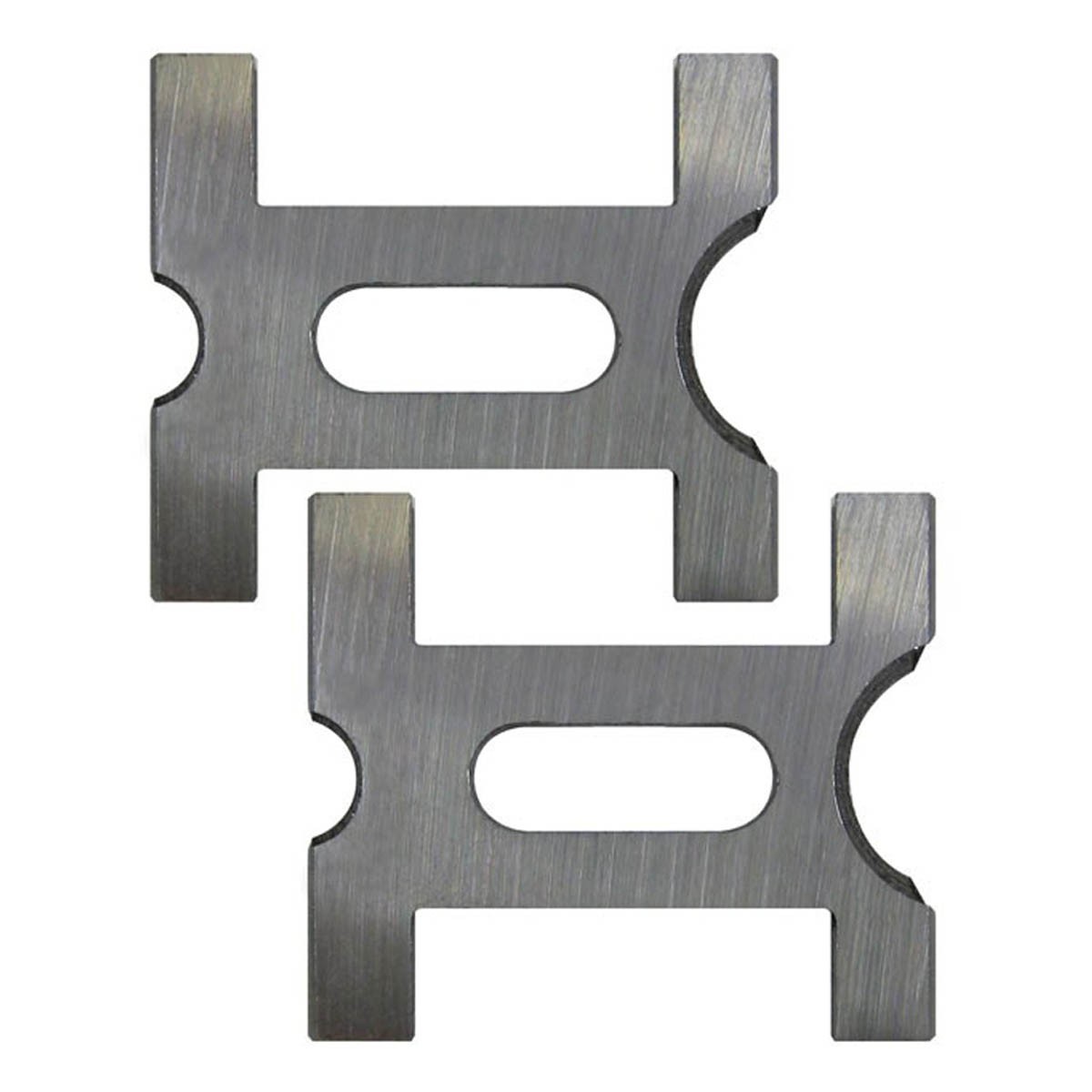

Forster Co-Ax Single Stage Press LS Shellholder Jaws

Forster Co-Ax Single Stage Press LS Shellholder Jaws

75725300016

LS Shellholder Jaws are required when loading specific cases that will not work with the standard jaws provided with the Forster Co-Ax press. Forster shellholder jaws create perfect alignment of the die and the case because they are designed to float with the die, thereby permitting the case to center precisely in the die.

LS-jaws (Large/Small) will be needed if loading:

• 218 Bee
• 22 Hornet,
• 25 ACP
• 256 Winchester Magnum
• 7.62x54mm Rimmed Russian
• 38-40 WCF
• 348 Winchester
• 378 Weatherby Magnum
• 416 Rigby
• 416 Remington Magnum
• 40-65 Winchester
• 45-70 Government, 45-90, 45-110 (and others using that case base)

Specifcations:

• UPC: 757253000164
• Part #: 001251
• LS-Small end holds .312" to .375" rim.
• LS-Large end holds .531" to .625." rim.

Please Note:

• S-jaws (Standard) work with most brass cartridge cases and are provided with the Forster Co-Ax press.
• Standard Small end holds .343" to .422" rim.
• Standard Large end holds .468" to .562" rim.
