Garmin ECHOMAP UHD 63cv with GT24UHD-TM Transducer

Garmin ECHOMAP UHD 63cv with GT24UHD-TM Transducer

75375924142

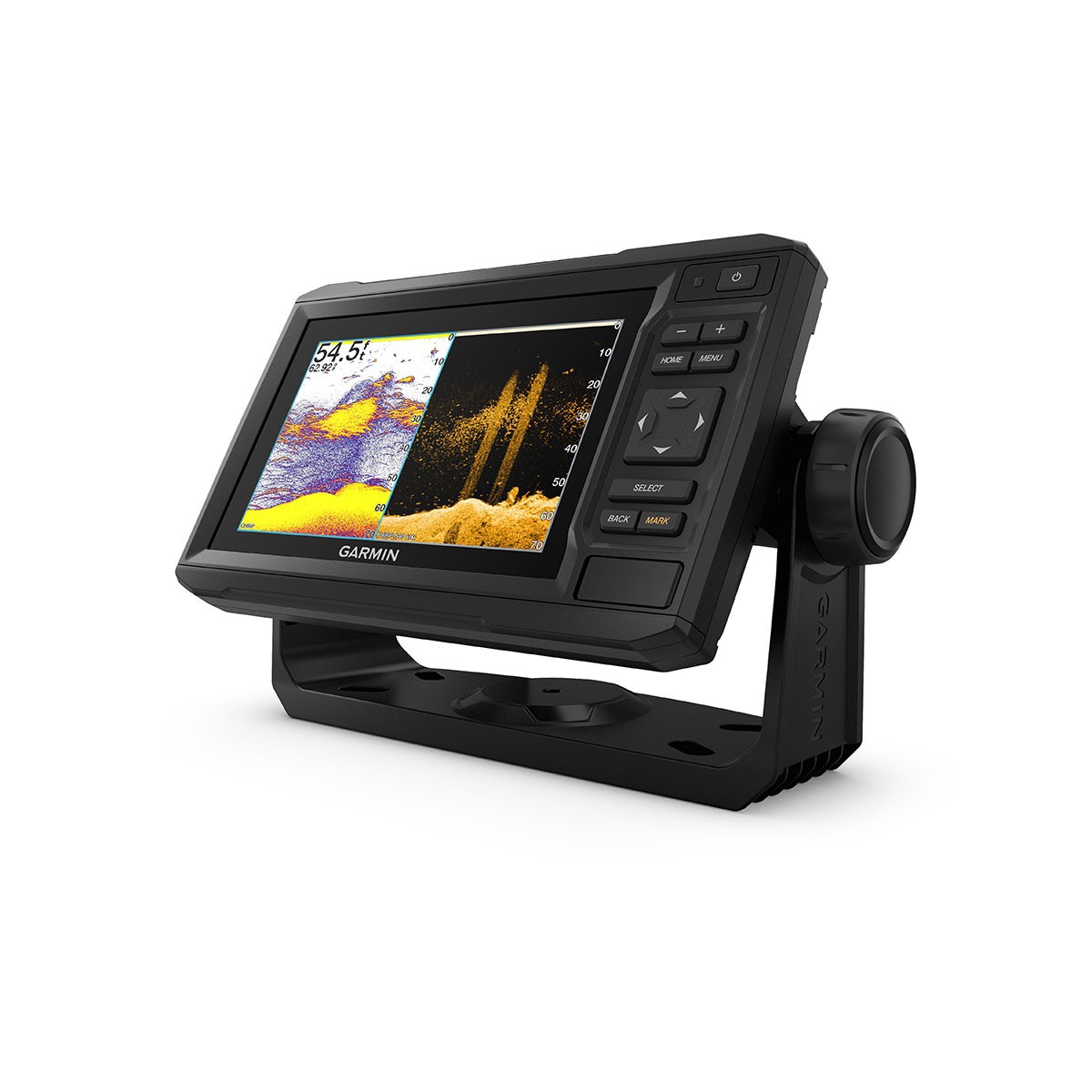

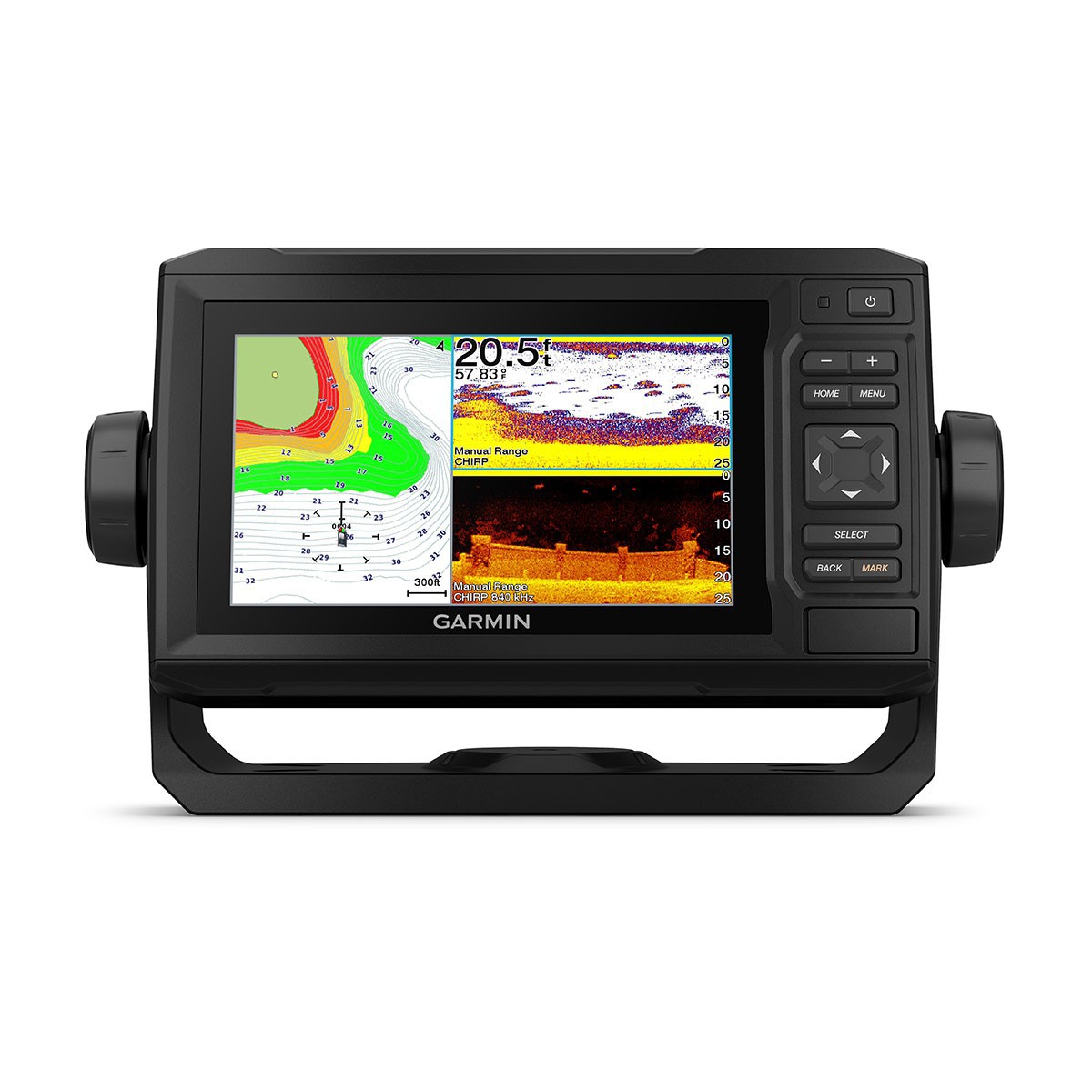

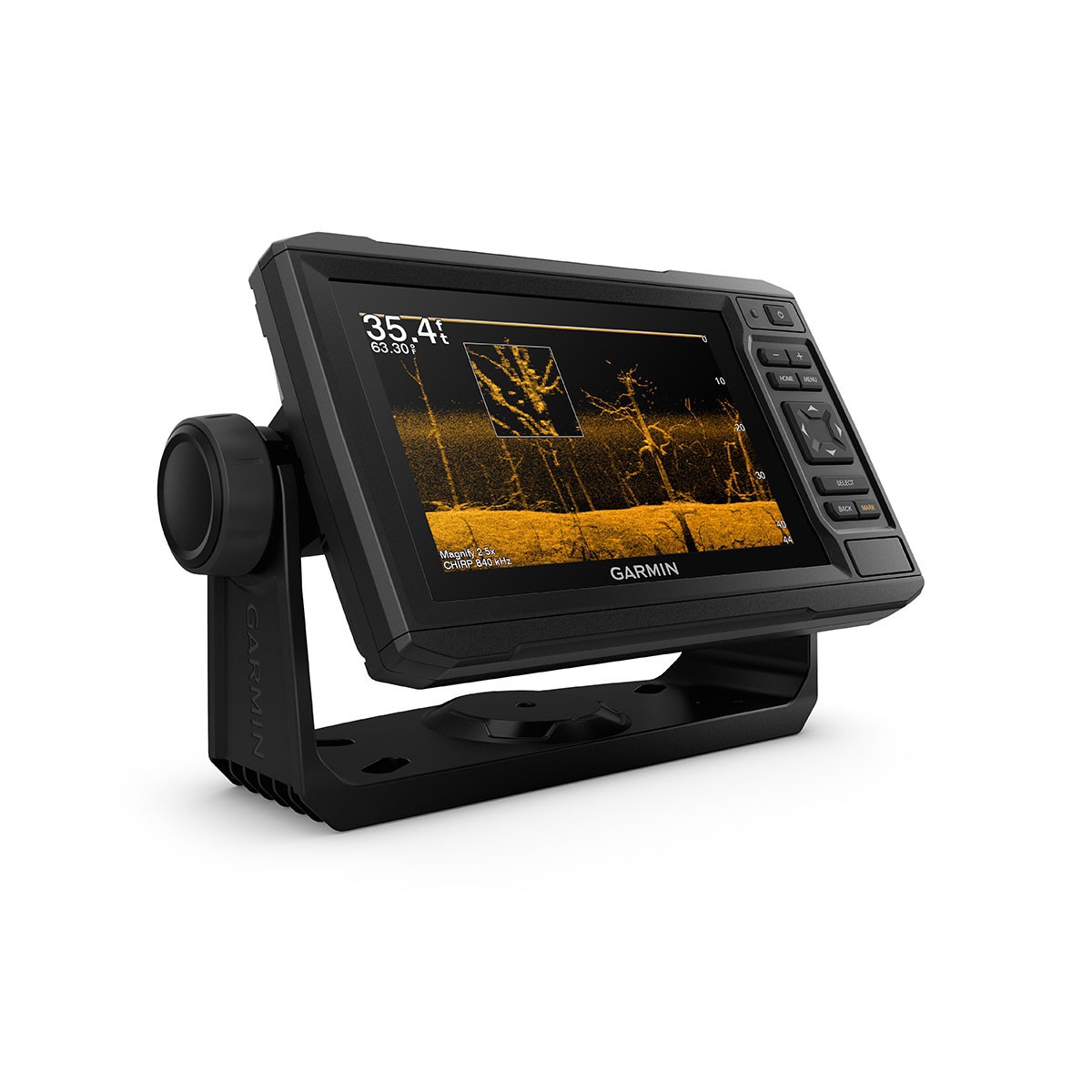

The Garmin ECHOMAP UHD 63cv with GT24UHD-TM Transducer will make finding fish easier than ever. This Garmin fish finder features a bright, sunlight-readable 6-inch screen. The included GT24 transducer has an Ultra HD ClearVü scanning sonar, so you get a crystal-clear image of what is below your boat. On top of that, the Garmin high wide CHIRP traditional sonar also comes with this Garmin fish finder for excellent target separation. This Garmin ECHOMAP UHD 63cv fish finder is also loaded with lakeVü g3 inland maps with integrated Navionics® data cover more than 17,000 lakes with up to 1’ contours. Complete with a quick-release bail mount and numerous network support options, this Garmin fish finder will help you cast with confidence this fishing season.


Maps & Memory:

• Routes: 100
• Waypoints: 5,000
• Track log: 50,000 points; 50 saved tracks
• Preloaded maps: LakeVü g3 (inland maps)
• Accepts data cards: 1 microSD™ card; 32 GB maximum size

Outdoor Rec & Chartplotter Features:

• Tide tables
• Sailing Features
• ActiveCaptain compatible
• Garmin Sonar compatible
• Supports AIS (tracks target ships position)
• Supports DSC (displays position data from DSC-capable VHF radio)

Sonar Features & Specs:

• Sonar recording
• Sonar history rewind
• ClearVü with CHIRP (built-in)
• CHIRP sonar technology built-in
• Water temperature log and graph
• Dual-beam (77/200 kHz) sonar capable
• Dual-frequency (50/200 kHz) sonar capable
• Bottom lock (shows return from the bottom up)
• Maximum depth: 2,300 ft @ 77 kHz, freshwater; 1,100 ft @ 77 kHz, saltwater
• (depth capacity is dependent on water bottom type and other water conditions)
• Transmit power: 500 W (RMS) / 4,000 W (peak to peak)

Connections:

• Wireless connectivity
• NMEA 0183 compatible
• NMEA 2000® compatible
• NMEA 0183 input ports: 1
• NMEA 0183 output ports: 1
• Transducer pin numbers: 4

In the box:

• Hardware
• Flush mount
• Documentation
• Protective cover
• Power/data cable
• GT24UHD-TM transducer
• Tilt/swivel mount with quick release cradle
• ECHOMAP UHD 63cv with LakeVü g3 for U.S.
