Garmin EchoMAP UHD 73sv Locator with GT56UHD-TM Transducer

Item No. 75375926441
Discounted Price$749.99 $899.99 Save $150.00

Select Delivery Method:

Free Shipping

Est. Delivery Mon. 3/27 - Wed. 3/29

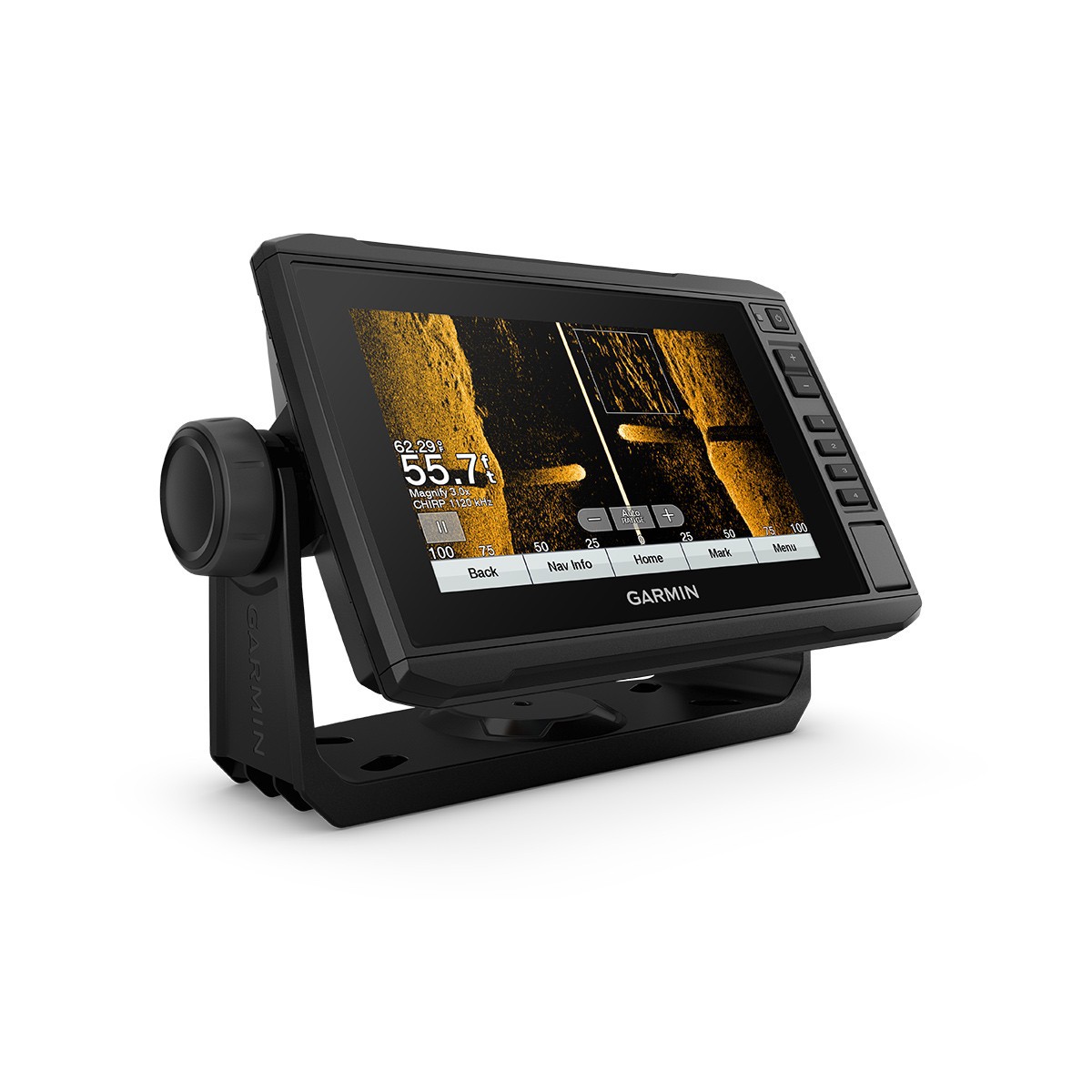

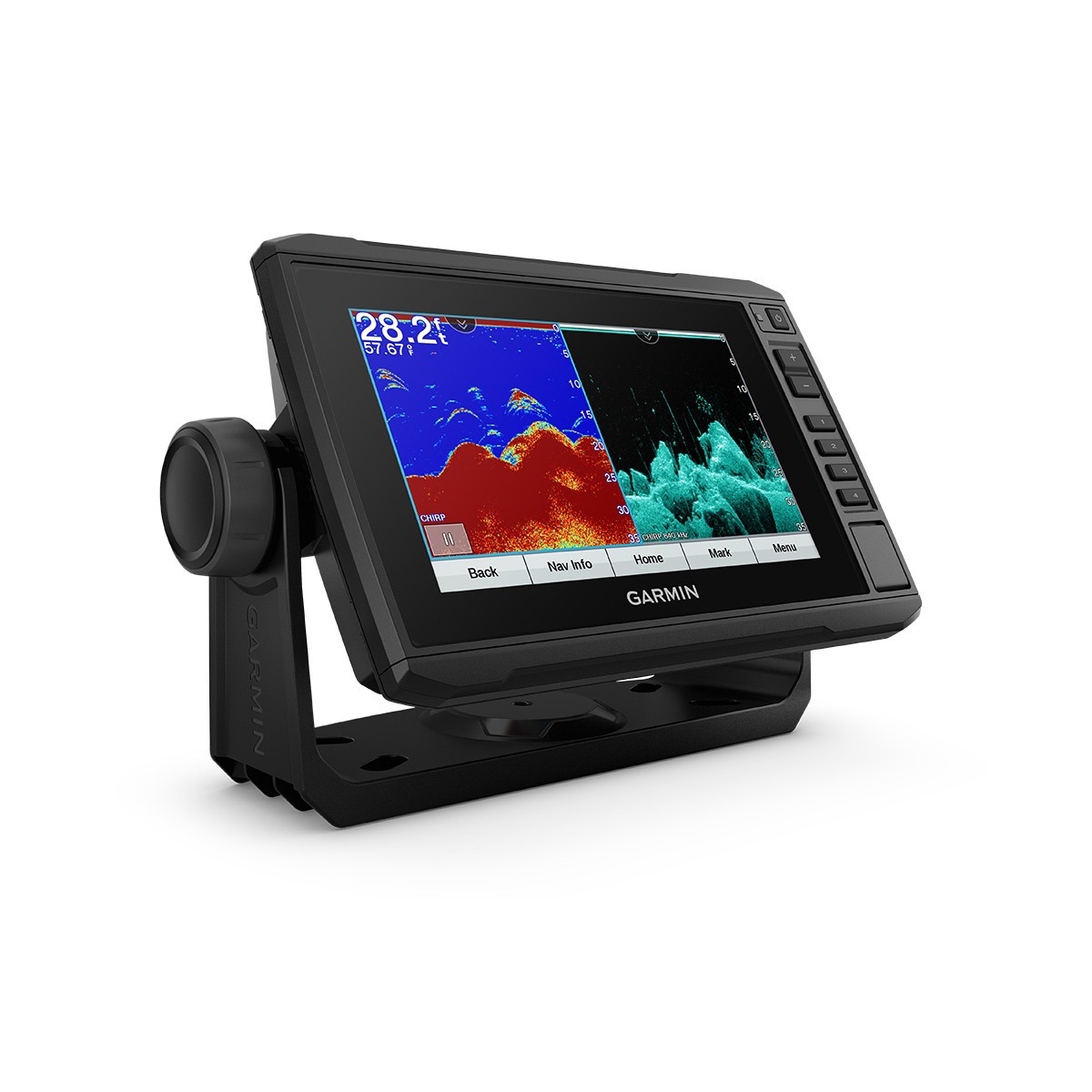

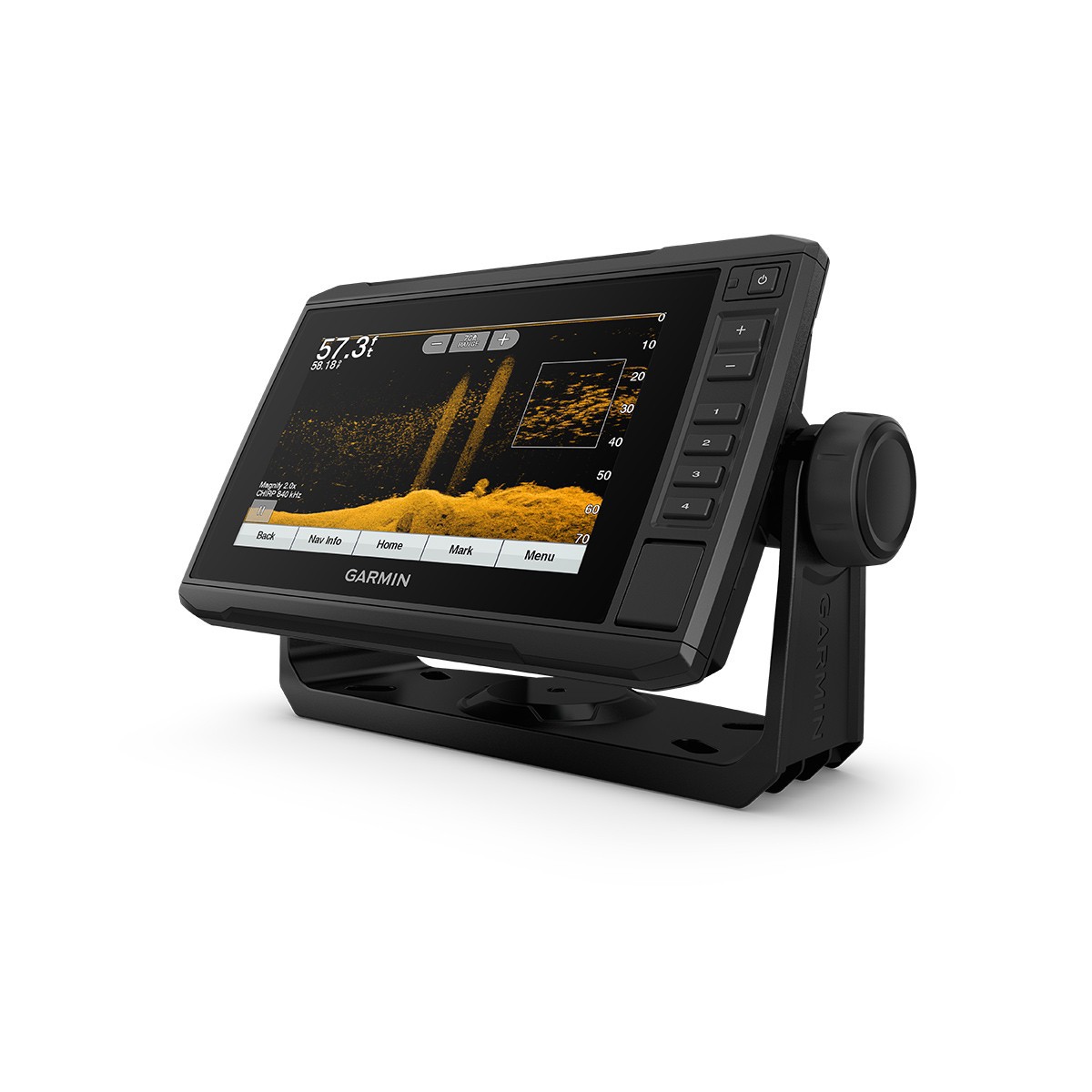

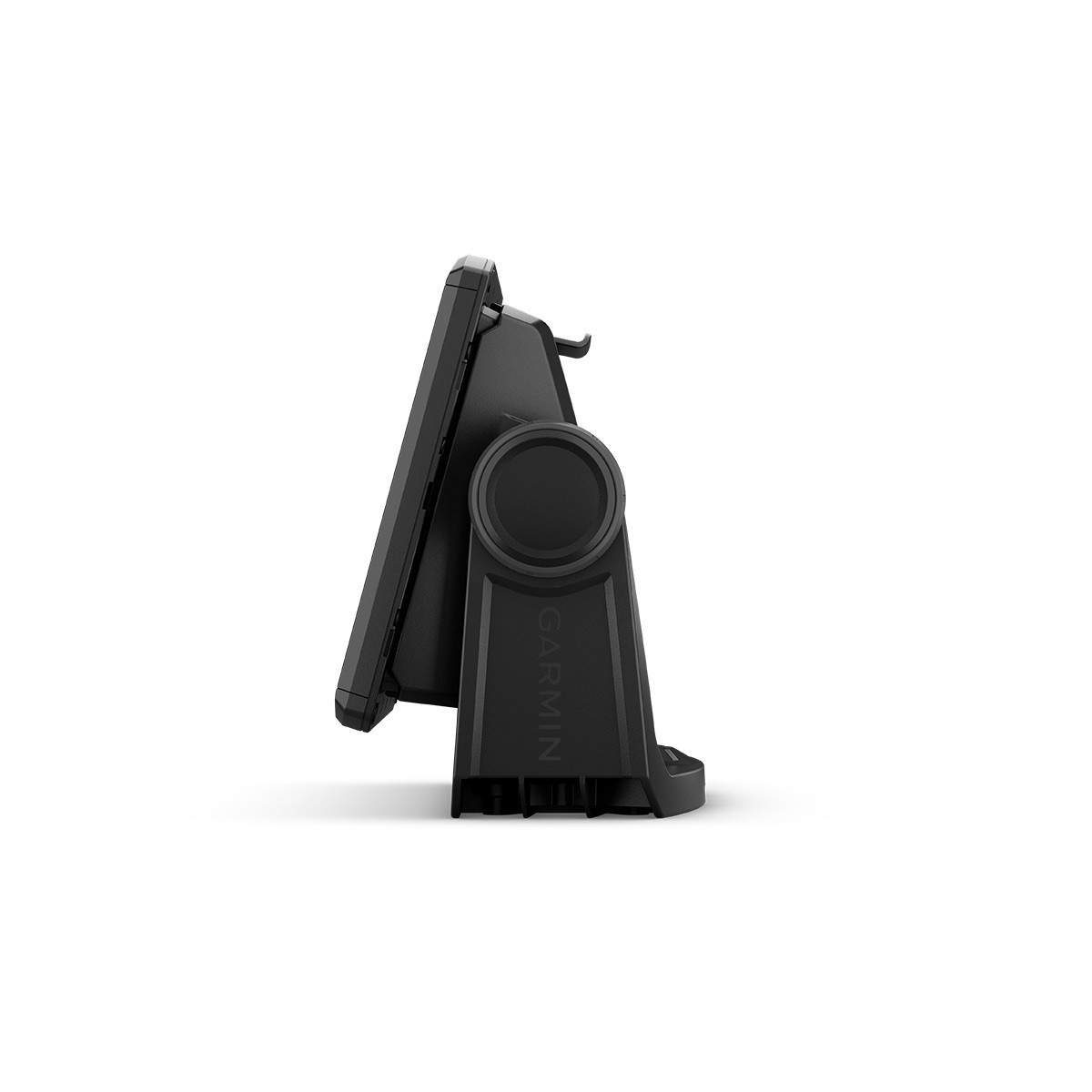

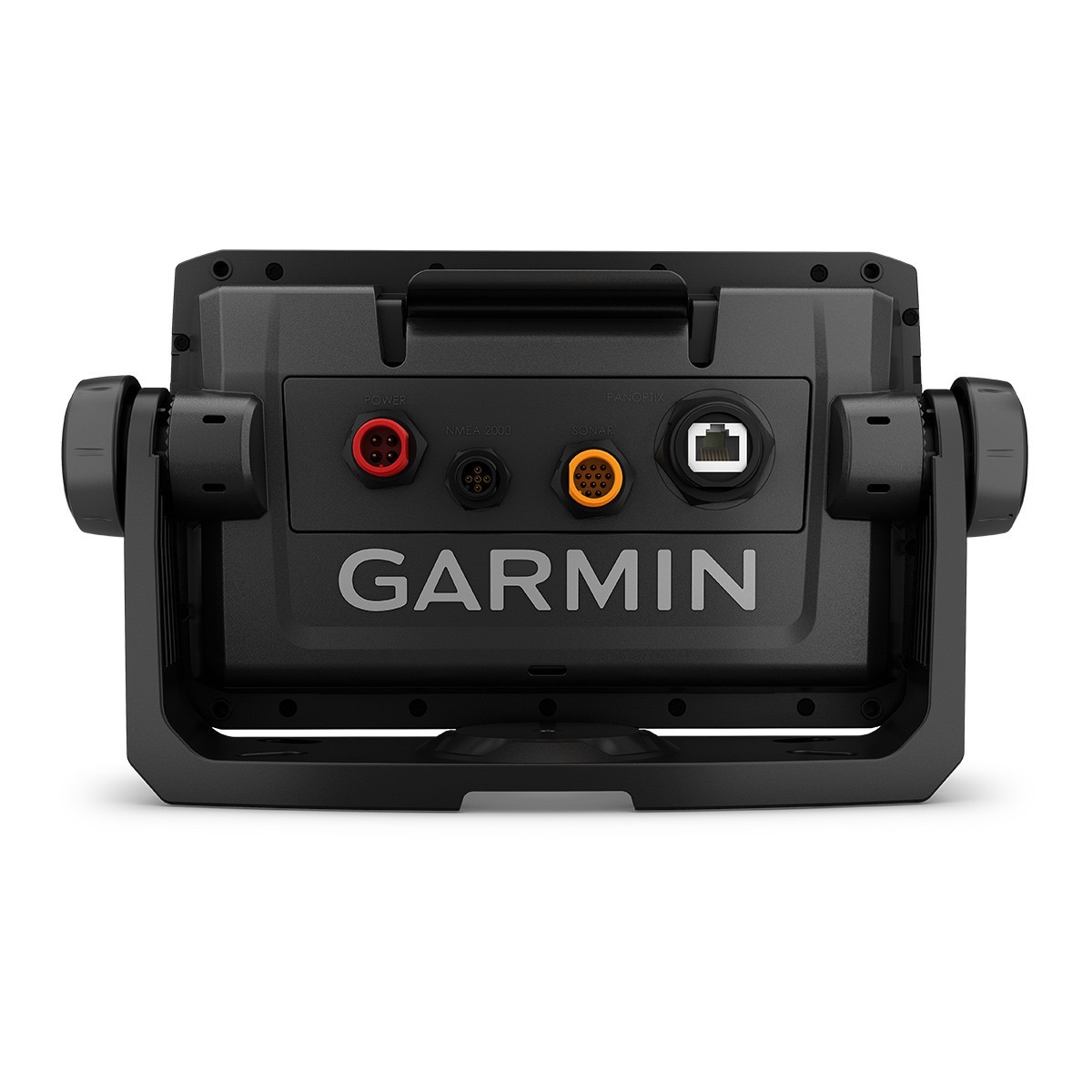

Garmin EchoMAP UHD 73sv Locator with GT56UHD-TM Transducer


The Garmin EchoMAP UHD 73sv Locator with GT56UHD-TM Transducer delivers clear readouts with high-definition sonar whether you're fishing on a cloudy or sunny day. The Garmin Echomap UHD 73sv includes a GT56 transducer with traditional CHIRP sonar as well as Ultra High-Definition ClearVü and SideVü scanning sonars, giving you a clear picture of fish and structure. Preloaded with LakeVü g3 inland maps with integrated NavionicsĀ® data on more than 18,000 lakes, the Garmin Echomap UHD 73sv allows you to navigate any waters, while the quickdraw contours, networking capabilities, and other features will help you take your fishing to the next level. Spend less time fussing with your fish finder and more time catching fish with the Garmin ECHOMAP UHD 73sv Locator with GT56UHD-TM Transducer.

In the Box:
  • Hardware
  • Flush mount
  • Documentation
  • Protective cover
  • Power/data cable
  • GT56UHD-TM transducer
  • Tilt/swivel mount with quick release cradle
  • ECHOMAP UHD 73sv with LakeVü g3 for U.S.
  • Built-in 5Hz receiver and GPS
  • Touchscreen for easy use with key assist buttons
  • High-contrast vivid color pallet makes it easy to distinguish fish and structure
  • Sonar support for a variety of Garmin transducers, including Panoptix LiveScope (LiveScope not included)
  • Preloaded with LakeVü g3 inland maps with integrated Navionics® data on more than 18,000 lakes
  • Pairs with ActiveCaptain® mobile app for smart notifications, software updates, and more
  • Controls Garmin Force™ trolling motors via waypoint routing, custom tracks, and more
  • NMEA 2000® compatibility displays engine data, media, and more right on the screen
  • Network Capabilities allow you to connect multiple ECHOMAP units and share data
  • Includes GT56 transducer with CHIRP and UHD ClearVü and SideVü sonars
  • Quickdraw contours allow you to create personalized fishing maps on-screen
  • Max depth: 2,300 ft @77 kHz freshwater, 1,100 ft @ 77 kHz saltwater
  • Built-in CHIRP sonar technology with ClearVu and SideVu
  • Garmin Marine Network™ Ports: 1 Panoptix port
  • Memory: 1 microSD card, 32 GB maximum size
  • Compatible Sensors: NMEA2000, NMEA0183
  • Track Log: 50,000 points, 50 saved tracks
  • Preloaded Maps: LakeVu g3 inland maps
  • Physical Dimensions: 9.8" x 5.5" x 2.0"
  • Display Size: 6.1" x 3.4"; 7" diagonal
  • Display Resolution: 400 x 800 pixels
  • Mounting Options: Bail or flush
  • Power Consumption: 15W
  • Display Type: WVGA, NP
  • Water Rating: IPX7
  • Waypoints: 5,000
  • Weight: 1.7 lbs.
  • Routes: 100
  • Model #: 010-02519-01
