Garmin

Garmin ECHOMAP UHD2 53CV GT20

Item No. 75375928458
$349.99 $399.99 Save $50.00

Save For Later

Select Delivery Method:

Free Shipping

Est. Delivery Mon. 4/3 - Wed. 4/5

Free Returns SCHEELS Guarantee
Earn 1,050 Points on this item with SCHEELS Visa Rewards
Proposition 65 Warning WARNING: California Residents - Proposition 65

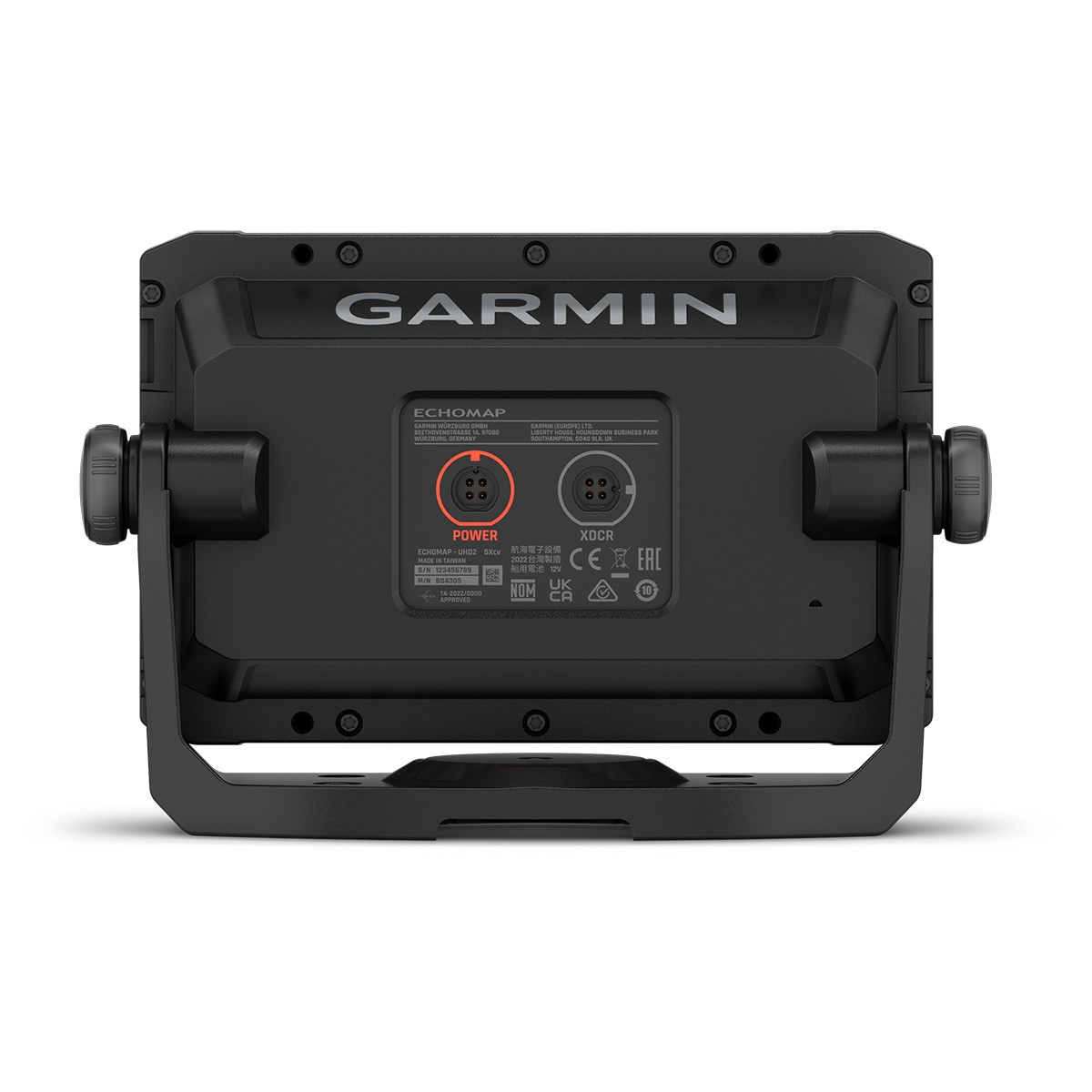

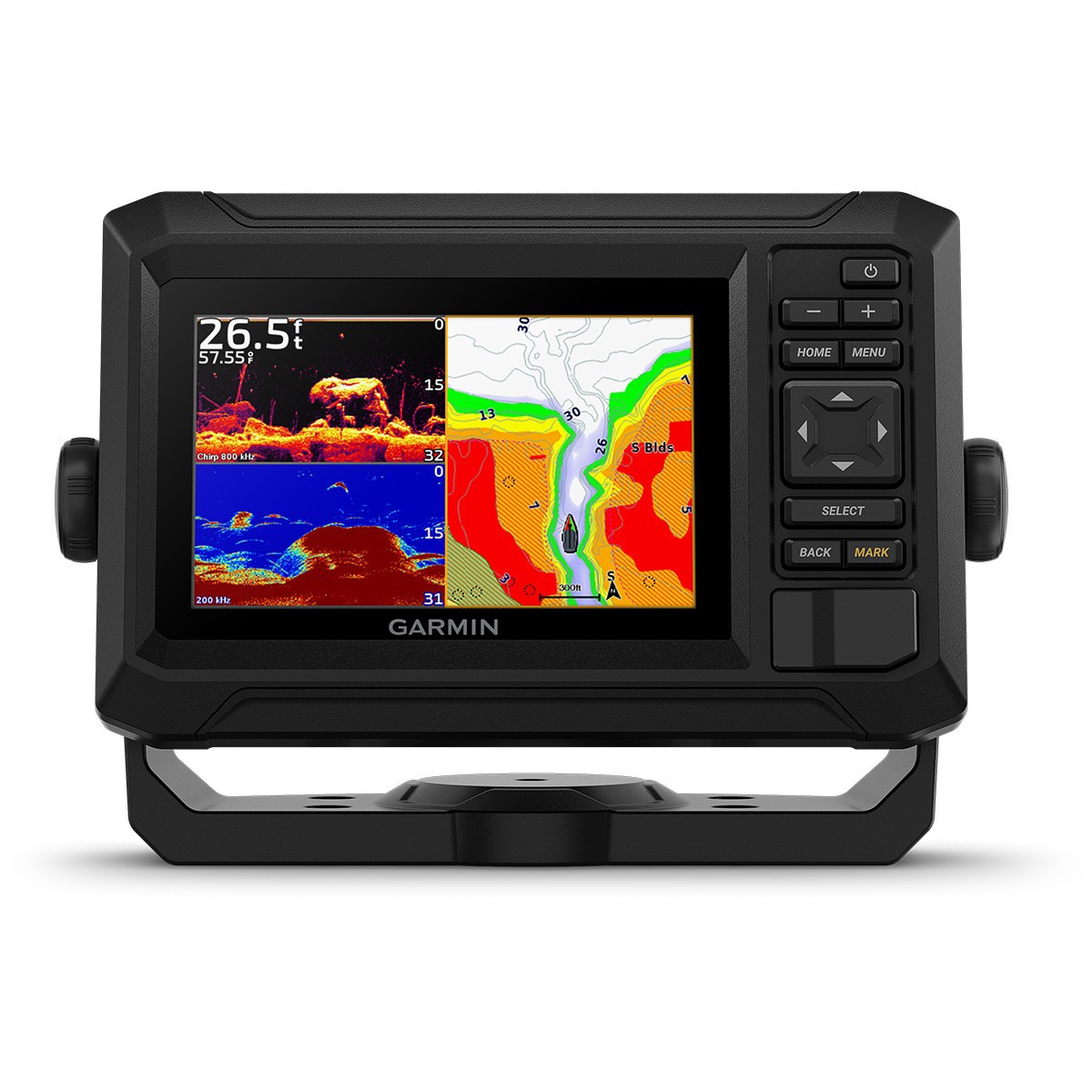

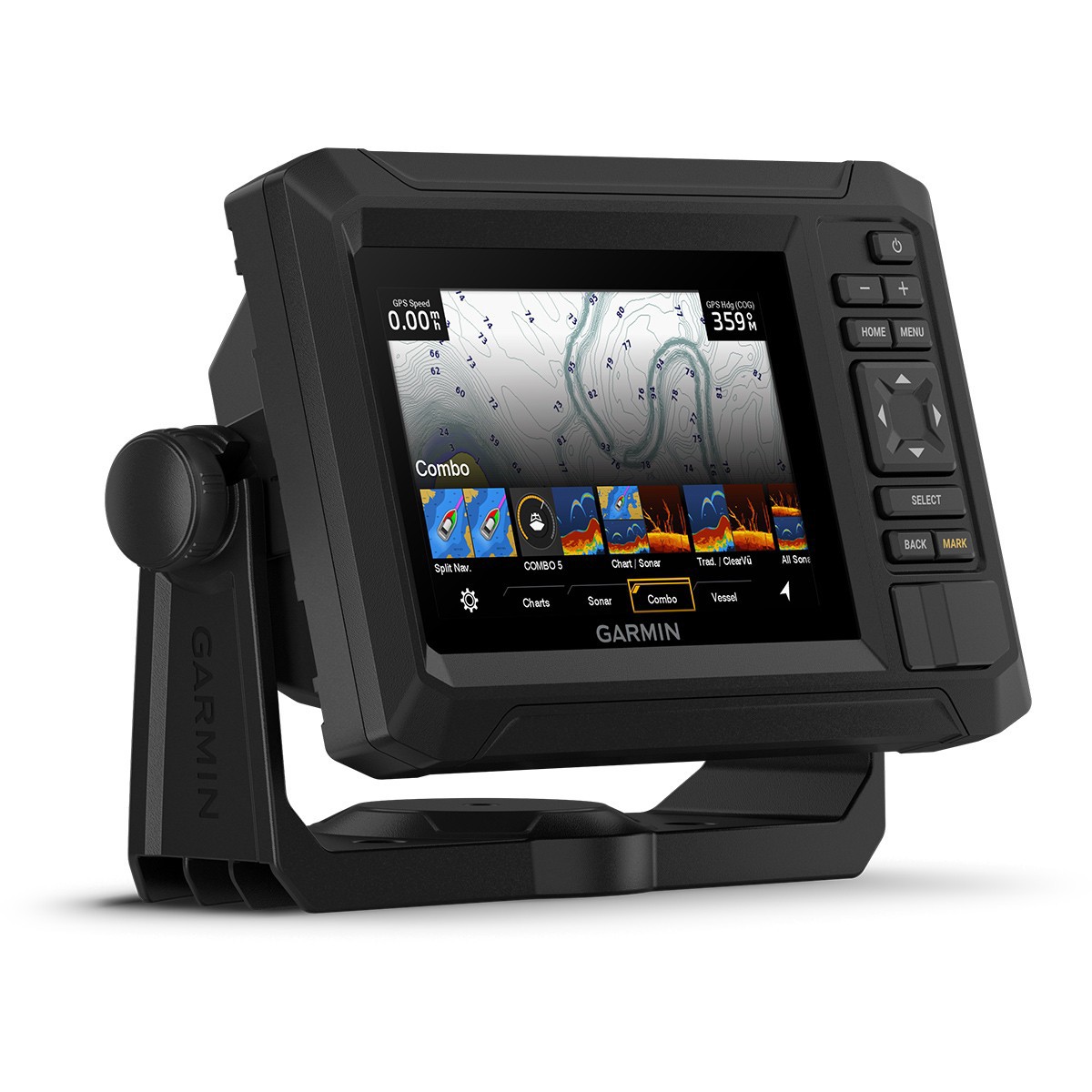

Garmin ECHOMAP UHD2 53CV GT20

75375928458

They say locals know best. But anyone who says that hasn’t fished with the ECHOMAP UHD2 5” chartplotters with clear, crisp sonar and mapping.

In The Box:
  • ECHOMAP UHD2 5"
  • GT20-TM transducer
  • Power/data cable

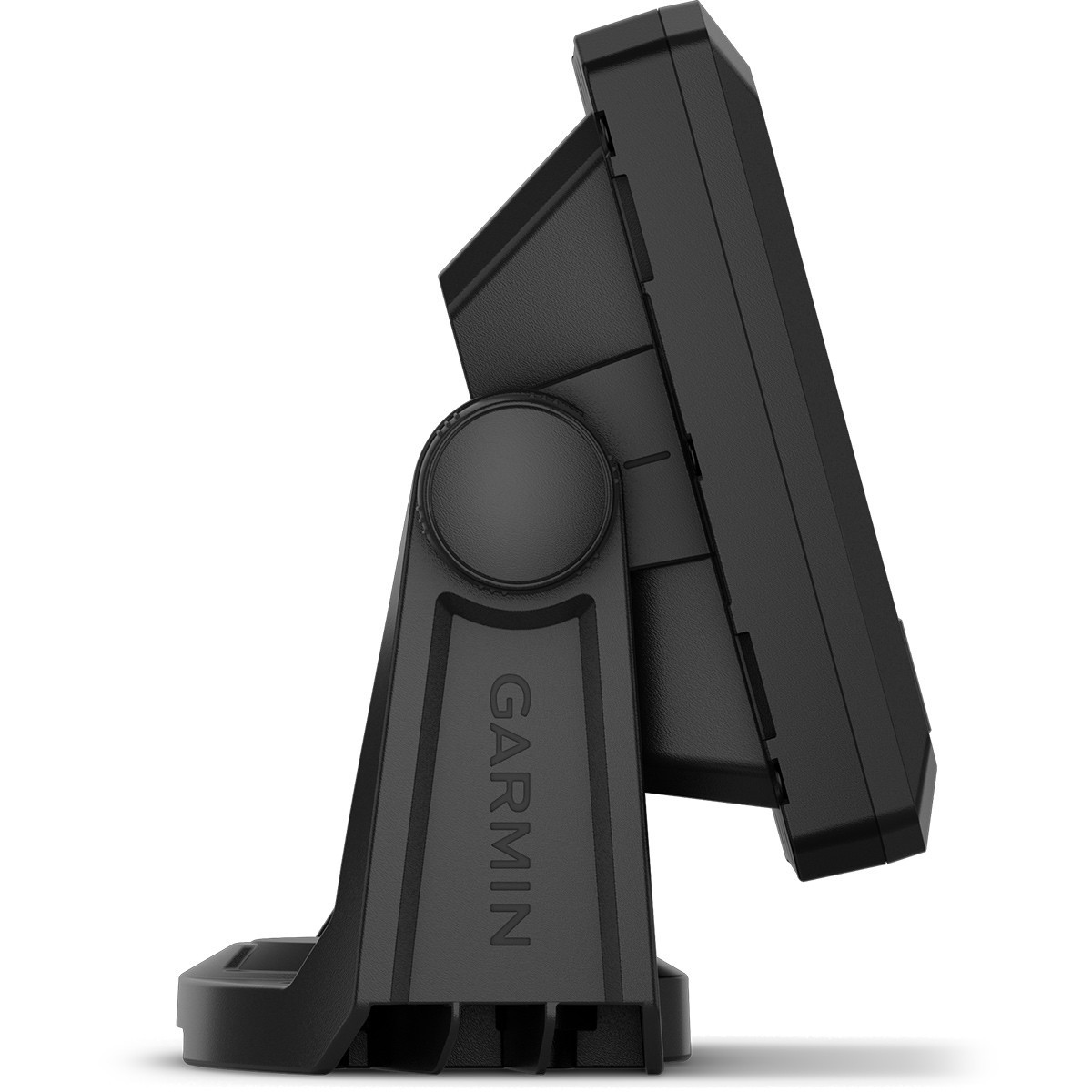

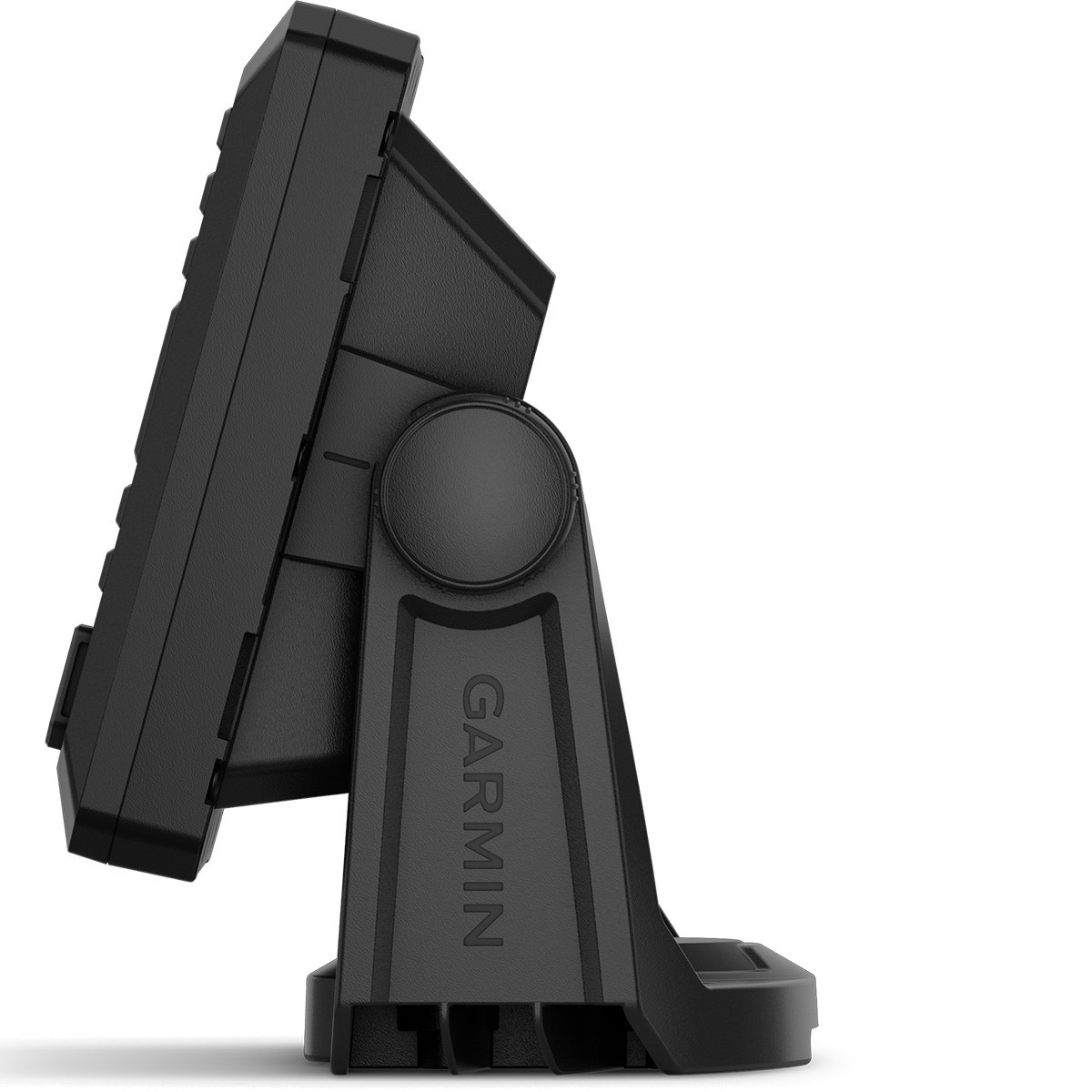

  • Tilt mount
  • Flush mount
  • Hardware
  • Documentation
Garmin
  • Enjoy No. 1 in mapping with LakeVü g3 and BlueChart® maps with Navionics® data
  • Wi-Fi® connectivity between compatible chartplotters makes it easy to share info
  • What’s under the water looks even better with high-contrast vivid color palettes
  • Get double the views with Garmin CHIRP traditional and ClearVü scanning sonars
  • Bright 5" keyed display is made for convenience
  • 4-pin transducer ports 1
  • Maximum power usage at 10 Vdc 18W
  • Maximum current draw at 12 Vdc 1.5 A
  • Typical current draw at 12 Vdc 1.0 A
  • Power Input 9 to 18 Vdc
  • Navigation Routes 100
  • Tracks 50 saved tracks
  • Track points 50,000
  • Waypoints 5,000
  • Accepts Data Cards 1 microSD™ card; 32 GB maximum size
  • Mounting Options Bail or flush
  • WATERPROOF IPX7
  • WEIGHT 1.1 lbs (0.5 kg)
  • Display Type WVGA, TN
  • Display resolution 800 x 480 pixels
  • DISPLAY SIZE 4.3" x 2.6" (10.9 x 6.6 cm)
  • INPUT Keyed
  • GARMIN WI-FI NETWORK (LOCAL CONNECTION)
  • Power output 500 W
  • ClearVü built-in 260/455/800/1000/1200 kHz
  • Traditional Sonar (dual frequency/beam) Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • DIMENSION 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
