Garmin ECHOMAP Ultra 126sv GT56UHD-TM Transducer

Item No. 75375928519
$2,949.99

Save For Later

Select Delivery Method:

Free Shipping

Est. Delivery Thur. 3/30 - Sat. 4/1

Free Returns SCHEELS Guarantee
Earn 8,850 Points on this item with SCHEELS Visa Rewards

Garmin ECHOMAP Ultra 126sv GT56UHD-TM Transducer

75375928519

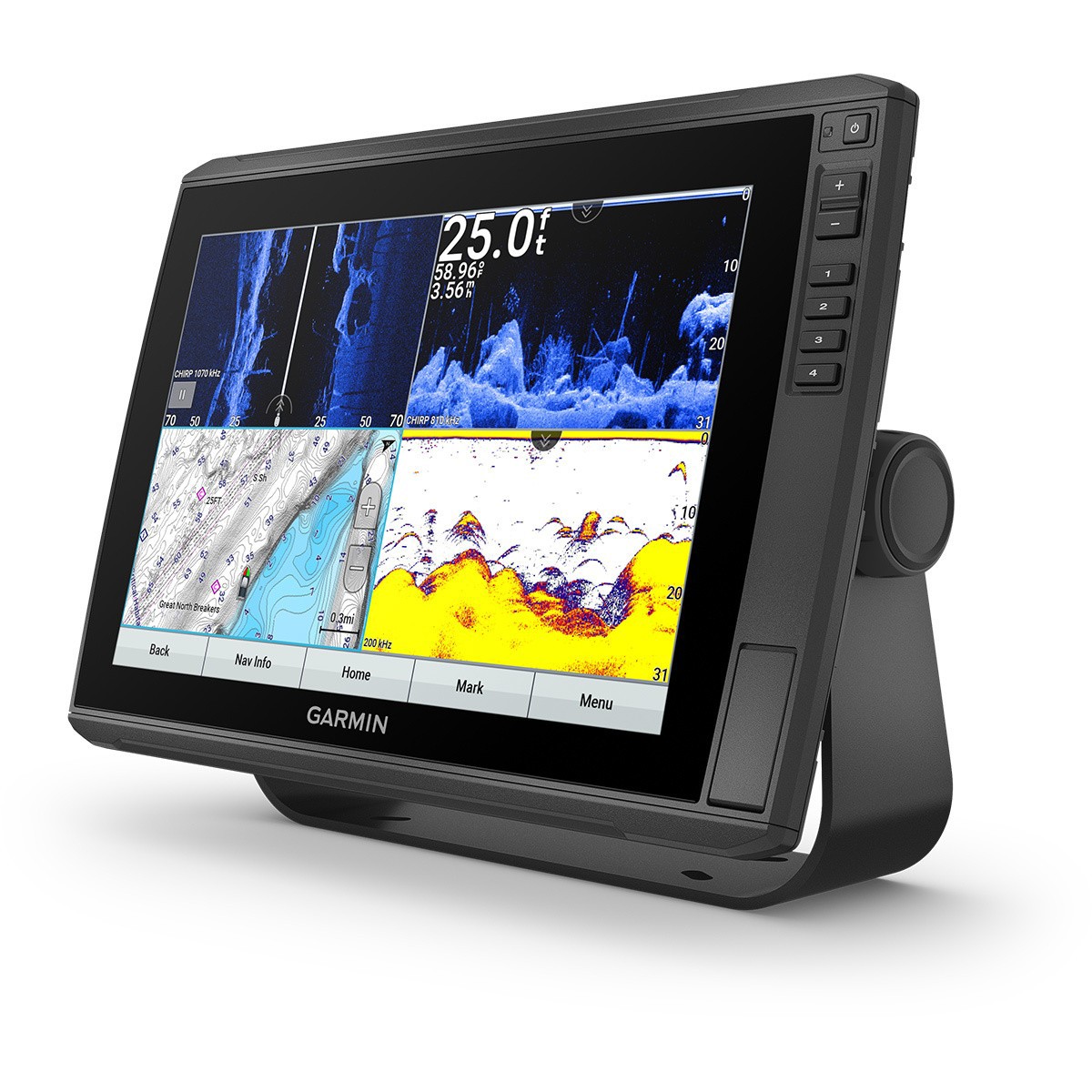

The Garmin ECHOMAP Ultra 126sv GT56UHD-TM Transducer Fish Finder features a large, 12-inch sunlight-readable touchscreen so you're able to clearly see what's below the surface. Featuring preloaded coastal and inland Garmin Navionics+â„¢ mapping and CHIRP traditional and Ultra High-Definition scanning sonars, you'll be able to navigate confidently while receiving unparalleled coverage and detail to maximize your success on the water. Additional features allow you to create personalized fishing maps with 1 ft. contours, share information between compatible devices to build the ultimate fish-finding set-up, and have multiple mounting options for a safe and secure fit.

Includes:
  • Hardware
  • Flush mount
  • Documentation
  • Protective cover
  • Power/data cable
  • GT56UHD-TM transducer
  • Tilt mount with quick-release cradle
  • ECHOMAP Ultra 126sv with Garmin Navionics+
Garmin
  • Supports LiveScope
  • Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
  • Connect your boat to share data, sonar, and charts with your other compatible devices
  • Manage your marine experience from nearly anywhere with the ActiveCaptain® app

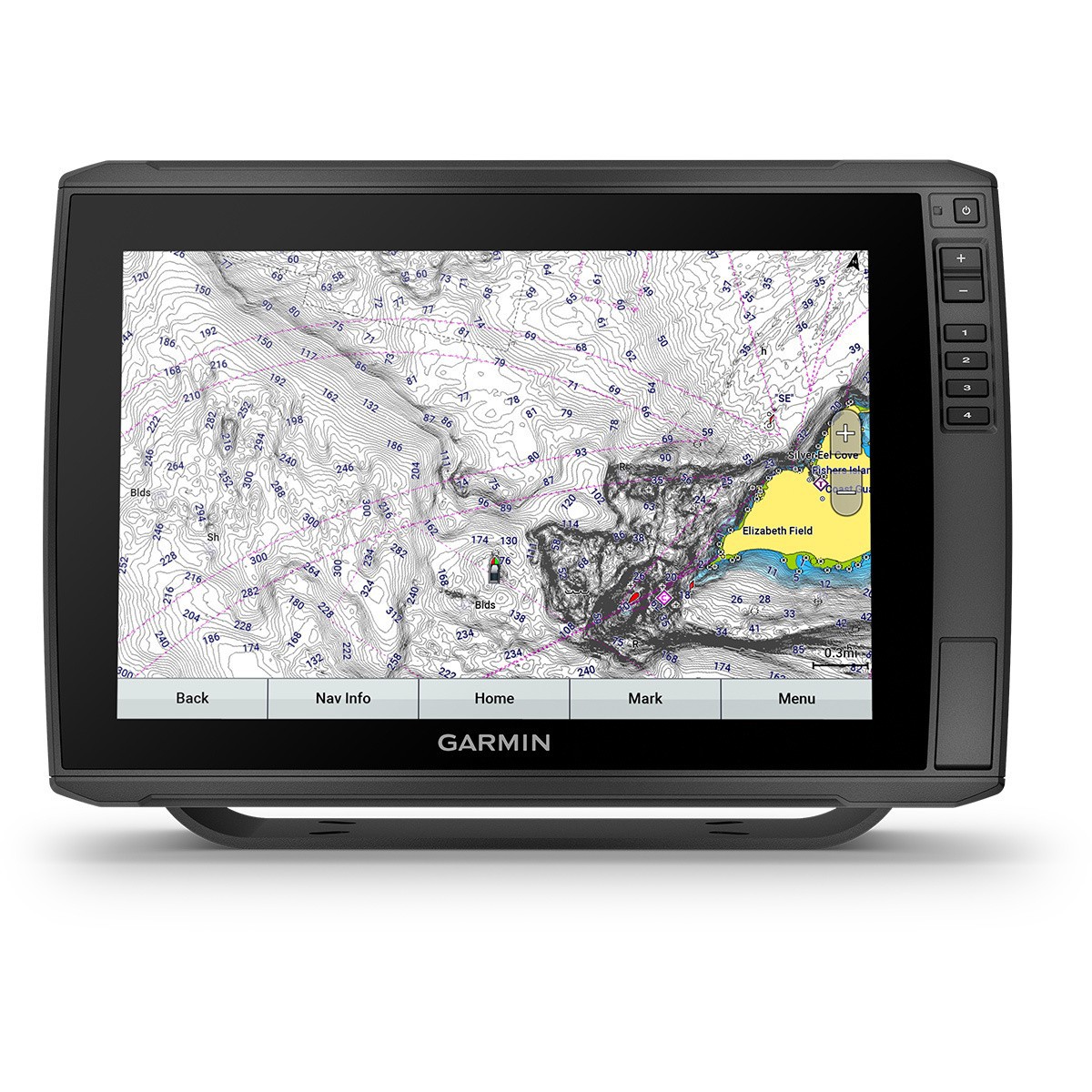

  • Navigate confidently with built-in Garmin Navionics+™ mapping
  • See crisp images of structure and fish in stunning detail
  • Touchscreen with key assist
  • Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app
  • Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping with Auto Guidance+™ technology2, includes 1-year subscription for downloadable daily updates and more
  • Transducer bundled products include the GT56 transducers with three scanning sonar frequencies and 20% greater range for your UHD SideVü sonar

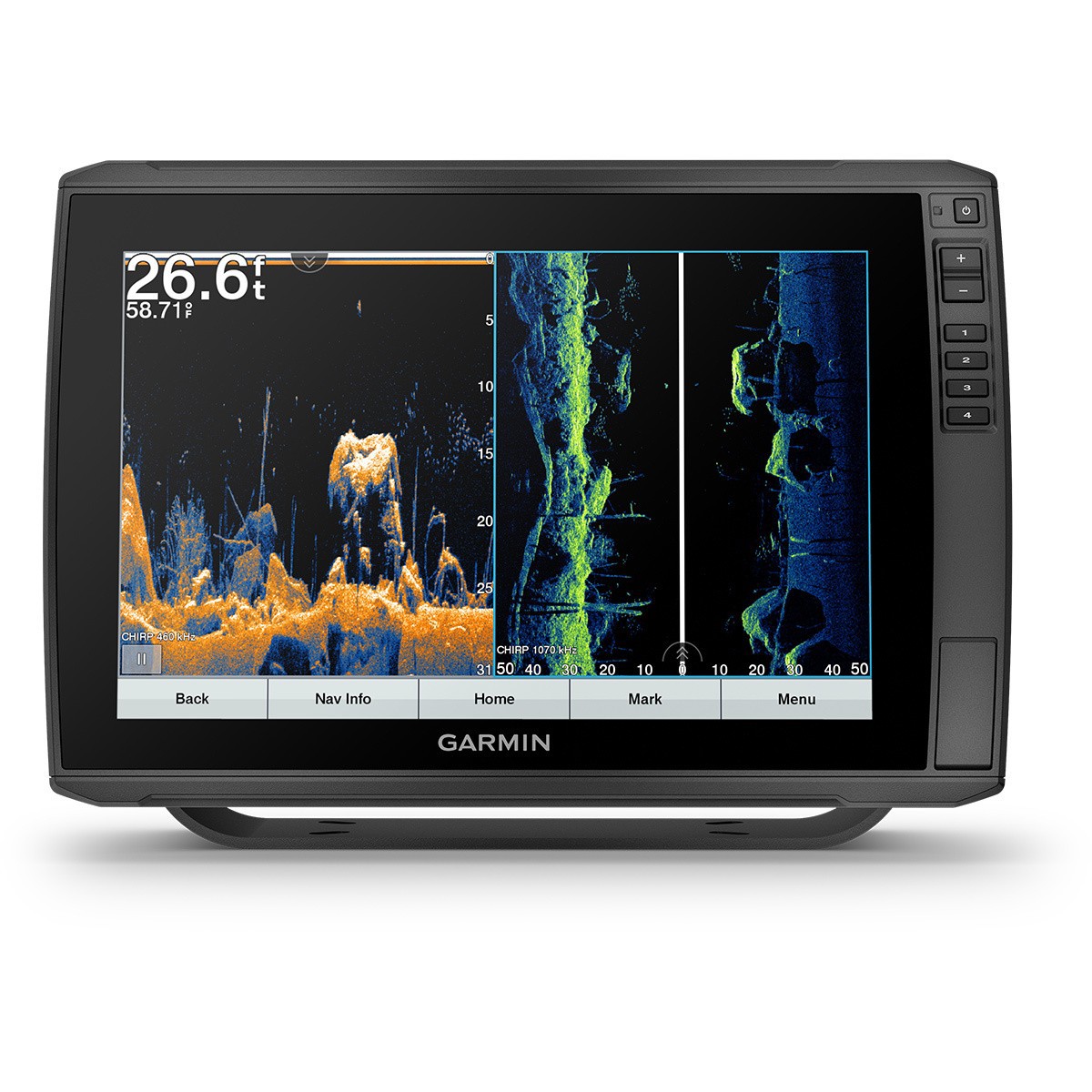

  • Built-in UHD sonar provides Garmin CHIRP traditional sonar plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonars when paired with a compatible UHD transducer
  • Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
  • Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks, and more from the screen of your chart plotter
  • If you have multiple compatible ECHOMAP Ultra 10" or 12" units or ECHOMAP Plus or UHD 7" and 9" units on your boat, you can share information — such as sonar, user data and charts — among them
  • High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures
  • BlueChart g3: No
  • Garmin Quickdraw Contours: Yes
  • BLUETOOTH® Pairing: No
  • AIS: Yes
  • Raster Chart Support: No
  • NMEA 0183 Input (Tx) Ports: 1
  • OneHelm Support: No
  • ClearVü Built-In: 260/455/800/1000/1200 kHz
  • Tracks: 50 saved tracks
  • Wireless Remote Compatible: No
  • Supports Fusion-Link™ Compatible Radios: Yes
  • Input Touchscreen with Keyed Assist
  • Garmin Wi-Fi Network (local connection): No
  • Standard Mapping: Yes
  • LakeVu (inland): No
  • Built-in Auto Guidance+: Yes
  • Displays Sonar: Yes
  • ANT+ (Connectivity): No
  • GCV Black Box Sonar Support: No
  • BNC External GPS Antenna Port: No
  • Connections NMEA0183 Input Ports: 1
  • Spoken Audio Alerts: No
  • BlueChart g3 Vision: No
  • Galileo: No
  • LiveScope: Yes
  • Power Output: 600 W
  • 12-pin Transducer Ports 1 LVS sonar; 1 12-pin scanning sonar
  • BlueChart (coastal): No
  • Traditional Sonar (dual frequency/beam) Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • GRID (Garmin Remote Input Device) Compatible: No
  • Maximum current draw at 12 Vdc: 3.0 A
  • Maximum Power Usage at 10 Vdc: 24.4 W
  • Receiver: 10 Hz
  • Waterproof: IPX7
  • Weight: 5.5 lbs.
  • Mounting Options: Bail or flush
  • Display Type: WXGA, IPS
  • Garmin Navionics Vision+™: Yes
  • Accepts Data Cards: 2 microSD™ cards
  • Garmin Navionics+ Inland & Coastal: Yes
  • Navigation Routes: 100
  • Garmin Navionics+™: Yes
  • Dimensions: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
  • GPS: Yes
  • Display Size: 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
  • Power Input: 9 to 18 Vdc
  • Display Resolution: 1280 x 800 pixels
  • Waypoints: 5000
  • Sailing Features: Yes
  • Tide Tables: Yes
  • GLONASS: No
  • Track Points: 50,000

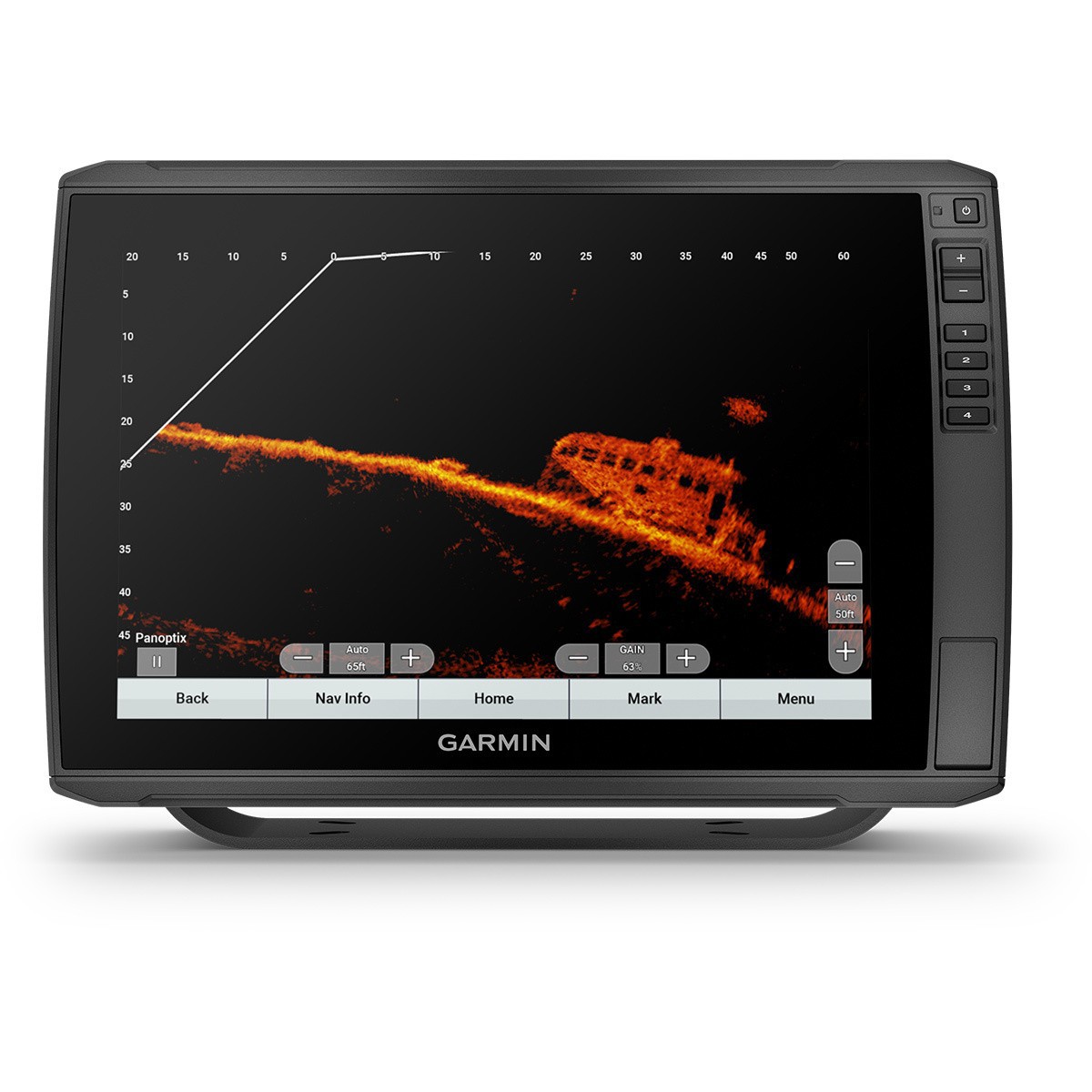

  • Panoptix™ Sonar: Yes
  • Garmin Marine Network Ports: 2 (large connector)
  • LakeVü g3: No
  • Supports WAAS: Yes
  • GSD Black Box Sonar Support: No
  • Maximum Current Draw at 12 Vdc: 3.0 A
  • Smart Mode Compatible: No
  • NMEA 2000 Ports: 1
  • Typical Current Draw at 12 Vdc: 2.8 A
  • NMEA 0183 Compatible: Yes
  • Has built-in receiver: Yes
  • USB Ports: No
  • TOPO: Yes
  • SideVü Built-In: 260/455/800/1000/1200 kHz
  • DSC: Yes
  • Touchscreen: Yes
  • LakeVü g3 Ultra: No
  • NMEA 2000 Compatible: Yes
  • ActiveCaptain® Compatible: yes
  • Built-in Auto Guidance: No
