Garmin ECHOMAP Ultra 126sv without Transducer


Get the ultimate fishing experience with the Garmin ECHOMAP Ultra 126sv without Transducer. With a large, high-resolution 12" touchscreen and built-in UHD sonar, you'll see crisp images of structure and fish in stunning detail. Built-in Wi-Fi connectivity, as well as support for multiple Garmin transducers, make it easy to share data and connect your boat to other compatible devices. Plus, the ActiveCaptain app lets you manage your marine experience from virtually anywhere. With its advanced features, like built-in Navionics+ mapping and support for controlling your trolling motor, the Garmin ECHOMAP Ultra 126sv is the perfect choice for serious anglers. Order your Garmin ECHOMAP Ultra 126sv without Transducer today and take your fishing game to the next level!

In the Box:
  • Hardware
  • Flush mount
  • Power/data cable
  • Protective cover
  • Documentation
  • Tilt mount with quick release cradle
  • ECHOMAP Ultra 126sv with Garmin Navionics+
  • 8-pin transducer to 12-pin sounder adapter cable
  • Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping with Auto Guidance+™ technology2. It comes with a 1-year subscription for downloadable daily updates and more
  • High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure
  • Built-in UHD sonar provides Garmin CHIRP traditional sonar plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonars when paired with a compatible UHD transducer
  • ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar.
  • Connect your boat to share data, sonar and charts with your other compatible devices
  • Manage your marine experience from nearly anywhere with the ActiveCaptain® app

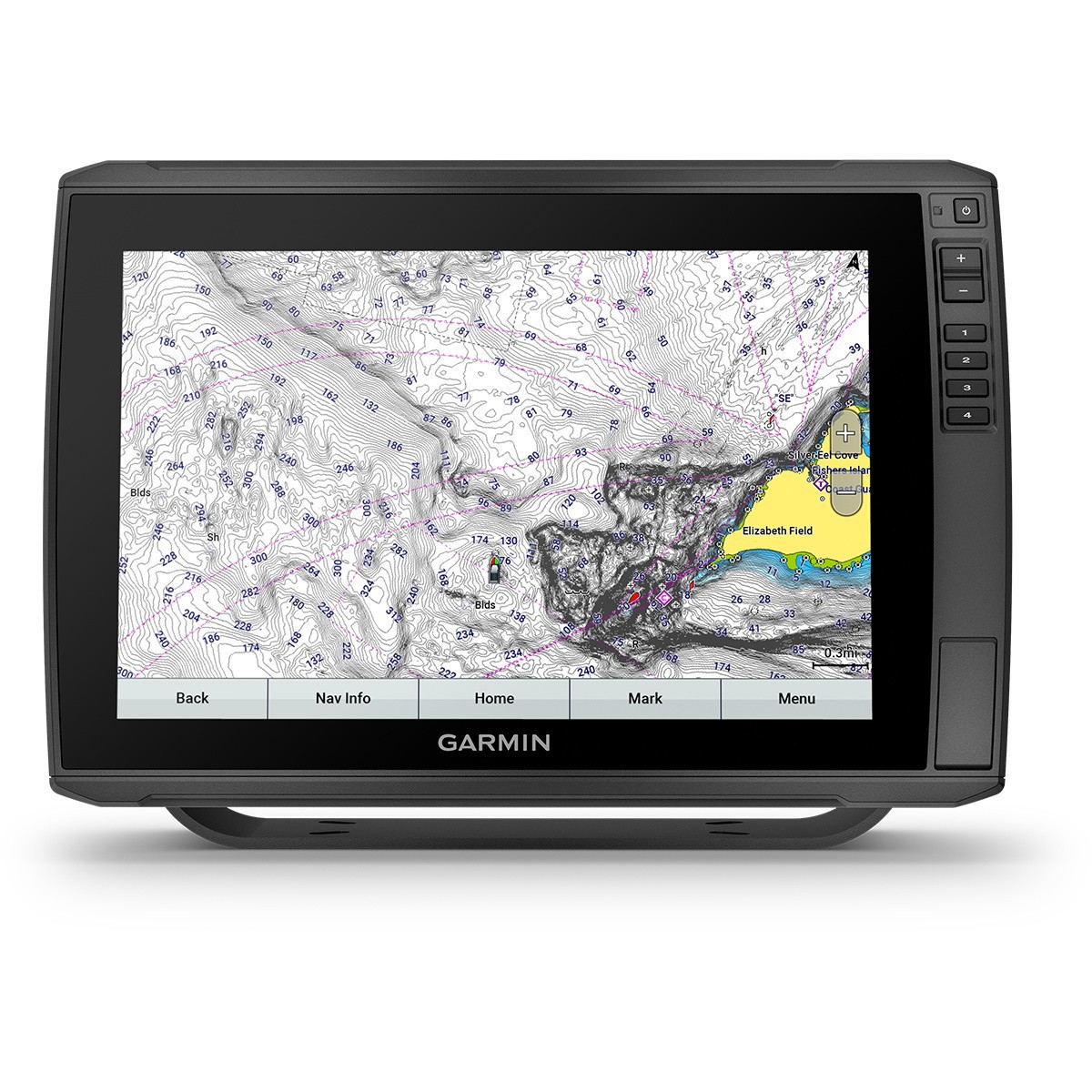

  • Navigate confidently with built-in Garmin Navionics+™ mapping

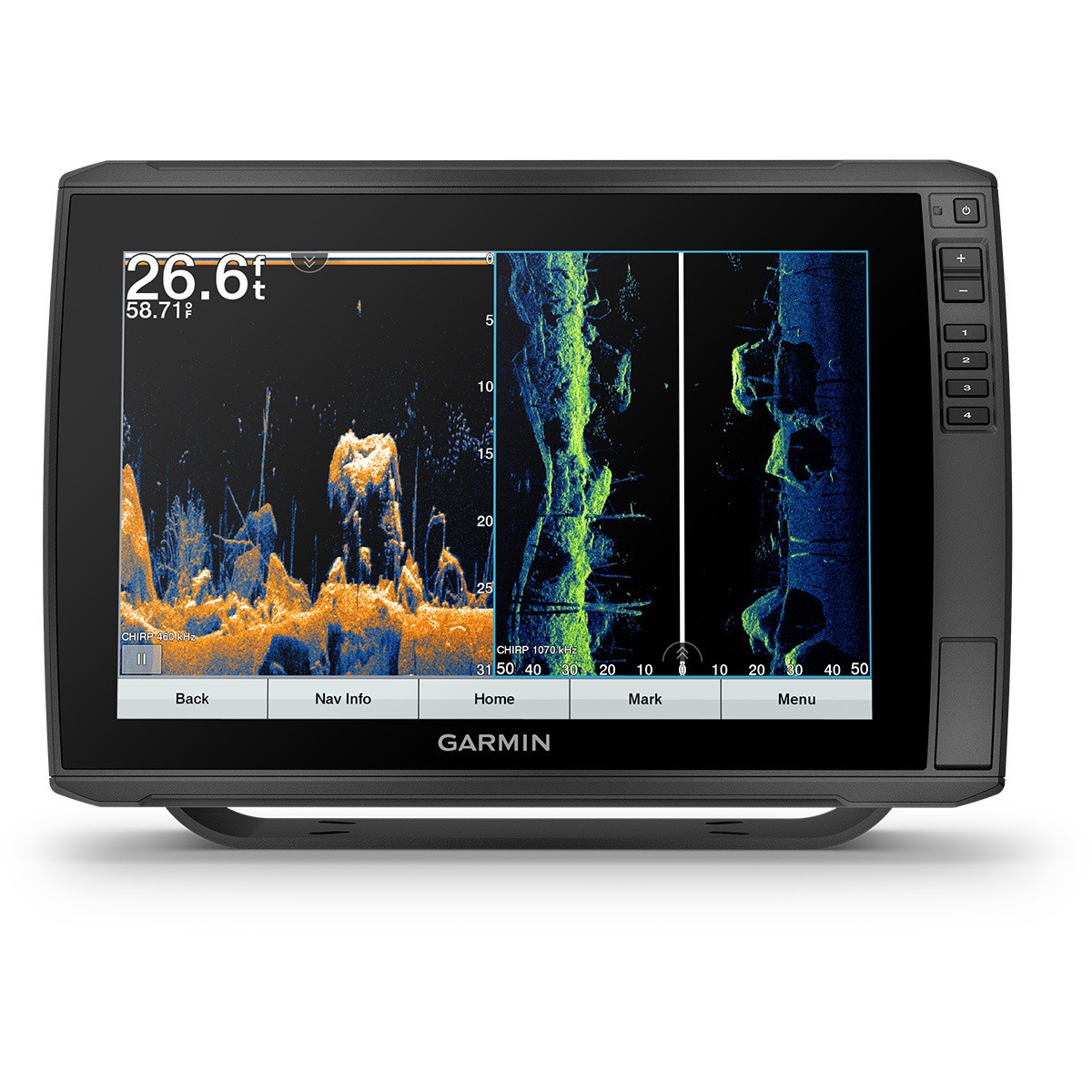

  • See crisp images of structure and fish in stunning detail
  • The keyed-assist 12" touchscreen puts fishfinding know-how at your fingertips
  • Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen
  • Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more
  • Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter
  • Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit
  • ANT+ (Connectivity): No
  • Garmin Marine Network Ports: 2 (large connector)

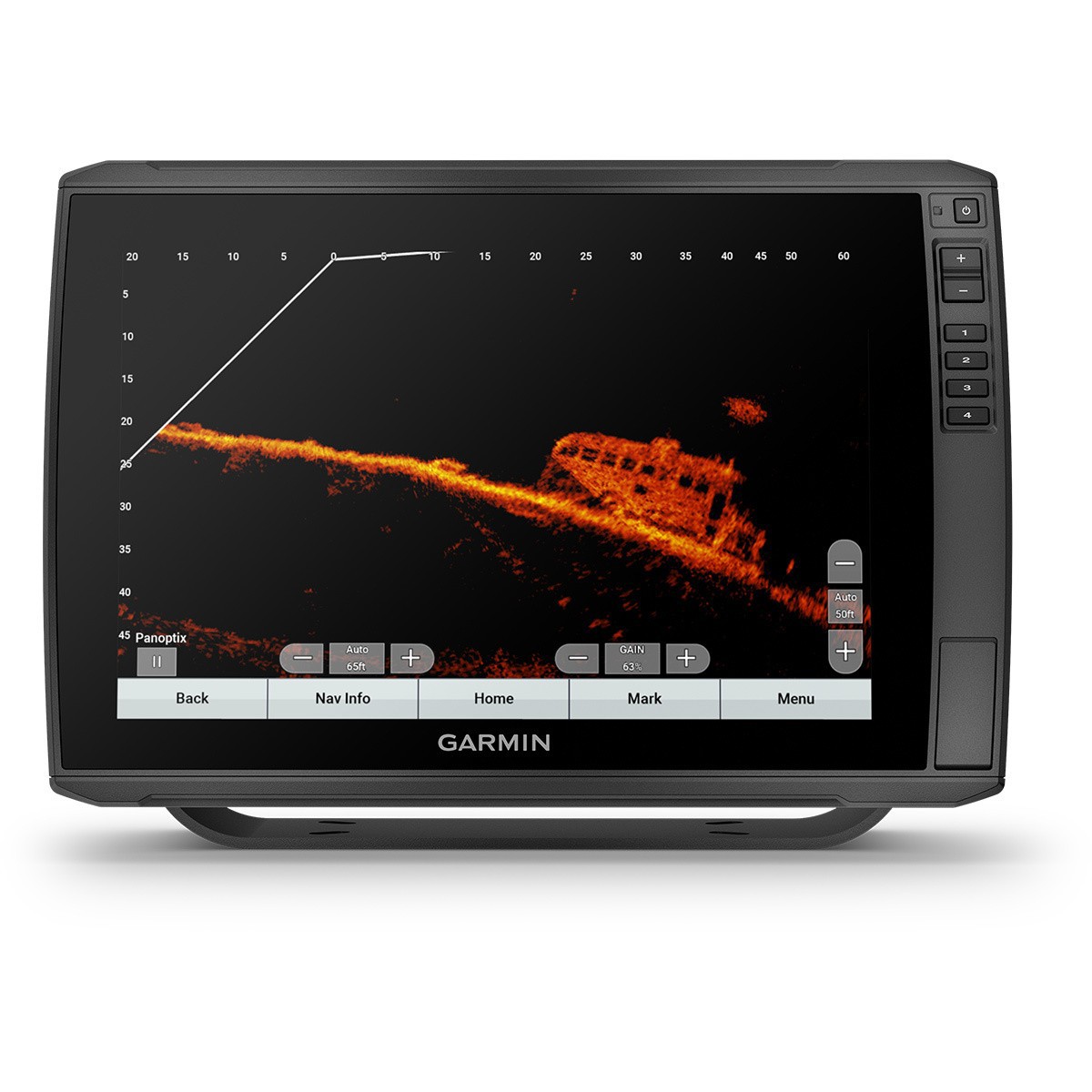

  • Panoptix™ Sonar: Yes
  • Track Points: 50,000
  • Tide Tables: Yes
  • NMEA 2000 Ports: 1
  • Typical Current Draw at 12 Vdc: 2.8 A
  • ActiveCaptain® Compatible: yes
  • NMEA 2000 Compatible: Yes
  • LakeVü g3: No
  • Supports WAAS: Yes
  • GSD Black Box Sonar Support: No
  • Displays Sonar: Yes
  • Built-in Auto Guidance+: Yes
  • LakeVu (inland): No
  • Standard Mapping: Yes
  • BlueChart g3: No
  • Maximum Power Usage at 10 Vdc: 24.4 W
  • Built-in Auto Guidance: No
  • Smart Mode Compatible: No
  • Maximum current draw at 12 Vdc: 3.0 A
  • LakeVü g3 Ultra: No
  • Touchscreen: Yes
  • DSC: Yes
  • Display Type: WXGA, IPS
  • Mounting Options: Bail or flush
  • Weight: 5.5 lbs (2.5 kg)
  • Waterproof: IPX7
  • Receiver: 10 Hz
  • Dimension: 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm)
  • GPS: Yes
  • Display Resolution: 1280 x 800 pixels
  • Power Input: 9 to 18 Vdc
  • Garmin Navionics Vision+™: Yes
  • Accepts Data Cards: 2 microSD™ cards
  • Garmin Navionics+ Inland & Coastal: Yes
  • SideVü: built-in 260/455/800/1000/1200 kHz
  • TOPO: Yes
  • USB Ports: No
  • Has built-in receiver: Yes
  • NMEA 0183 Compatible: Yes
  • Sailing Features: Yes
  • Waypoints: 5000
  • Garmin Navionics+™: Yes
  • Navigation Routes: 100
  • Display Size: 10.3" x 6.4"; 12.1" diagonal
  • GRID (Garmin Remote Input Device) Compatible: No
  • Traditional sonar (dual frequency/beam): built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • AIS: Yes
  • BLUETOOTH® Pairing: No
  • Garmin Quickdraw Contours: Yes
  • Input: Touchscreen with Keyed Assist
  • Garmin Wi-Fi Network (local connection): No
  • BlueChart g3 Vision: No
  • Spoken Audio Alerts: No
  • Connections NMEA0183 Input Ports: 1
  • BNC External GPS Antenna Port: No
  • Raster Chart Support: No
  • NMEA 0183 Input (Tx) Ports: 1
  • OneHelm Support: No
  • BlueChart (coastal): No
  • 12-pin transducer ports: 1 LVS sonar; 1 12-pin scanning sonar
  • Power Output: 600 W
  • LiveScope: Yes
  • Galileo: No
  • Supports Fusion-Link™ Compatible Radios: Yes
  • Wireless Remote Compatible: No
  • Tracks: 50 saved tracks
  • ClearVü: built-in 260/455/800/1000/1200 kHz
  • GCV Black Box Sonar Support: No
