Garmin GPSMAP 1042xsv Fish Finder Control Head Only

Item No. 75375916832

Select Delivery Method:

Free Shipping

Est. Delivery Thur. 4/6 - Sat. 4/8

Garmin GPSMAP 1042xsv Fish Finder Control Head Only


Knowledge is key when you are on the lake. The Garmin 1042xsv is an advanced all-in-one solution. The highlight of the Garmin 1042xsv is the large, easy-to-read screen with a quick and simple keypad interface with user-programmable keys and a multifunction control knob. Right out of the box, you have access to some one-of-a-kind sonar capabilities; all you have to add are transducers. GPSMAP 1042xsv comes with built-in Garmin 1 kW CHIRP sonar along with CHIRP ClearVü and CHIRP SideVü scanning sonars. It even supports Panoptix all-seeing sonar, including Panoptix LiveScope and other premium Garmin sonar modules (transducers sold separately). Gain information and ultimately catch more fish with the Garmin 1042xsv GPSMAP Fish Finder.

In the Box:
  • GPSMAP 1042xsv chartplotter
  • Power/data cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 m)
  • 8-pin transducer to 12-pin sounder adapter cable
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
  • Built-in support for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars (transducers sold separately)
  • 10" color display with keypad interface and multifunction control knob
  • Preloaded BlueChart® g3 charts and LakeVü g3 maps
  • High-sensitivity internal 10 Hz GPS and GLONASS receiver
  • Fully network capable for Garmin Marine Network and NMEA 2000® connectivity plus NMEA 0183 support

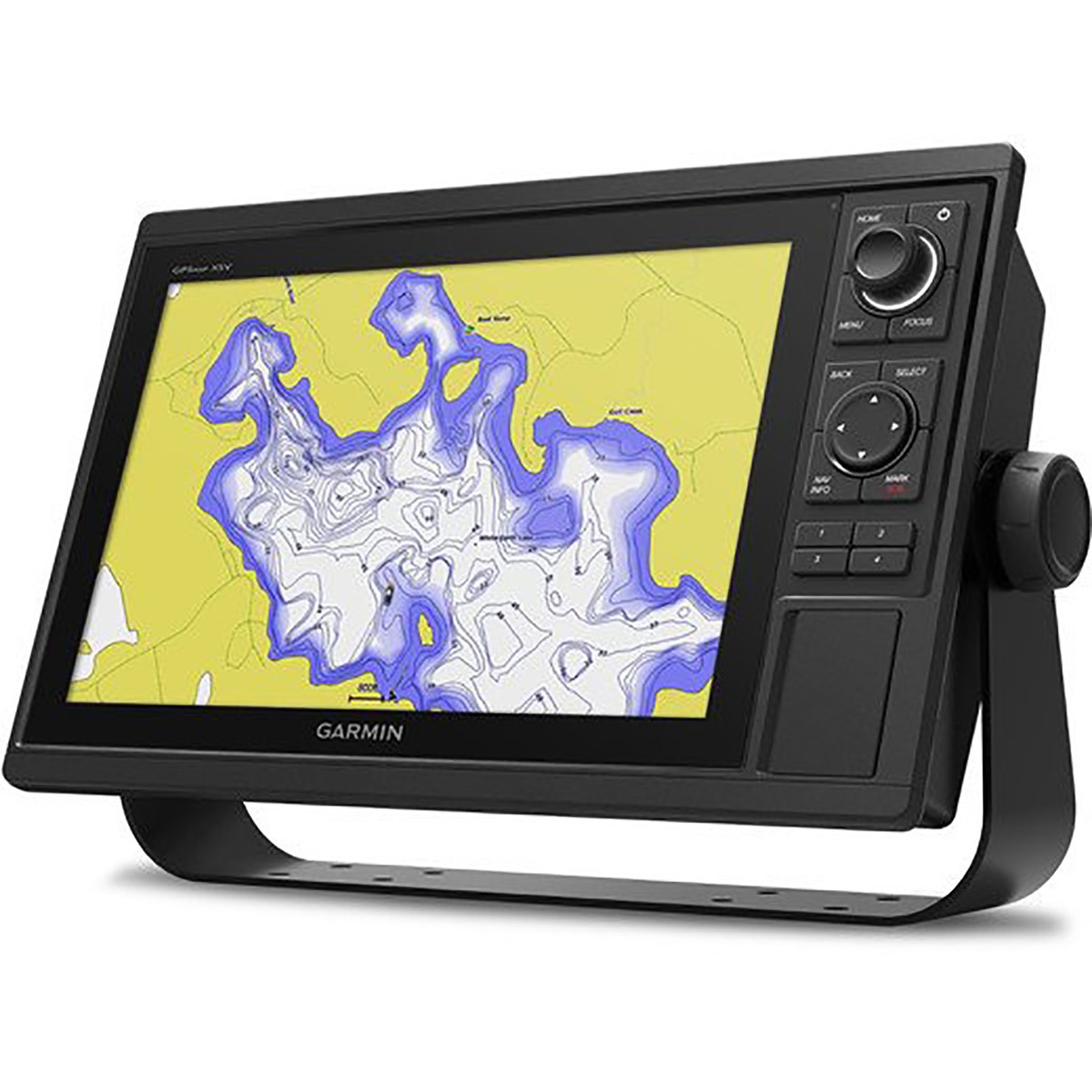

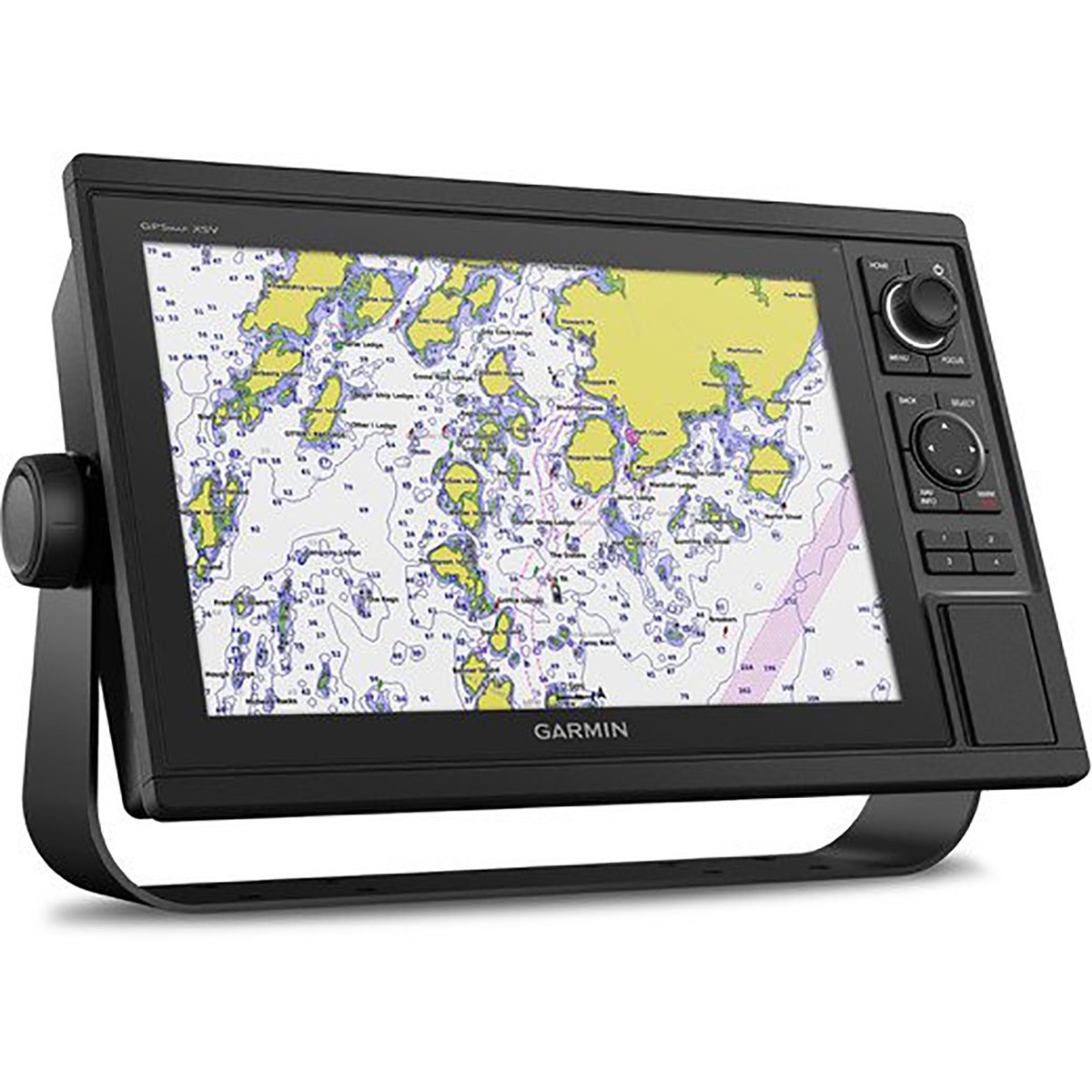

  • LakeVü g3 inland maps and BlueChart® g3 coastal charts provide industry-leading coverage, clarity and detail with integrated Garmin and Navionics® data and Auto Guidance1 technology. LakeVü g3 and BlueChart g3 include Auto Guidance1, which uses your desired depth and overhead clearance to calculate routes and provide a suggested path to follow. LakeVü g3 provides coverage on more than 17,000 lakes with up to 1’ contours. BlueChart g3 also includes NOAA raster cartography, available as a free downloadable feature via the ActiveCaptain® app.
  • Preloaded with Exceptional Garmin Cartography

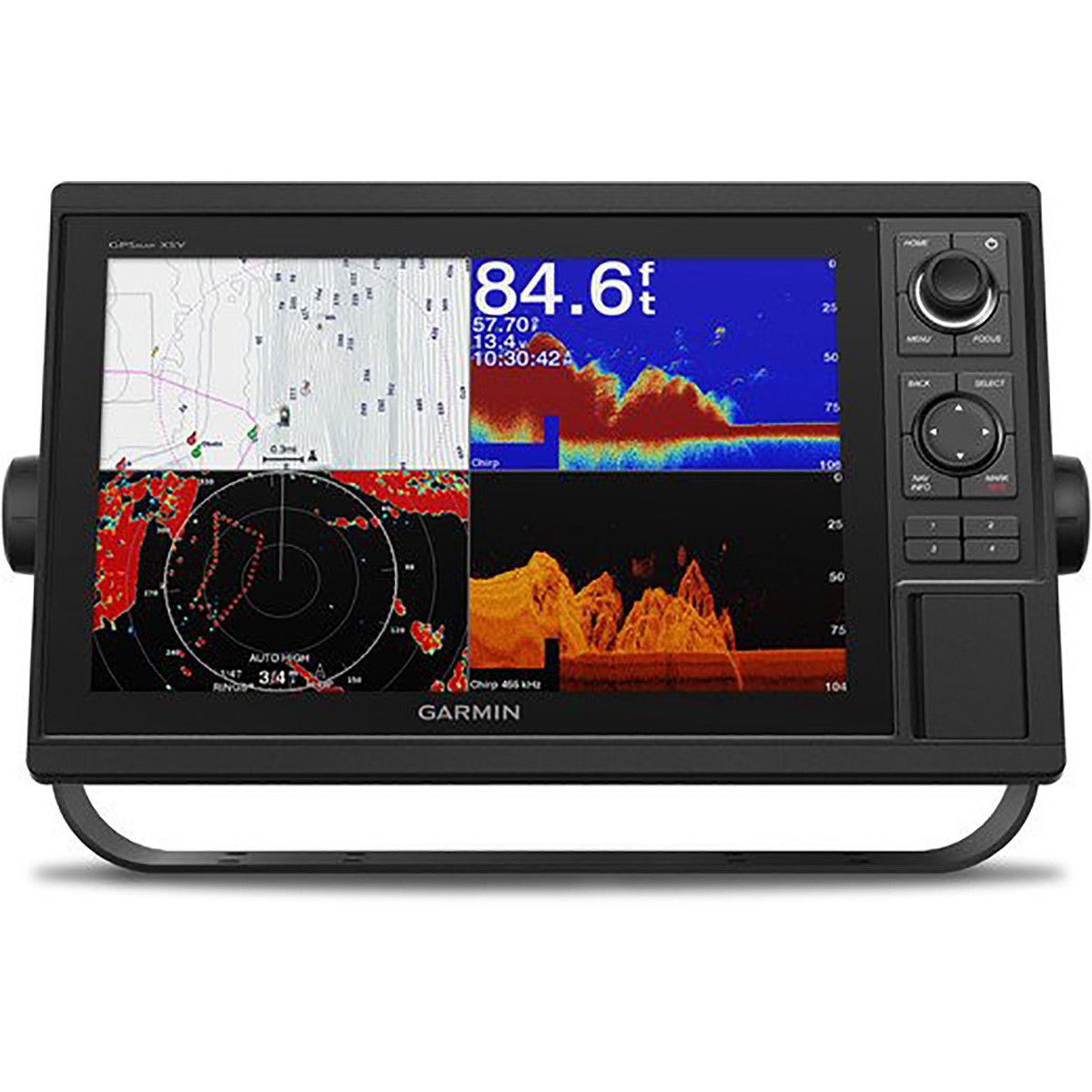

  • Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day, or GPS speed.

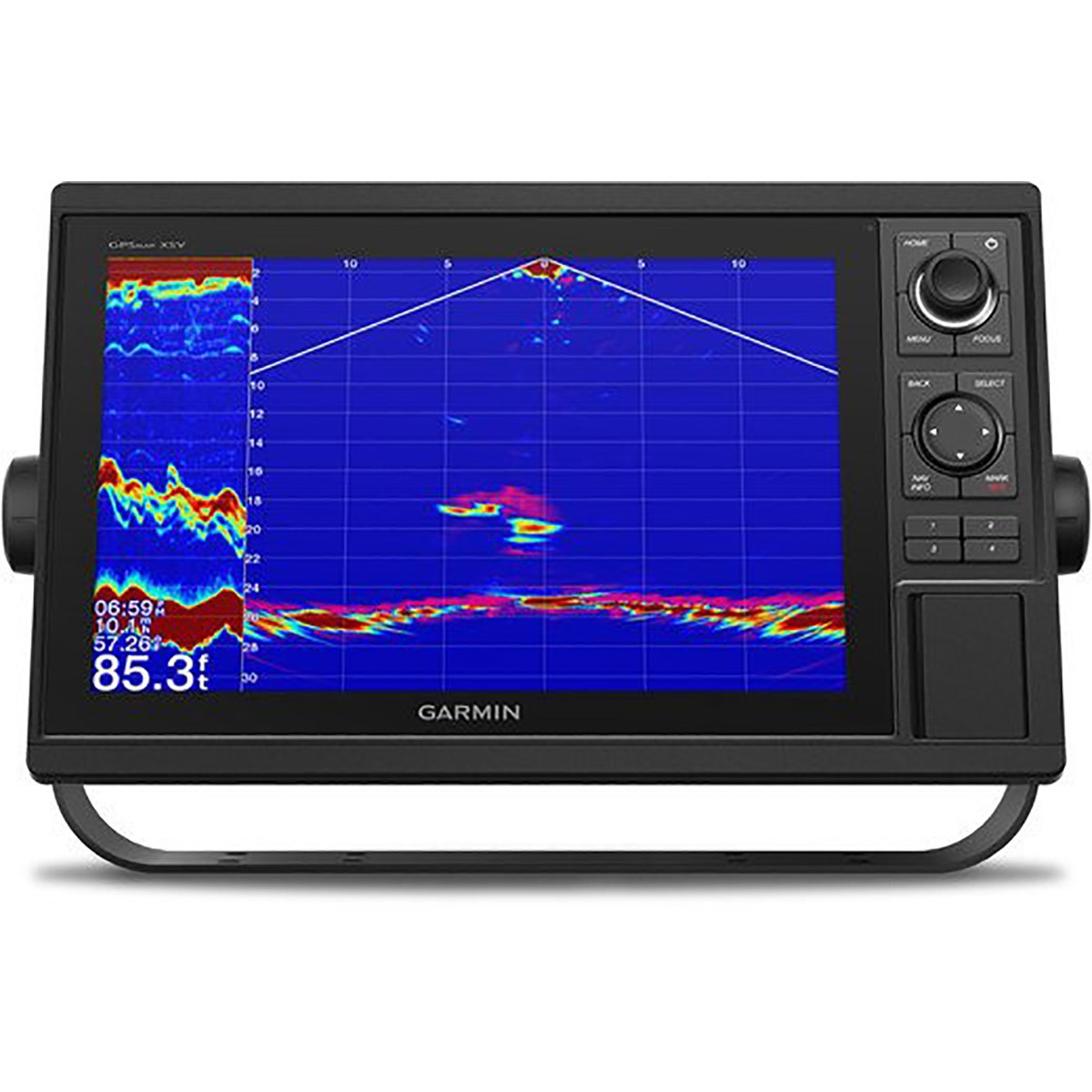

  • Built-in Sonar Capabilities
  • Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras, and Panoptix sonar among multiple units. Plus, there’s NMEA 2000 network connectivity and NMEA 0183 support for autopilots, digital switching, weather, media, VHF, AIS, and other sensors.
  • Complete Network Sharing

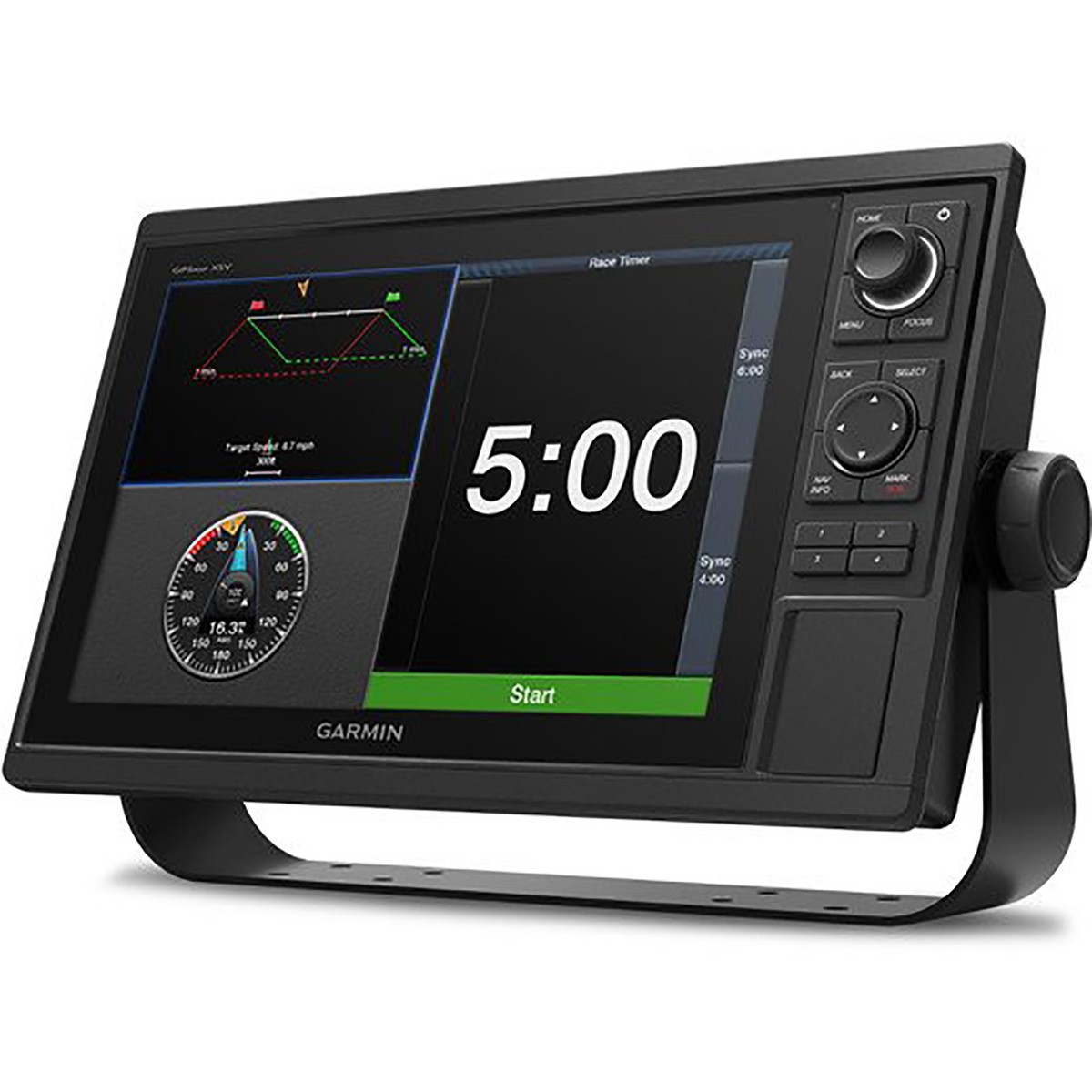

  • Sailing Features
  • Wireless Remote Compatible
  • Grid™ (Garmin Remote Input Device) Compatible
  • ActiveCaptain Compatible
  • GCV™ Black Box Sonar Support
  • GSD™ Black Box Sonar Support
  • Supports Fusion-Link™ Compatible Radios
  • Supports DSC (Displays Position Data From DSC-Capable Vhf Radio)
  • Supports AIS (Tracks Target Ships Position)
  • Garmin Smartmode Compatible (Customizable Monitor Presets)
  • Weight: 4.1 lb
  • Display resolution: 1024 x 600 pixels
  • Display size: 8.8" x 4.9"; 10.1" diagonal
  • Dimensions: 12.5" x 7.3" x 2.7
