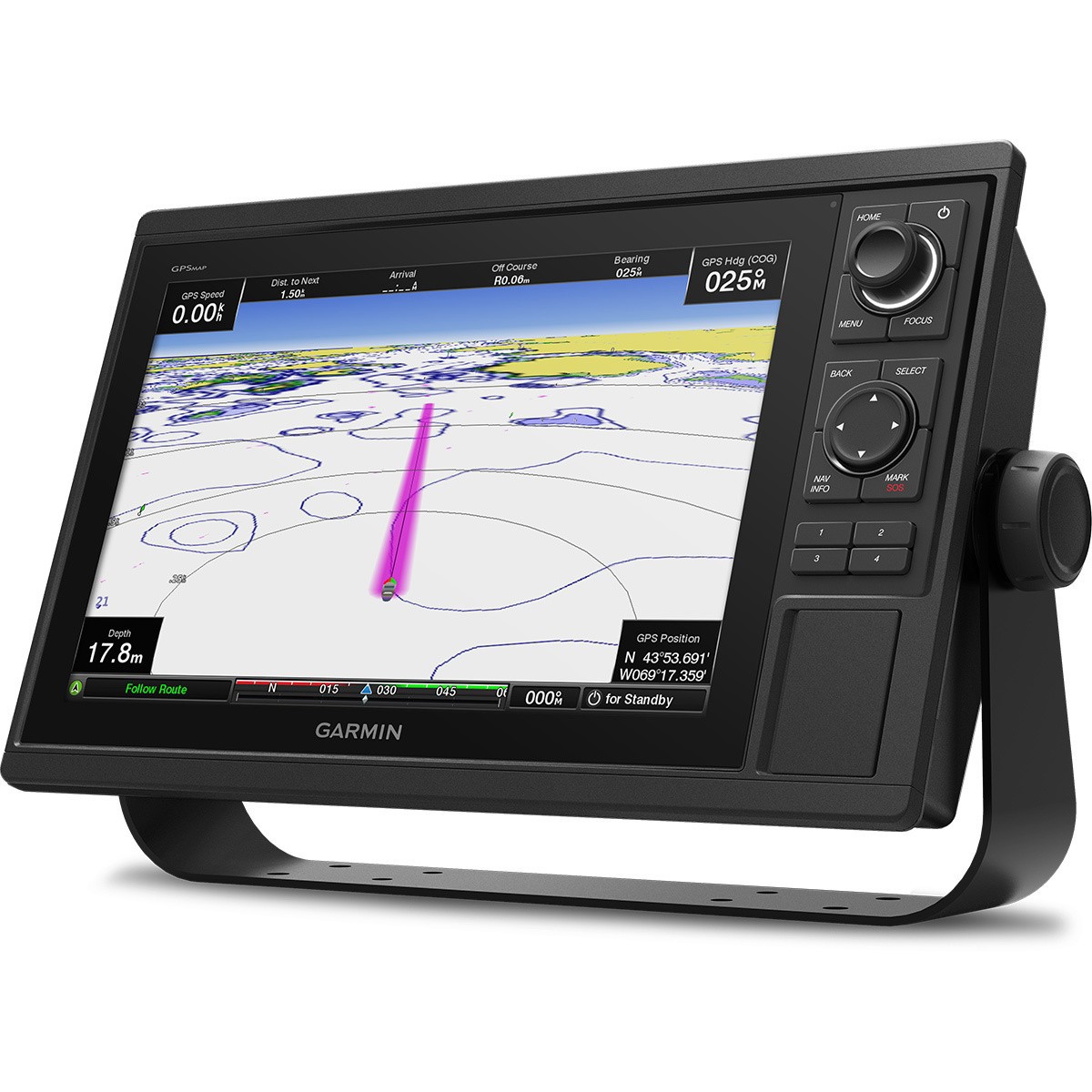

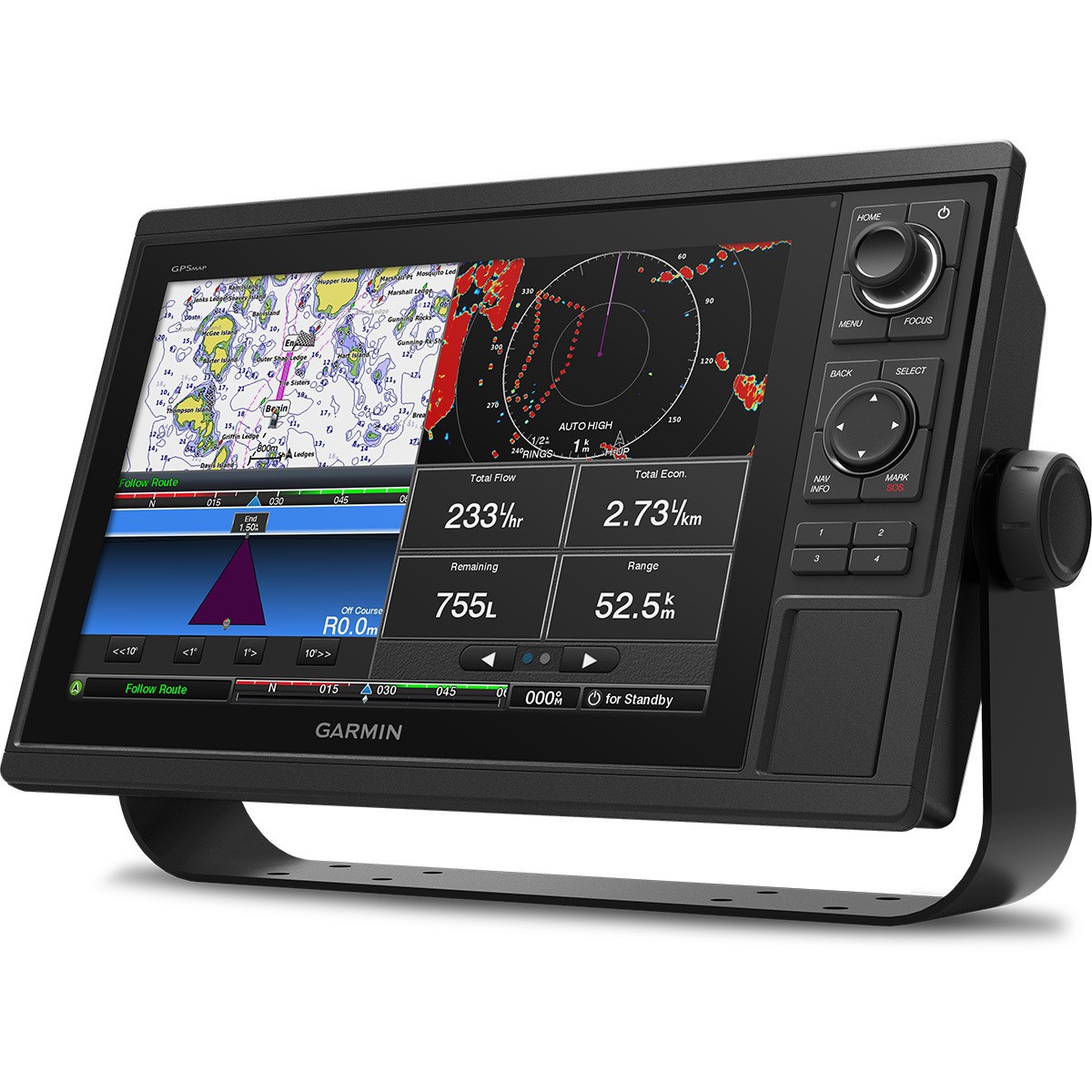

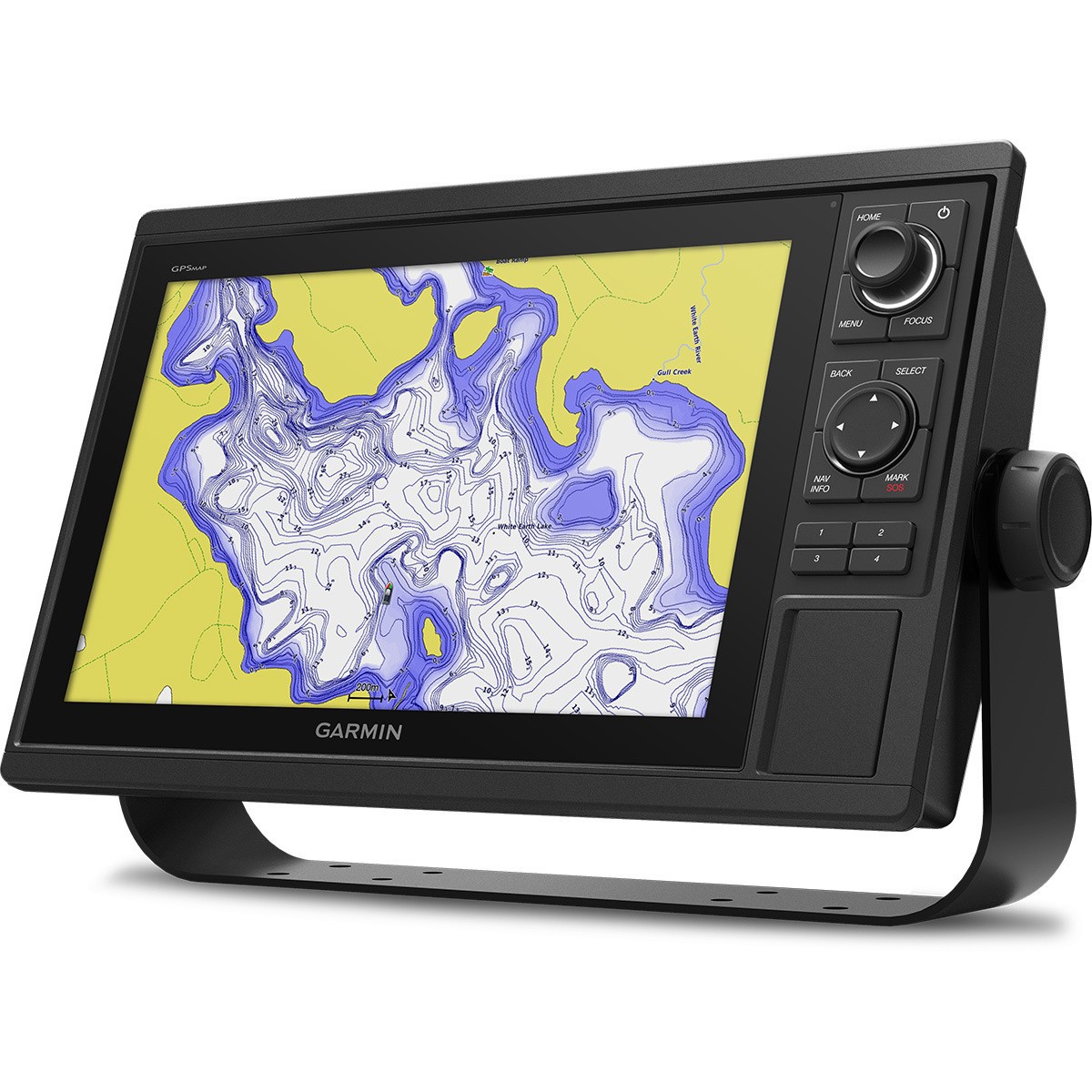

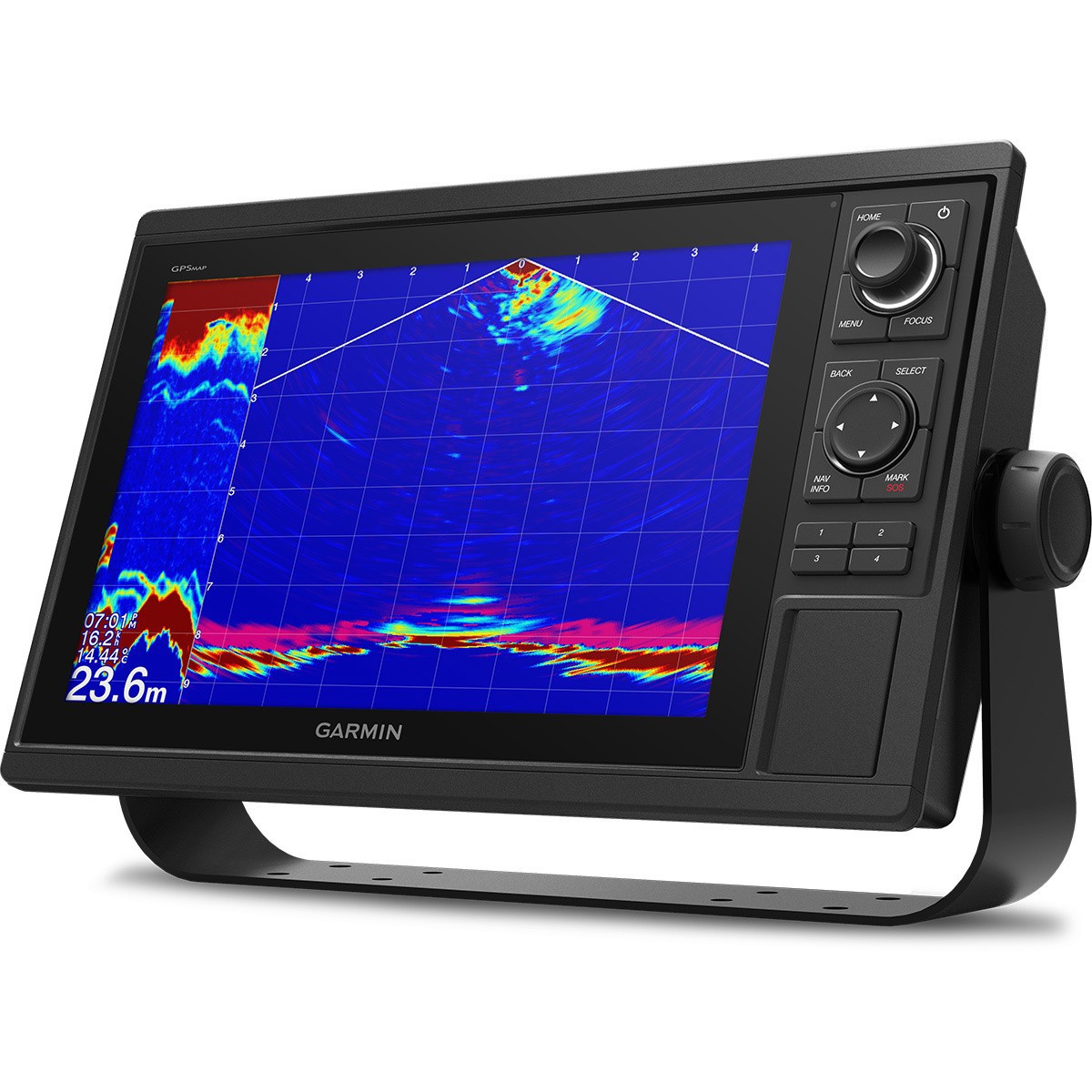

Garmin GPSMAP 1222 Worldwide Basemap Fish Finder
75375916833
These chartplotters feature large, bright screens coupled with quick and easy-to-use keypad interfaces with user-programmable keys and multifunction control knobs to help you navigate with ease.In the Box:
- GPSMAP 1222 chartplotter
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- Includes built-in single-channel CHIRP sonar plus CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars with Panoptix™ and LiveScope™ sonar support (transducers sold separately)
- Easily transfer waypoints, tracks and routes from your other GPS devices
- See fluid position and heading changes with update rates of 10 times per second
- Share information among multiple units, thanks to Garmin Marine Network support
- Wider viewing angles on a vivid 12" color display
- Compatible with our premium maps and charts for the best in Garmin navigation
- Standard Mapping: Yes
- GLONASS: Yes
- Tide Tables: Yes
- NMEA 2000 Ports: 1
- Typical current draw at 12 Vdc: 2.2 A
- ActiveCaptain® Compatible: yes
- NMEA 2000 Compatible Yes
- LakeVü g3 Ultra: Yes
- Touchscreen: No
- Track Points: 50,000
- Panoptix™ Sonar: Yes
- Maximum power usage at 10 Vdc: 34.8W
- Built-in Auto Guidance: No
- Smart Mode Compatible: Yes
- Maximum current draw at 12 Vdc: 2.9 A
- GSD Black Box Sonar Support: Yes
- Supports WAAS: Yes
- LakeVü g3: Yes
- Garmin Marine Network Ports: 2
- DSC: Yes
- SideVü: Yes (with external black box, sold separately)
- TOPO: Yes
- Mounting Options: Bail or flush
- Weight: 5.2 lbs (2.34 kg)
- Waterproof: IPX7
- Receiver: 10 Hz
- Dimension: 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)
- GPS: Yes
- Display Resolution: 1280 x 800 pixels
- Power Input: 10 to 32 Vdc
- Display Type: WXGA, NP
- Garmin Navionics Vision+™: Yes
- USB Ports: No
- Has built-in receiver: Yes
- NMEA 0183 Compatible: Yes
- Sailing Features: Yes
- Waypoints: 5000
- Garmin Navionics+™: Yes
- Navigation Routes: 100
- Accepts Data Cards: 2 SD™ cards
- Display Size: 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
- LakeVu (inland): No
- Video input ports: 1 (BNC composite)
- GRID (Garmin Remote Input Device) compatible: Yes
- Traditional sonar (dual frequency/beam): Yes (with external black box, sold separately)
- BlueChart (coastal): No
- LiveScope: Yes
- Garmin Quickdraw Contours: Yes
- Input: Keyed
- Garmin Wi-Fi network (local connection): Yes
- Spoken Audio Alerts: No
- Connections NMEA0183 Input Ports: 1
- BNC External GPS Antenna Port: No
- GCV Black Box Sonar Support: Yes
- ANT+ (Connectivity): Yes
- BLUETOOTH® pairing: Yes
- AIS: Yes
- Raster chart support: Yes
- Galileo: No
- Supports Fusion-Link™ Compatible Radios: Yes
- Wireless Remote Compatible: Yes
- Tracks: 50 saved tracks
- ClearVü: Yes (with external black box, sold separately)
- OneHelm Support: No
- NMEA 0183 Input (Tx) Ports: 1
- Displays Sonar: Yes
