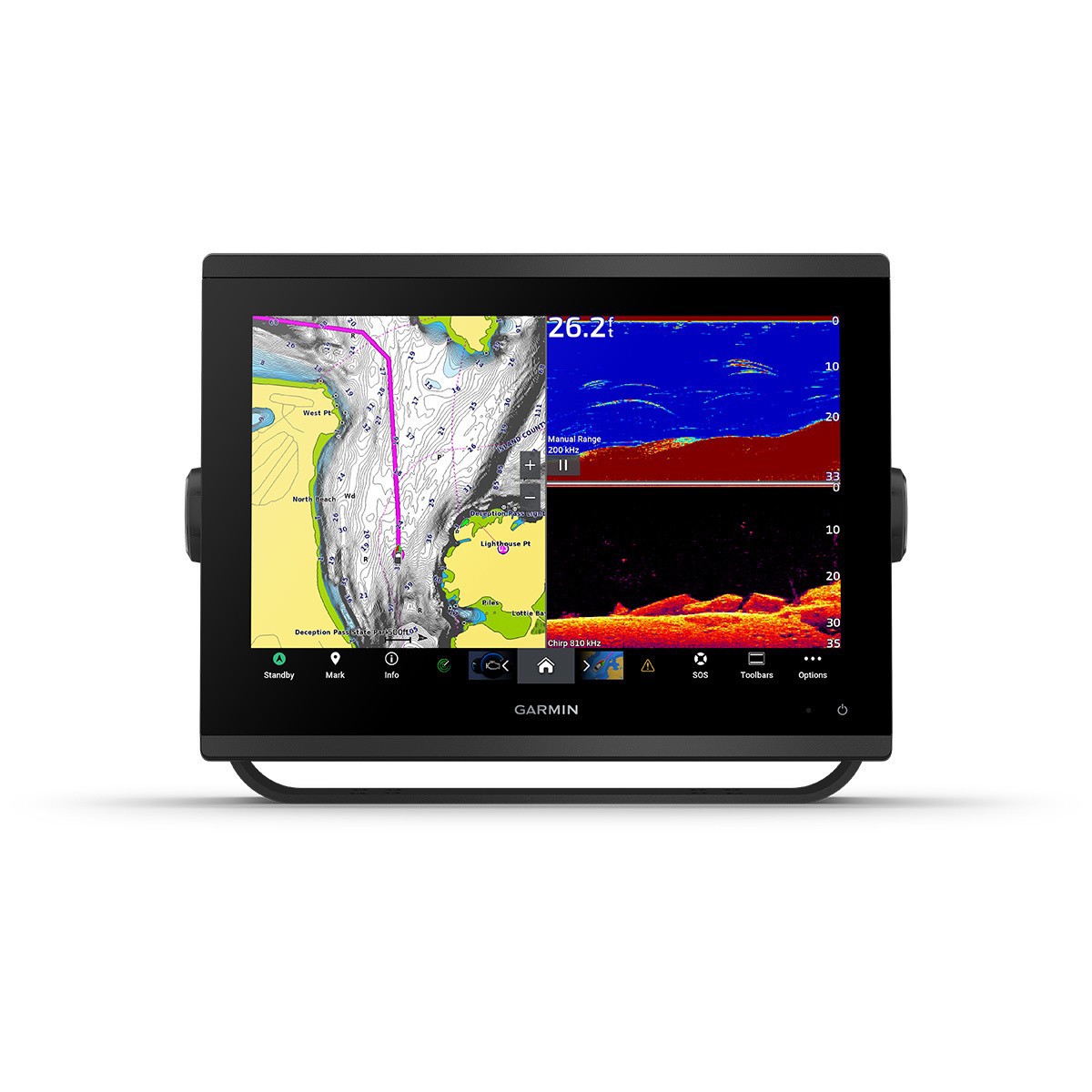

Garmin GPSMAP 1243 GN+ CHO
75375928524
Explore the waters with confidence with the Garmin GPSMAP 1243 GN+ CHO. This advanced nautical chartplotter offers a new high-resolution in-plane switching touchscreen display that's great for use in daylight, plus fast and reliable GNSS positioning. This Garmin chartplotter also comes preloaded with Garmin Navionics+™ coastal charts and inland mapping for an excellent navigation experience. Plus, this Garmin chartplotter also features built-in Garmin SailAssist™ features, J1939 engine connectivity, and more. Network with other compatible devices and enjoy the free active captain app for more features. Upgrade your marine system today and explore the seas with confidence with the Garmin GPSMAP 1243 GN+ CHO now!In the Box:
- GPSMAP 1243 chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- Fast and responsive, this robust GPSMAP® system references 10 Hz GNSS (GPS, GLONASS and Galileo).
- Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia.
- Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations.
- J1939 engine connectivity for easy integration with engines and our exclusive OneHelm™ feature for connecting to your compatible third-party devices.
- New high-resolution in-plane switching touchscreen display offers improved sunlight readability and wide-angle visibility over previous-generation 12" units
- Fast and responsive, this robust GPSMAP® system references 10 Hz GNSS (GPS, GLONASS and Galileo) for accurate positioning and smooth speed as well as COG data
- Slimline display borders, edge-to-edge glass and reduced unit footprint make for easy retrofit in a wider range of dash configurations
- Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology1; plus, there’s support for optional Garmin Navionics Vision+™ premium map content
- Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® app4 for access to the OneChart™ feature.
- Built-in Garmin SailAssist™ features, including laylines, race features, set and drift, wind data and more.
- New high-resolution in-plane switching touchscreen display offers improved sunlight readability.
- Preloaded Garmin Navionics+™ coastal charts and inland mapping.
- Integrated ANT® connectivity support for use with compatible quatix® smartwatches.
- Built-in Garmin SailAssist™ features, including laylines, race features, set and drift, wind data and more3
- J1939 engine connectivity for easy integration with engines and our exclusive OneHelm™ feature for connecting to your compatible third-party devices, such as EmpirBus™ digital switching
- Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia — by using NMEA 2000® and NMEA 0183 networking and the Garmin Marine Network
- Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® app4 for access to the OneChart™ feature, smart notifications5, software updates and more
- Integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls (sold separately)
- LakeVu (inland) No
- Garmin Quickdraw Contours Yes
- BLUETOOTH® pairing Yes
- AIS Yes
- Video output ports 1 HDMI
- Raster chart support Yes
- NMEA 0183 input (Tx) ports 1
- OneHelm support Yes
- ClearVü yes (with GCV™ black box, sold separately)
- Input Touchscreen
- J1939 ports 1
- Garmin Wi-Fi network (local connection) Yes
- Built-in Auto Guidance+ Yes
- Displays sonar Yes
- ANT+ (Connectivity) Yes
- GCV Black Box Sonar Support Yes
- BNC external GPS antenna port Yes
- Connections NMEA0183 Input Ports 1
- Spoken audio alerts Yes
- BlueChart g3 Vision No
- Tracks 50 saved tracks
- Wireless Remote Compatible Yes
- Supports Fusion-Link™ compatible radios Yes
- Galileo Yes
- LiveScope Yes
- BlueChart (coastal) No
- Traditional sonar (dual frequency/beam) yes (with GCV™ black box, sold separately)
- GRID (Garmin Remote Input Device) compatible Yes
- Video input ports
- Display Size 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
- Garmin Navionics+ Inland & Coastal Yes
- Navigation Routes 100
- Garmin Navionics+™ Yes
- Waypoints 5000
- Sailing Features Yes
- NMEA 0183 Compatible Yes
- Has built-in receiver Yes
- USB ports Yes
- Accepts Data Cards 2 microSD cards (back of unit)
- Garmin Navionics Vision+™ Yes
- Display Type WXGA
- Power Input 10 to 32 Vdc
- Display resolution 1280 x 800 pixels
- GPS Yes
- Dimension 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
- Receiver 10 Hz
- Waterproof IPX7
- Weight 6.6 lbs (3.0 kg)
- Mounting Options Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
- TOPO Yes
- SideVü yes (with GCV™ black box, sold separately)
- DSC Yes
- LakeVü g3 No
- Supports WAAS Yes
- GSD Black Box Sonar Support Yes
- Maximum current draw at 12 Vdc 2.15 A
- Smart Mode Compatible Yes
- Built-in Auto Guidance No
- Maximum power usage at 10 Vdc 26.5W
- BlueChart g3 No
- Garmin Marine Network Ports 2
- Panoptix™ sonar Yes
- Track points 50,000
- Touchscreen Yes
- LakeVü g3 Ultra No
- NMEA 2000 Compatible Yes
- ActiveCaptain® compatible Yes
- Typical current draw at 12 Vdc 1.67 A
- NMEA 2000 ports 1
- Tide tables Yes
- GLONASS Yes
- Standard Mapping Yes
- 1 (BNC composite); 1 HDMI (HDCP compliant)
