Garmin LiveScopeā„¢ XR LVS62 Transducer Only

Item No. 75375929854
$2,499.99
false

Select Delivery Method:

Free Shipping

Est. Delivery Thur. 3/23 - Sat. 3/25

Garmin LiveScope™ XR LVS62 Transducer Only

75375929854

You didn’t think it could get better, but it did with the extended range of the LiveScopeā„¢ XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

The new XR transducer offers live scanning sonar up to 500’ in freshwater and up to 350’ in saltwater. Adjust the transducer to fit where you fish; use LiveScopeā„¢ Forward mode to see around your boat, LiveScopeā„¢ Down mode to see directly below your boat and Perspective mode for an overhead sonar view that’s perfect for scouting open water or shorelines. The views automatically update on your compatible Garmin chartplotter screen.

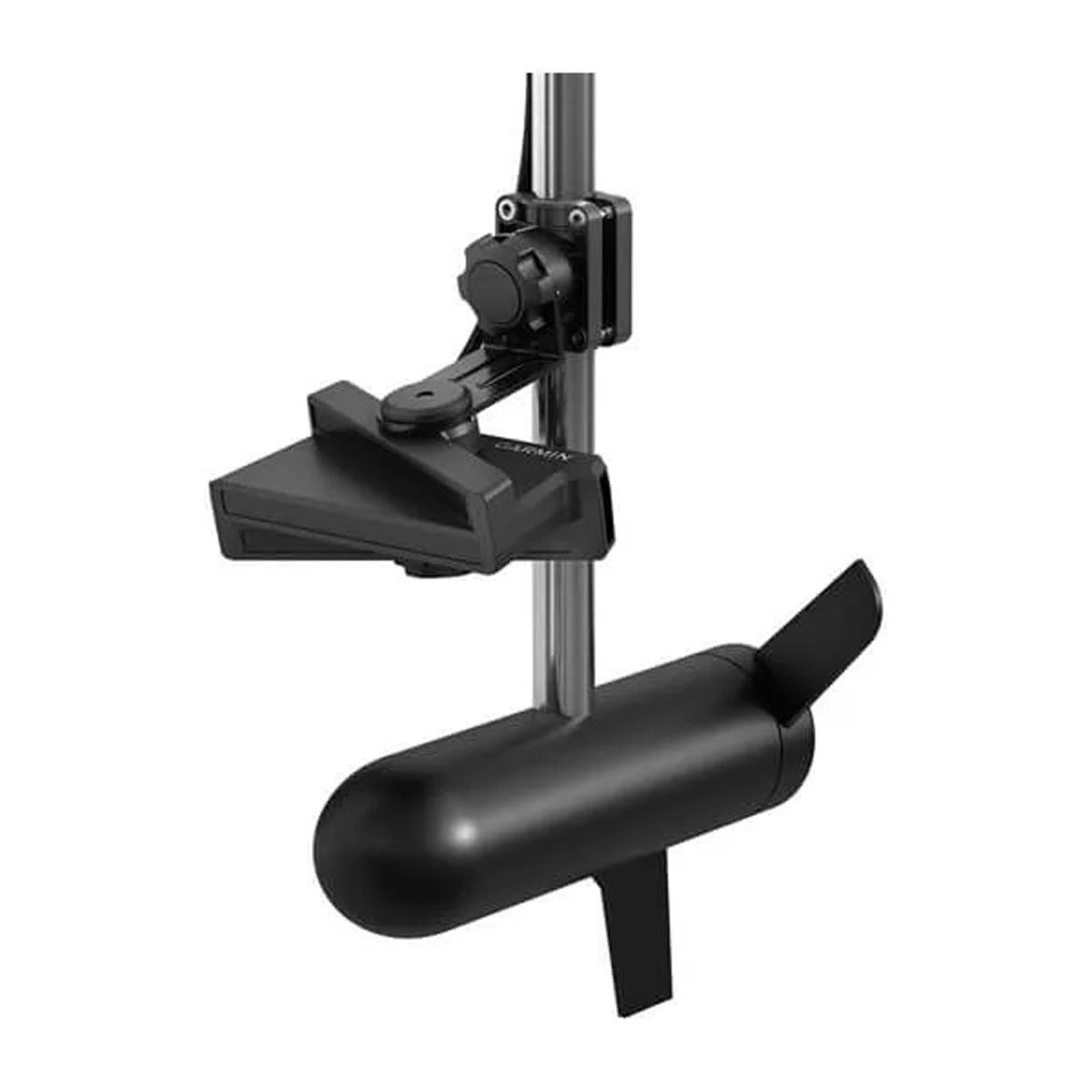

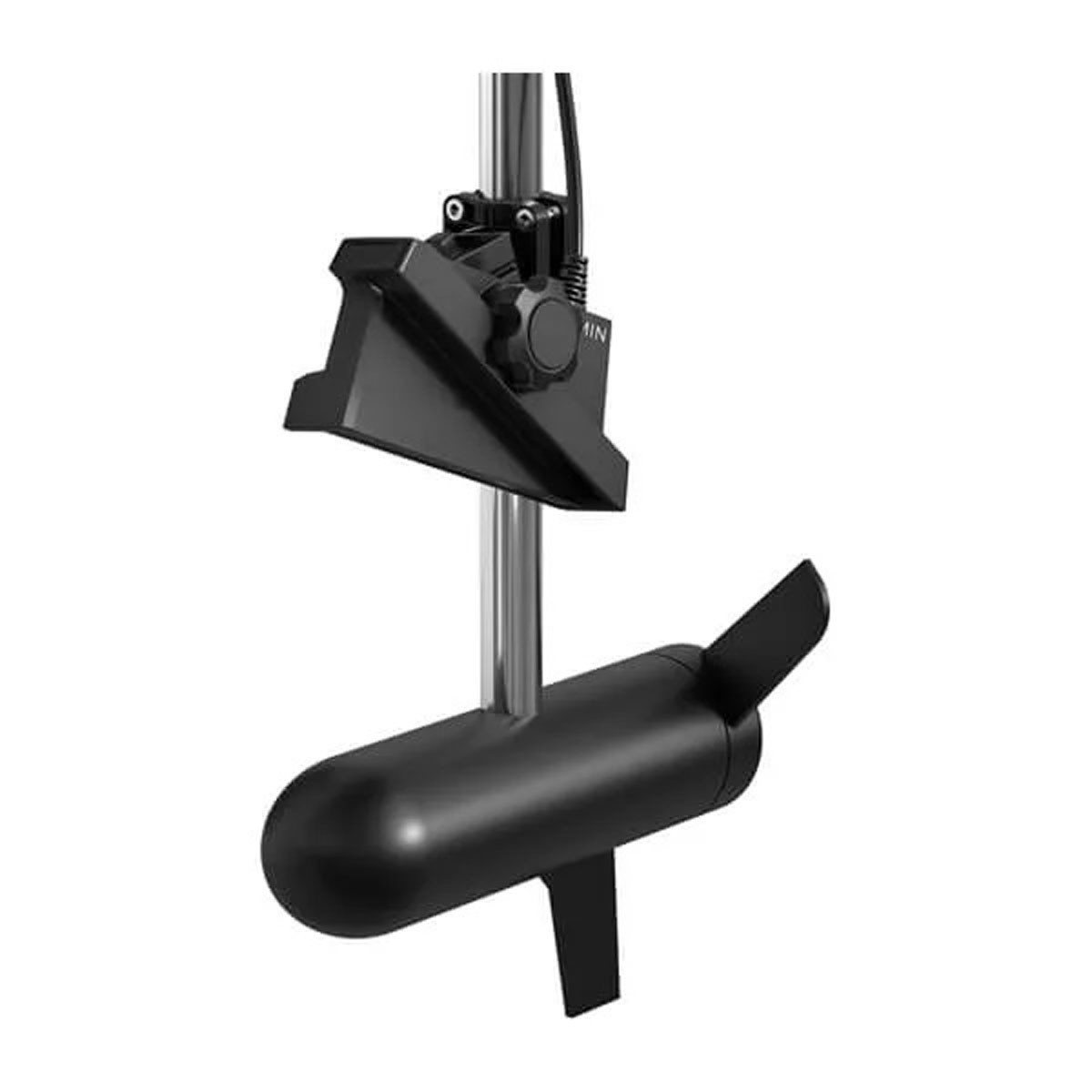

Get sharp images at both short and long range simultaneously with reduced noise and fewer sonar artifacts. Attitude heading reference system stabilization keeps your sonar view steady, even in rough conditions. LiveScope XR includes a trolling motor shaft and barrel mounts plus Perspective Mode Mount. Easily upgrade your existing LiveScope System with just the purchase of the new Transducer.
General
DIMENSION: LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
WEIGHT
LVS62 transducer with cable: 3.92 lbs (1.78 kg)
LVS62 transducer without cable: 2.66 lbs (1.21 kg)
WATERPROOF: IPX7
TRANSDUCER BEAMWIDTH: 20Ā° x 135Ā°
TRANSDUCER CABLE LENGTH: 20 ft
TRANSDUCER NUMBER OF PINS: 21
TEMPERATURE RANGE: LVS62 Transducer: Operating: 0 C to 40 C

  • Power cable
  • Shaft mount
  • Trolling motor barrel mount
  • Perspective mount (LiveScope XR LVS62 transducer only)
  • LiveScope XR LVS62 transducer
  • Documentation
