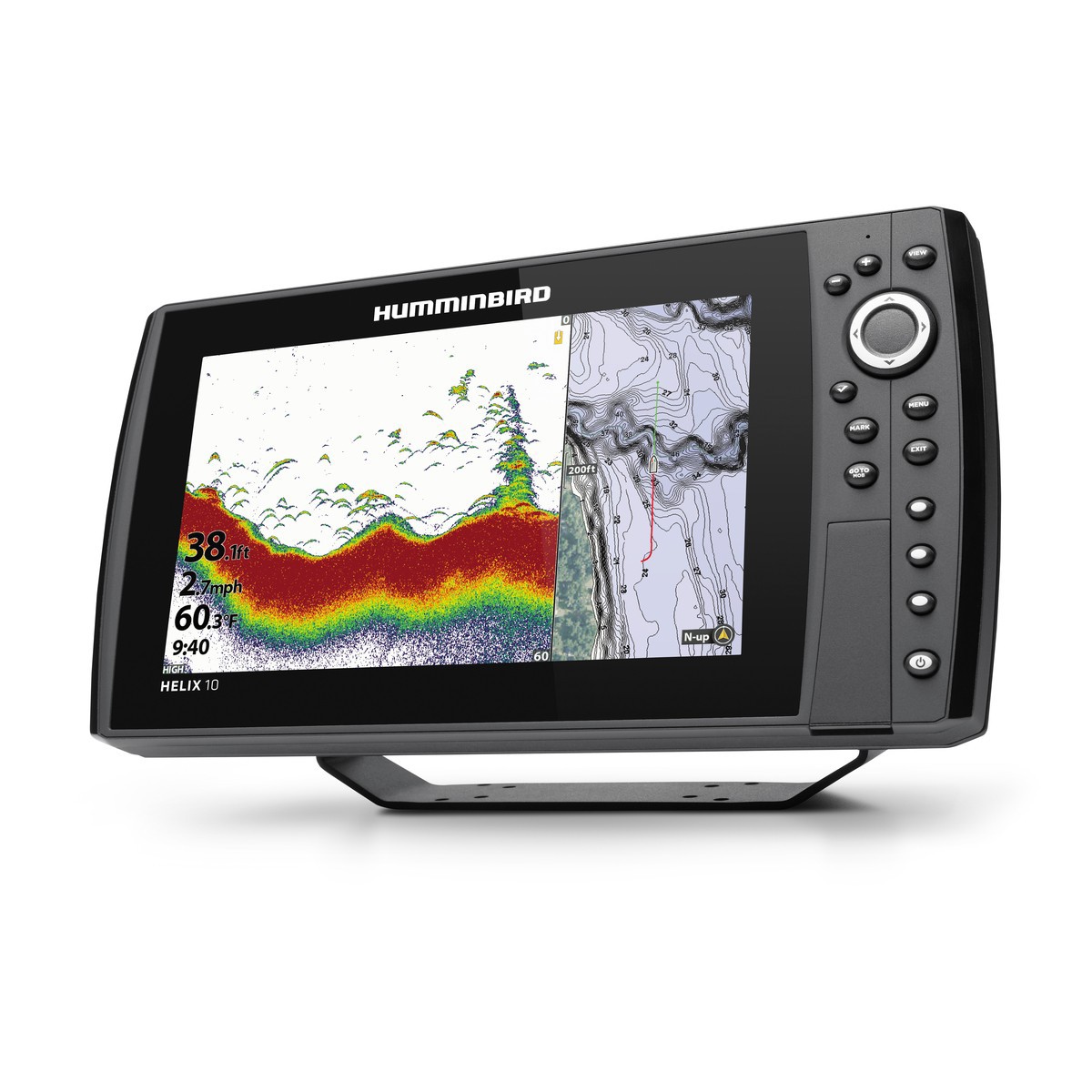

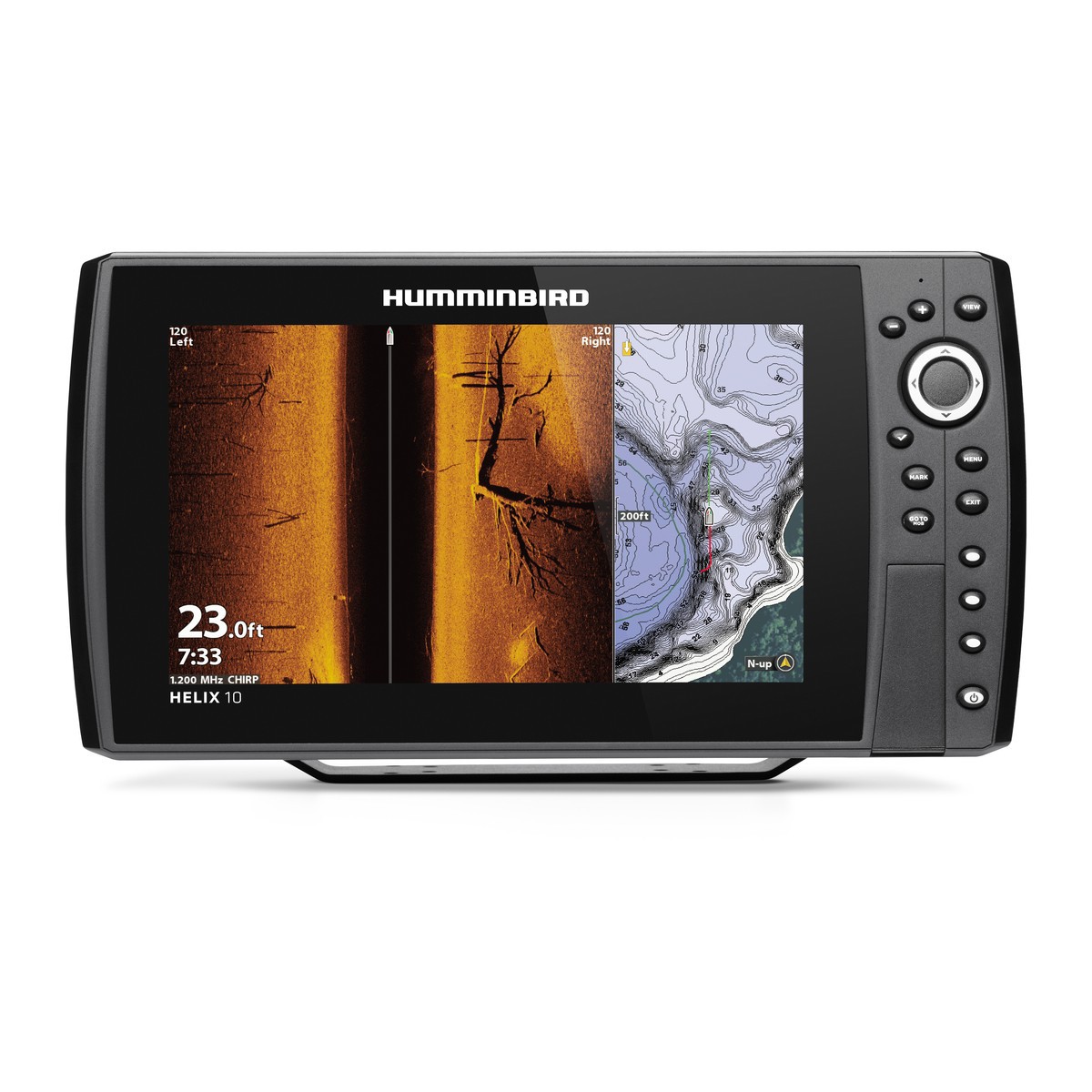

Humminbird Helix 10 CHIRP MEGA SI+ GPS G4N


The Humminbird Helix 10 CHIRP MEGA SI+ GPS G4N is loaded with incredible features to make fish finding easier this season. This Humminbird Helix 10 fish finder features three different sonars for a complete picture below and to either side of your boat. For improved image return, the Humminbird Helix 10 fish finder features MEGA Imagining+ technology to see 20% more detail and 60% more depth and range capability than traditional MEGA Imaging. The internal GPS with Humminbird Basemap on this Humminbird Helix 10 makes navigating the waters easier. Plus, this Humminbid fish finder has the Helix G4N standard features like Wi-Fi, Bluetooth®, Ethernet networking, and One-Boat Network technology, making this a convenient and efficient system. Be ready for the open water with the Humminbird Helix 10 CHIRP MEGA SI+ GPS G4N.

Sonar Features:
  • Dual Spectrum CHIRP offers two ways to search
    • Narrow mode for detail
    • Wide mode for coverage
  • MEGA Down Imaging+ for clearer viewing down to 200 ft. below your boat, 20% more detail and 60% more depth capability than MEGA Down Imaging
  • MEGA Side Imaging+ for clearer viewing out to 200 ft. on either side of boat, 20% more detail and 60% more range capability than MEGA Side Imaging
  • NMEA 2000 networking built-in for more information
  • Internal GPS and Humminbird basemap for easy navigating
  • Premium chart compatible for a complete view of the world below
  • Includes screen snap shot, sonar recording, GPS chartplotting, GPS trackplotting, speed, temperature, alarm
  • AutoChart Live creates real-time maps of your fishing spots, comes standard with 8 hours of built-in recording time
  • Ethernet networking to build a powerful, professional-grade fishing system, easily connect multiple fish finders
  • Bluetooth® for wireless communication to compatible Talon and Raptor shallow water anchors and Cannon Optimum downriggers
  • One-Boat network compatible for seamless integration and communication with Minn Kota motors and Cannon Optimum downriggers
Sonar Specs:
  • Sonar Optional: 50 kHz, 50/ :ow Airmar CHIRP
  • Sonar Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
  • Sonar Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
  • Depth Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
  • Depth Down Imaging: 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
  • Range-Side Imaging: 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)
  • CHIRP Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
  • CHIRP Imaging Frequencies Supported: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
Display Specs:
  • Keypad control
  • Memory Card Slot: Dual SD
  • Display Size: 10.1" (diagonal)
  • Display Colors Grayscale: 16 Bit
  • Display Pixel Matrix: 1024H x 600V
  • Series: HELIX
  • Power Draw: 1.2 Amps
  • Mount Standard: Gimbal
  • Power Input: 10.8-20 VDC
  • Power Output: 8000 Watts
  • Transducer: XM 9 HW MSI T
  • Transducer Mount Location: Transom
  • 2-year limited manufacturer's warranty
  • Peak-to-Peak Power Output: 1000 Watts
  • Mount Standard Dimensions: 13.44" W x 7.5" H x 4.2" D
  • Compatible With: LakeMaster, Coast Master, Navionics Gold/HotMaps, Navionics Platinum+, Platinum
  • Compatible With: AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar, MEGA 360, One-Boat Network, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota US2 Sonar
  • Power cable
  • Control head
  • Gimbal mounting bracket.
  • Transom mount transducer
  • Transom mounting hardware
