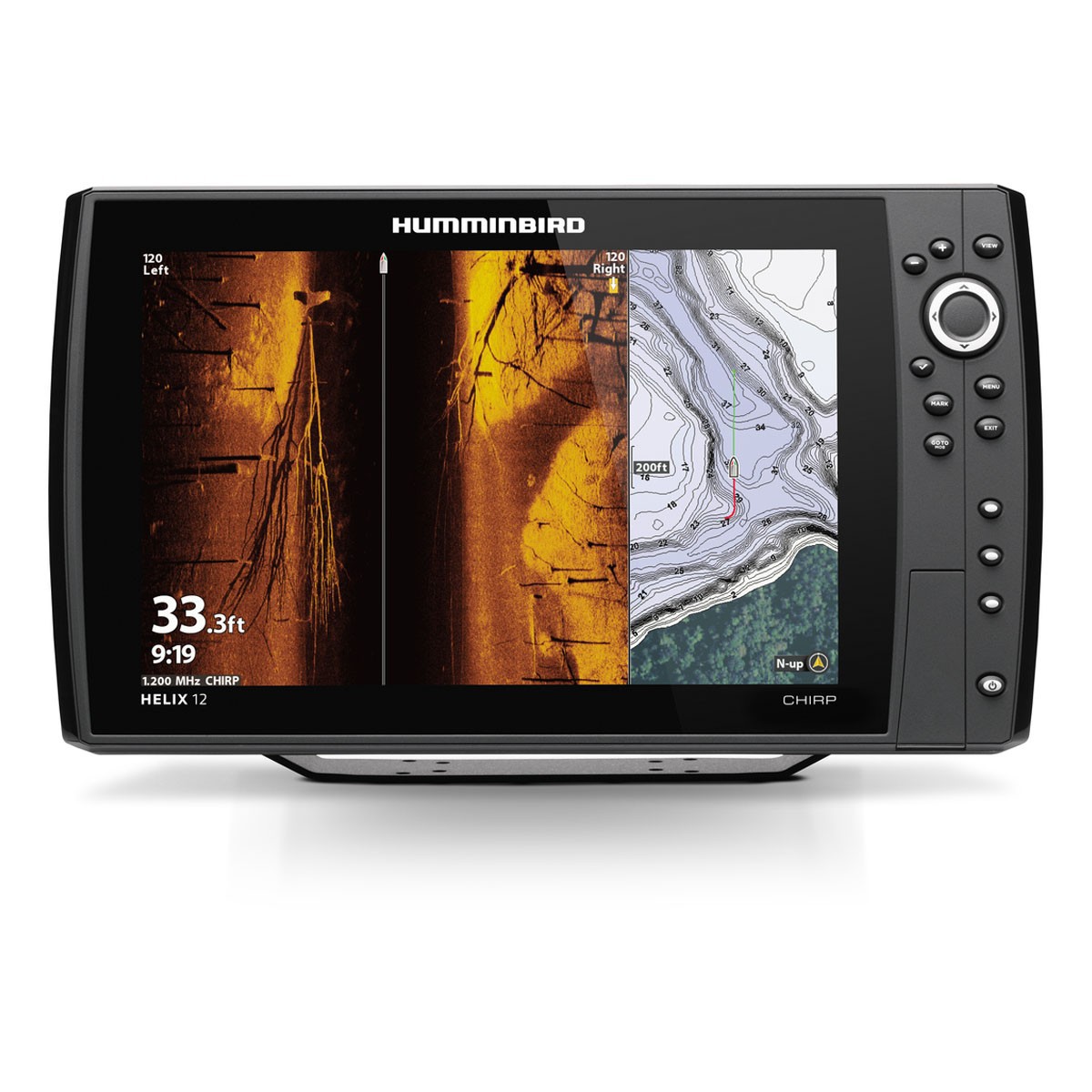

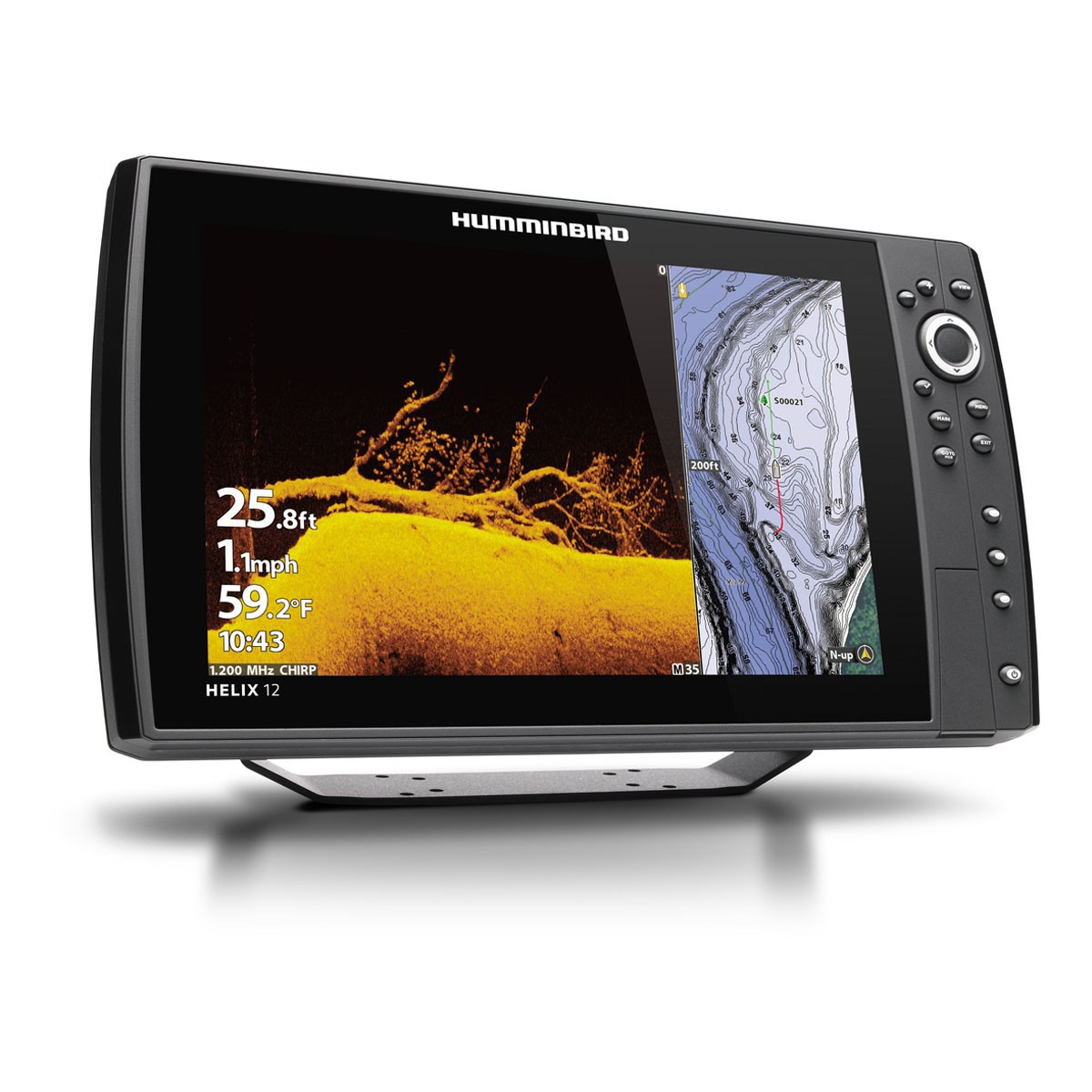

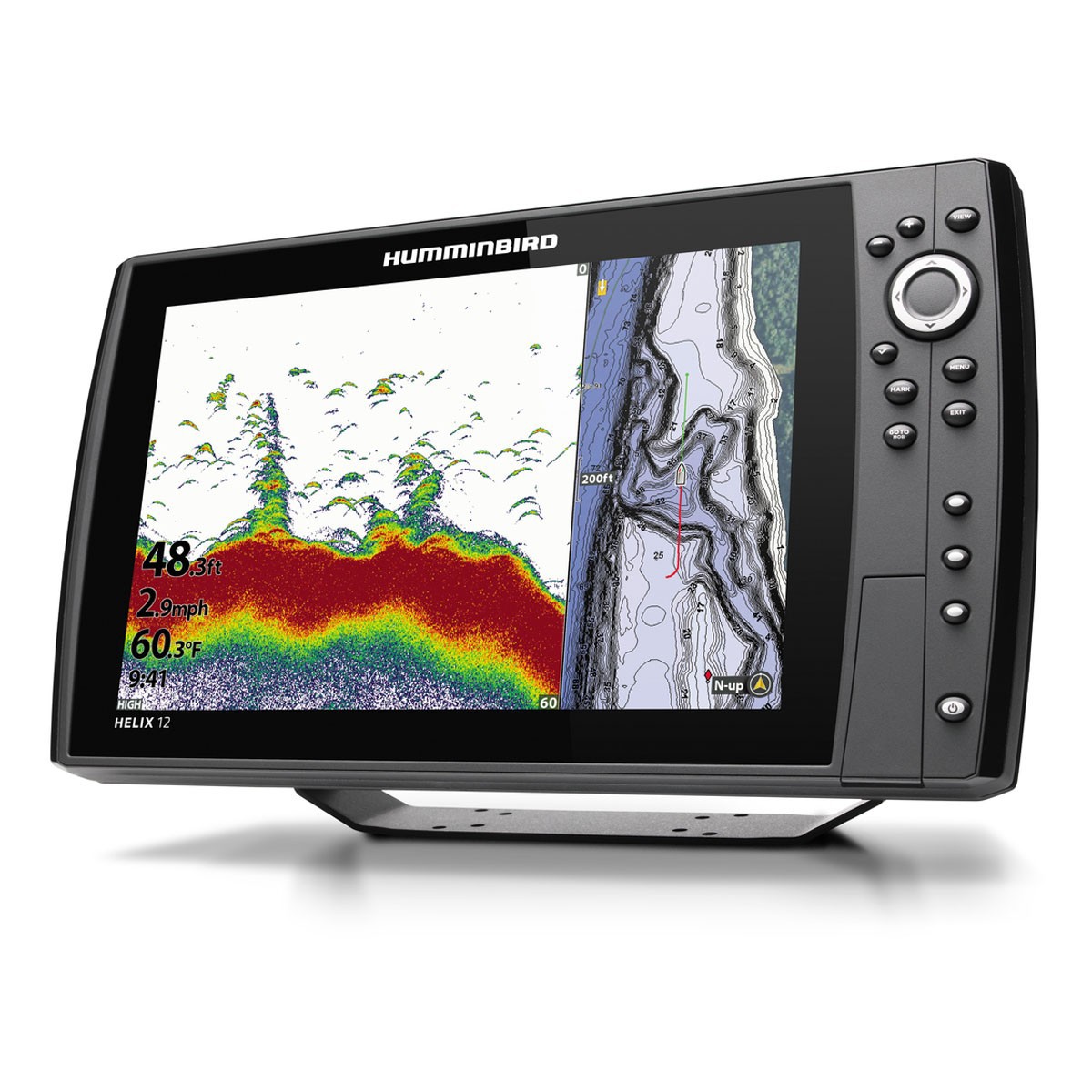

Humminbird Helix 12 CHIRP MEGA SI+ GPS G4N
08232405512
The Humminbird Helix 12 CHIRP MEGA SI+ GPS G4N is the ultimate fishfinder and chartplotter for greater success on the water. Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP Sonar, the Humminbird Helix 12 gives you a clear and complete view of the underwater world. It also features a built-in GPS receiver with precision GPS charts for pinpoint accuracy. With its 12.1-inch ultra-wide display and intuitive user interface, navigating your way around the water has never been easier.Includes:
- Control head
- Power cable
- Screen cover
- Mounting hardware
- Gimbal mounting bracket
- Transom-mount transducer
- Bluetooth for wireless communication
- Internal GPS and Humminbird Basemap for easy navigation
- MEGA Down Imaging+ to see down to 200 ft. below your boat
- Premium chart compatible for a complete view of what's below
- MEGA Side Imaging+ to see out to 200 ft. on either side of the boat
- Dual Spectrum CHIRP sonar for a highly detailed view of what's below
- Ethernet Networking for a powerful, professional-grade fishing system
- One-Boat Network compatible to easily integrate and communicate with Minn Kota motors
- AutoChart Live for real-time maps
- Keypad control interface
- Sonar-Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
- Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
- CHIRP Frequencies Supported: Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- CHIRP - Imaging-Frequencies Supported: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
- Compatibility: AIS, AutoPilot, MEGA 360, MEGA Live, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, NMEA 2000, One-Boat Network, Radar
- Screen Snap Shot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal
- Mount-Standard Size: 14.86" W x 8.83" H x 4.25" D
- Mount-Optional Size: 14.86" W x 8.52" H x 1.36" D
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Trackplotting: Included
- Platinum Compatibility: Yes
- Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
- Depth-Down Imaging: 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz)
- Item Number: 411450-1
- Series: HELIX
- 2-year limited manufacturer's warranty
- Display Size: 12.1 in. (diagonal)
- Display Pixel Matrix: 1280H x 800V
- Transducer Included: XM 9 HW MSI T
- Power Draw: 3.2 Amps
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Memory Card Slot: Dual SD (not included)
- Power Output RMS: 1000 WattsDepth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
- Range-Side Imaging: 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)
- LakeMaster Compatibility: Yes
- Coast Master Compatibility: Yes
- Heading Sensor GPS Compatibility: Yes
- Navionics Platinum + Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Upgradable Software: Yes
- View Preset Keys: Yes
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Display Colors Grayscale: 16-Bit
- Speed: Included
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: Yes
- HDMI Compatible: No
- MEGA Live Compatibility: Yes
