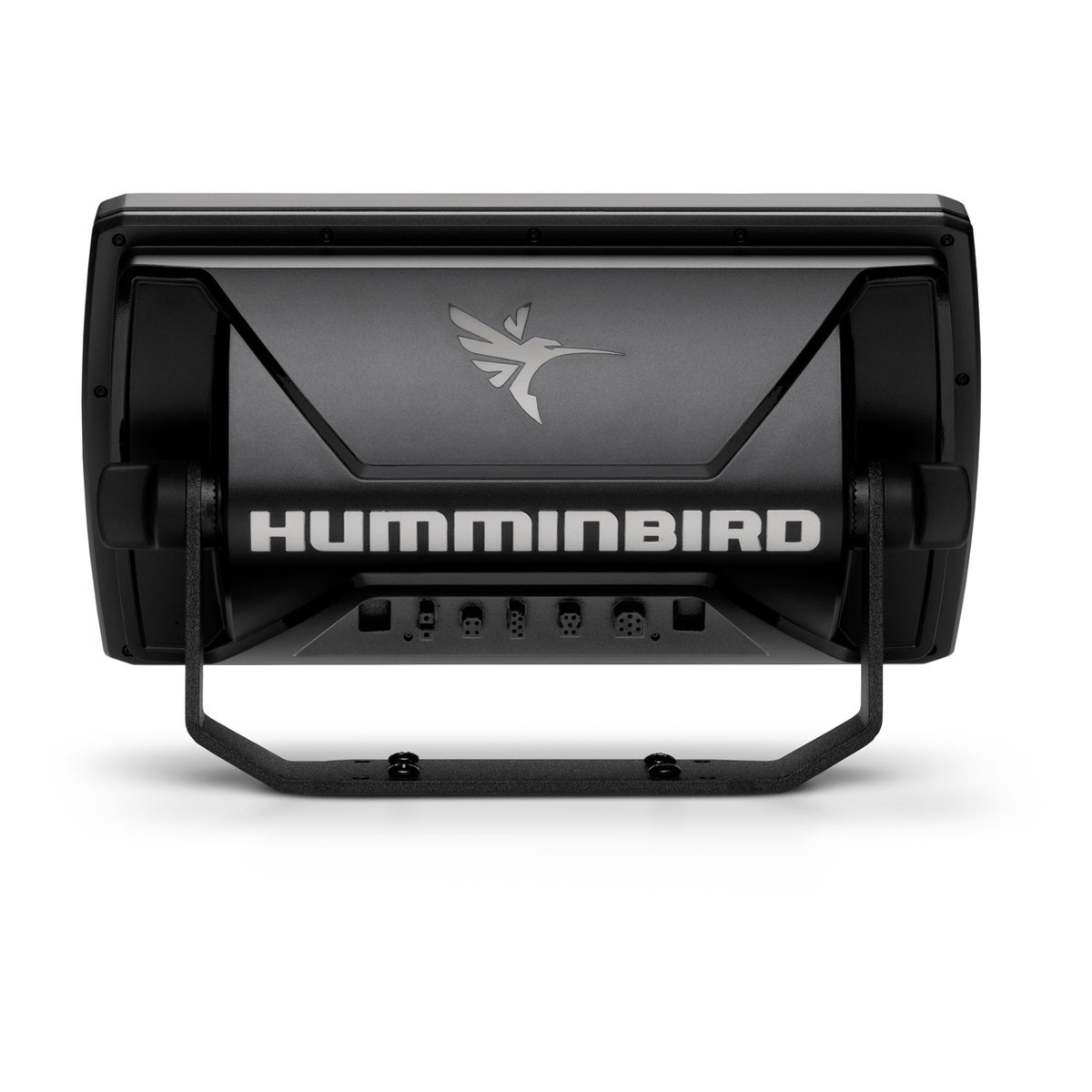

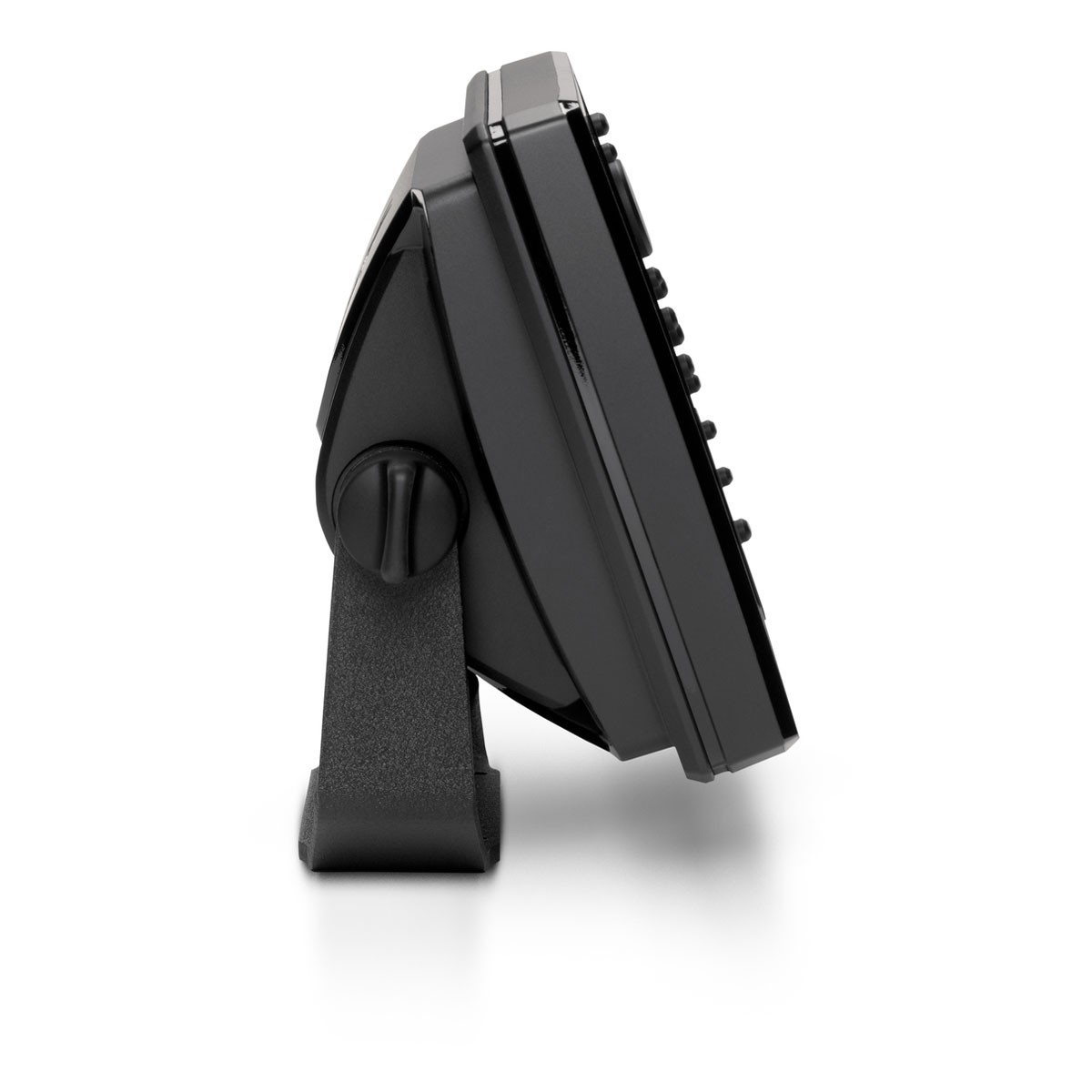

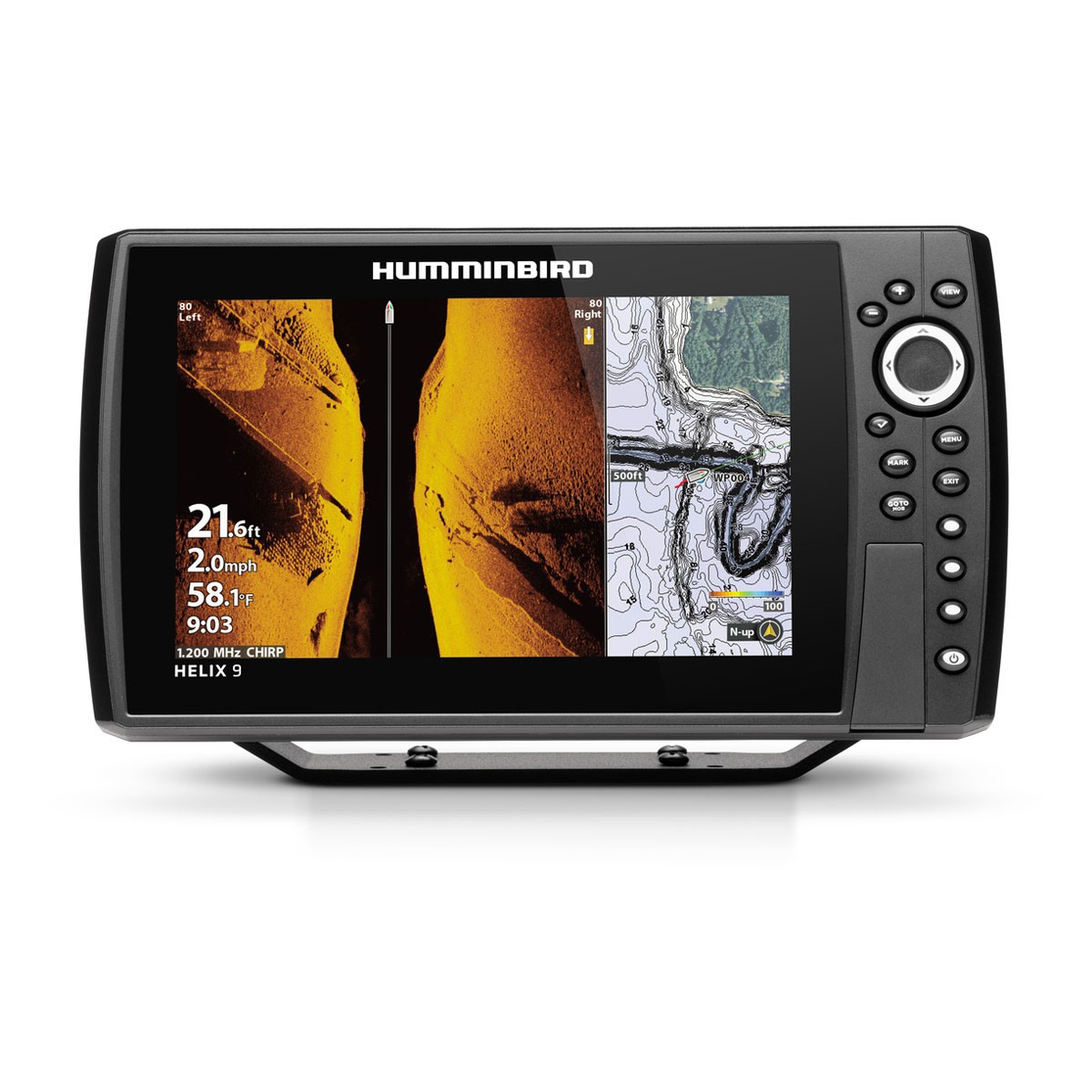

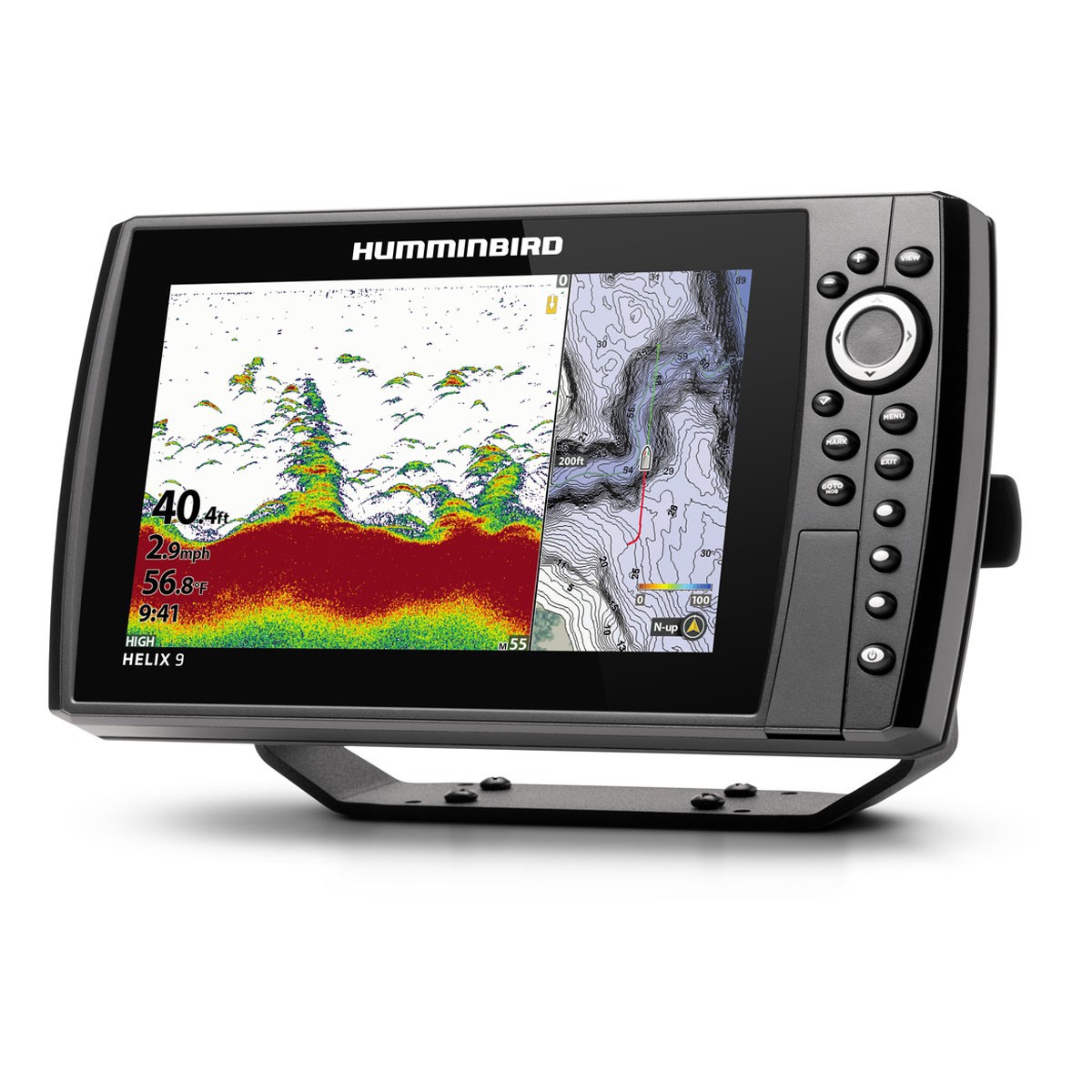

Humminbird Helix 9 CHIRP MEGA SI+ GPS G4N

08232405501

The Humminbird Helix 9 CHIRP MEGA SI+ GPS G4N is loaded with plenty of fish-finding technology while still being incredibly user-friendly. With Dual Spectrum CHIRP Sonar, the Humminbird Helix 9 provides you with two ways to search—wide mode for incredible coverage and narrow mode for incredible detail. This Humminbird Helix 9 fish finder includes both MEGA Side Imaging+ and MEGA Down Imaging+ to provide clear viewing on either side of your boat as well as down below up to 200 feet. For maximum convenience and ease, the Helix 9 features Ethernet and NMEA 2000 built-in so you can easily connect multiple fish finders and other marine electronics to create the ultimate fish-finding system. Plus, the integrated GPS allows you to mark your favorite fishing spots for easier locating next time. Loaded with fish-finding technologies, the Humminbird Helix 9 CHIRP MEGA SI+ GPS G4N is ready to help you have a more successful time on the water.


Sonar Features:
  • Dual Spectrum CHIRP offers two ways to search
    • Narrow mode for detail
    • Wide mode for coverage
  • MEGA Down Imaging for clear viewing up to 200 ft. below boat
  • MEGA Side Imaging+ for clear viewing up to 200 ft. on either side of boat
Features:
  • Wi-Fi
  • Bluetooth
  • Networking
  • Built in GPS
  • Side Imaging
  • Down Imaging
  • MEGA Imaging+
  • Built in mapping
  • CHIRP digital sonar
  • Dual Spectrum CHIRP
  • NMEA 2000 networking built-in
  • GPS chartplotting, GPS trackplotting
  • Internal GPS and Humminbird basemap
  • Comes standard with 8 hrs. of built-in recording time
  • AutoChart Live creates real-time maps of your fishing spots
  • Ethernet networking to build a powerful, professional-grade system
  • One-Boat network compatible seamlessly integrates with Minn Kota and Cannon products
Sonar Specs:
  • Sonar Optional: 50 kHz, 50/Low Airmar CHIRP
  • Sonar Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
  • Sonar Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
  • Depth Sonar: 1,200 ft. (standard transducer), 3, 500 ft. (optional 50 kHz)
  • Depth Down Imaging: 125 ft. (800 kHz), 200 ft. (MEGA), 400 ft. (455 kHz)
  • Sonar Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+
  • Range-Side Imaging (Side-To-Side): 800 ft. (455 kHz), 250 ft. (800 kHz), 400 ft. (MEGA)
  • CHIRP Frequencies Supported: Full mode (150-220 kHz), narrow mode (180-240kHz), wide mode (140-200 kHz)
  • CHIRP Imaging Frequencies Supported: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz)
Display Specs:
  • Keypad control
  • Display Size: 9 in. (diagonal)
  • Display Pixel: 1024H x 600v
Power Specs:
  • Draw: 1 Amp
  • Input: 10.8-20 VDC
  • Output: 8000 watts
  • Peak-to-Peak Output: 1000 watts
Specs:
  • Series: HELIX
  • Mount-Standard: Gimbal
  • Memory Card Slot: Dual Micro SD
  • Transducer Mount Location: Transom
  • 2-Year limited manufacturer's warranty
  • Mount-Standard Size: 12" W x 7" H x 4.13" D
  • Compatibility: LakeMaster, Coast Master, Navionics Gold/HotMaps, Navionics Platinum+
  • Compatible With: AIS, AutoPilot, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, NMEA 2000, Radar, MEGA 360, One-Boat Network, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota US2 Sonar
Includes:

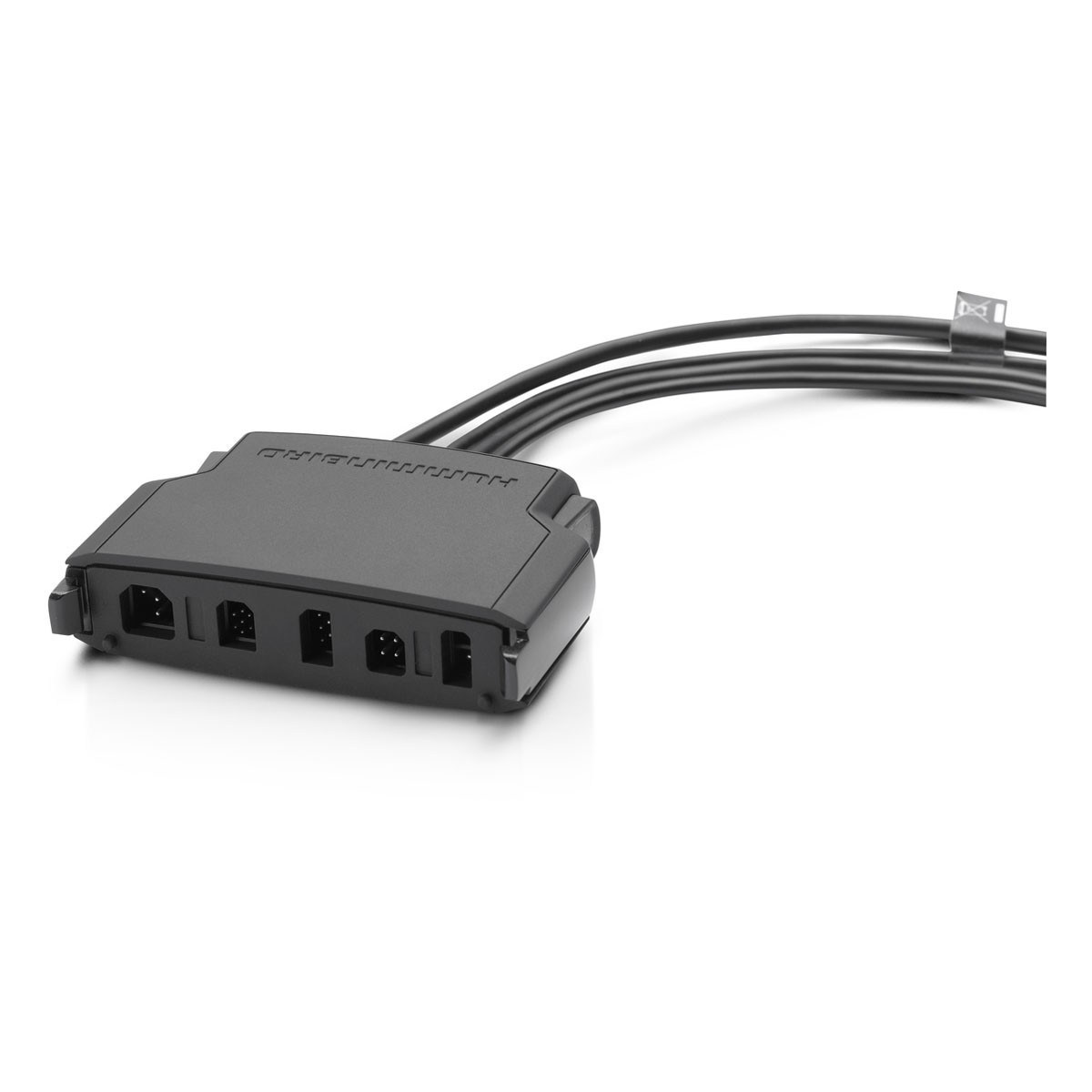

  • Power cable
  • Control head
  • Screen cover
  • Mounting hardware
  • Gimbal mounting bracket
  • Transom mount transducer
