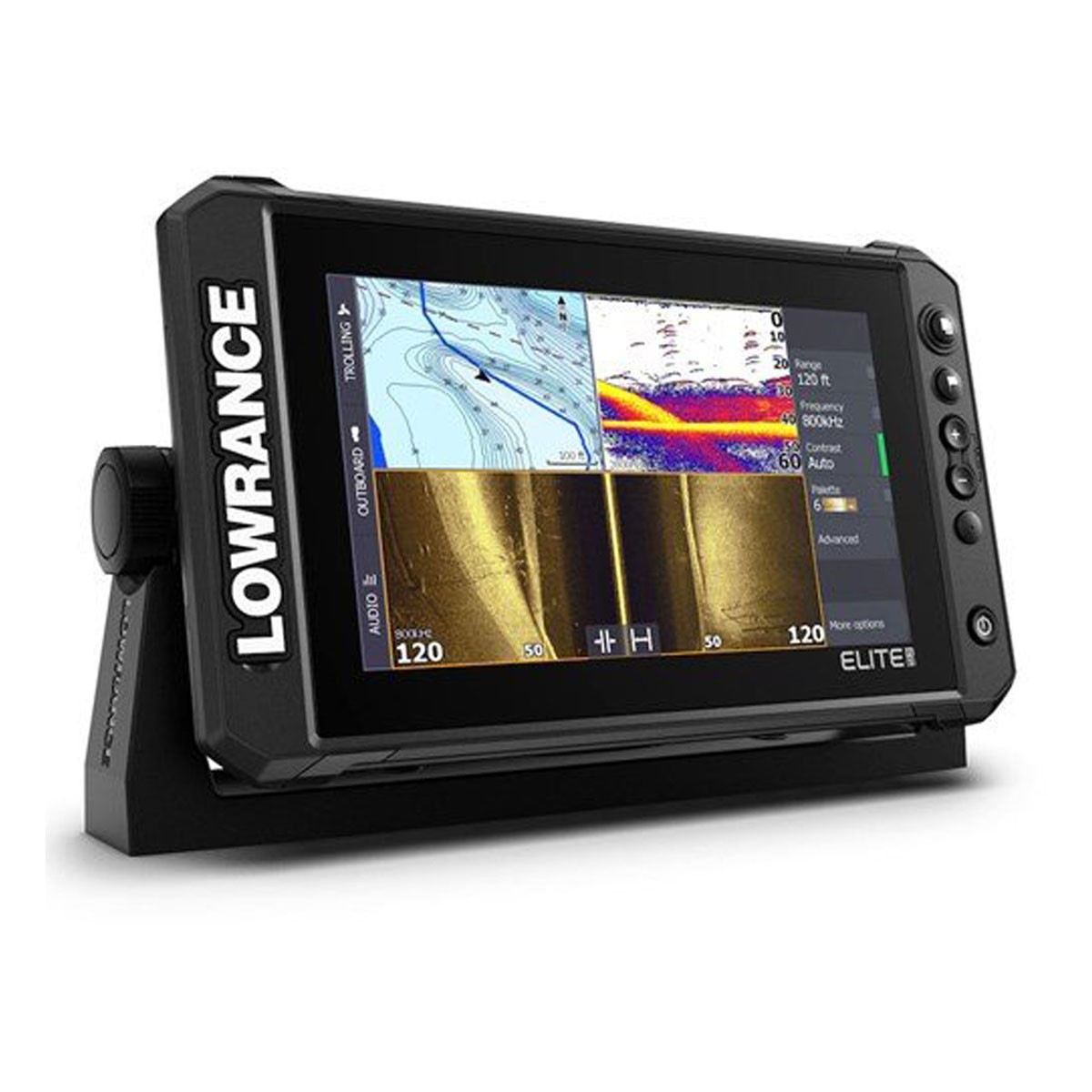

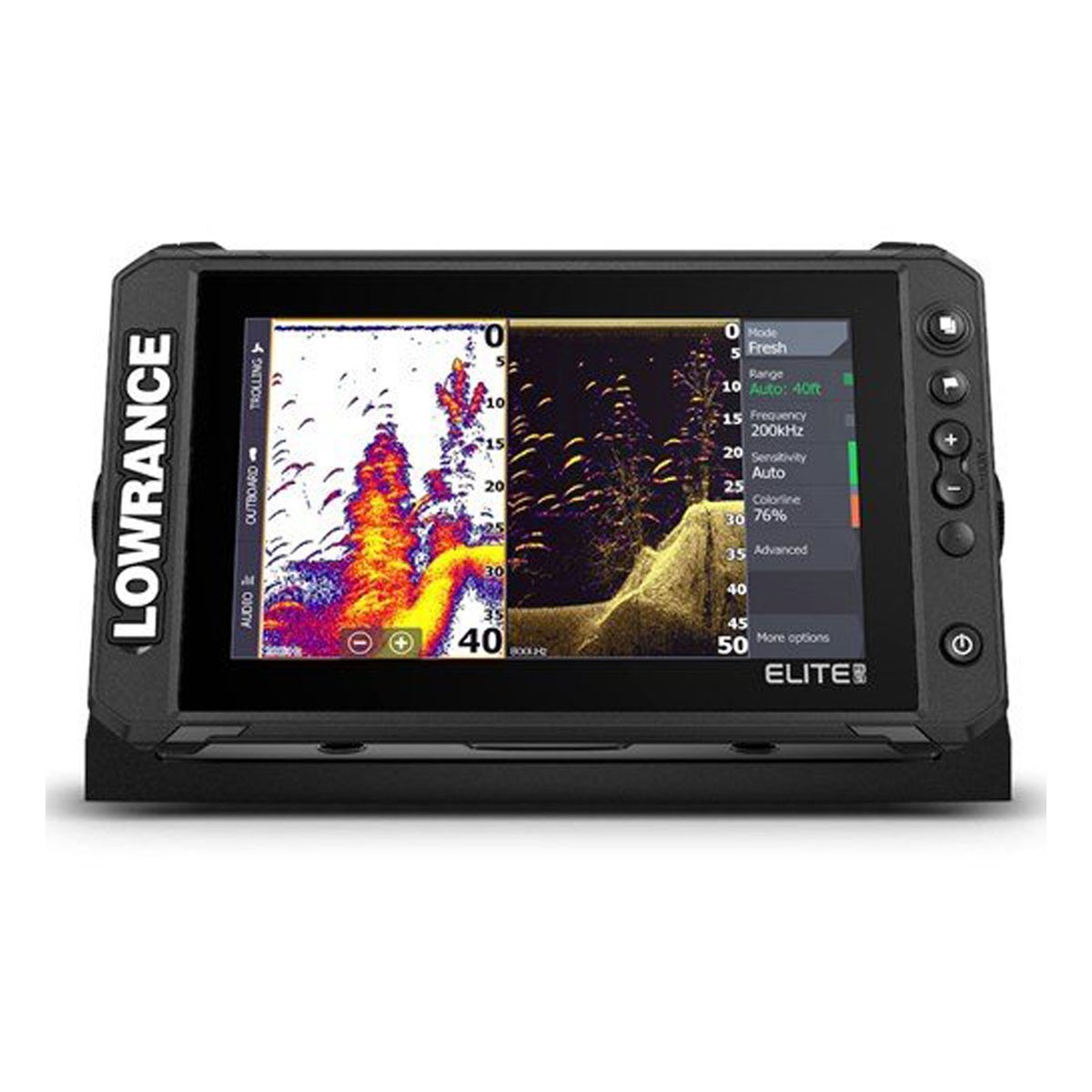

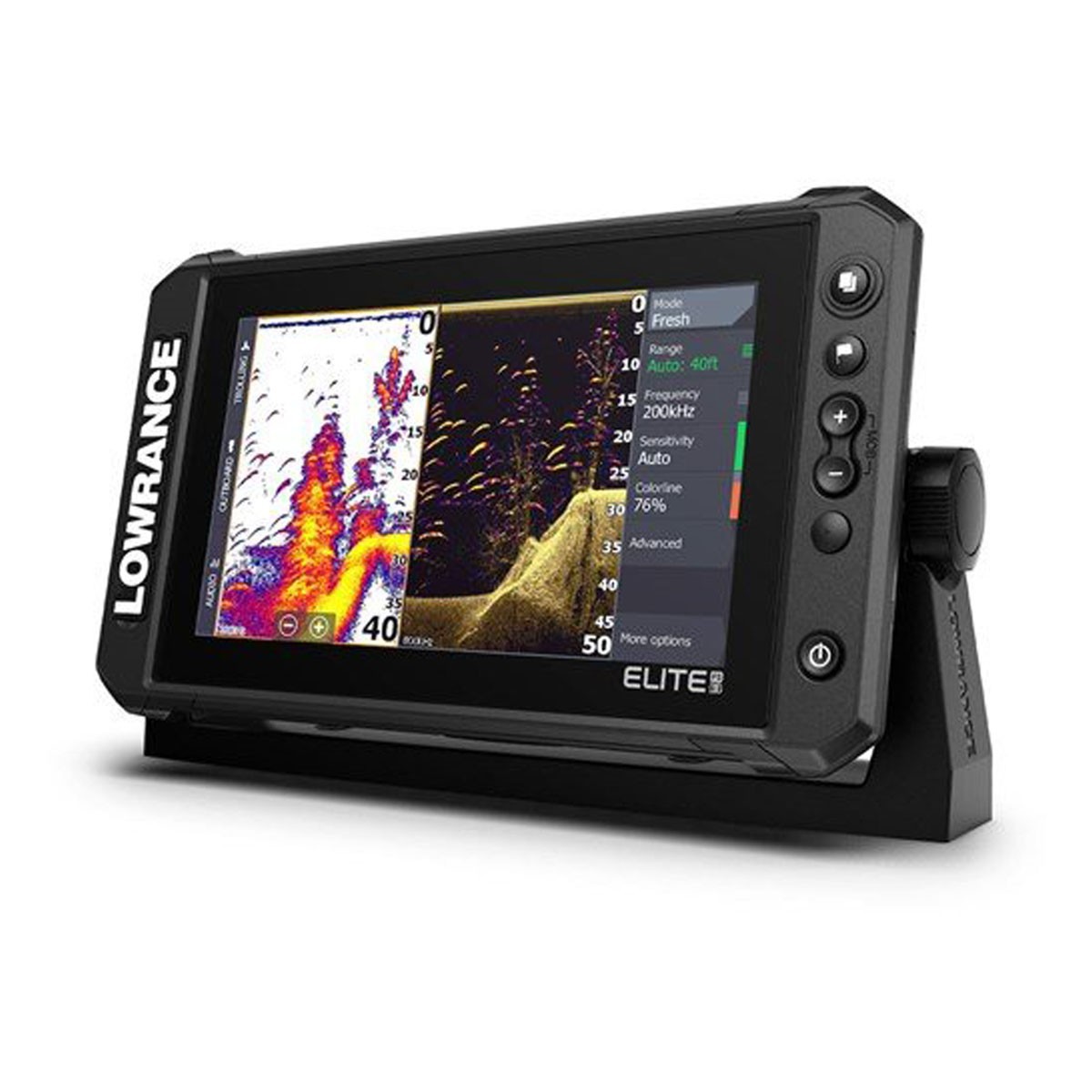

Lowrance Elite FS™ 9 w/ Active Imaging 3-in-1

Item No. 42300053619
itemprop="price">999.0 $999.00

Select Delivery Method:

Free Shipping

Est. Delivery Thur. 6/8 - Sat. 6/10

Frequently Bought With

Lowrance Elite FS™ 9 w/ Active Imaging 3-in-1


The Lowrance Elite FS 9 with Active Imaging 3-in-1 gives you access to Lowrance's proven fish-finding tools so you can make the most of your time on the water. The Elite 9 FS comes preloaded with C-MAP Contour+ with info on over 8,900 lakes and has additional mapping options for C-MAP, Navionics® chips, and more. The high-resolution multi-touch touchscreen of the Lowrance Elite 9 offers clear displays and intuitive controls, while integrated connectivity options allow you to easily connect the unit to other locators in your boat and share data between them. In addition, the Lowrance Elite 9 Fish System also features Active Imaging™ 3-in-1 sonar giving you access to CHIRP, SideScan, and DownScan for a clear picture of fish and structure. Improve your next day on the water with the Lowrance Elite FS 9 with Active Imaging 3-in-1.

  • Elite FS™ 9 Suncover
  • FUSE-1 Set of 3 x 3-amp Fuses
  • Active Imaging 3-in-1 Transducer
  • HDS-9 LIVE / Elite FS™ 9 Bracket
  • HDS/Elite/Hook/Mark Power Only Cable
  • ActiveTarget™ Live Sonar ready
  • Active Imaging 3-in-1 ready
  • FishReveal™
  • High-resolution multi-touch touchscreen
  • C-MAP Genesis Live onscreen mapping
  • Preloaded C-MAP Contour+ with 1-foot contours on 8,900 lakes, plus mapping options including C-MAP, Navionics®, and more
  • Full touchscreen control of Power Pole® anchors and Ghost® trolling motors
  • Integrated wireless, NMEA 2000®, and Ethernet connectivity
  • C-MAP® Easy Routing, Navionics® Autorouting capability
  • SD Card Storage: 1 micro SD card up to 32GB
  • Operating Temperature Range: 5°F to 131°F
  • Storage Temperature Range: 4°F to 140°F
  • Shock Vibration: 100,000 cycles of 20 G
  • Power Consumption: 2.0A @ 13VDC
  • Screen Brightness: >1,200 nits
  • Display Resolution: 800 x 480
  • Position Accuracy: 20m RMS
  • Ethernet Ports: 1 x 100 Mbit
  • Supply Voltage: 12v DC
  • Weight: 2.7 lbs.
  • Model #: 000-15692-001
