RAM Universal Marine Electronic Mount

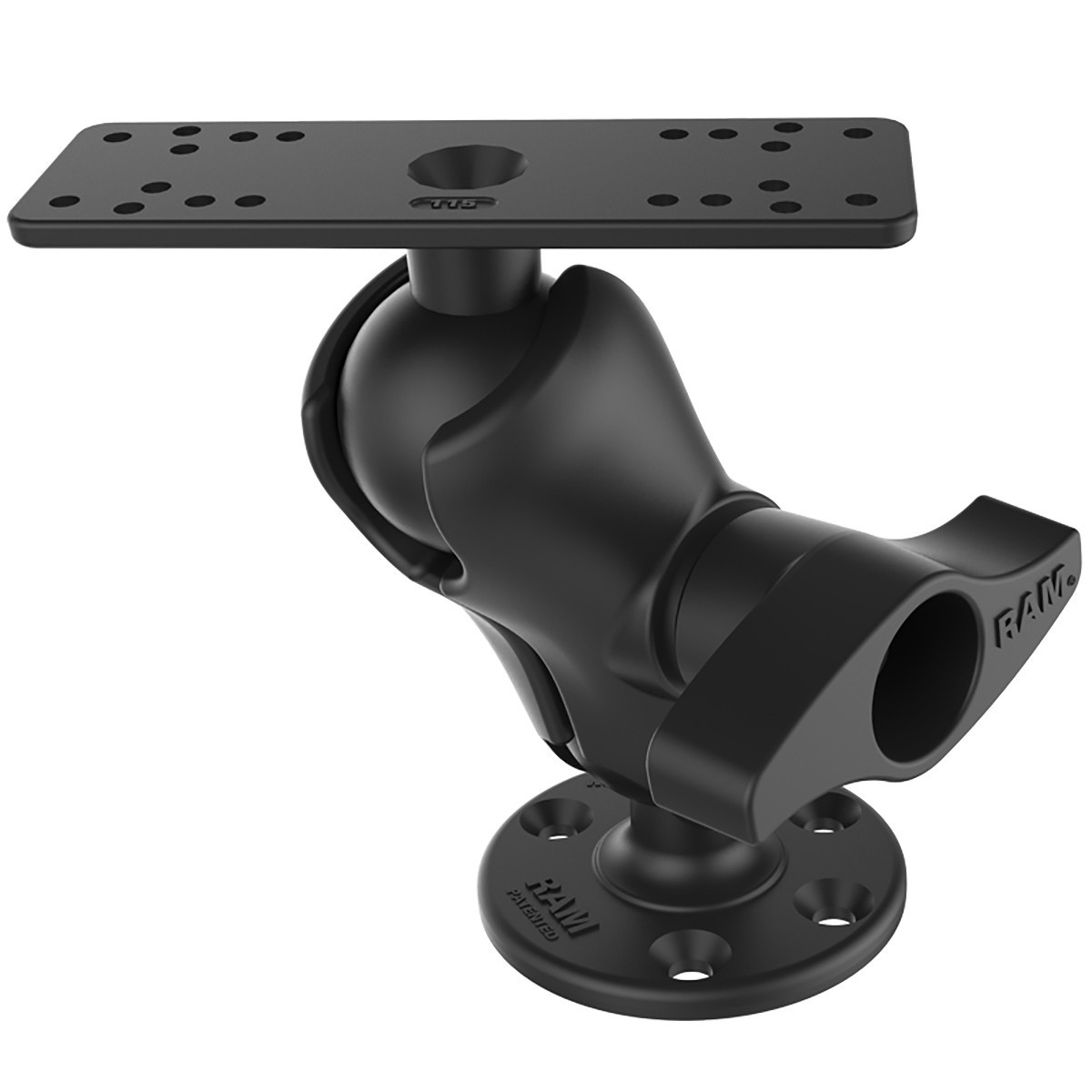

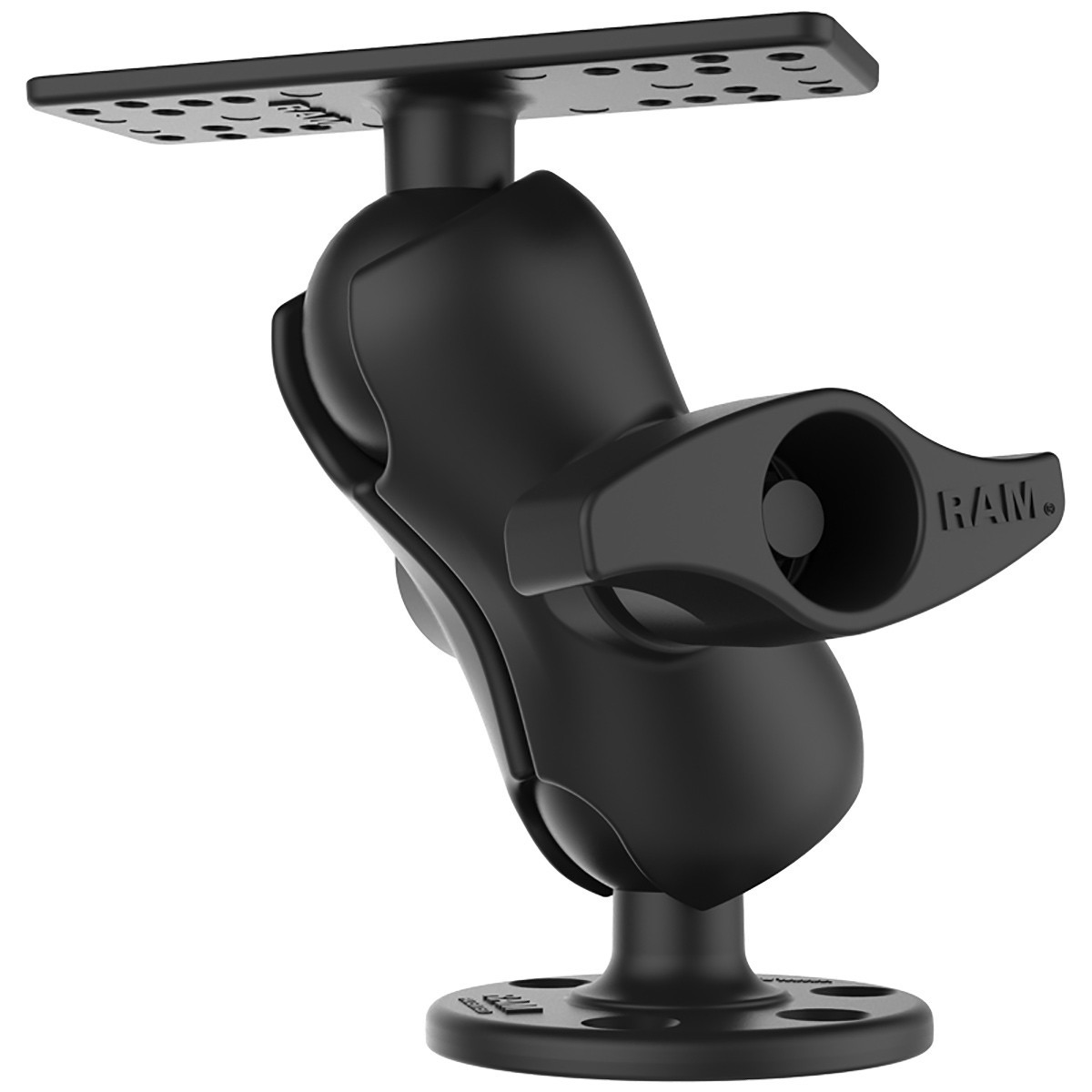

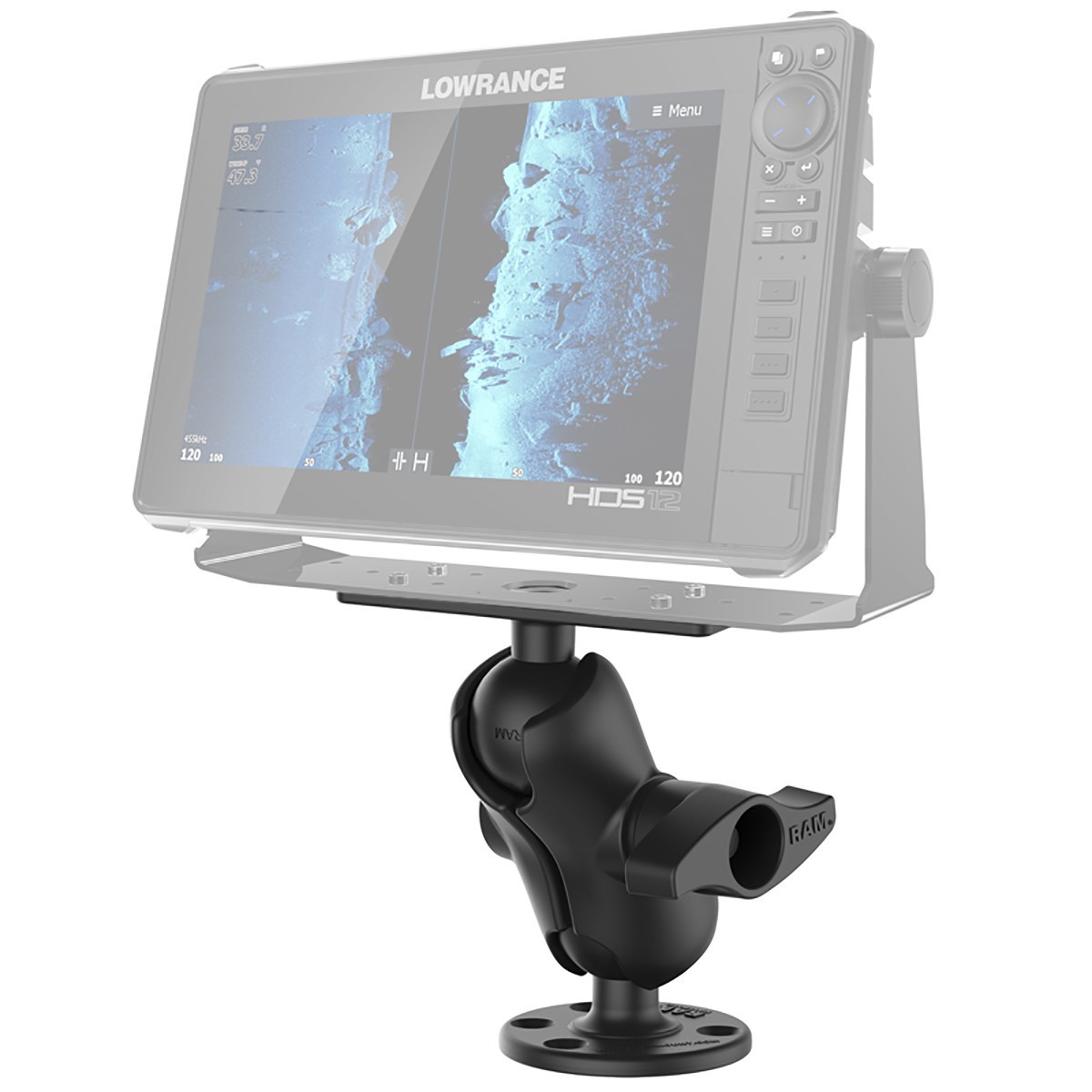

RAM Universal Marine Electronic Mount consists of a base with a 2.25" diameter D size ball, a short arm, and a 6.25" x 2" marine electronic plate with a D size ball for supporting larger devices. This marine electronic plate contains different combinations of pre-drilled holes and is a direct fit for 9"-12" fishfinder gimbal brackets. Supports devices such as the Lowrance HDS-9 Gen2 Touch, Garmin GPSMAP 7407, and more. The RAM Universal Marine Electronic Mount gives your setup an easy upgrade that will make a big difference.


  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Complete flat surface, drill-down mounting solution with short length D size socket arm compatible with 9"-12" fishfinder gimbal brackets
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty


  • Bottom Plate: 3.68" Diameter
  • Top Plate: 6.25" x 2"
  • Weight: 3.2lb
  • Weight capacity: 6 lbs
  • Ball/socket size: D size (2.25")
  • Socket to socket length: 3.6"
  • Overall height: 7.325"
