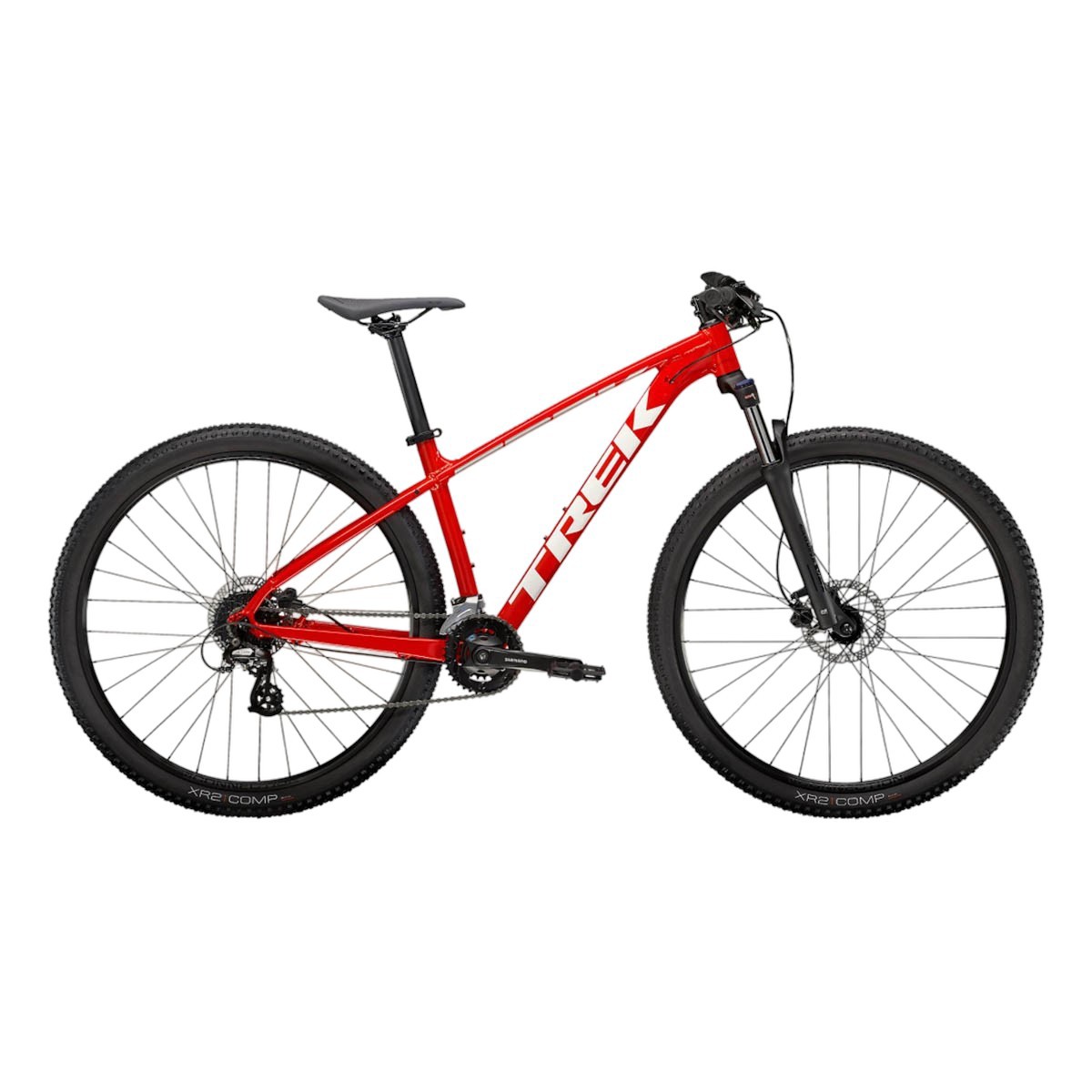

Trek 2022 Marlin 5 Mountain Bike

Trek 2022 Marlin 5 Mountain Bike

60184252116

The Trek Marlin 5 2022 Mountain Bike is designed for the trail yet versatile enough to be used as a commuter bike. Featuring a lightweight Alpha Silver Aluminum frame, the Trek Marlin 5 2022 Mountain Bike is durable to withstand tough trail terrain. The suspension fork locks out when not needed for more efficient pedaling on flat, even terrain, while the 2x8 drivetrain provides plenty of gears for powering up steep ascents. Plus, the Trek Marlin 5 2022 Mountain Bike features hydraulic brakes that provide powerful stopping in a variety of different weather conditions. From trails to the pavement, ride the Trek Marlin 5 2022 Mountain Bike.


Frameset:

• Frame: Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
• Fork:
  • Size XXS: SR Suntour XCM 30, coil spring, lockout, preload, 100mm QR, 100mm travel, 26'' wheel
  • Size XS: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
  • Size S: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
  • Size M, ML, L, XL, XXL: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Wheel Specs:

• Spokes: 14g stainless steel
• Hub Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Hub Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
• Rim:
  • Size XXS: Bontrager Connection, alloy, double-wall, 32-hole, 20mm width, Schrader valve
  • Size XS, S, M, ML, L, XL, XXL: Bontrager Connection, double-wall, 32-hole, 20mm width, Schrader valve
• Tire:
  • Size XXS: Bontrager XR2 Comp, wire bead, 30 tpi, 26x2.20''
  • Size XS, S: Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
  • Size M, ML, L, XL, XXL: Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''

Drivetrain Specs:

• Chain: KMC Z8.3, 8 speed
• Pedal: VP-536 nylon platform
• Rear Derailleur - Shimano Altus M310
• Shifter: Shimano Altus M315, 8 speed
• Cassette: Shimano HG200, 12-32, 8 speed
• Bottom Bracket - VP BC73, 73mm, threaded cartridge
• Front Derailleur - Shimano Altus M315, 34.9mm clamp, top swing, dual pull
• Crank:
  • Size XXS: Prowheel TM-CY10, 36/22, 160mm length
  • Size XS S, M: Shimano M315, 36/22, 170mm length
  • Size ML, L, XL, XXL: Shimano M315, 36/22, 175mm length

Component Specs:

• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost:
  • Size XXS: Bontrager alloy, 31.6mm, 12mm offset, 300mm length
  • Size XS, S, M: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
  • Size ML, L, XL, XXL: Bontrager alloy, 31.6mm, 12mm offset, 400mm length
• Handlebar:
  • Size XXS , XS: Bontrager alloy, 31.8mm, 5mm rise, 690mm width
  • Size S, M, ML, L, XL, XXL: Bontrager alloy, 31.8mm, 5mm rise, 720mm width
• Grips: Bontrager XR Endurance Comp, lock-on
• Stem:
  • Size XXS: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
  • Size XS: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
  • Size S: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
  • Size M: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
  • Size ML, L: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
  • Size XL, XXL: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
• Headset: Semi-integrated, 1-1/8''
• Brake:
  • Size XXS, XS, S: Tektro HD-M276 hydraulic disc, short reach lever
  • Size M, ML, L, XL, XXL:Tektro HD-M275 hydraulic disc
