Trek

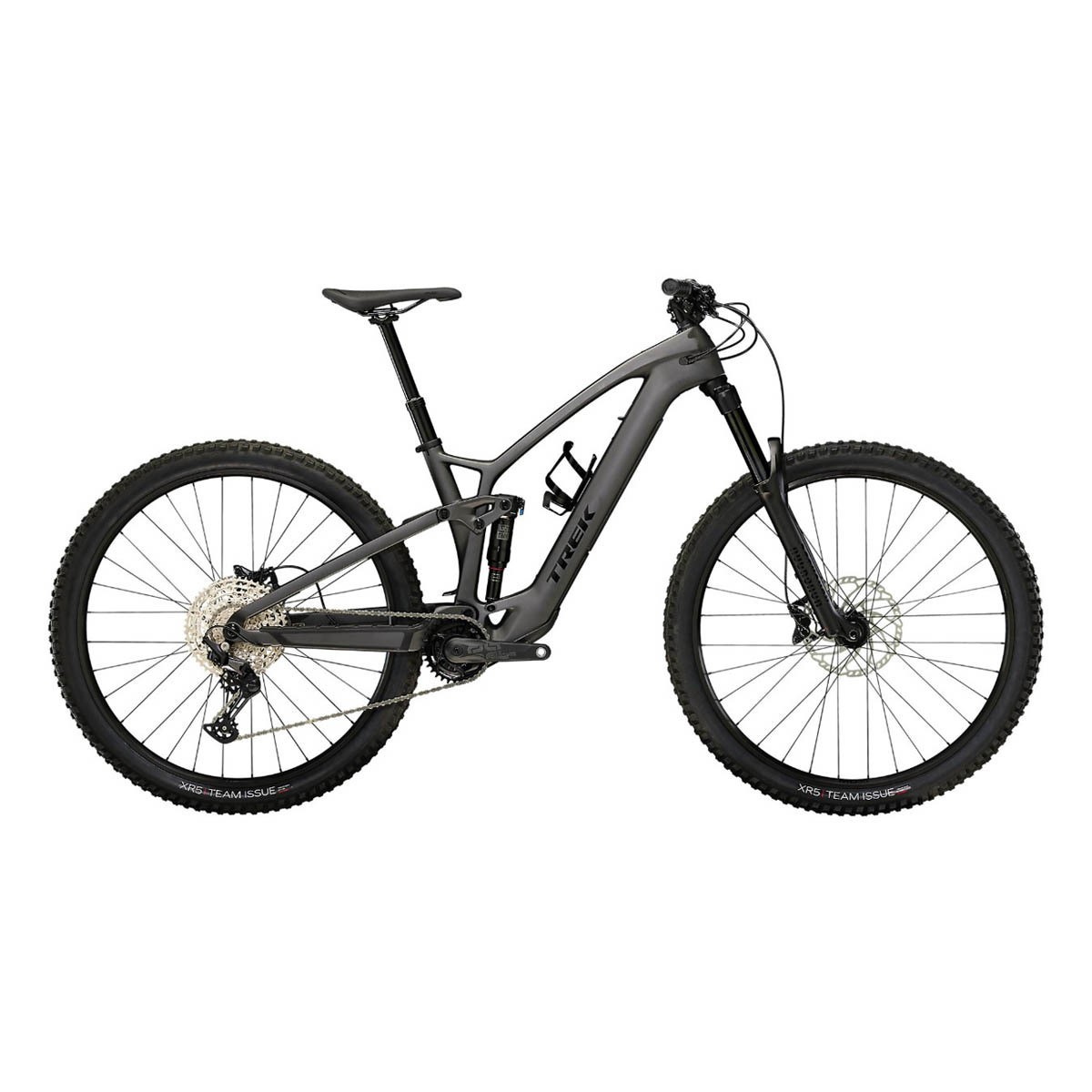

Trek 2023 Fuel EXe 9.5 Electric Mountain Bike

Item No. 1643-5272530
$6,499.99

  • Select Color:

Note: Shipping is unavailable for this product.

Select Delivery Method:

Must Be 18 Years of Age

Trek 2023 Fuel EXe 9.5 Electric Mountain Bike

1643-5272530

The Trek 2023 Fuel EXe 9.5 Electric Mountain Bike is a revolutionary piece of machinery designed for the most daring of adventurers. With a powerful Bosch Performance Line CX motor, you'll be able to tackle the toughest of trails with ease, reaching speeds of up to 20 mph. The durable frame is built to last and will keep you comfortable and in control while you ride. The bike also features a 500Wh battery, offering up to 80 miles of range, so you can go further and explore more. With advanced safety features, such as integrated lights, you'll be able to stay visible and safe on the trails. Whether you're a beginner or an experienced rider, the Trek 2023 Fuel EXe 9.5 Electric Mountain Bike is the perfect choice for anyone looking to take mountain biking to the next level.





  • Wheels:
    • Hub front - Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
    • Hub rear - Bontrager alloy, loose ball bearing, alloy axle, 6-bolt, Shimano Micro Spline freehub, Boost148, 12mm thru axle
    • Skewer rear - Bontrager Switch thru axle, removable lever
    • Rim - Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
    • Tire - Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50''
    • Tire part - Bontrager TLR sealant, 6oz
  • Drivetrain:
    • Shifter - Shimano Deore M6100, 12 speed
    • Rear derailleur - Shimano Deore M6100, long cage
    • Crank arm - E*thirteen E*spec Plus, 34T, 165mm length
    • Chainring - E*thirteen E*spec, 32T alloy ring, 55mm chainline
    • Cassette - Shimano Deore M6100, 10-51, 12 speed
    • Chain - Shimano Deore M6100, 12 speed
  • Components:
    • Saddle - Bontrager Arvada, steel rails, 138mm width
    • Seatpost:
      • Size: S - TranzX JD-YSI-22PLQ, 100mm travel, internal routing, 34.9mm, 346mm length
      • Size: M - TranzX JD-YSI-22PLQ, 150mm travel, internal routing, 34.9mm, 454mm length
      • Size: L, XL - TranzX JD-YSI-22PLQ, 170mm travel, internal routing, 34.9mm, 497mm length
    • Handlebar - Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
    • Grips - Bontrager XR Trail Comp, nylon lock-on
    • Stem - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
    • Brake - Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
    • Brake rotor - Shimano RT66, 6-bolt, 203mm
  • Accessories:
    • Battery - TQ 360Wh
    • Motor - TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
    • Computer - TQ LED display with Bluetooth & ANT+ connectivity
    • Electronics - TQ 4A charger
  • Weight:
    • Weight - M - 19.93 kg / 43.94 lbs (with TLR sealant, no tubes)
    • Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
    • Trek
    • Sleek and Simple Remote: Toggle between assist modes or engage the walk-assist function with the ergonomic low-profile remote.
    • Easier Internal Routing: Integrated channels in the frame make it easy to route the brake hose, dropper and derailleur housing so you get a clean set-up with no hassle.
    • Range Extender: Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.
    • Oversized 34.9mm dropper post: Bigger is better. The oversized seat tube diameter gives more support and strength for longer travel droppers, and allows for more robust, durable internals that work faster.
    • Active Braking Pivot: Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
    • Complete Tubeless System: Tubeless Read rims and tires make it easy to ditch the tubes so you get better traction, fewer flats, and less weight. You're ready to roll right out of the box with the included TLR rim strips, valves, and sealant.
    • Mino Link Adjustable Geometry: Fine tune head tube angle by 1/2° and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting suspension performance. A Trek exclusive.
    • TQ-HPR50 - small, quiet, mighty: TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet, and unbelievably natural feeling.
    • Removable battery: The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.
    • Integrated Display: Fuel EXe's display is simple to use and protected in the top tube. Check your assist level, range, speed, and more at a glance.
    • TQ-HPR50 - small, quiet, mighty - TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that's small, ultra-quiet, and unbelievably natural feeling.
    • Range Extender - Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn't require any complicated wiring or special mounts.
    • Removable battery - The 360 Wh battery gives you power for 2-5 hours. It's concealed in the downtube, but it's still easy to remove for more convenient charging.
    • Active Braking Pivot - Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
    • Complete Tubeless System - Tubeless Read rims and tires make it easy to ditch the tubes so you get better traction, fewer flats, and less weight. You're ready to roll right out of the box with the included TLR rim strips, valves, and sealant.
    • Integrated Display - Fuel EXe's display is simple to use and protected in the top tube. Check your assist level, range, speed, and more at a glance.
    • Sleek and Simple Remote - Toggle between assist modes or engage the walk-assist function with the ergonomic low-profile remote.
    • Easier Internal Routing - Integrated channels in the frame make it easy to route the brake hose, dropper and derailleur housing so you get a clean set-up with no hassle.
    • Oversized 34.9mm Dropper Post - Bigger is better. The oversized seat tube diameter gives more support and strength for longer travel droppers, and allows for more robust, durable internals that work faster.
    • Mino Link adjustable geometry - Fine tune head tube angle by 1/2° and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting suspension performance. A Trek exclusive.
    • Frame - OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
    • Fork - RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel
    • Shock - RockShox Deluxe Select+ RT, 205mm x 60mm
