Trek

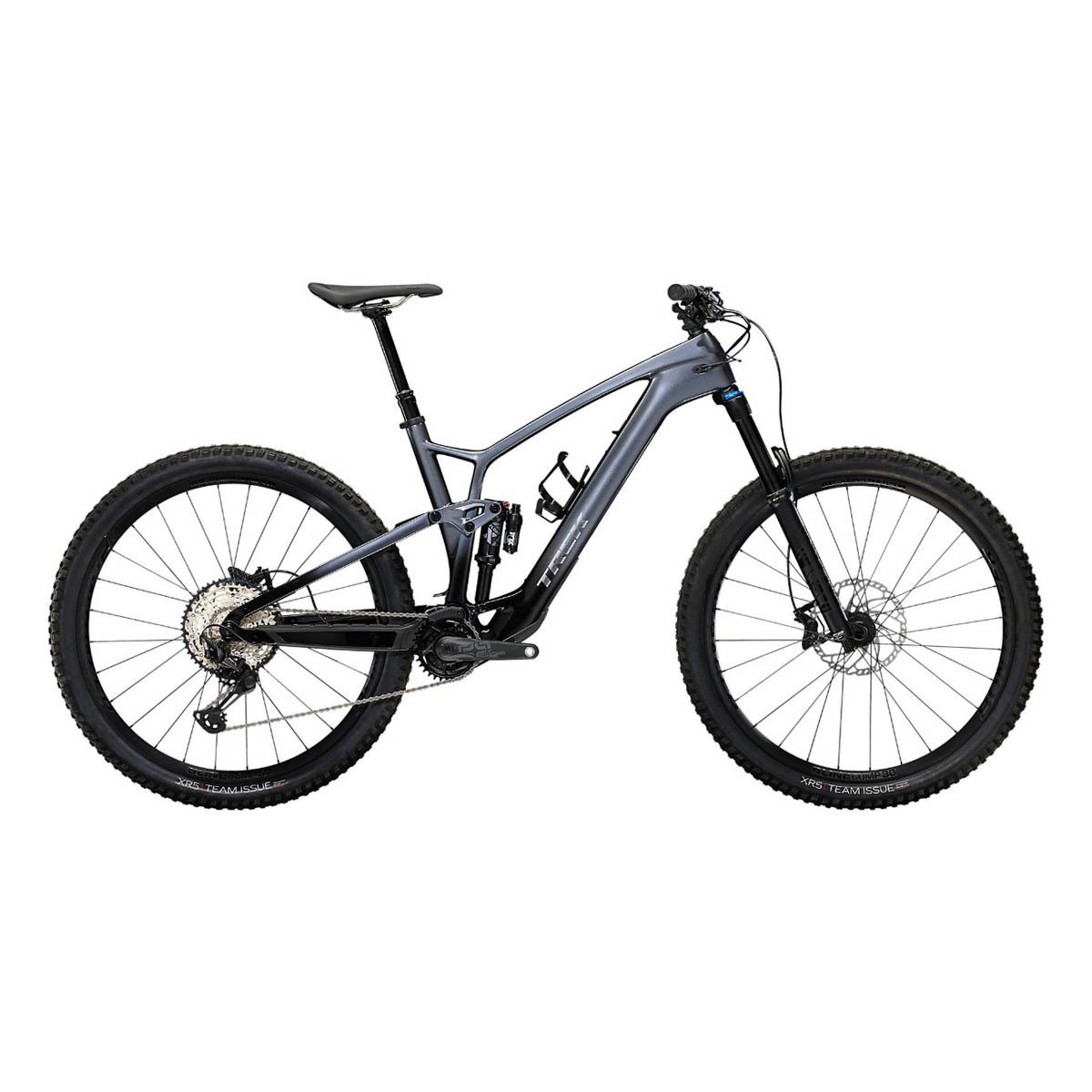

Trek 2023 Fuel EXe 9.7 Electric Mountain Bike

Item No. 1643-5272432
$7,599.99

  • Select Color:

    Grey/Black Fade

Note: Shipping is unavailable for this product.

Select Delivery Method:

Must Be 18 Years of Age

Trek 2023 Fuel EXe 9.7 Electric Mountain Bike

1643-5272432

The Trek 2023 Fuel EXe 9.7 Electric Mountain Bike is the perfect tool for those serious about taking their cycling to the next level. This bike combines the advantages of an electric motor and a mountain bike, giving you the best of both worlds. With the mid-drive motor, you can get up to 20 mph and tackle any terrain with ease. The Shimano Deore XT M8000 11-speed shifter gives you the ability to conquer the toughest terrain with precision and speed. The Tektro hydraulic disc brakes provide superior stopping power. The RockShox Recon RL 120mm fork offers incredible control and smoothness for tackling any trail. The Fuel EXe 9.7 also features a dropper post and tubeless ready wheels, giving you maximum performance and comfort. With its lightweight aluminum frame, you can take on the toughest mountain trails with ease. The Trek 2023 Fuel EXe 9.7 Electric Mountain Bike is the perfect machine for those who demand the best.



Specs:
  • Frameset:
    • Frame - OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
    • Fork - Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
    • Shock - Fox Performance Float X, 2-position damper, 205mm x 60mm
  • Wheels:
    • Wheel front - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
    • Wheel rear - Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
    • Skewer rear - Bontrager Switch thru axle, removable lever
    • Tire - Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50''
    • Tire part - Bontrager TLR sealant, 6oz
    • Rim strip - Bontrager TLR
  • Drivetrain:
    • Shifter - Shimano SLX M7100, 12 speed
    • Rear derailleur - Shimano XT M8100, long cage
    • Crank - E*thirteen E*spec Race alloy, 32T, 170mm length
    • Chainring - E*thirteen E*spec, 32T alloy ring, 55mm chainline
    • Cassette - Shimano SLX M7100, 10-51, 12 speed
    • Chain - Shimano SLX M7100, 12 speed
  • Components:
    • Saddle - Bontrager Arvada, austenite rails, 138mm width
    • Seatpost:
      • Size: S - TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm
      • Size: M - TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm
      • Size: L, XL - TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm
    • Handlebar - Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
    • Grips - Bontrager XR Trail Elite, nylon lock-on
    • Stem - Bontrager Elite, 35mm, 0 degree, 45mm length
    • Brake - Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
    • Brake Rotor - Shimano RT66, 6-bolt, 180mm
  • Accessories:
    • Battery - TQ 360Wh
    • Motor - TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
    • Computer - TQ LED display with Bluetooth & ANT+ connectivity
    • Electronics - TQ 4A charger
  • Weight:
    • Weight - M - 19.05 kg / 42 lbs (with TLR sealant, no tubes)
    • Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Trek
  • Rapid Drive 108 rear hub - With 108 points of engagement, Rapid Drive gives you nearly instant acceleration instead of a clunky lag when you step on the pedals. You get smooth, immediate power to blast out of corners and hammer through the rough stuff. And that extra pedal ratchet adds control that can make all the difference when tackling a tricky climb.
  • Easier Internal Routing - Integrated channels in the frame make it easy to route the brake hose, dropper and derailleur housing so you get a clean set-up with no hassle.
  • Sleek and Simple Remote - Toggle between assist modes or engage the walk-assist function with the ergonomic low-profile remote.
  • Integrated Display - Fuel EXe's display is simple to use and protected in the top tube. Check your assist level, range, speed, and more at a glance.
  • Complete Tubeless System - Tubeless Read rims and tires make it easy to ditch the tubes so you get better traction, fewer flats, and less weight. You're ready to roll right out of the box with the included TLR rim strips, valves, and sealant.
  • Active Braking Pivot - Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
  • Removable battery - The 360 Wh battery gives you power for 2-5 hours. It's concealed in the downtube, but it's still easy to remove for more convenient charging.
  • Range Extender - Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn't require any complicated wiring or special mounts.
  • TQ-HPR50 - small, quiet, mighty - TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that's small, ultra-quiet, and unbelievably natural feeling.
  • TQ-HPR50 - small, quiet, mighty - TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet, and unbelievably natural feeling.
  • Mino Link Adjustable Geometry - Fine tune head tube angle by 1/2° and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting suspension performance. A Trek exclusive.
  • Range Extender - Give yourself 40% more range with an optional 160wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.
  • Removable battery - The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.
  • Oversized 34.9mm Dropper Post - Bigger is better. The oversized seat tube diameter gives more support and strength for longer travel droppers, and allows for more robust, durable internals that work faster.
  • Mino Link adjustable geometry - Fine tune head tube angle by 1/2° and BB height by up to 10mm with the simple turn of a nut. Just flip the link to choose between slack or slacker geometry, without negatively affecting suspension performance. A Trek exclusive.
