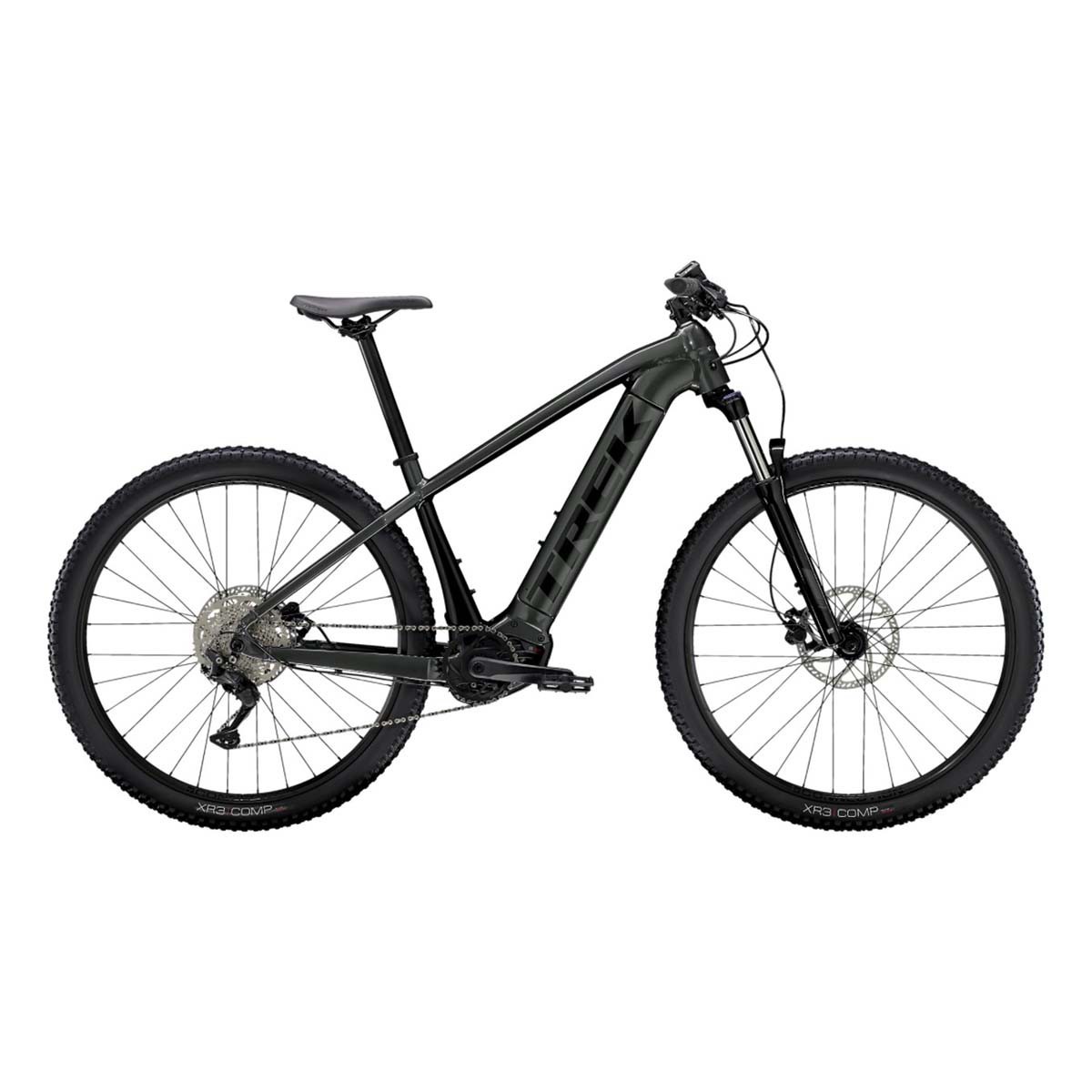

Trek Powerfly 4 Electric Mountain Bike

Trek Powerfly 4 Electric Mountain Bike

1643-1042648

The Trek Powerfly 4 Electric Mountain Bike is up for any type of riding—commuting, recreational, or the trail. The Trek Powerfly 4 features the powerful Bosch Performance Line CX motor that easily adjusts to changing terrain, while the motor armour helps protect the battery from rocks and other trail debris. The Trek Powerfly 4 eMTB features a frame constructed from Alpha Platinum aluminum to provide strength while remaining lightweight. With the Removable Integrated Battery design, you can easily remove the battery for easier charging. With a smooth shifting drivetrain and suspension fork with lockout, the Trek Powerfly 4 eMTB provides versatile performance. If you're looking for an electric bike, the Trek Powerfly 4 Electric Mountain Bike is one to check out.


Frameset:

• Frame: Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle
• Fork:
  • XS: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 80mm travel
  • S, M, L, XL: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel

Wheels:

• Spokes: 14g, stainless steel, black
• Skewer Rear: Bontrager Switch thru axle, removable lever
• Hub Front: Formula DC-511, 6-bolt, Boost110, 15mm thru axle
• Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, presta valve
• Hub Rear: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle
• Tire:
  • XS, S: Bontrager XR3 Comp, wire bead, 30tpi, 27.5x2.35''
  • M, L, XL: Bontrager XR3 Comp, wire bead, 30tpi, 29x2.30''

Drivetrain:

• Chain: KMC X10, 10-speed
• Pedal: VP-536 nylon platform
• Shifter: Shimano Deore M4100, 10-speed
• Rear Derailleur - Shimano Deore M5120, long cage
• Cassette: Shimano Deore M4100, 11-46, 10-speed
• Crank: FSA Bosch CK-220, 36T ring, 165mm length

Components:

• Brake Rotor: Tektro, 6-bolt, 203mm
• Saddle: Bontrager Commuter Comp
• Brake: Tektro HD-M275 hydraulic disc
• Headset: FSA IS-2, 1-1/8'' top, 1.5'' bottom
• Grips: Bontrager XR Endurance Comp, lock-on
• Seatpost:
  • XS, S: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
  • M: Bontrager alloy, 31.6mm, 12mm offset, 360mm length
  • L, XL: Bontrager alloy, 31.6mm, 12mm offset, 400mm length
• Handlebar:
  • XS, S: Bontrager alloy, 31.8mm, 15mm rise, 720mm width
  • M, L, XL: Bontrager alloy, 31.8mm, 15mm rise, 750mm width
• Stem:
  • XS: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
  • S, M: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
  • L, XL: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length

Accessories:

• Controller: Bosch Purion
• Battery: Bosch PowerTube 500
• Charger: Bosch compact 2A (100-240V) charger
• Motor: Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph or 32km/h max assist

Sizing & Fit:

Bike Size	Rider Height	Inseam
XS	4'5.9" - 5'1"	25.2" - 28.7"
S	5'0.2" - 5'5.6"	28.3" - 31.1"
M	5'3.4" - 5'8.9"	29.9" - 32.3"
L	5'8.5" - 6'2"	32.3" - 34.6"
XL	6'1.2" - 6'5.2"	34.3" - 36.2"
