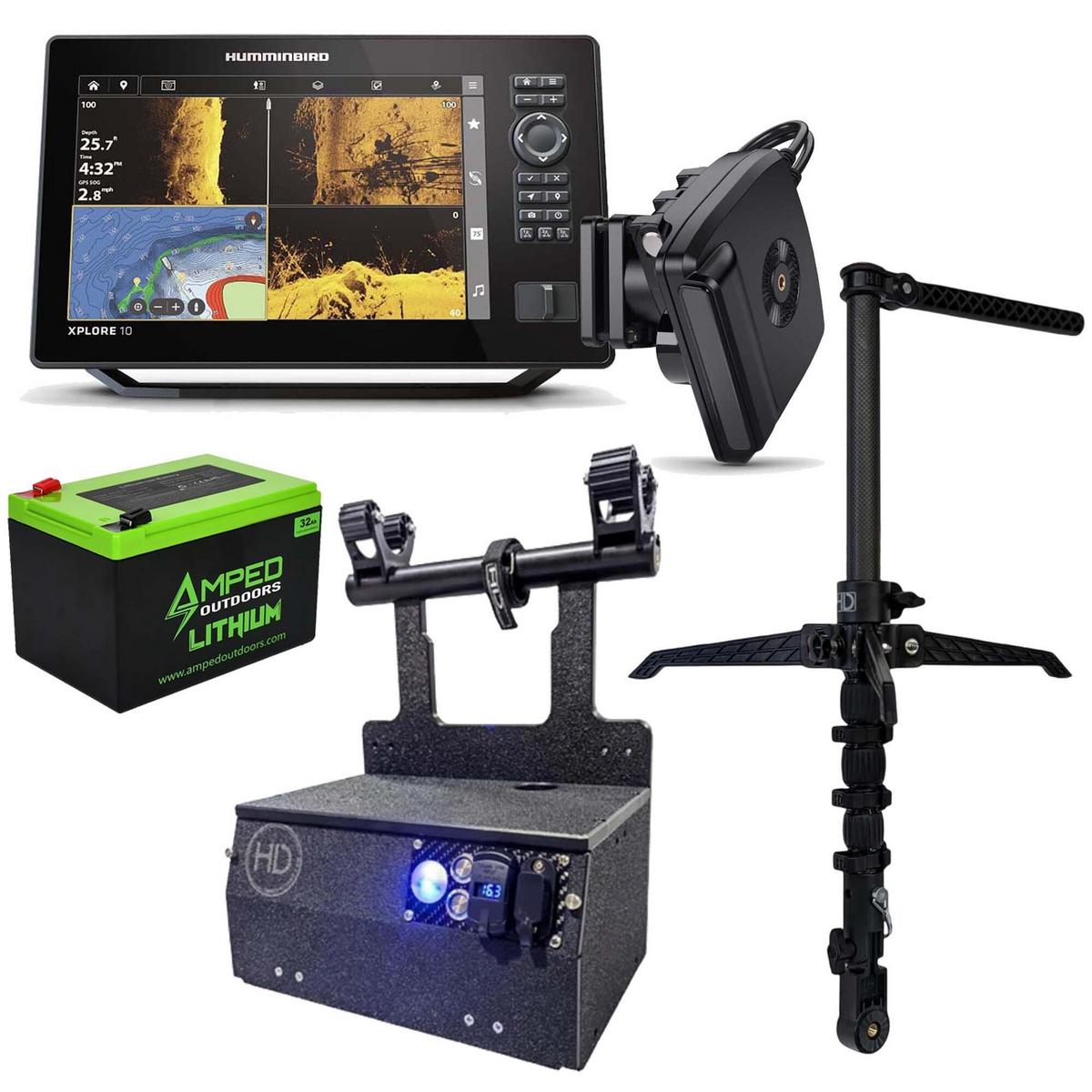

Humminbird XPLORE 10 MSI+ Fish Finder and MEGA Live 2 Ice Fishing Bundle

6903-412360-1HDISHDAO4S32

The Humminbird XPLORE Fish Finder paired with the Humminbird MEGA Live 2 tranducer offers real-time view, up to 200 feet in a variety of different directions, of what's below whether you are fishing in a boat or on the ice. Underwater views with built-in MEGA Imaging+ and Dual Spectrum CHIRP sonar, revealing fish and structure with incredible clarity. (XM 14 HW CMSI T Transducer Sold Separately). Equipped with MEGA Imaging detail, it offers dynamic bait and lure tracking across forward, down, and landscape viewing modes. Easily mounted on either side of your trolling motor shaft, it connects seamlessly to compatible Humminbird models via the included Ethernet cable—no external sonar box is required. With 15 customizable color palettes, you can fine-tune your display for optimal visibility in any condition. Navigate with confidence using the built-in GPS and Humminbird base map or create custom charts with AutoChart Live so that you can easily and quickly find your fishing hot spot. Offering the most advanced technologies while still providing an easy-to-use Cross Touch interface; you can choose between keypad or touchscreen control, and the color clarity is easy to read in bright sunlight. With detailed images and intuitive features, the Humminbird XPLORE MSI+ Fish Finder ensures you can adjust your strategy quickly to make the most of your time, whether you're fishing from a boat, or on the ice. Build a powerful fish-finding system this season with the Humminbird XPLORE MSI+ Fish Finder and MEGA Live 2 Transducer Forward-Facing Sonar Bundle.

Includes:

• Built-in GPS & Humminbird Basemap
• LakeMaster and CoastMaster VX map card with U.S. and Canada regions standard data.

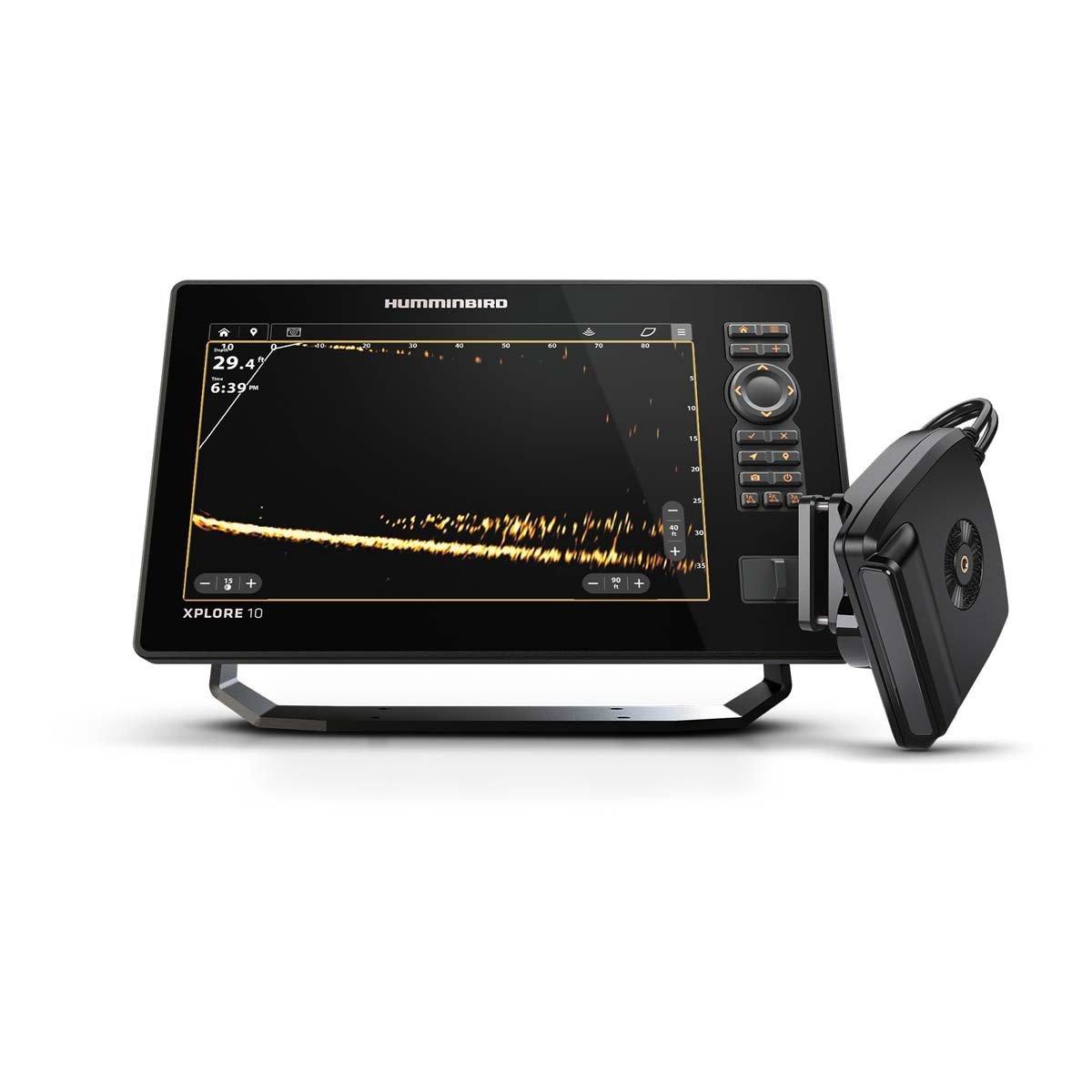

• XPLORE 10 MSI+ Fish Finder - [ Control Head Only - Transom mount transducer sold separately ]
• MEGA Live 2 Transducer [All Season Power Cable]
• Adjustable Mega Live Mounting Bracket
• Mega Live 20 ft. Ethernet cable
• Mega Live 10 ft. Power cable
• Built-in GPS & Humminbird Basemap
• Amped Outdoors 32ah NMC Lithium Battery

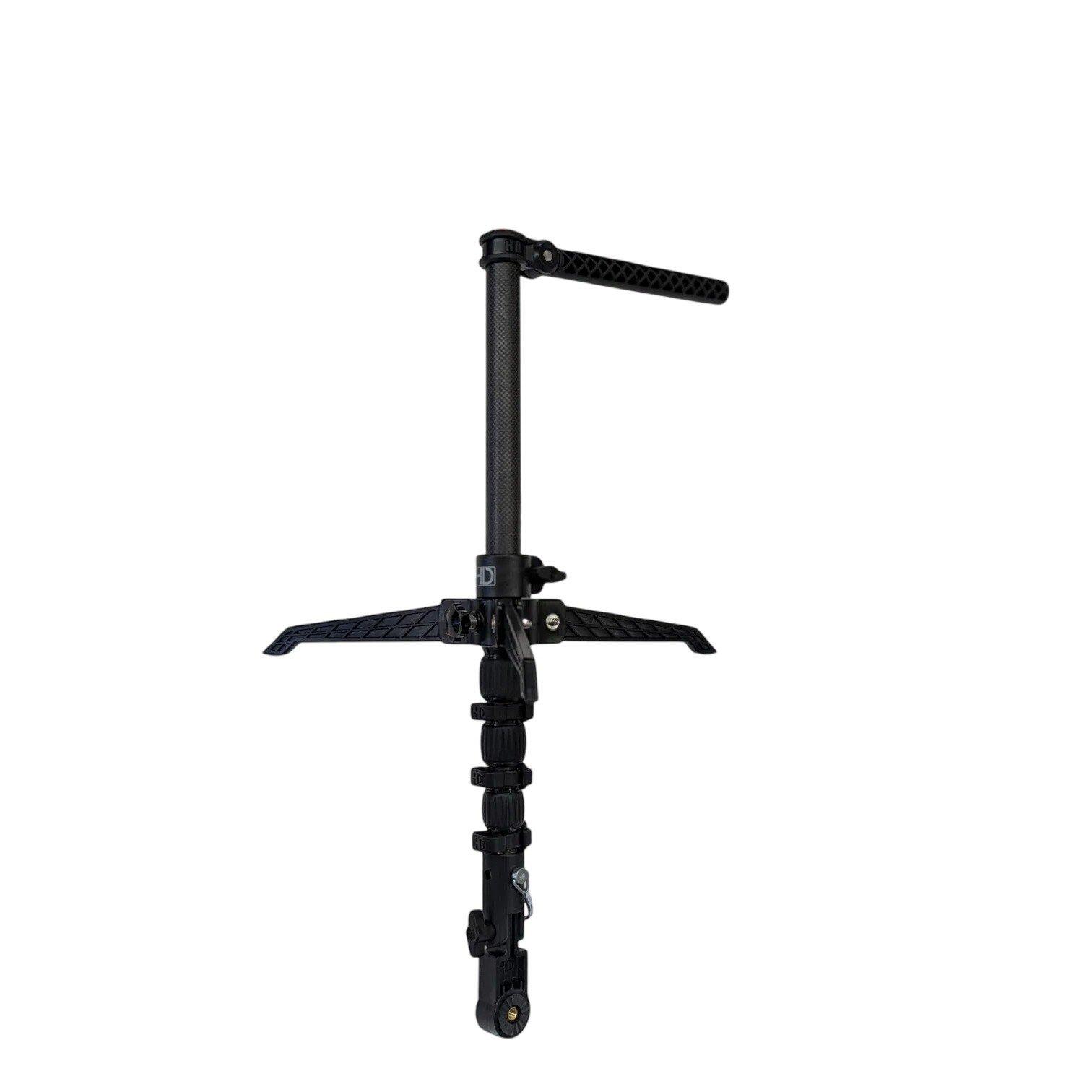

• HD Innovations X-Over Carbon Forward Facing Sonar Ice Pole System

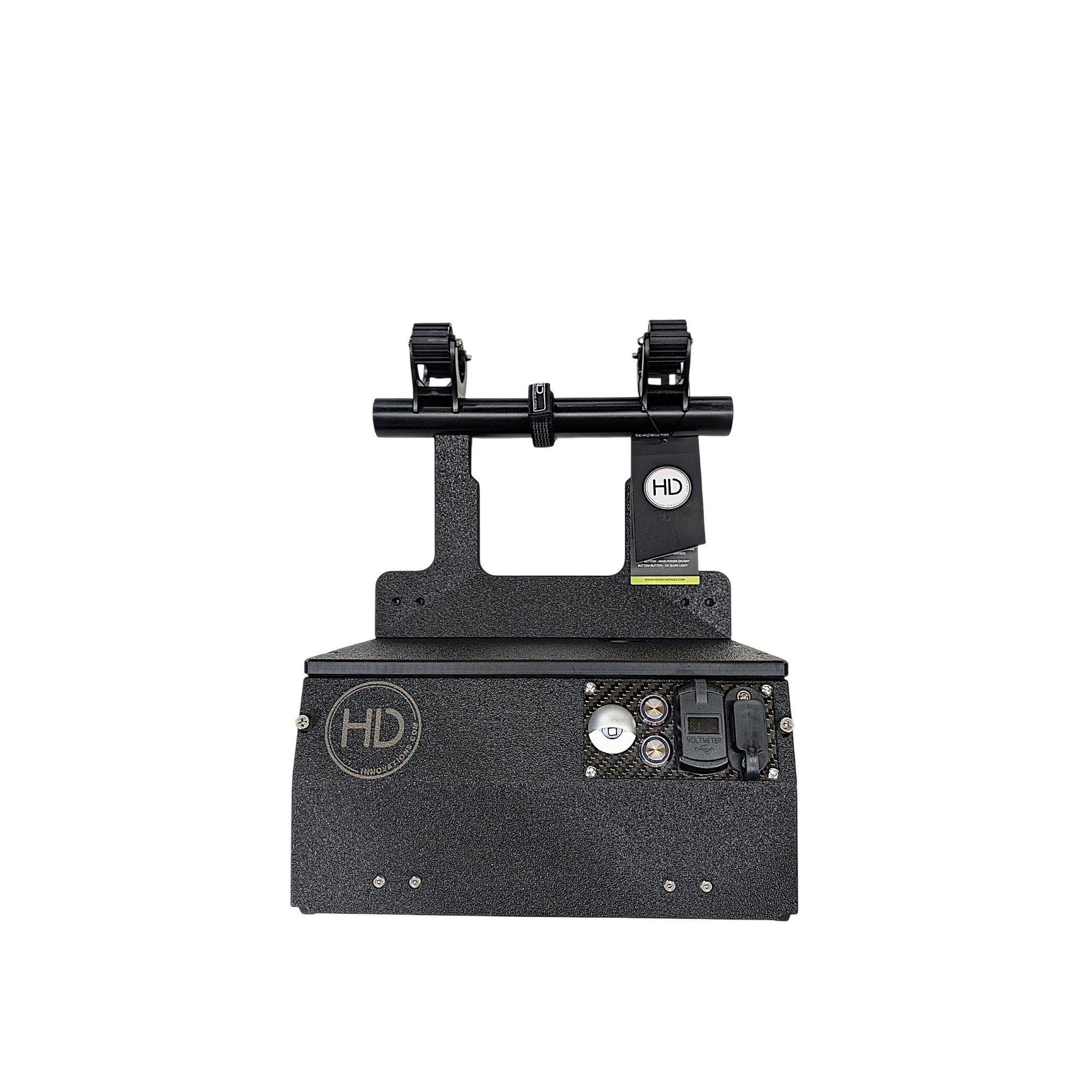

• HD Innovations Ice Shuttle

• See fish and structure in real-time
• MEGA LIVE 2 transducer mounts on either side of trolling motor shaft
• 15 customizable color palettes for detail and clarity
• MEGA Imaging+ with 20% more detail and 60% more range/depth than standard MEGA Imaging for dynamic bait and lure tracking.
• Connect MEGA Live Imaging via the included Ethernet cable. There is no external sonar box required for installation.
• AutoChart Live: Create real-time maps of your fishing spots (8 hours built-in recording).
• One-Boat Network: Integrates with Minn Kota and Cannon products.
• HD Innovations Shuttle is professionally wired with all connections included.
• Shuttle fits all batteries including Amped 12-52ah, Norsk up to 50ah, Garmin 16ah lithium, all standard 9 or 12ah lead acid battery case sized batteries.
• The HD Innovations hinge down toolless front panel, recessed battery tray, and dual velcro battery strap allows for complete toolless battery change.
• Shuttle Mounting patterns for all FF brands and sizes. (7"-12" screens).
• Shuttle features pre-Installed aluminum LED UV blue light and front mount SAE battery charge port.
• Shuttle includes dual 2.4amp waterproof USB ports and pole holders.
• 32Ah (474Wh) 14.8V NMC Lithium Ion Battery is the highest capacity and longest lasting battery designed specifically for advanced fishing electronics.

• HDI Shuttle with prewired switch panel, USB, Charge port, UV Blue light, 1 Set of HD Pole Holders, Installation hardware for customer supplied electronics and Tools to install supplied hardware.
• Dimensions: 10.5" W x 10.5" D x 12.5" H
• UPC: 659859069265  [Model #: HDIS]

• Dimensions: 10.5" W x 10.5" D x 12.5" H
• UPC: 728614574716 [Model #: AO4S32BT]
• Includes: 32Ah Lithium Battery, 16.8V Charger (Use with 14.8V Amped Outdoors Battery Only), User Guide.
• This model is the same size as the 20Ah LiFePO4 Amped Outdoors Battery and Garmin 12Ah SLA battery. Will fit all Garmin Livescope/Panoptix Products.

• All Amped Outdoors NMC batteries must be charged with supplied 16.8V Charger. Using any other charger could cause damage to the battery. Do not use ANY Amped Outdoors charger on a battery without a BMS such as SLA (sealed lead acid) batteries.
• MUST BE REMOVED (FROM BOAT) AND CHARGED INDOORS ONLY.
• Why 14.8V NMC Lithium Ion? Since most fishing electronics today are made to operate up to 17+ volts, this battery has a working voltage of 16.8V when fully charged and 12V when fully depleted.
• That means you have the most usable capacity and zero worries of low voltage poor returns/images from your electronics. Amped Outdoors batteries use only the best NMC Lithium A Grade Top Tier Cells. Instead of getting 300-400 charge cycles with NMC from others, Amped Outdoors NMC will give you 800-1000 Charge cycles and a longer life expectancy.

• XPLORE Control Head UPC: 082324058684
• XPLORE Control Head Part #: 412010-1CHO
• HDMI Compatible: No
• Memory Card Slot: Dual Micro SD
• Humminbird Basemap: Included
• Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
• LakeMaster Compatibility: Yes
• CoastMaster Compatibility: Yes
• Navionics Gold/HotMaps Compatibility: Yes
• Navionics Platinum+ Compatibility Yes
• Platinum Compatibility: Yes
• Minn Kota Advanced GPS Navigation Compatibility: Yes
• Minn Kota i-Pilot Link Compatibility: Yes
• Minn Kota Talon Shallow Water Anchor Compatibility: Yes
• Radar Compatibility: Yes
• 5-Port Ethernet Switch Compatibility: Yes
• AIS Compatibility: Not Supported
• Autopilot Compatibility: No
• Heading Sensor GPS Compatibility: No
• Heading Sensor GPS (NMEA 2000) Compatibility: Yes NMEA2000 Included
• Target separation: 2.5 in.
• Upgradable Software: Yes
• View Preset Keys: Yes
• X-Press Menu System: Yes
• Custom Digital Readout: Yes
• Custom View Selections: Yes
• Display Colors Grayscale: 24-Bit
• Display Type: Color TFT
• Speed: Included
• Temperature: Built In
• Temperature Alarm: Yes
• Temperature Graph: Yes
• Warranty: 2-year warranty
• Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
• Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
• CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
• Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
• Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
• CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
• Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
• Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
• Power Input: 10.8-20 VDC
• Power Output Peak-to-Peak: 8000 Watts
• Power Output RMS: 1000 Watts
• Mount-Standard: Gimbal
• Mount-Standard Size: 11.690 in W x 6.569 in H x 3.884 in D
• Mount-Optional: In-Dash Mounting Kit
• Mount-Optional Size: 6.259 in W x 11.69 in H x 3.3 in D
• XPLORE Control Head Compatibility: Compatible With: Minn Kota US2 Sonar, Minn Kota Built-In MEGA DI, Minn Kota Talon/Raptor, Minn Kota i-Pilot Link, Minn Kota Built-In MEGA SI, MEGA Live, NMEA 2000, MEGA 360, Radar, AutoPilot, One-Boat Network.
• MEGA Live 2 Transducer Mount Location: Trolling motor
• MEGA Live 2 UPC: 0082324058929
• MEGA Live 2 Part #: 710310-1
• MEGA Live 2 Warranty: 2-year manufacturer's
• MEGA Live 2 Sonar Coverage: 20 degrees x 120 degrees
• MEGA Live 2 Compatible Humminbird Control Heads: All APEX, SOLIX G3, and XPLORE models (Must be MEGA Side Imaging or MEGA Down Imaging model).
• *Please Note: For optimal sonar performance, it is recommended that MEGA Live Imaging be used with any Minn Kota Ultrex and Fortrex trolling motor, or any QUEST trolling motor equipped with Built-in MEGA Imaging.
