Dillon Precision XL 750 Reloading Press

4235-750

The Dillon Precision XL 750 Reloading Press is a high-speed reloading machine designed for common rifle and handgun cartridges. This Dillon reloading press measures 32-inches high from the bench without the optional case feeder, and measures 38.5-inches with the electric case feeder. This Dillon press comes with both a small and a large powder bar for versatile reloads. A low primer alarm provides a clear indication when it's time to add more primer. Built for precise and high-speed reloading, the Dillon Precision XL 750 Reloading Press offers reliable, smooth performance to improve your reloading experience.

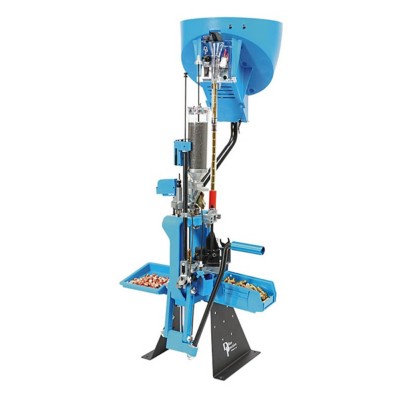

The XL750 is shown with the following options (SOLD SEPARATELY):

• Die set
• Caliber Conversion Kit
• Bullet Tray
• Roller Handle
• Strong Mount
• Powdercheck Die
• Electric Casefeeder
• Low Powder Sensor

The basic XL 750 includes the following:

• One toolhead
• One powder die
• Low primer alarm
• One loaded cartridge bin
• One set of standard Allen wrenches
• One large and one small primer pick-up tube
• One primer system with large and small priming parts (appropriate size installed)
• One powder measure with standard large and small powder bars (small installed)
  • Small bar throws from 2.1 to 15 grains of powder
  • Large bar throws from 15 to 55 grains of extruded powder or up to 60 grains of ball/spherical type powder.

Please Note:

• No dies are included with press. Dies are ordered separately.
• Caliber Conversion Kit is ordered separately (Shellplate, Locator buttons, Powder funnel, Casefeed adapter parts).

Configuration Note: The XL750 does not support the combination of our Dillon 3-die set, a low powder check and a Mr. Bullet Feeder.

Recommended additional items (at a minimum):

• A Caliber Conversion Kit
• Die set (dies are not included with the XL750 press)
• Powder scale
• Reloading Handbook
• Dial caliper
• Primer flip tray
• Case lube (for bottleneck cartridges)
• If you have the optional electric casefeeder you may need a different casefeed plate. Please refer to the caliber conversion chart in the Instruction Manual
• If you are using the Mr. Bulletfeeder, you may need a caliber conversion. The XL750 does not support the combination of our Dillon 3-die set, a low powder check and a Mr. Bullet Feeder.

To leave your dies preset, you'll need:

• Toolhead(#13863)
• Powder die(#20064)
• OR The
• 750 Quick Change(#22059), which includes a powder measure, powder die, toolhead and a toolhead stand. This allows you to leave your dies and powder charge set up and dedicated to a specific cartridge for faster, easier caliber changes.
