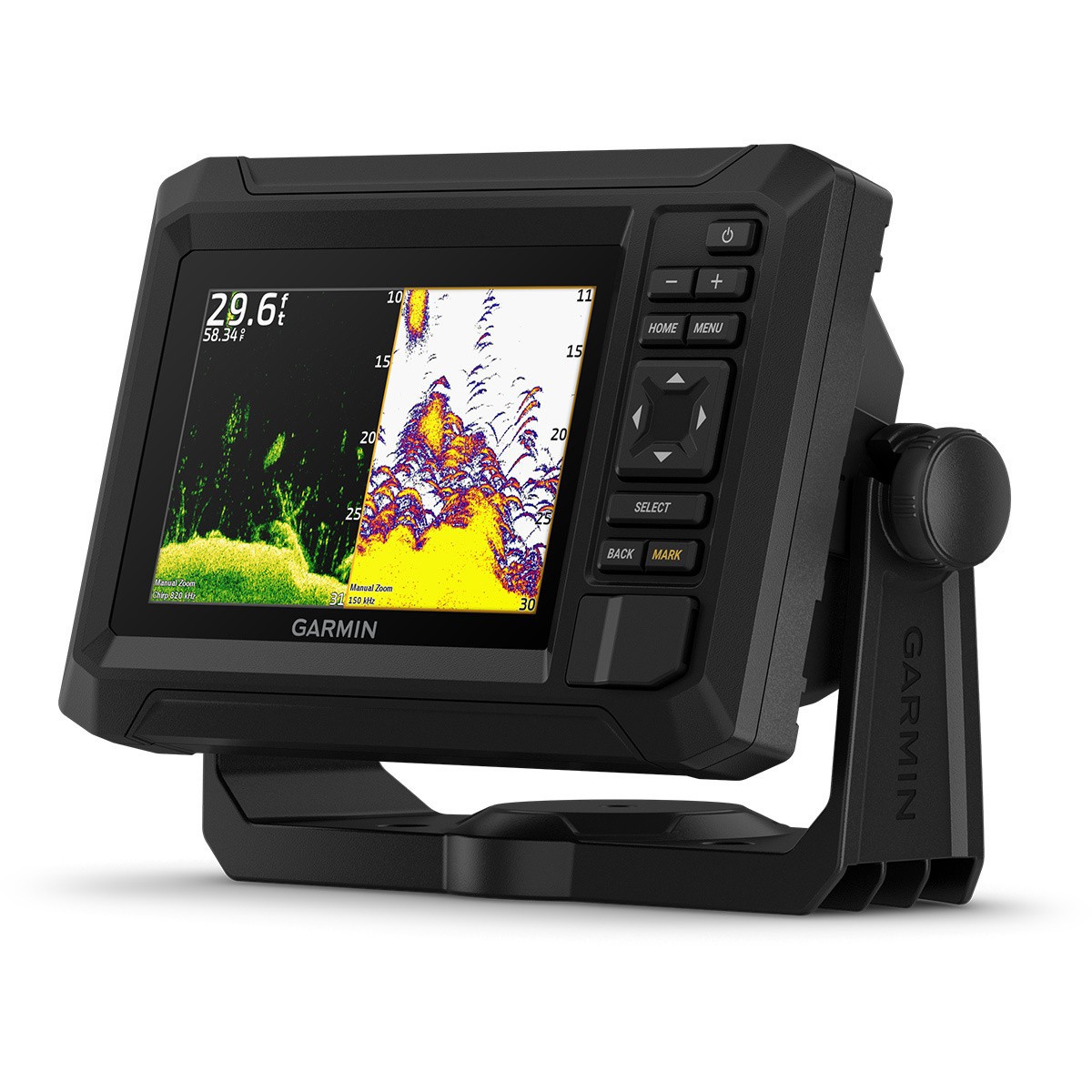

Garmin ECHOMAP UHD2 53cv Fish Finder with GN+ Mapping and GT20-TM Transducer
3816-010-02590-51
The Garmin ECHOMAP UHD2 53cv GT20-TM Transducer GN+ is the ideal choice for precise navigation and fishing. Featuring a bright 5-inch keyed display with high-contrast vivid color palettes, the Garmin ECHOMAP UHD2 presents crisp, clear traditional sonar and brilliant ClearVü sonar fish, making the fish easy to spot. With Wi-Fi® connectivity between compatible chart plotters, you can easily share information, while the included one-year subscription gets you Garmin Navionics+™ inland and coastal content to make the most of your time on the water.
Includes:
- Hardware
- Tilt mount
- Flush mount
- Documentation
- Power/data cable
- GT20-TM transducer
- CHOMAP UHD2 53cv
Compatibility: If you have another compatible ECHOMAP UHD2 chart plotter on your boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.
Additional Features:
- DSC: No
- SideVü: No
- TOPO: Yes
- USB Ports: No
- Touchscreen: No
- Built-In Receiver: Yes
- NMEA 0183 Compatible: No
- Sailing Features: No
- Tide Tables: Yes (see additional)
- Garmin Navionics+™: Yes
- Garmin Navionics Vision+™: Yes
- Garmin Navionics+ (Coastal): Yes (see additional)
- Garmin Navionics+ (Inland): Yes (see additional)
- Accepts Data Cards: 1 microSD™ card; 32 GB maximum size (cards no included
- AIS: No
- Input: Yes
- BeiDou: No
- GLONASS: No
- LakeVü g3: No
- Galileo: No
- LiveScope: No
- LakeVu (inland): No
- Displays Sonar: Yes
- Supports WAAS: Yes
- BlueChart (coastal): No
- LakeVü g3 Ultra: No
- Panoptix™ Sonar: No
- Standard Mapping: Yes
- OneHelm Support: No
- ANT+ (Connectivity): No
- Spoken Audio Alerts: No
- Raster Chart Support: No
- BLUETOOTH® Pairing: No
- Built-in Auto Guidance: No
- Smart Mode Compatible: No
- NMEA 2000 Compatible: No
- ActiveCaptain® Compatible: Yes
- Garmin Quickdraw Contours: Yes
- Wireless Remote Compatible: No
- GSD Black Box Sonar Support: No
- GCV Black Box Sonar Support: No
- BNC External GPS Antenna Port: No
- Garmin Wi-Fi network (local connection): Yes
- Supports Fusion-Link™ Compatible Radios: No
- Supports Multi-Band, Multi-Constellation GPS: No
- GRID (Garmin Remote Input Device) Compatible: No
- Tracks: 50 saved
- Power Output: 500 W
- 4-Pin Transducer Ports: 1
- Typical Current Draw at 12 Vdc 1.0 A
- Garmin Navionics+ (inland): 53cv U.S. lakes
- Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
- ClearVü Built-In: 260/455/800/1000/1200 kHz
- Garmin Navionics+ (coastal): 54cv U.S., 55cv U.K./Ireland
- Traditional Sonar (dual frequency/beam) Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
California Residents
Pickup and Delivery Options:Shipping
Garmin ECHOMAP UHD2 53cv Fish Finder with GN+ Mapping and GT20-TM Transducer
3816-010-02590-51
The Garmin ECHOMAP UHD2 53cv GT20-TM Transducer GN+ is the ideal choice for precise navigation and fishing. Featuring a bright 5-inch keyed display with high-contrast vivid color palettes, the Garmin ECHOMAP UHD2 presents crisp, clear traditional sonar and brilliant ClearVü sonar fish, making the fish easy to spot. With Wi-Fi® connectivity between compatible chart plotters, you can easily share information, while the included one-year subscription gets you Garmin Navionics+™ inland and coastal content to make the most of your time on the water.
Includes:
- Hardware
- Tilt mount
- Flush mount
- Documentation
- Power/data cable
- GT20-TM transducer
- CHOMAP UHD2 53cv
Compatibility: If you have another compatible ECHOMAP UHD2 chart plotter on your boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.
Additional Features:
- DSC: No
- SideVü: No
- TOPO: Yes
- USB Ports: No
- Touchscreen: No
- Built-In Receiver: Yes
- NMEA 0183 Compatible: No
- Sailing Features: No
- Tide Tables: Yes (see additional)
- Garmin Navionics+™: Yes
- Garmin Navionics Vision+™: Yes
- Garmin Navionics+ (Coastal): Yes (see additional)
- Garmin Navionics+ (Inland): Yes (see additional)
- Accepts Data Cards: 1 microSD™ card; 32 GB maximum size (cards no included
- AIS: No
- Input: Yes
- BeiDou: No
- GLONASS: No
- LakeVü g3: No
- Galileo: No
- LiveScope: No
- LakeVu (inland): No
- Displays Sonar: Yes
- Supports WAAS: Yes
- BlueChart (coastal): No
- LakeVü g3 Ultra: No
- Panoptix™ Sonar: No
- Standard Mapping: Yes
- OneHelm Support: No
- ANT+ (Connectivity): No
- Spoken Audio Alerts: No
- Raster Chart Support: No
- BLUETOOTH® Pairing: No
- Built-in Auto Guidance: No
- Smart Mode Compatible: No
- NMEA 2000 Compatible: No
- ActiveCaptain® Compatible: Yes
- Garmin Quickdraw Contours: Yes
- Wireless Remote Compatible: No
- GSD Black Box Sonar Support: No
- GCV Black Box Sonar Support: No
- BNC External GPS Antenna Port: No
- Garmin Wi-Fi network (local connection): Yes
- Supports Fusion-Link™ Compatible Radios: No
- Supports Multi-Band, Multi-Constellation GPS: No
- GRID (Garmin Remote Input Device) Compatible: No
- Tracks: 50 saved
- Power Output: 500 W
- 4-Pin Transducer Ports: 1
- Typical Current Draw at 12 Vdc 1.0 A
- Garmin Navionics+ (inland): 53cv U.S. lakes
- Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
- ClearVü Built-In: 260/455/800/1000/1200 kHz
- Garmin Navionics+ (coastal): 54cv U.S., 55cv U.K./Ireland
- Traditional Sonar (dual frequency/beam) Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
California Residents
Previously Asked Questions
Yes, the Garmin ECHOMAP UHD2 53cv Fish Finder with GN+ Mapping and GT20-TM Transducer includes a one-year subscription to Garmin Navionics+™ mapping. This subscription provides access to detailed maps and daily updates via the ActiveCaptain app. After the one-year subscription expires, you can continue using your existing charts, but they will no longer receive updates, and advanced features like Dock-to-dock Autorouting and Plotter Sync will be unavailable. To maintain access to updated charts and premium features, you can renew your subscription through the ActiveCaptain app or Garmin Express. Renewals are typically offered at a discounted rate and can be scheduled up to 90 days before the expiration date.
Yes, the Garmin ECHOMAP UHD2 53cv can be mounted using a Scotty ball mount system, provided that the ball size and mounting plate are compatible with the device's mounting requirements. Scotty's 1.5-inch ball mount (Model 0163) is designed to support larger accessories, offering a smooth full range of motion and accommodating fish finders up to 9 inches in size.
Yes, the Garmin ECHOMAP UHD2 53cv Fish Finder screen can be easily removed from its base. It utilizes a quick-release cradle system, allowing you to detach the display from the mount without unplugging the cables.
