Garmin Force Trolling Motor with Built-in GT54UHD-TM Transducer

3816-010-02024-00

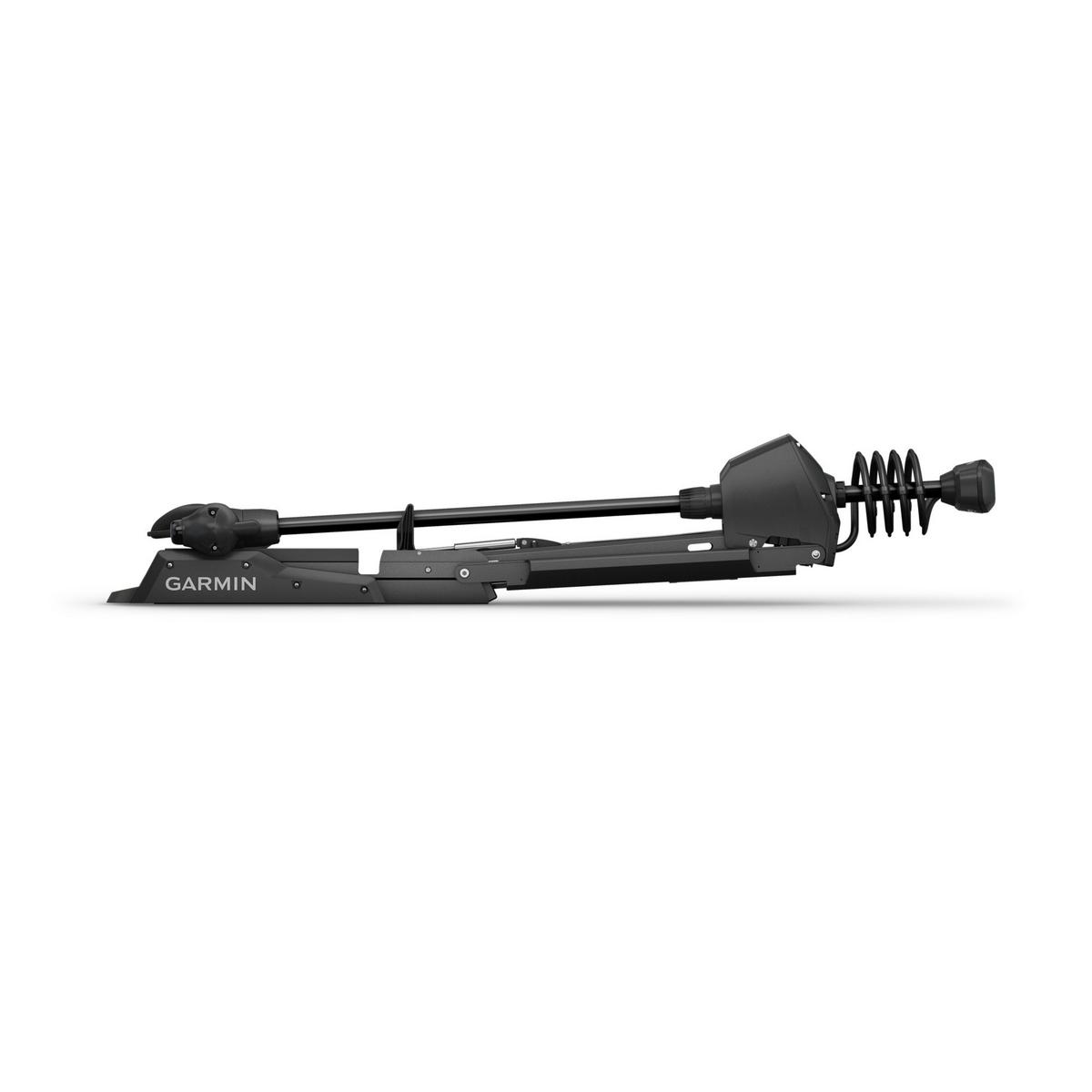

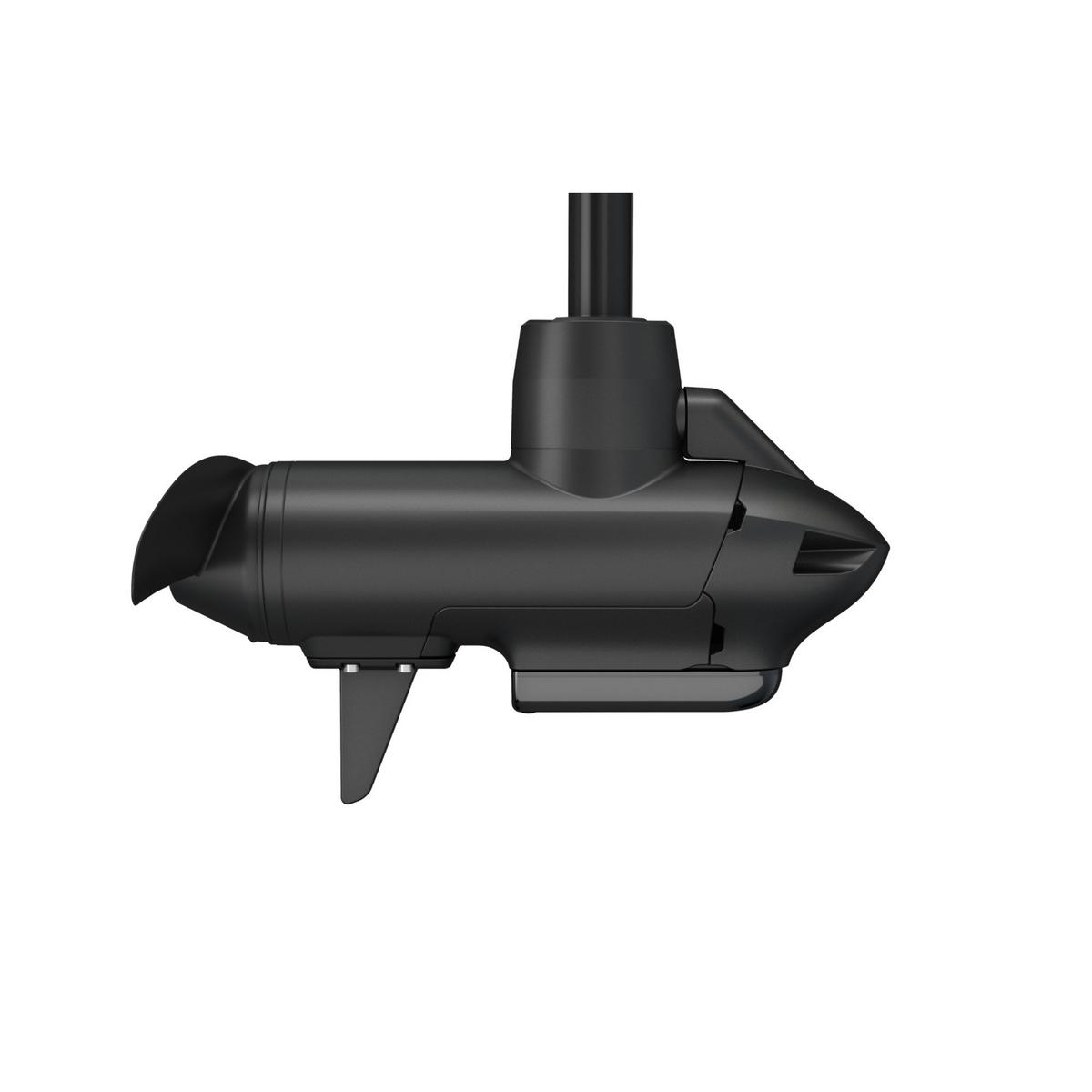

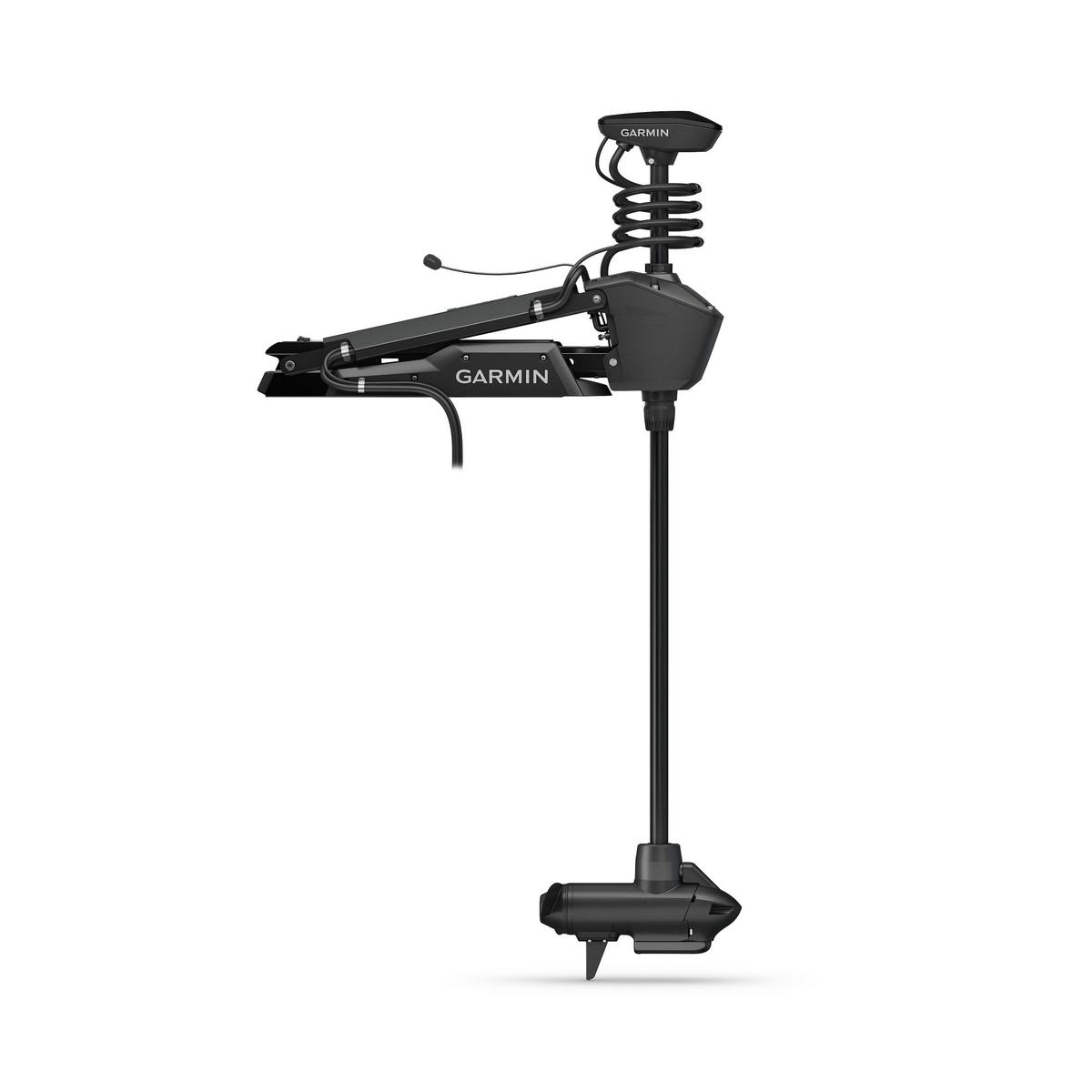

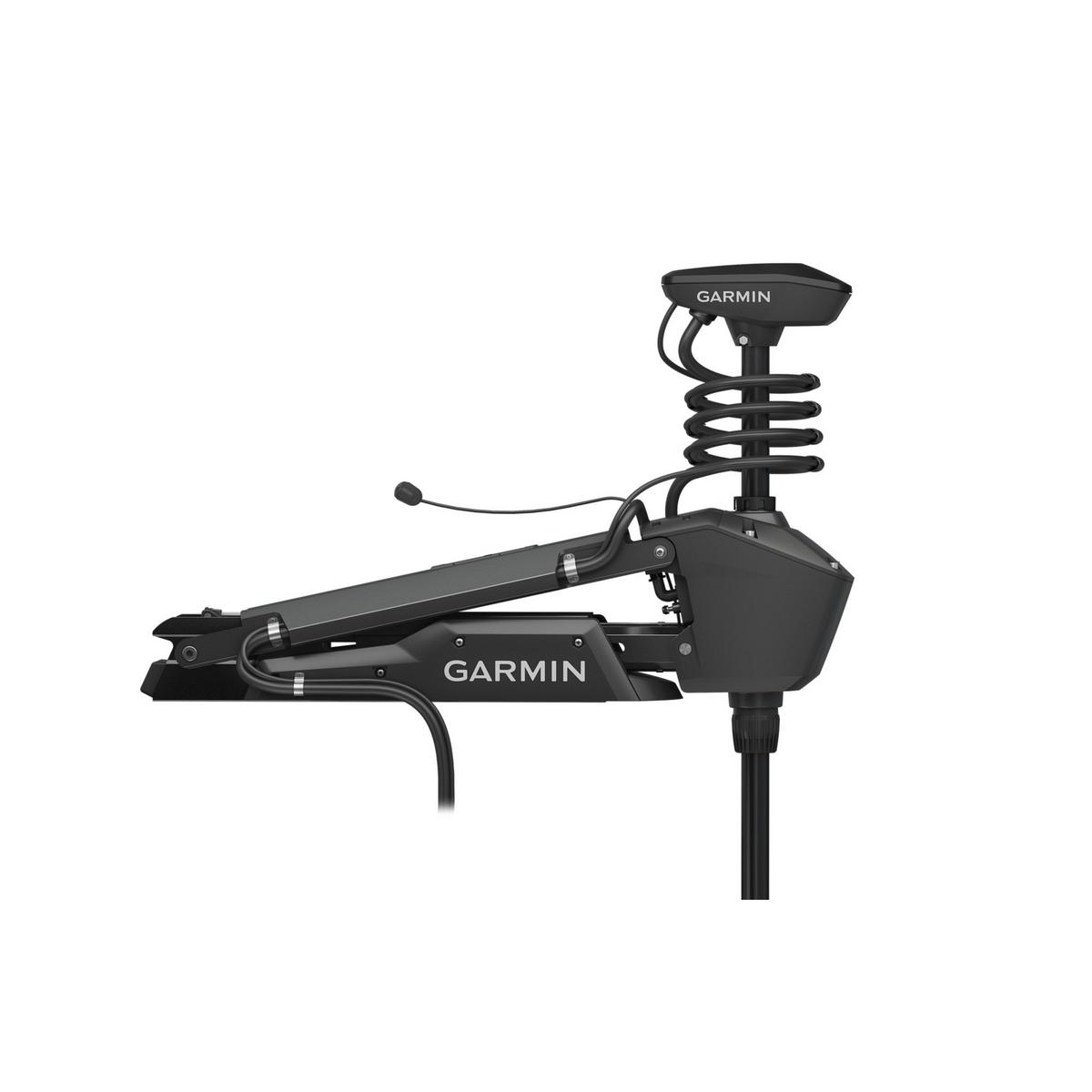

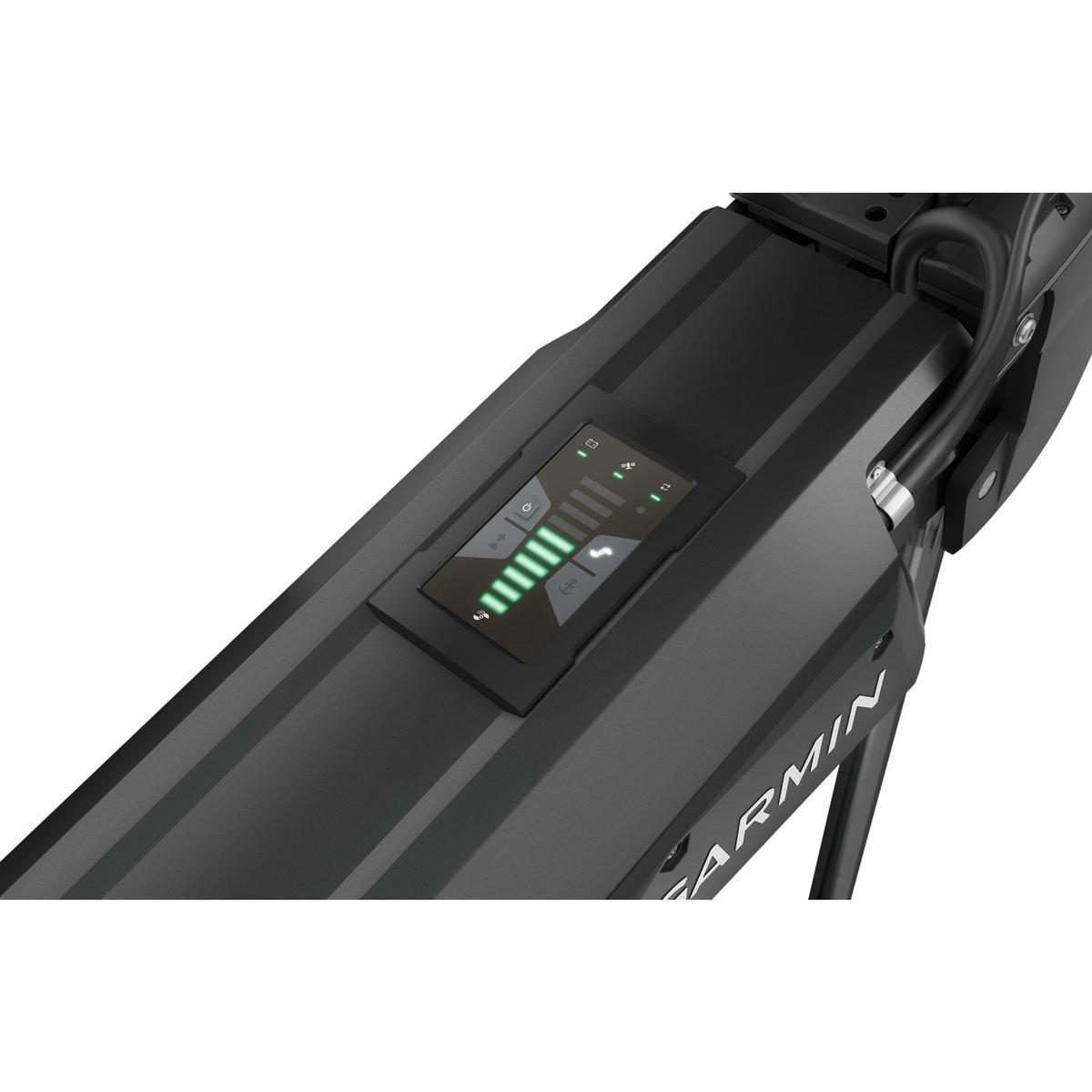

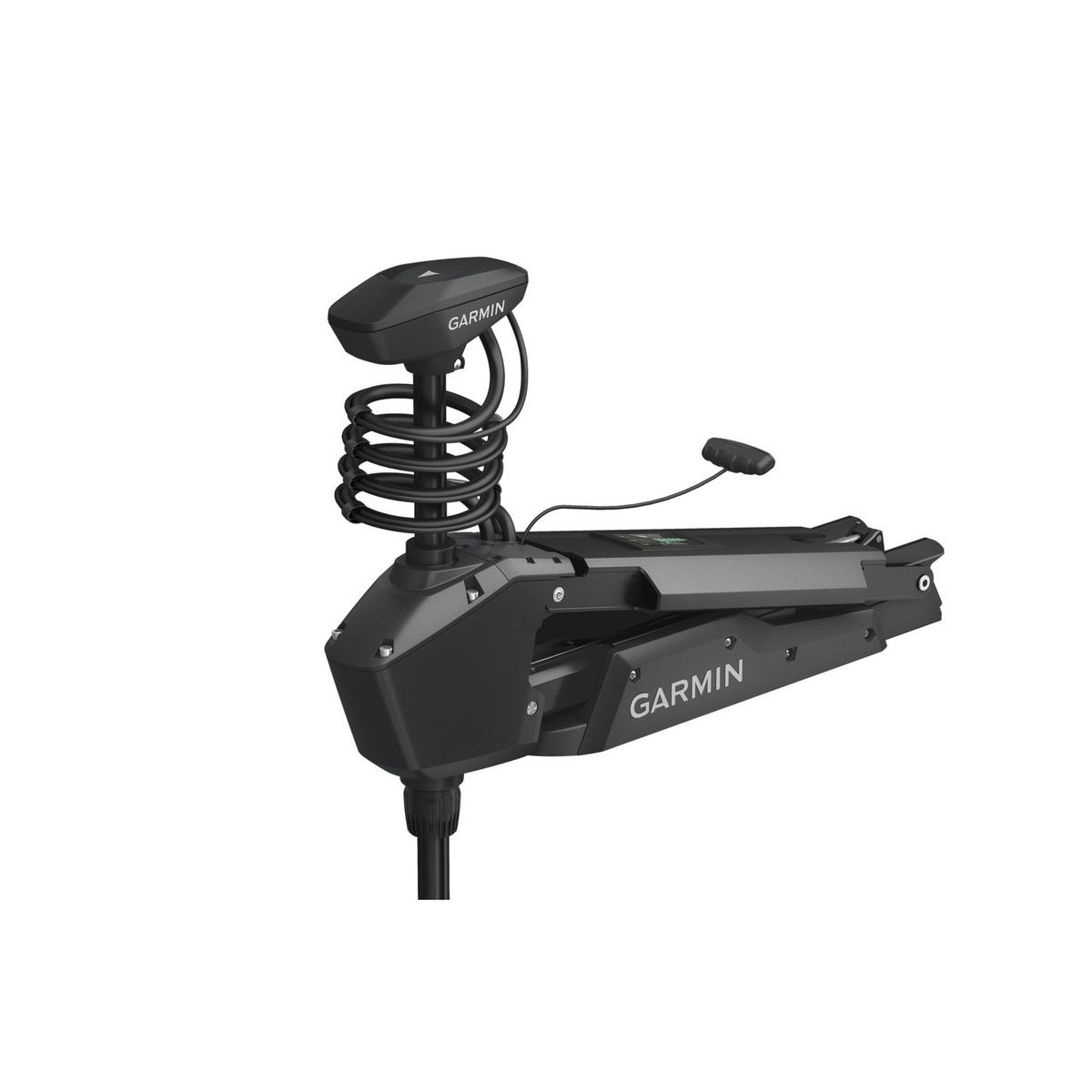

The Garmin Force Trolling Motor is the most powerful and efficient 50-inch trolling motor available. This Garmin trolling motor quickly deploys and easily retracts and stows thanks to dual gas springs. Integrated CHIRP, ClearVü, and SideVü scanning sonars provide a clear picture of the surrounding waters, while built-in GPS, auto-pilot functionality, and a heading sensor allow you to easily mark and move between your favorite spots and waypoints. The Garmin Force 50-inch motor includes a foot pedal and wireless remote for easy, quick control and operates with electric steering. With a high-efficiency motor, the Garmin Force Trolling Motor delivers powerful thrust in a quiet motor with simple point-and-go steering. It operates at either 36 V or 24 V. When running at 24 V, it delivers comparable thrust to the competitors’ 36-V motors.
100 lb Style: 010-02024-00; SKU: 75375921762
80 lb Style: 010-02025-00; SKU: 75375921766

Sonar:

• AutoPilot
• Anchor Lock
• Heading Hold
• Cruise Control
• Route Following
• ClearVü: 200 ft.
• SideVü: 455 kHz
• ClearVü: 800 kHz
• Transmit Power: 350 W
• ClearVu: Ultra-high-definition 800 kHz
• Maximum Depth CHIRP Sonar: 800 ft.
• Number of Pins: 12 (orange connector)
• Gesture Features (manual+, heading hold+, jog+)
• 455 kHz SideVü: 500 ft. to each side; 1000 ft. total
• SideVu: Ultra-high-definition 1200 kHz and 455 kHz
• Frequencies supported CHIRP sonar: High-wide CHIRP (150-240 kHz), ClearVu: Ultra-high definition 800 kHz, SideVu: Ultra-high definition 1200 kHz and 455 kHz
• Partial Frequencies Supported CHIRP Sonar: High-wide CHIRP (150-240 kHz), ClearVü: 800 kHz, SideVü: 455 kHz
• Maximum view: CHIRP sonar: 800', ClearVü: 200', Ultra-high definition SideVü: 125' to each side; 250 total at a max depth of 30', 455 kHz SideVü: 500' to each side; 1000' total

Foot Pedal:

• Wireless Communication
• Waterproof Rating: IPX7
• AA Battery Life: 1 full season
• Adjustable Pedal Resistance
• Dimensions: 12" L x 9" W x 4.5" H
• Power Installation: 12V wired or battery-powered (2 AA)

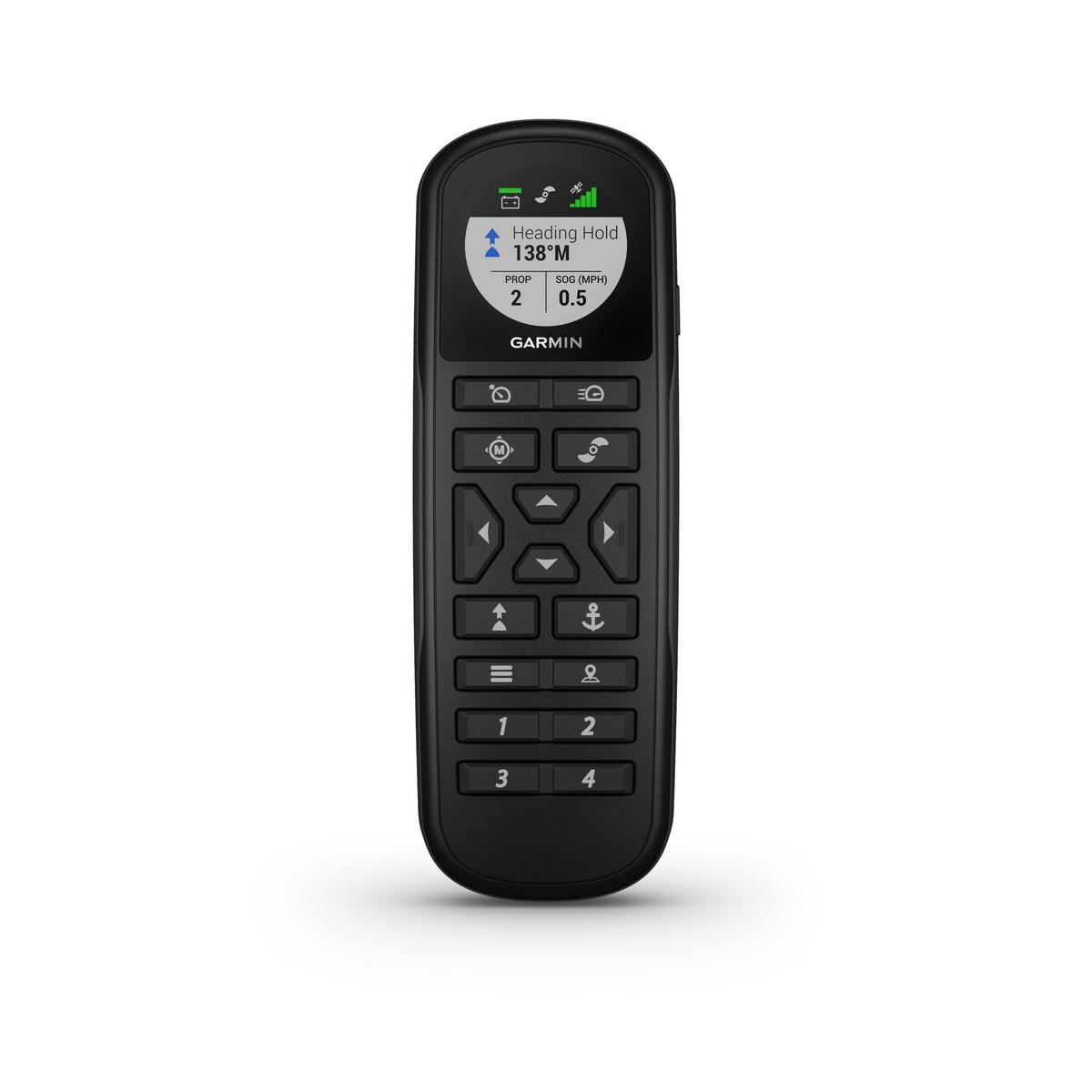

Remote:

• Waterproof Rating: IPX7
• Autopilot Feature Control
• Display Resolution: 240 x 240 pixels
• Display Size: 1.2" (30.4 mm) diameter
• Chartplotter User-Programmable Keys
• Battery Life (Typical Use with Low Backlight): 43.2 weeks
• Display Type Color, Sunlight-Visible, Transflective Memory-in-Pixel (MIP)

In the Box:

• Trolling Motor
• Built-in GT54UHD-TM transducer
• Foot Pedal
• Remote
• High Efficiency Propeller
• Stabilizer
• Assembly and Mounting Hardware
• Documentation
