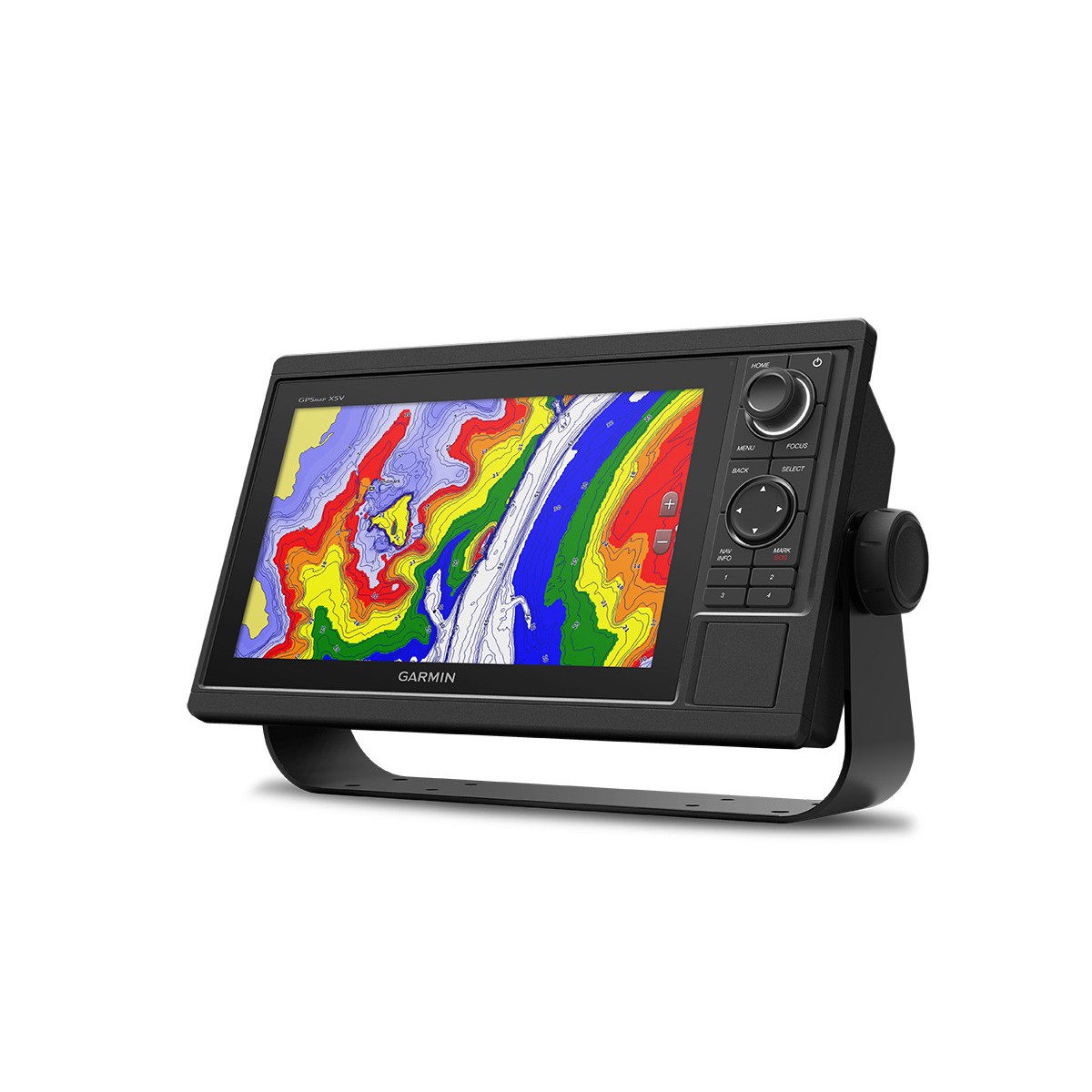

Garmin GPSMAP 1042xsv with GT52HW-TM transducer
75375921391
You're a cruiser or sailor who prefers a keypad and wants built-in sonar and mapping. You need this all-in-one 10" chartplotter to guide the way.Experience an advanced all-in-one solution with our 10” GPSMAP 1042xsv keyed combo. A GT52-TM transducer is included for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars. There’s also built-in support for Panoptix all-seeing sonar, which includes Panoptix LiveScope sonar and a wide range of other transducers (sold separately). Features include a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.
Features:

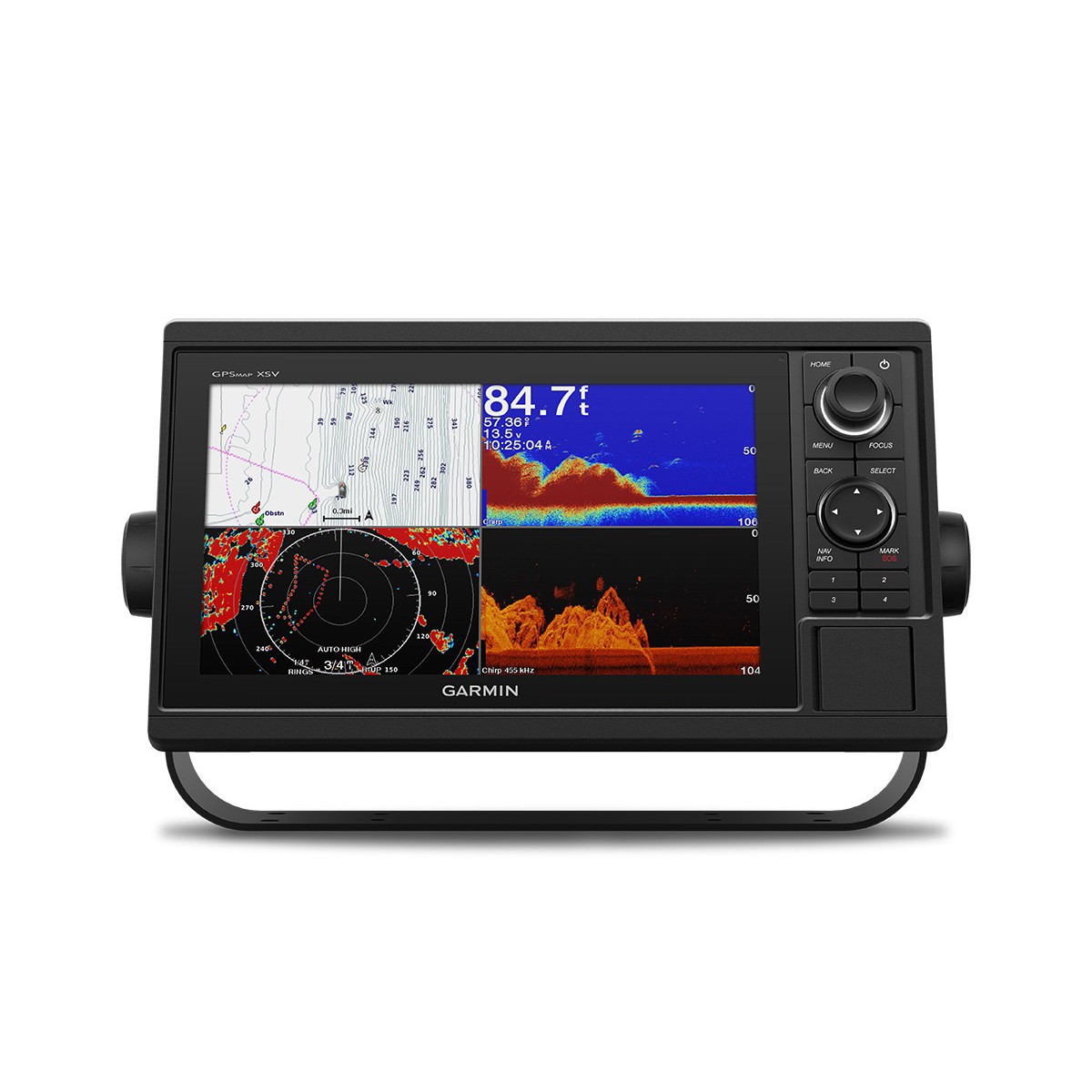

- 10” color display with keypad interface and multifunction control knob
- Includes GT52-TM transducer for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars (also available without transducer)
- Preloaded U.S. LakeVü g3 maps and BlueChart® g3 charts feature Navionics® data and Auto Guidance¹ technology
- High-sensitivity internal 10 Hz GPS and GLONASS receiver
- Supports Panoptix™ all-seeing sonar, which includes Panoptix LiveScope™ sonar (transducers sold separately)
- Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Plus, there’s NMEA 2000® network connectivity and NMEA 0183 support for autopilots, digital switching, weather, media, VHF, AIS and other sensors.
- Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. GPSMAP 1042xsv comes with built-in Garmin 1 kW CHIRP sonar along with CHIRP ClearVü and CHIRP SideVü scanning sonars. It even supports Panoptix all-seeing sonar, which includes Panoptix LiveScope and other premium Garmin sonar modules
- Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.
- Preloaded with LakeVü g3 inland maps and BlueChart® g3 coastal charts to provide industry-leading coverage, clarity and detail with integrated Garmin and Navionics® data and Auto Guidance1 technology. LakeVü g3 and BlueChart g3 include Auto Guidance, which uses your desired depth and overhead clearance to calculate routes and provide a suggested path to follow. LakeVü g3 provides coverage on more than 17,000 lakes with up to 1’ contours.
- Built-in ANT Connectivity: Enjoy built-in ANT wireless connectivity directly to our quatix® marine watches, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. You can even stream and control a VIRB® action camera from the chartplotter.
- Engine Connectivity: Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.
- ActiveCaptain connectivity
- Heading, Position refreshed 10 Times per Second
- Quickdraw Contours to create your own HD maps
- Built-in SailAssist Features
- GPX Waypoints transfer: If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.
- Dimensions: 12.5" x 7.3" x 2.7"
- Display size: 8.8" x 4.9"; 10.1" diagonal
- Display resolution: 1024 x 600 pixels
- Weight: 4.1 lb
- Bail or Flush mount
- Touchscreen technology
- Bluetooth connection
- Accepts 2 SD cards
- Stores 5,000 waypoints, 50 saved tracks, 100 routes
- Sensors: NMEA 2000 compatible, NMEA 0183 compatible, GPS, Glonass
- GPSMAP 1042xsv chartplotter
- GT52HW-TM transducer
- Power/data cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 m)
- Transducer
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
