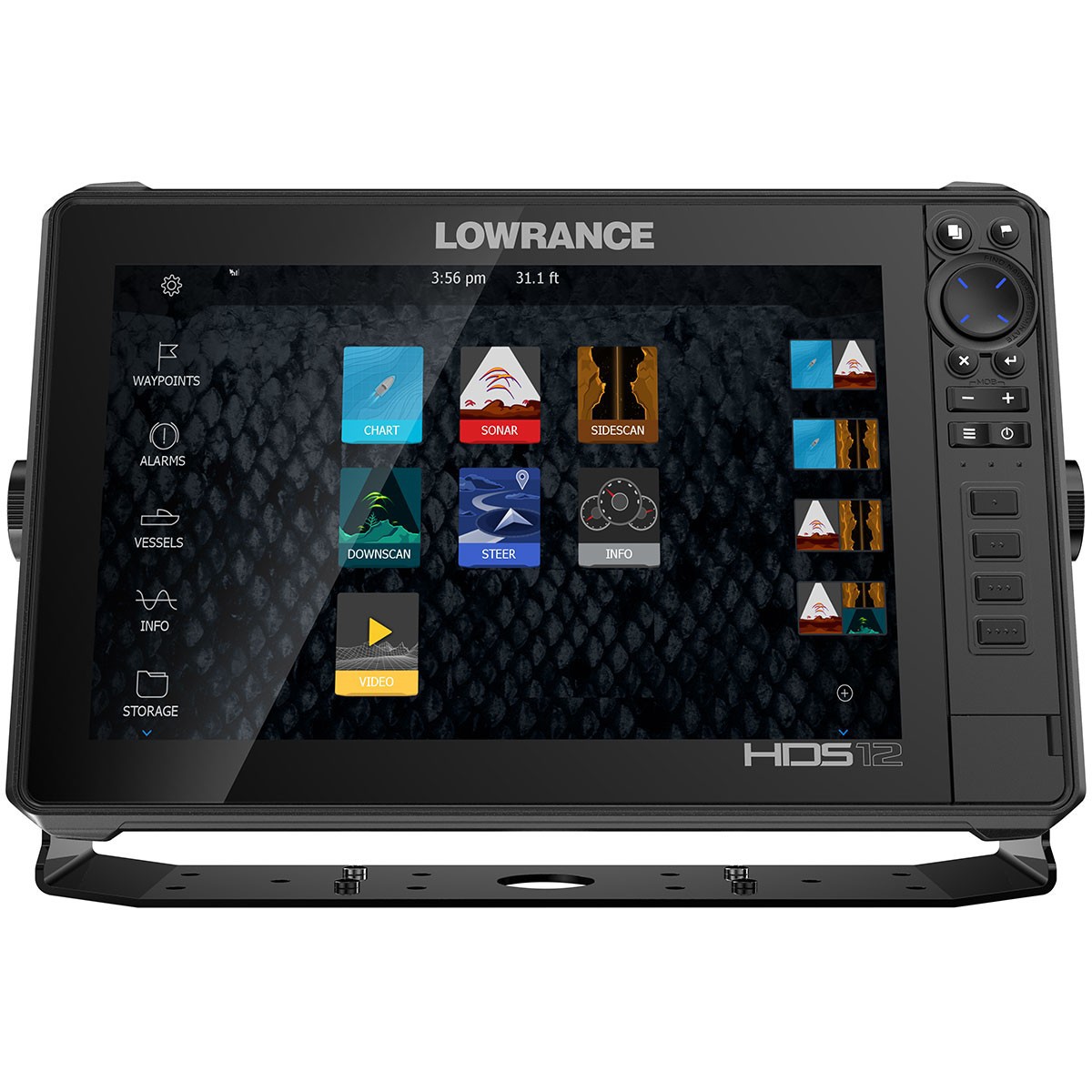

Lowrance 12" HDS Live Fishfinder with Active Imaging

Item No. 42300052528
Discounted Price itemprop="price">1999.95 $1,999.95 $3,449.00  Save $1,449.05

Select Delivery Method:

Free Shipping

Est. Delivery Fri. 6/2 - Mon. 6/5

Frequently Bought With

Lowrance 12" HDS Live Fishfinder with Active Imaging

Lowrance 12" HDS Live Fishfinder with Active Imaging


The Lowrance HDS 12 Live Fish Finder with Active Imaging is equipped with the best sonar and navigation technology available. With built-in Lowrance CHIRP sonar supported by Active Imaging technology, the Lowrance HDS 12 Live allows anglers to clearly see what's below and to either side of the boat in order to get a clear picture of fishing conditions. Plus, the 12-inch display screen gives anglers the ability to split the screen into several different views while still being able to see every detail. The combination of large, programmable keys with a touchscreen for specific functions makes the Lowrance HDS 12 Live very easy to use. With all these features and the preloaded C-MAP Contour+ mapping, the Lowrance HDS 12 Live Fish Finder with Active Imaging offers all you need for more success on the water.

Note: Radar Compatibility is 4G (Broadband), 3G (Broadband), Halo24 (Pulse Compression Dome Radar), Halo 3'/4'/6' (Open Array Pulse Compression Radar)

  • HDS - 12 Live Bracket
  • HDS - 12 LIVE Suncover
  • Active Imaging 3-in-1 Transducer
  • HDS-12 LIVE Bezel and SD-Card
  • Smartphone notifications
  • Dual-Channel CHIRP - dual sonar-range coverage from the same transducer
  • C-MAP Easy Routing, Navionics Autorouting capability
  • StructureScan 3D with Active Imaging enhancements
  • Active Imaging 3-in-1 (CHIRP/Side/Down) sonar ready
  • AIS Chart and Radar overlay. Target vessel details
  • High-resolution SolarMAX HD multi-touch screen
  • Radar and Sonic Hub 2 audio server connectivity
  • SiriusXM Marine weather and audio compatible
  • Active Imaging 2-in-1 (Side/Down) sonar ready
  • LiveSign real-time sonar compatible
  • High-performance dual processor
  • Quick access control bar
  • Enhanced surface clarity
  • Powerful quad processor
  • Touchscreen control of MotorGuide Xi5 Trolling Motor and Outboard Pilot and Power Pole anchors
  • Compass Safe: 12" (300m)
  • GPS Receiver Channels: 16
  • Internal Storage: 8.0 GB internal
  • Supply Voltage: 12 v DC (10.8 - 17VDC)
  • Shock Vibration: 100,000 cycles of 20 G
  • NMEA 2000 Connectivity: 1 x Micro - C
  • Power Consumption Max: 2.4A @ 13VDC with Full Backlight, Sonar on
  • Full high-definition SolarMax HD screen (HDS Live 16 only)
  • Viewing Angles: 80° top/bottom, 80° left/right
  • C-MAP Genesis Live onscreen mapping
  • Wireless and Bluetooth connectivity
  • Backlight Color: Pure White LED
  • Dimensions: 13.68" x 9" x 3.26"
  • Display Resolution: 1280 x 800
  • Digital Switching: Czone, Naviop
  • Ethernet Ports: 1 x 100 Mbit, 6 max MFD's on a network
  • Steering Modes: Course, Heading, Waypoint, Power Steer
  • Internal Connectivity WiFi: Internal 802.11b/g/n and Compatible with WiFi-1 Module
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
  • Humidity: 60°C, 95% relative humidity (RH) for 18 hours
  • Waterprorating: IPX7 with card door closed
  • Recommended Fuse Rating: 5A
  • Dimensions: 5.73" x 9.21" x 3.06"
  • 100 Trails (10,000 points per trail)
  • 3,000 Waypoints
  • 100 Routes
  • Waypoints, Routes, Tracks:
  • Position Accuracy: 20m RMS
  • Time to First Fix: 30s
  • Weight: 6.56 Ib.
  • Power Consumption Minimum: 1.7A @ 13VDC with Full Backlight, Sonar on
  • Power Consumption Standard: 1.7A @ 13VDC with Full Backlight, Sonar on
  • Six-panel, split-screen capability
  • FishReveal Smart Target View
  • Programmable keys
  • Screen: > 1200 Nits
