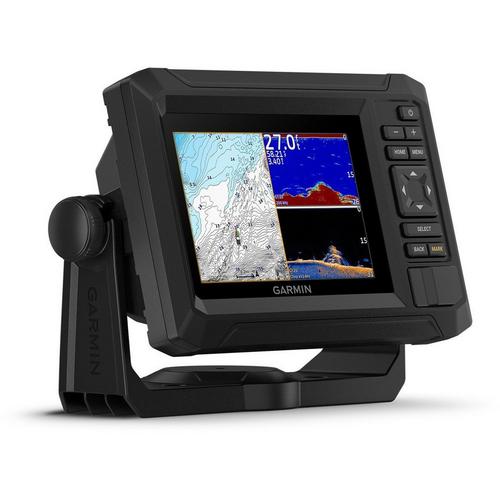

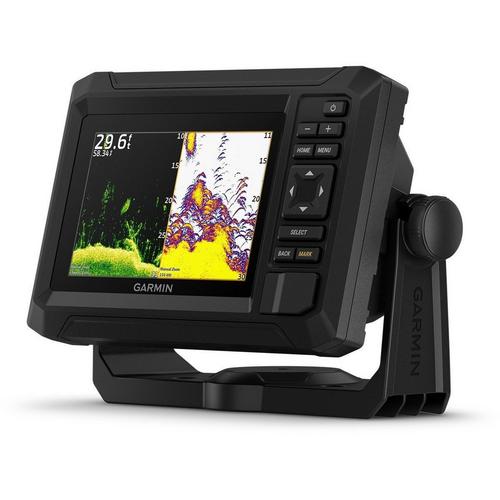

Garmin ECHOMAP UHD2 53cv Fish Finder with GN+ Mapping and GT20-TM Transducer

3816-010-02590-51

The Garmin ECHOMAP UHD2 53cv GT20-TM Transducer GN+ is the ideal choice for precise navigation and fishing. Featuring a bright 5-inch keyed display with high-contrast vivid color palettes, the Garmin ECHOMAP UHD2 presents crisp, clear traditional sonar and brilliant ClearVü sonar fish, making the fish easy to spot. With Wi-Fi® connectivity between compatible chart plotters, you can easily share information, while the included one-year subscription gets you Garmin Navionics+™ inland and coastal content to make the most of your time on the water.

Includes:

• Hardware
• Tilt mount
• Flush mount
• Documentation
• Power/data cable
• GT20-TM transducer
• CHOMAP UHD2 53cv

Compatibility: If you have another compatible ECHOMAP UHD2 chart plotter on your boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints, and routes — with them.

Additional Features:

• DSC: No
• SideVü: No
• TOPO: Yes
• USB Ports: No
• Touchscreen: No
• Built-In Receiver: Yes
• NMEA 0183 Compatible: No
• Sailing Features: No
• Tide Tables: Yes (see additional)
• Garmin Navionics+™: Yes
• Garmin Navionics Vision+™: Yes
• Garmin Navionics+ (Coastal): Yes (see additional)
• Garmin Navionics+ (Inland): Yes (see additional)
• Accepts Data Cards: 1 microSD™ card; 32 GB maximum size (cards no included

Additional Specs:

• AIS: No
• Input: Yes
• BeiDou: No
• GLONASS: No
• LakeVü g3: No
• Galileo: No
• LiveScope: No
• LakeVu (inland): No
• Displays Sonar: Yes
• Supports WAAS: Yes
• BlueChart (coastal): No
• LakeVü g3 Ultra: No
• Panoptix™ Sonar: No
• Standard Mapping: Yes
• OneHelm Support: No
• ANT+ (Connectivity): No
• Spoken Audio Alerts: No
• Raster Chart Support: No
• BLUETOOTH® Pairing: No
• Built-in Auto Guidance: No
• Smart Mode Compatible: No
• NMEA 2000 Compatible: No
• ActiveCaptain® Compatible: Yes
• Garmin Quickdraw Contours: Yes
• Wireless Remote Compatible: No
• GSD Black Box Sonar Support: No
• GCV Black Box Sonar Support: No
• BNC External GPS Antenna Port: No
• Garmin Wi-Fi network (local connection): Yes
• Supports Fusion-Link™ Compatible Radios: No
• Supports Multi-Band, Multi-Constellation GPS: No
• GRID (Garmin Remote Input Device) Compatible: No
• Tracks: 50 saved
• Power Output: 500 W
• 4-Pin Transducer Ports: 1
• Typical Current Draw at 12 Vdc 1.0 A
• Garmin Navionics+ (inland): 53cv U.S. lakes
• Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
• ClearVü Built-In: 260/455/800/1000/1200 kHz
• Garmin Navionics+ (coastal): 54cv U.S., 55cv U.K./Ireland
• Traditional Sonar (dual frequency/beam) Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
