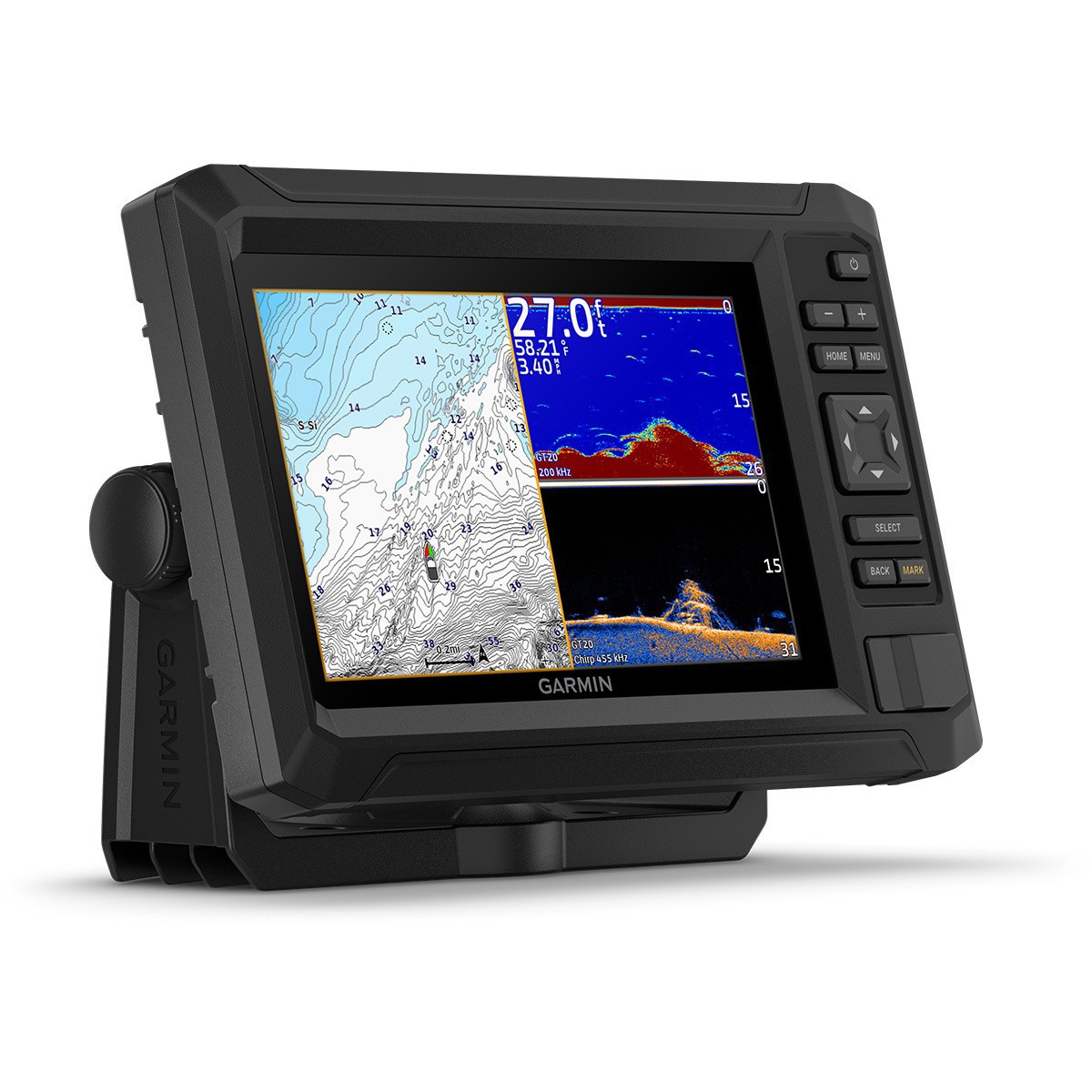

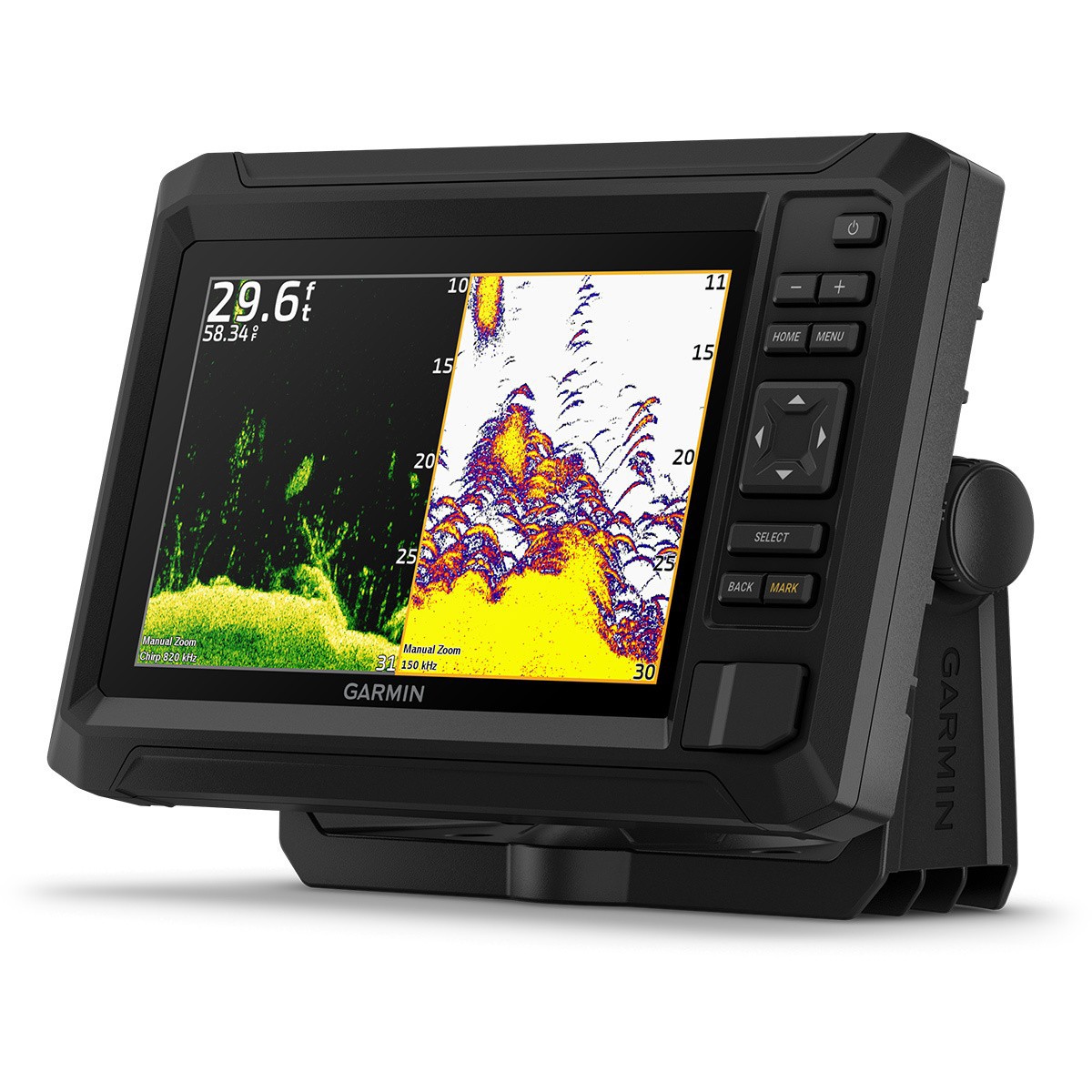

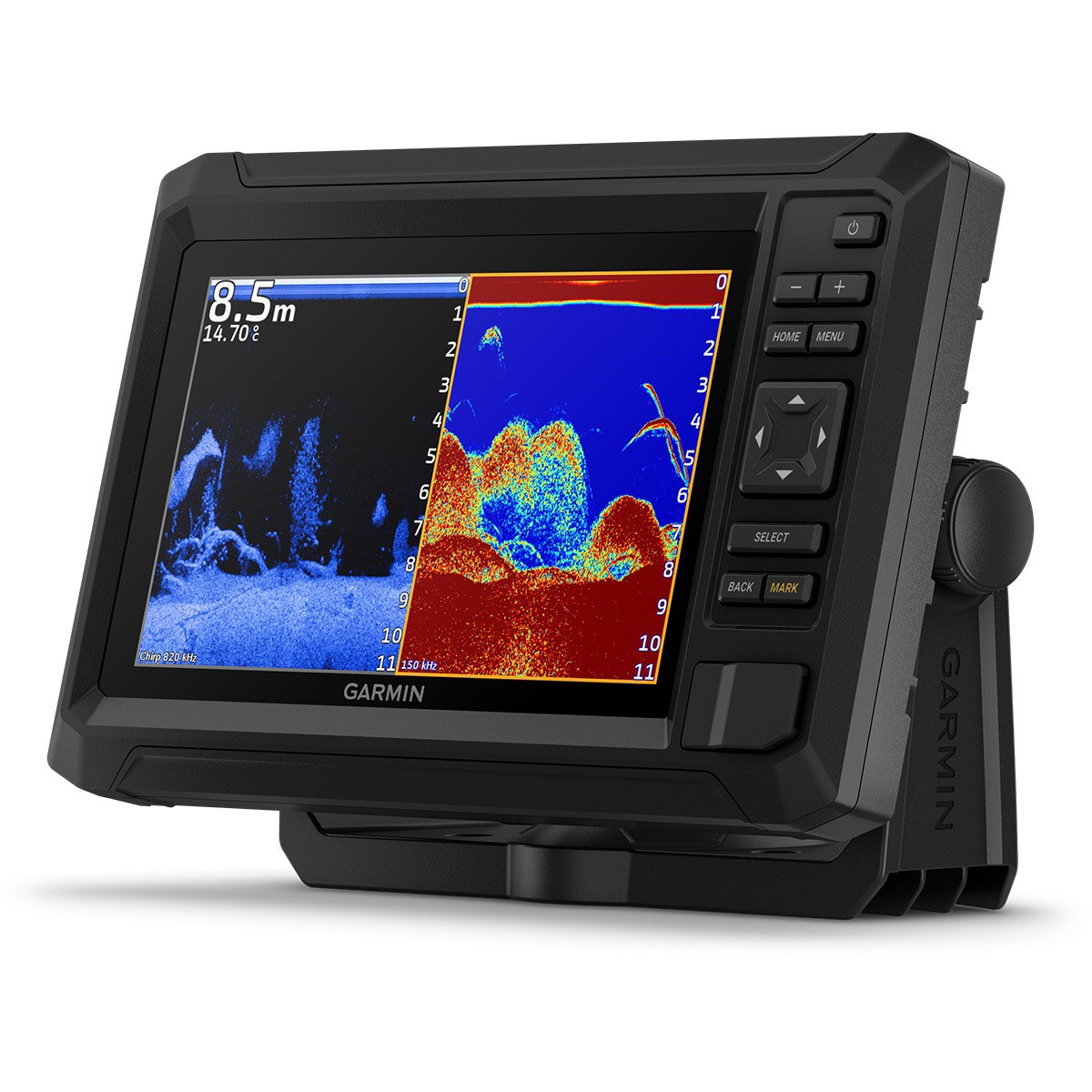

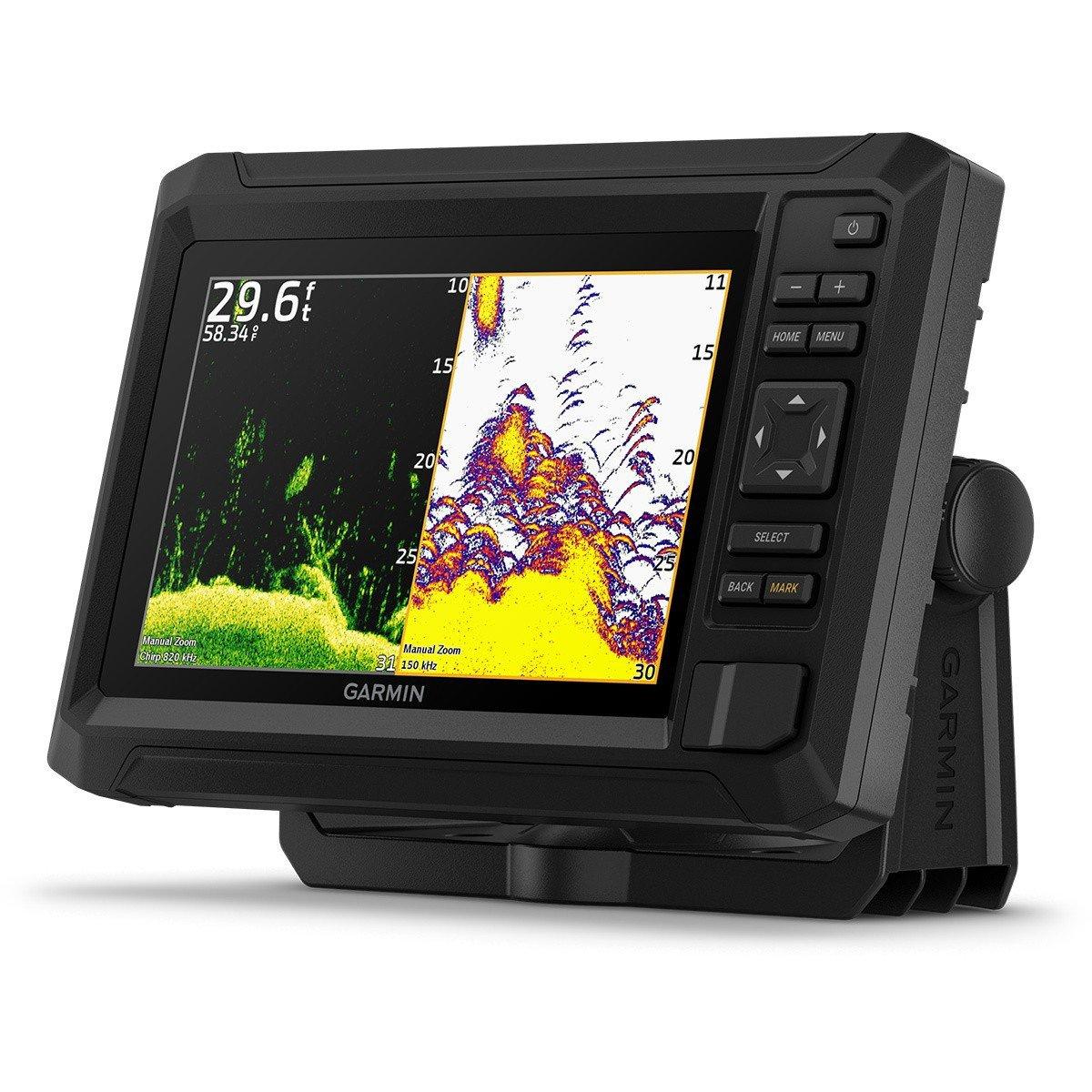

Garmin ECHOMAP UHD2 73cv GT20-TM Transducer GN+
75375930704
Discover the power of the Garmin ECHOMAP UHD2 73cv GT20-TM Transducer GN+, with its stunningly bright 7" keyed display and convenient Double View technology. Uncover more about the waters you're fishing with crisp, clear traditional, and ClearVü scanning sonars. Enjoy the high contrast vivid color palettes of the clear sonar, as well as the built-in detailed Navionics+ coastal or inland mapping and subscription for downloadable daily updates. Easily stay connected with friends and family to share waypoints and routes with the help of Wi-Fi connectivity between compatible chartplotters. Find fish easier than ever with Garmin's leading mapping technology and take your fishing to a whole new level with the ECHOMAP UHD2 73cv GT20-TM Transducer GN+.
In the Box:
- CHOMAP UHD2 73cv
- GT20-TM transducer
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
- If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5" and 7" models can wirelessly share information — such as sonar, waypoints and routes — with them.
- Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.
- With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.
- Enjoy No. 1 in mapping with Garmin Navionics+™ inland and coastal content.
- Wi-Fi® connectivity between compatible chartplotters makes it easy to share info.
- What’s under the water looks even better with high-contrast vivid color palettes.
- Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars.
- The bright 7" keyed display is made for convenience.
- If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5" and 7" models can wirelessly share information.
- Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping.
- Panoptix™ sonar No
- GCV Black Box Sonar Support No
- BNC external GPS antenna port No
- Spoken audio alerts No
- Garmin Wi-Fi network (local connection) Yes
- Input Yes
- BeiDou No
- Garmin Quickdraw Contours Yes
- BLUETOOTH® pairing No
- AIS No
- ANT+ (Connectivity) No
- Displays sonar Yes
- LakeVü g3 No
- Supports WAAS Yes
- GSD Black Box Sonar Support No
- Maximum current draw at 12 Vdc 1.5 A
- Smart Mode Compatible No
- Built-in Auto Guidance No
- Maximum power usage at 10 Vdc 18W
- Standard Mapping Yes
- LakeVu (inland) No
- Supports multi-band, multi-constellation GPS No
- Raster chart support No
- 4-pin transducer ports 1
- GRID (Garmin Remote Input Device) compatible No
- Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
- OneHelm support No
- ClearVü built-in 260/455/800/1000/1200 kHz
- Tracks 50 saved tracks
- Wireless Remote Compatible No
- Supports Fusion-Link™ compatible radios No
- Galileo No
- LiveScope No
- Power output 500 W
- BlueChart (coastal) No
- GPS Yes
- Dimension 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
- Receiver 5 Hz
- WATERPROOF IPX7
- Weight 1.5 lbs (0.5 kg)
- Mounting Options Bail or flush
- Display Type WVGA, IPS
- Garmin Navionics+ (Coastal) yes (see Additional)
- Garmin Navionics Vision+™ Yes
- Display resolution 800 x 480 pixels
- Power Input 9 to 18 Vdc
- Display Size 6.1" x 3.4" (15.5 x 8.7 cm)
- Accepts Data Cards 1 microSD™ card; 32 GB maximum size
- Garmin Navionics+ (Inland) yes (see Additional)
- Garmin Navionics+ (coastal): 54cv U.S., 55cv U.K./Ireland
- Garmin Navionics+ (inland): 53cv U.S. lakes
- Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv
- LakeVü g3 Ultra No
- NMEA 2000 Compatible No
- ActiveCaptain® compatible yes
- Typical current draw at 12 Vdc 1.0 A
- Tide tables yes (see Additional)
- GLONASS No
- Additional
- Touchscreen No
- Navigation Routes 100
- Garmin Navionics+™ Yes
- Sailing Features No
- NMEA 0183 Compatible No
- Has built-in receiver Yes
- USB ports No
- TOPO Yes
- SideVü No
- DSC No
- Track points 50,000
