Garmin ECHOMAP UHD2 Keyed 5" cv Bundle Fish Finder

Item No. 75375932270
$549.99

Select Delivery Method:

Free Shipping

Est. Delivery Wed. 7/31 - Sat. 8/3

Free Returns SCHEELS Guarantee
Shipping Information
SCHEELS Visa Card

Enjoy up to $120 Off When Instantly Approved

and spend $500 or more on your new SCHEELS® Visa® during the event.

Learn More

Product Details

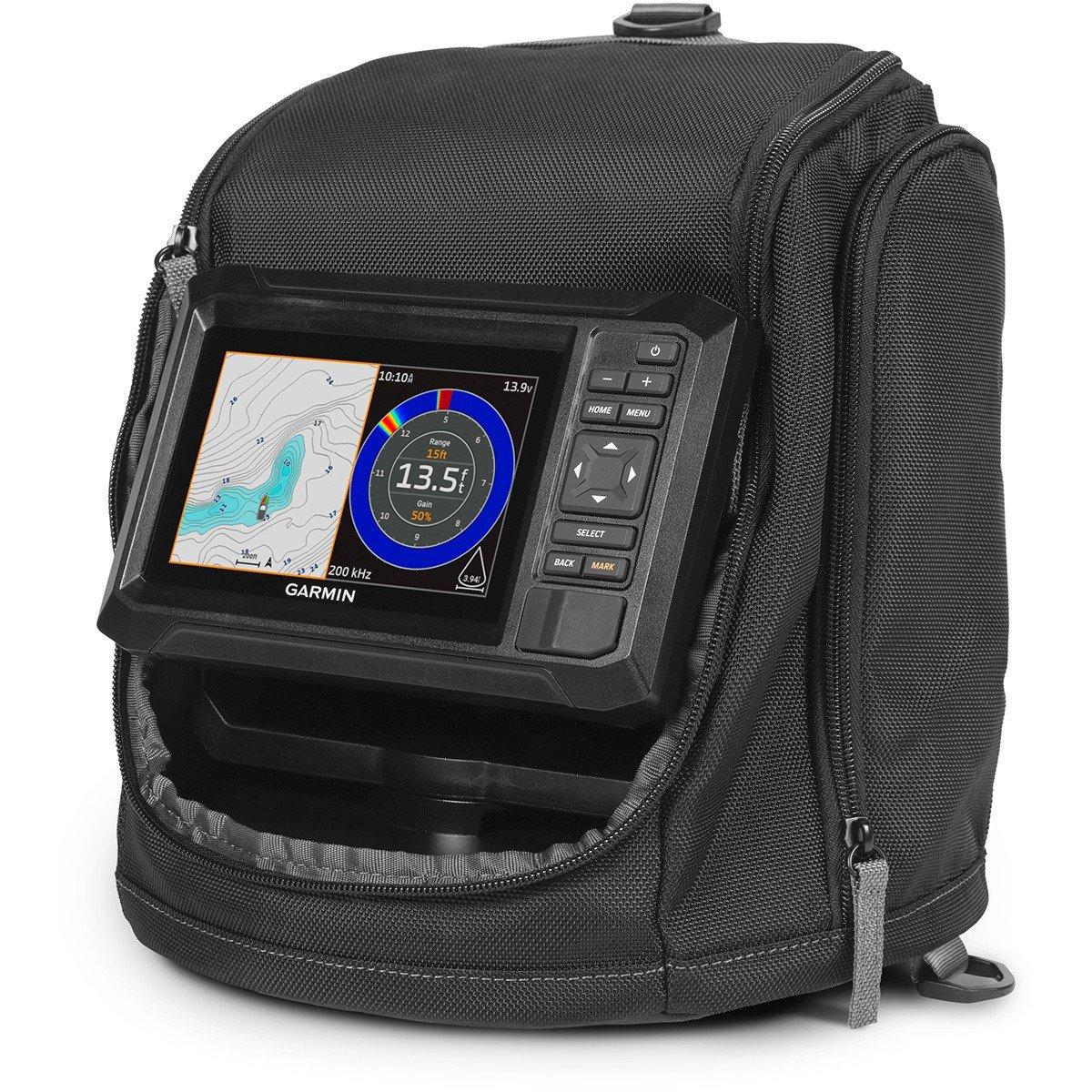

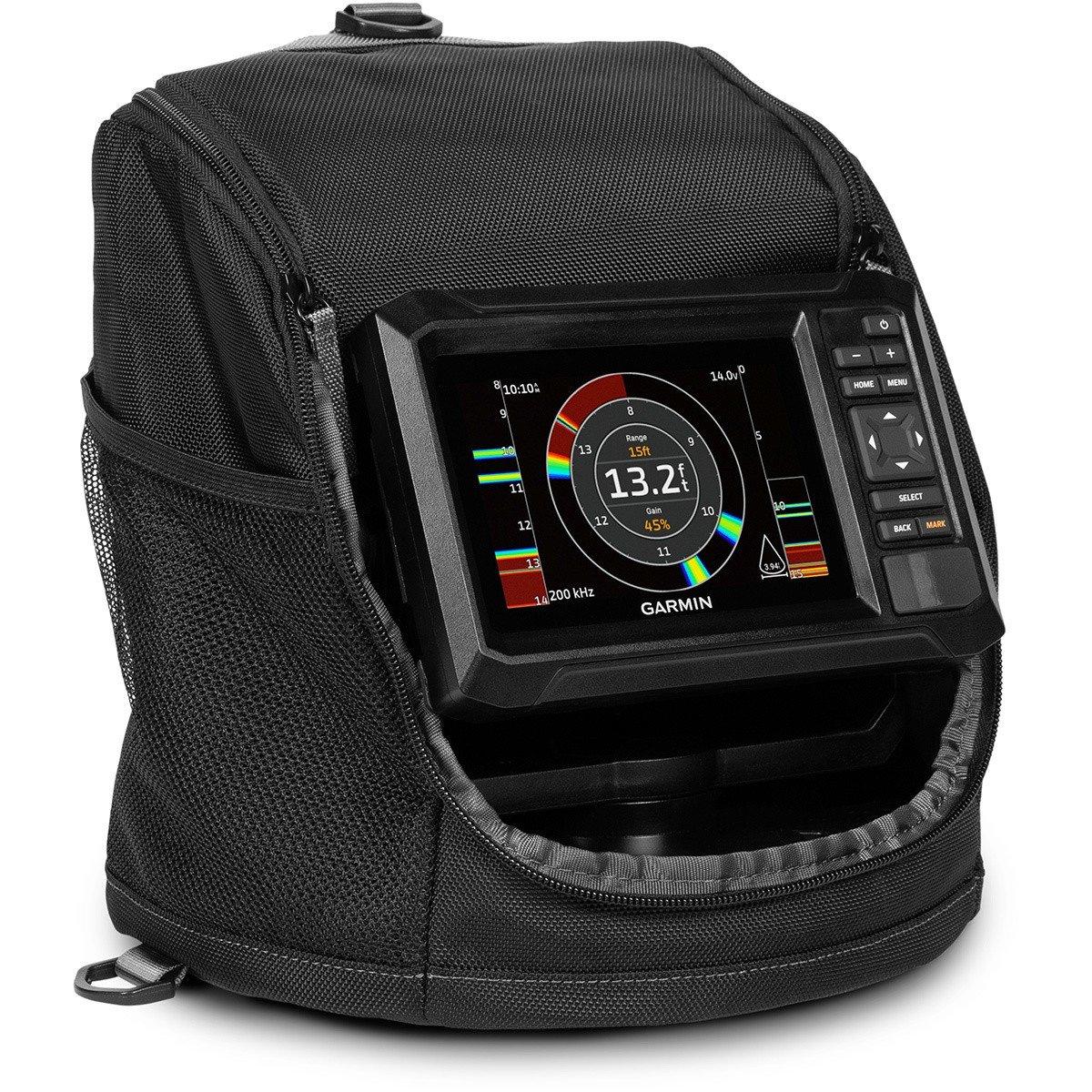

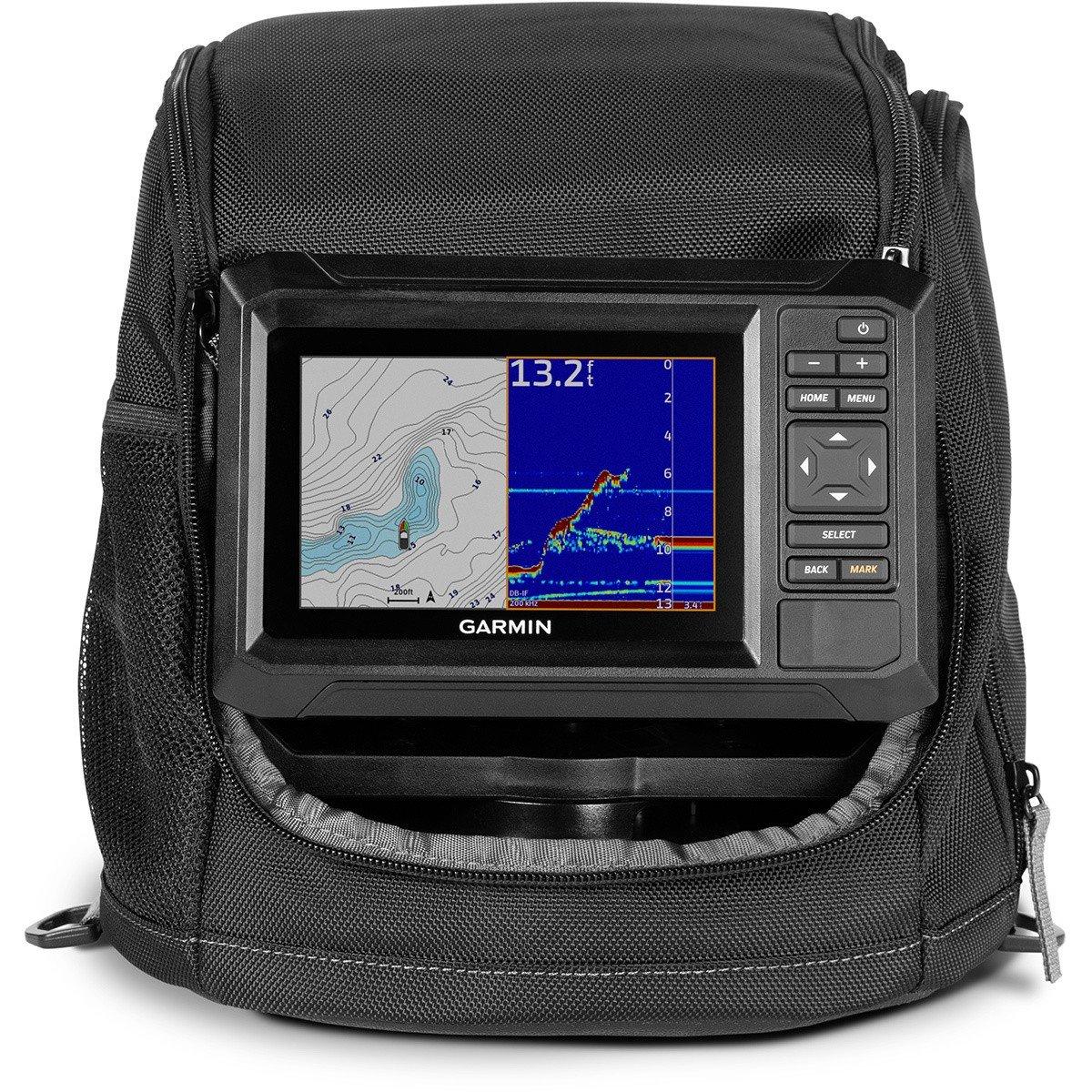

Garmin ECHOMAP UHD2 Keyed 5" cv Bundle Fish Finder

75375932270

Experience the advantage of an intelligent approach to fishing with the Garmin ECHOMAP UHD2 Keyed 5" cv Bundle Fish Finder, now available at SCHEELS. Designed with an array of unique features which include a built-in flasher, rugged portable carrying case, bright 5" sunlight-readable display and dual beam-IF transducer, this is a product that delivers brilliant performance. For serious fishermen, the Garmin Navionics+ Maps feature offers reliable coverage of over 23,000 lakes, greatly enhancing your potential for success. The intuitive interface and detailed digital mapping make navigation effortless while increasing the accuracy of locating catchable fish. Feel the joy of a fruitful fishing expedition, brought about by using the Garmin ECHOMAP UHD2. We invite you to shop the range of innovative fishing products available at SCHEELS and witness the benefits it brings to your favorite hobby.

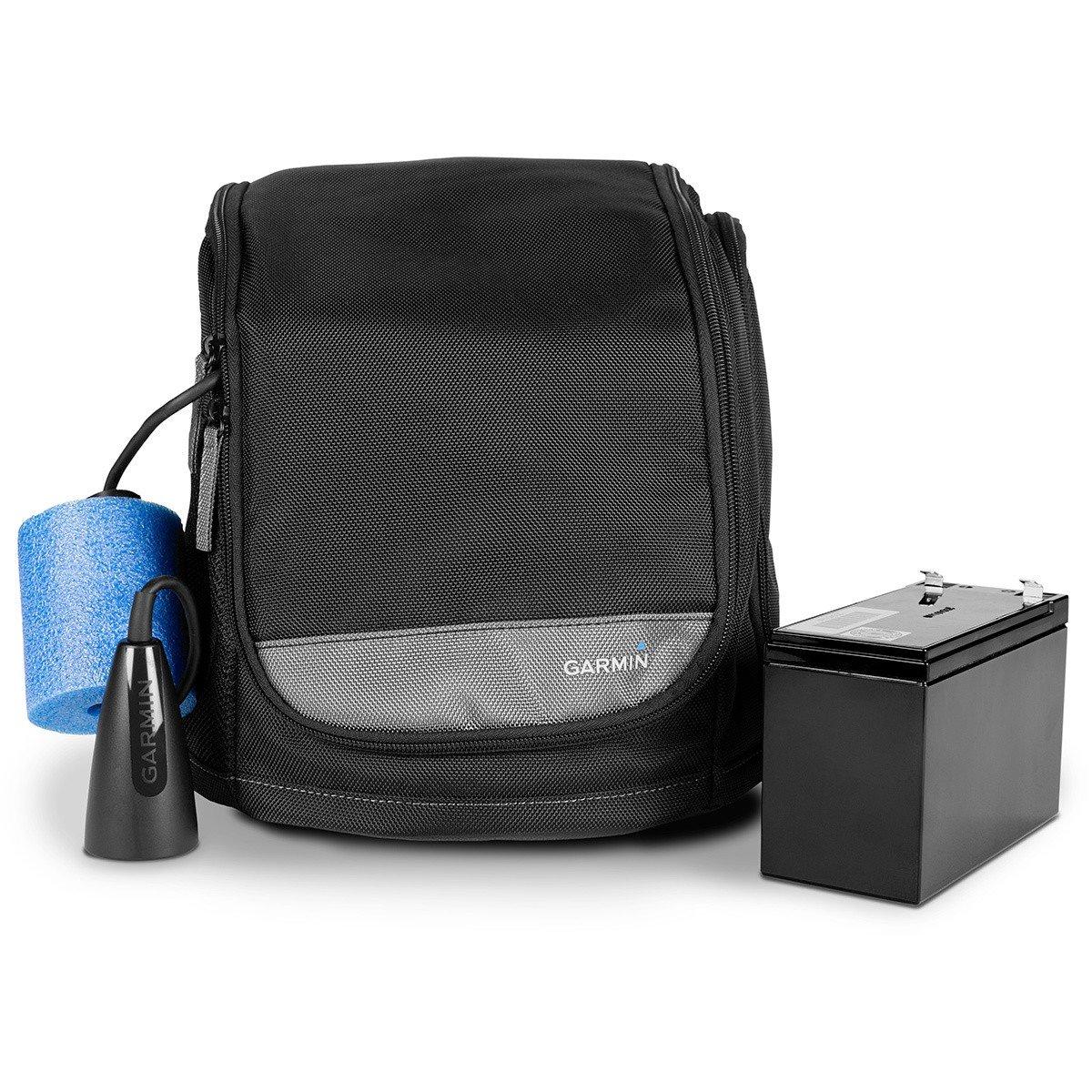

In the Box:
  • ECHOMAP™ UHD2 chartplotter
  • Dual Beam-IF transducer
  • Tilt/swivel mount

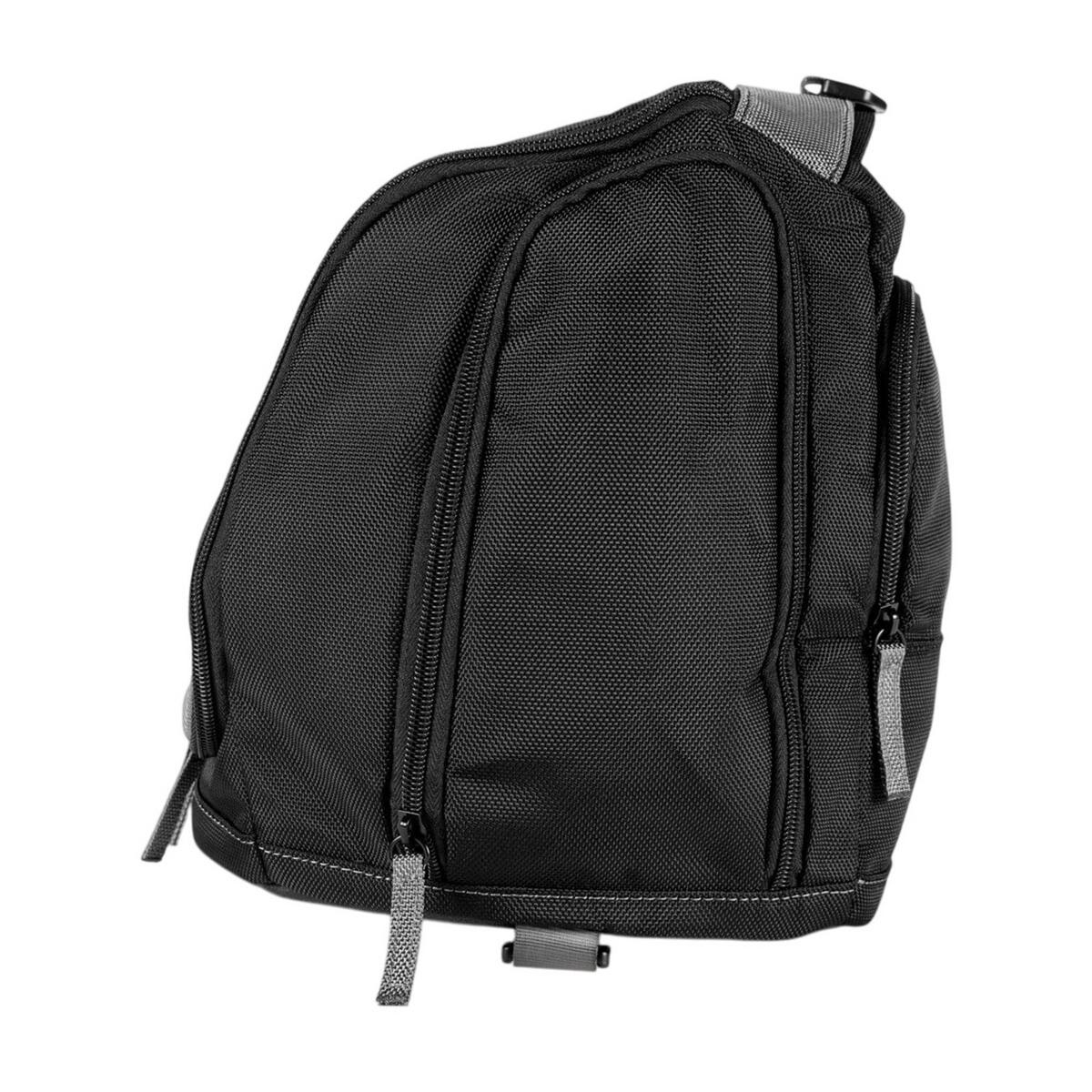

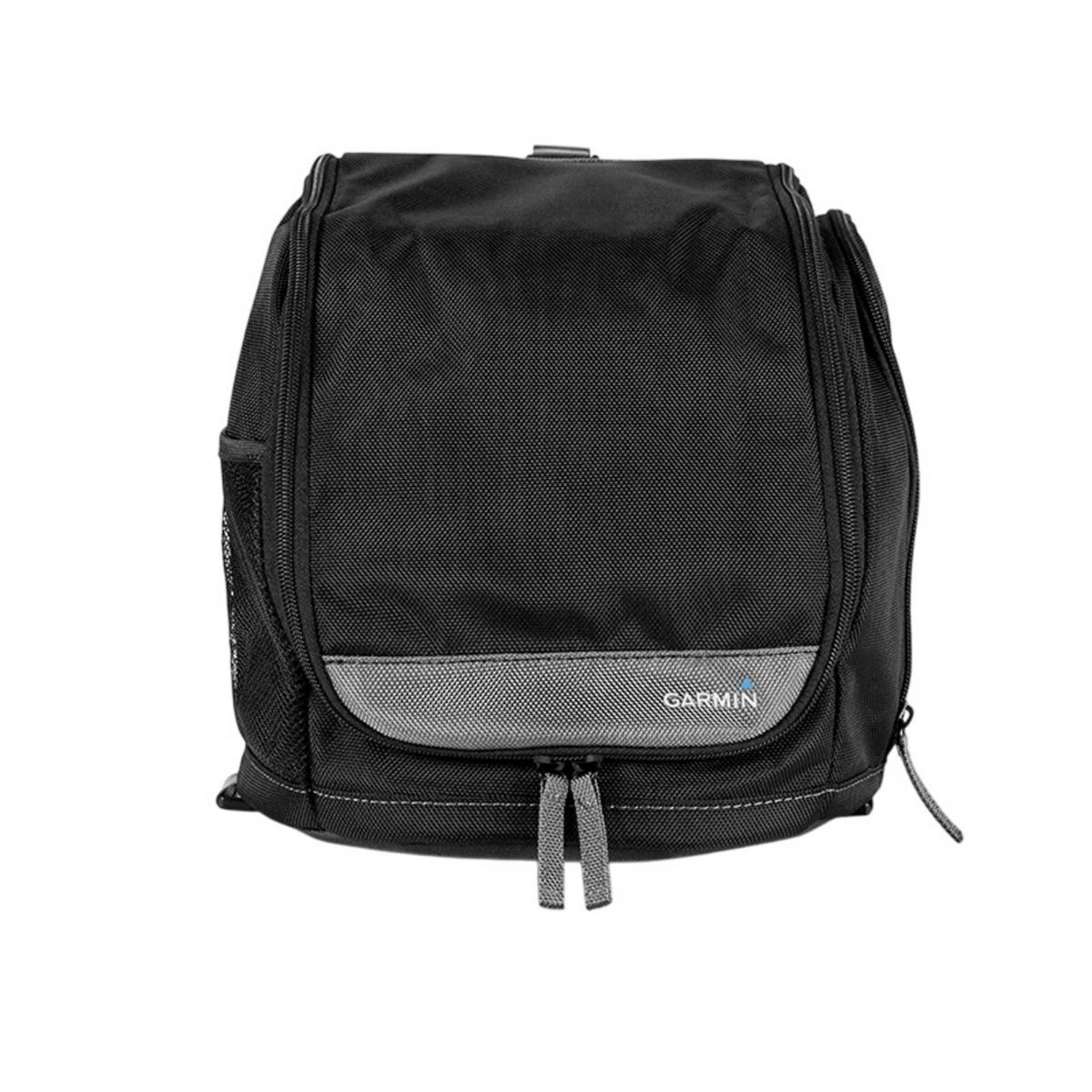

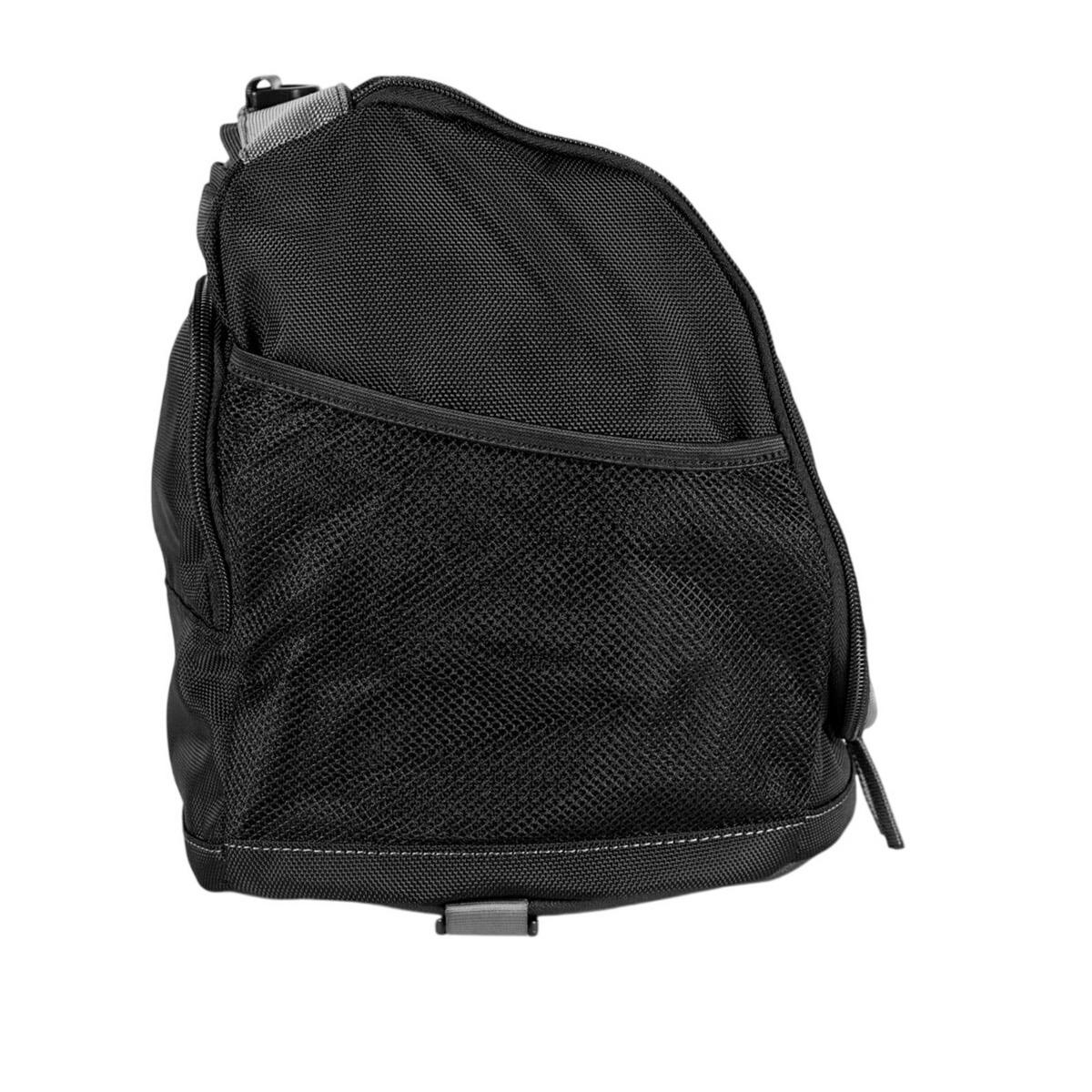

  • Portable bag
  • Base/handle
  • Foam float
  • Power cable
  • Rechargeable battery
  • Battery charger
  • Documentation
Garmin Inland Lakes List (PDF - 5.3MB)

Features

  • Bright 5" sunlight-readable display
  • Includes dual beam-IF transducer
  • Built-in flasher
  • Garmin Navionics+ Maps with 23,000+ lakes
  • Rugged, portable carrying case

Specs

  • NMEA 2000 Compatible Yes
  • CLEARVÜ built-in 260/455/800/1000/1200 kHz
  • NAVIGATION ROUTES 100
  • Garmin Wi-Fi network (local connection) Yes
  • Panoptix™ sonar No
  • Dimensions: 7.4" x 4.8" x 2.4"
  • Has built-in receiver Yes
  • INCLUDED TRANSDUCER DB-IF
  • Garmin Quickdraw Contours Yes
  • TRACKS 50 saved tracks
  • Garmin Navionics+™ Yes
  • BAG SIZE Small
  • Raster chart support No
  • Receiver 5 Hz
  • Displays sonar Yes
  • BlueChart g3 No
  • ActiveCaptain® compatible Yes
  • BATTERY TYPE, SIZE SLA, 7Ah
  • Garmin Navionics Vision+™ Yes
  • Touchscreen No
  • LakeVü g3 No
  • POWER INPUT 9 to 18 Vdc
  • ANT+ (Connectivity) No
  • Standard Mapping Yes
  • BLUETOOTH® pairing No
  • Galileo Yes
  • Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
  • INPUT Keyed
  • 4-PIN TRANSDUCER PORTS 1
  • Waterproof IPX7
  • TOPO Yes
  • Supports multi-band, multi-constellation GPS No
  • DISPLAY SIZE 4.3" x 2.6" (10.9 x 6.6 cm)
  • GARMIN NAVIONICS+ INLAND & COASTAL yes
  • LiveScope No
  • LakeVü g3 Ultra No
  • Supports WAAS Yes
  • Weight 9.5 lbs (4.3 kg)
  • SideVü No
  • GLONASS Yes
  • DISPLAY RESOLUTION 800 x 480 pixels
  • Waypoints 5000
  • POWER OUTPUT 500 W
  • BeiDou No
  • TRANSDUCER HOLDING FEATURE Foam float
  • DISPLAY TYPE WVGA, IPS
  • BlueChart g3 Vision No
  • TRACK POINTS 50,000
  • GPS Yes
  • BUILT-IN AUTO GUIDANCE+ yes (downloadable via ActiveCaptain app)
  • TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
