HD Innovations UMS Pole Adapter with Double Side Arm and UMS 1.5" Ball Multi-Use Plate

20399-HDUMS-MUP-9A

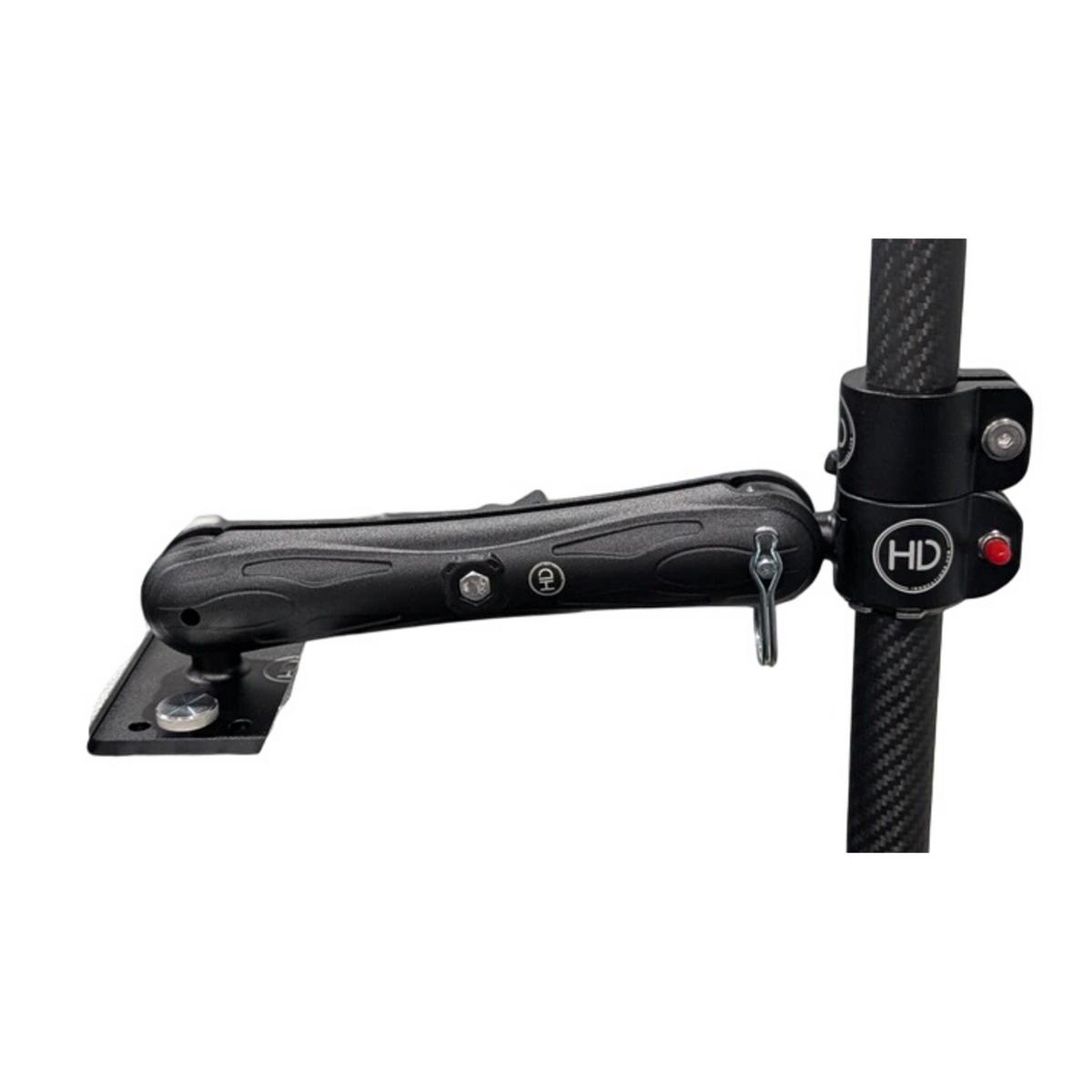

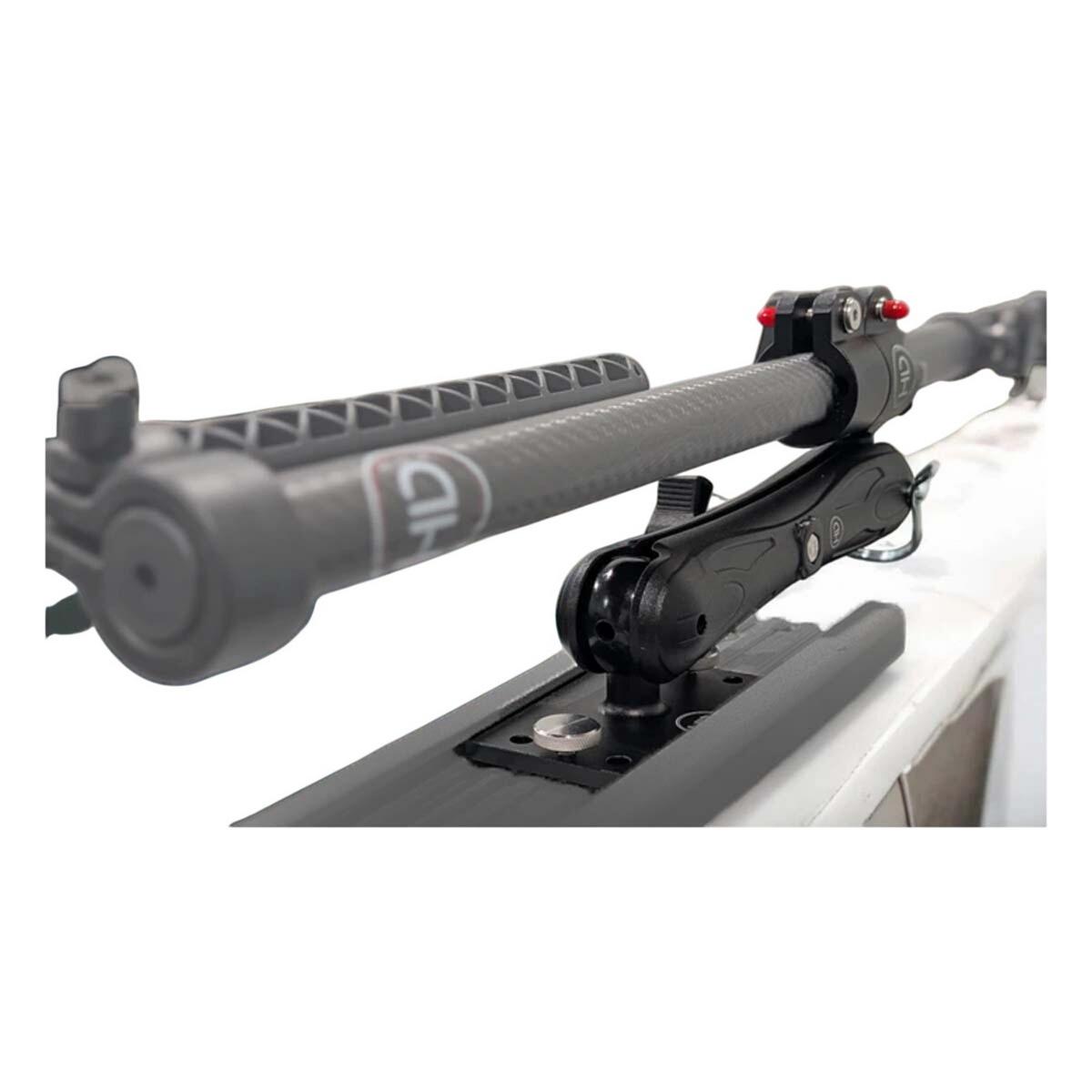

The HD Innovations Universal-Mounting-System [UMS] Pole Adapter with Double Side Arm and UMS Multi-Use Plate combo package is designed for flexibility while still maintaining strength and functionality. Solid aluminum components and stainless hardware provide solid lockup and allow trolling speeds up to 8mph.

The HD Innovations UMS Pole Adapter is compatible with all HD Innovation Poles, including carbon series ice poles or any other poles with a diameter of 1.125" (1 1/8').

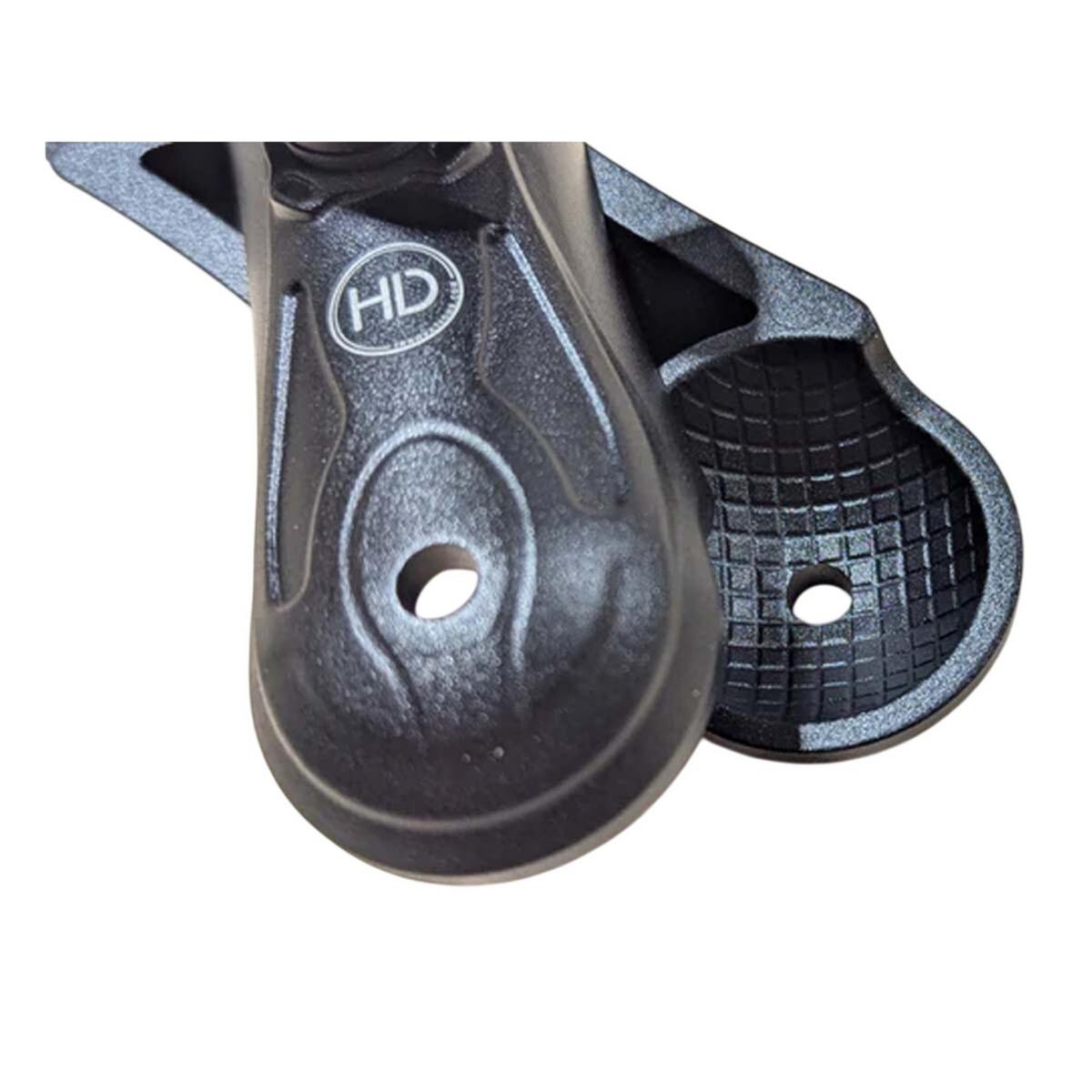

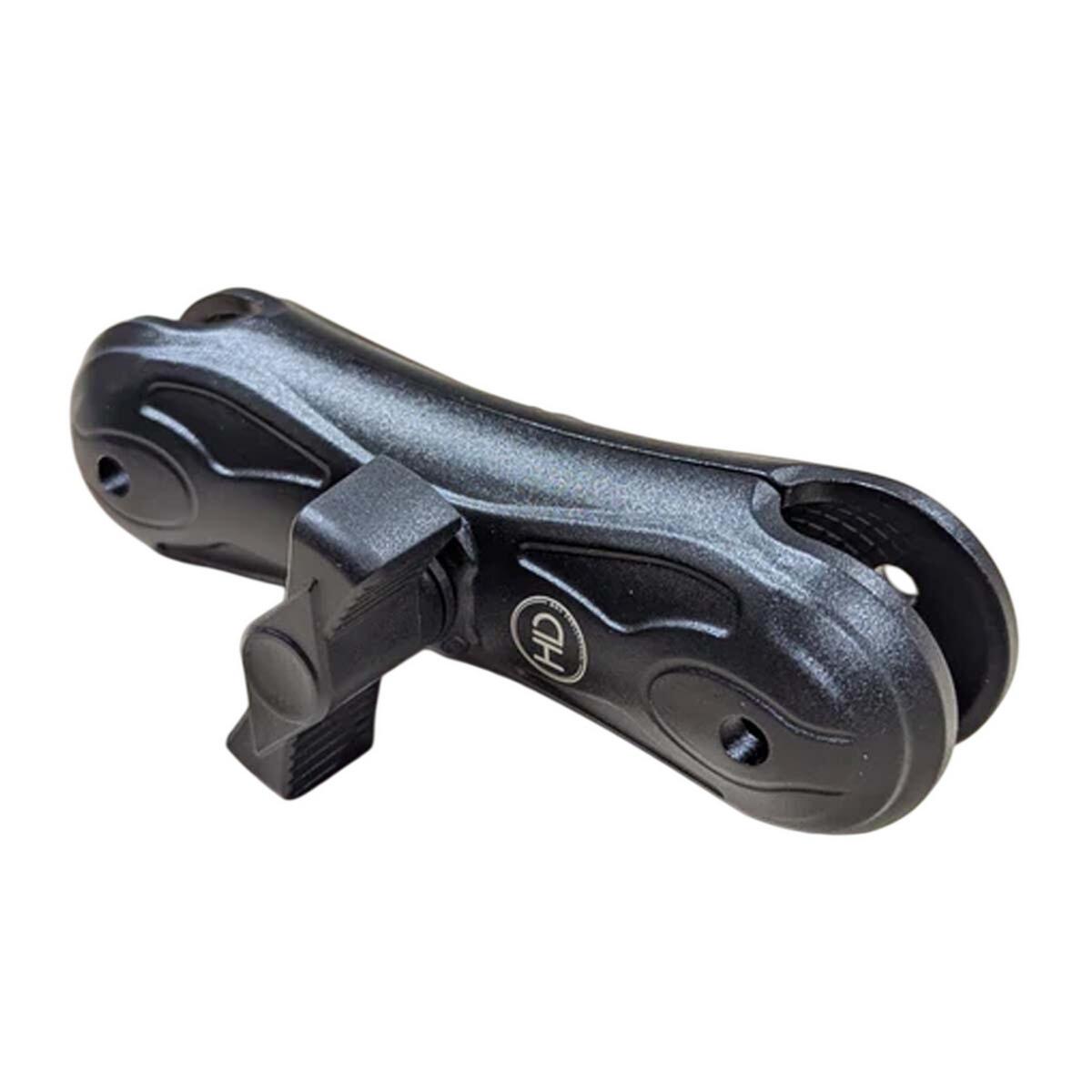

The HD Innovations solid aluminum Double Side Arm is a proprietary design, featuring ball sockets with crosshatch channels that provide a larger surface area for a superior gripping force. Together with the locking pins, the Double Side Arm is prevented from any rotation due to the force of water when the boat is in motion. *Please note: the added cross pin hole in the 1.5" ball of the UMS Multi-Use Plate (base mount) is to be used at the Angler's discretion. When 2 pins are used to achieve 100% locked mode, you must be sure there are no underwater obstacles that may contact the transducer pole.The Front Facing Sonar Transducer Pole (sold separately) can be securely stowed at any angle while remaining connected to the UMS Pole Adapter. The UMS Multi-Use Plate (base mount) optional-pin is removed while stowed.

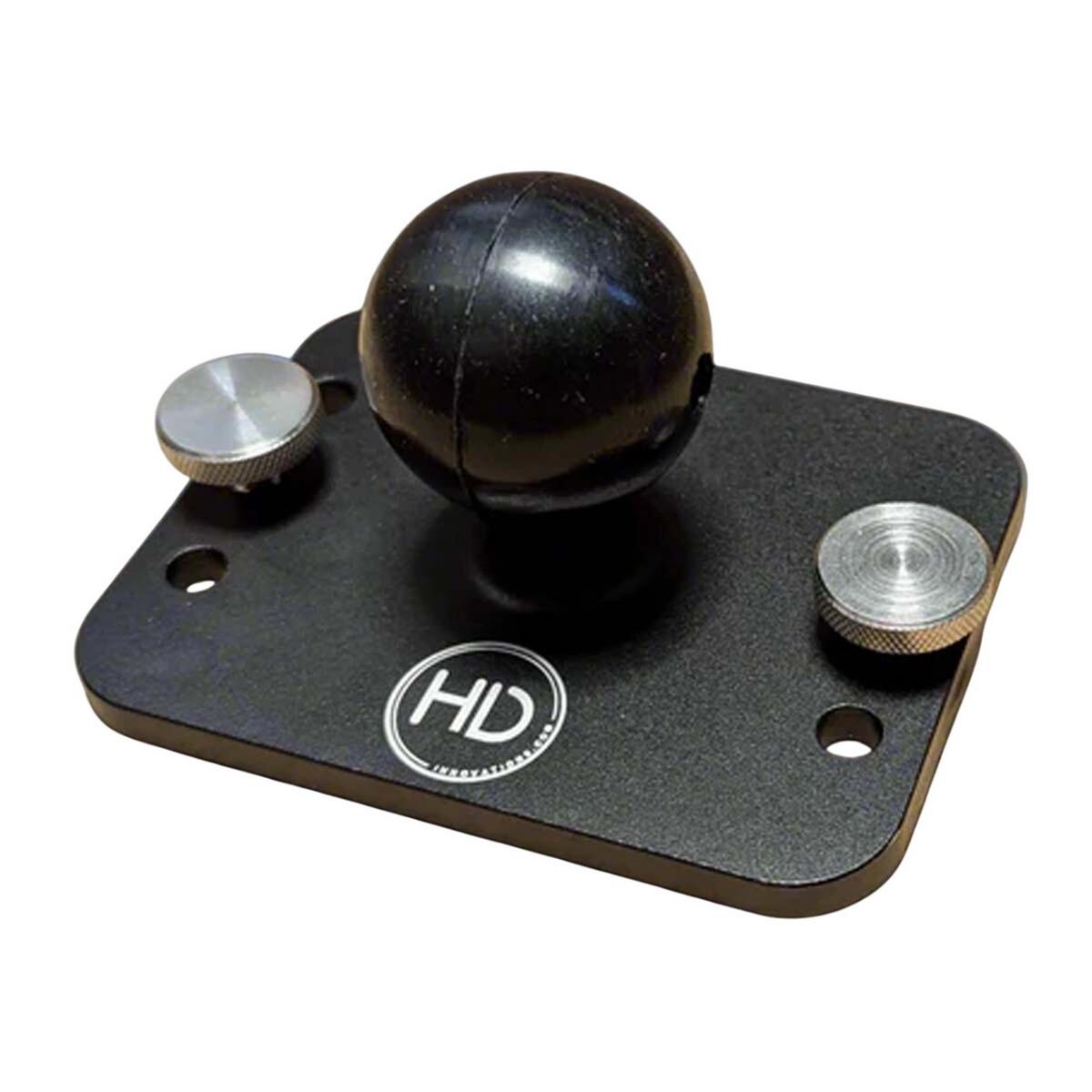

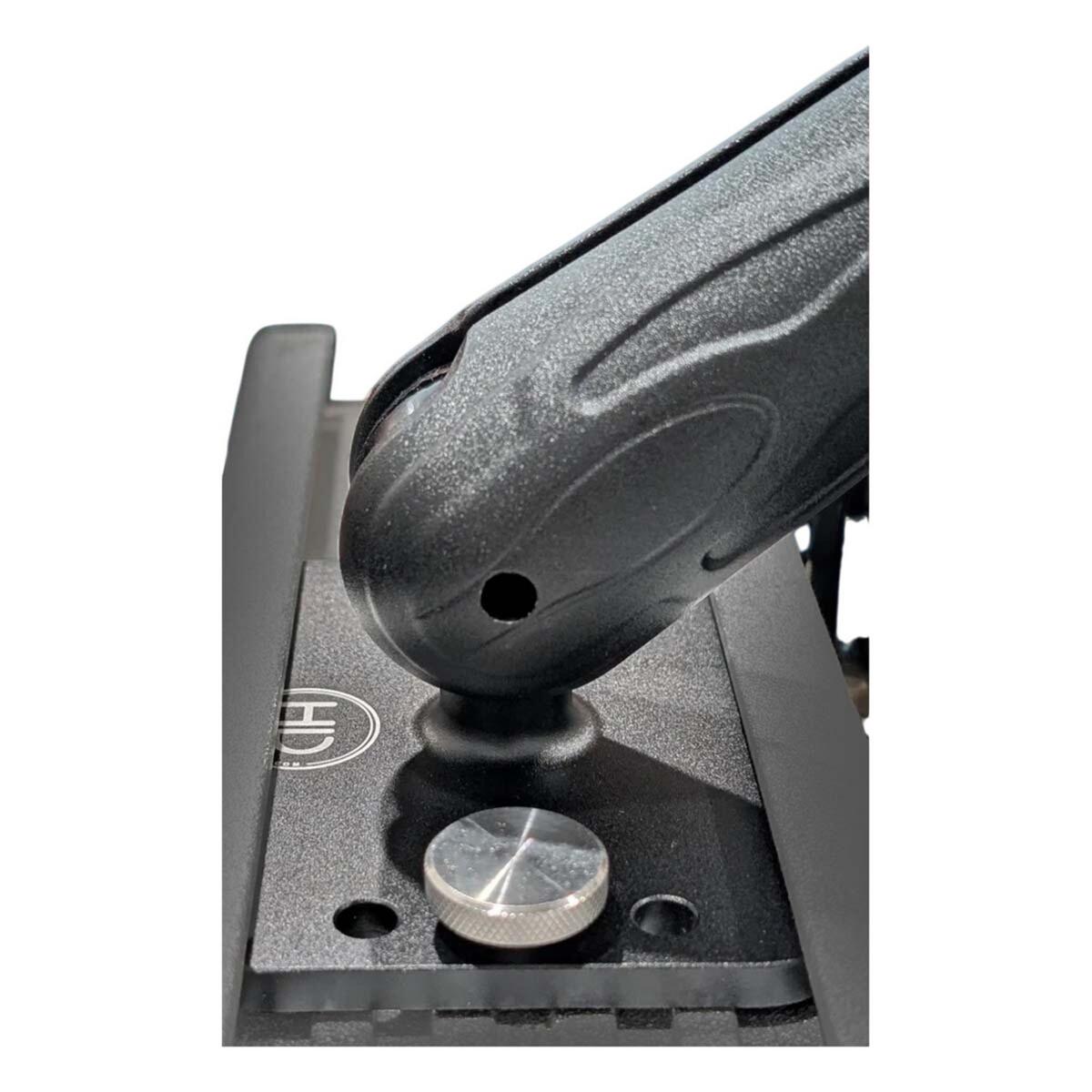

The HD Innovations UMS Multi-Use Plate with 1.5" Ball is made from CNC machined-billet aluminum and is crafted with a TPU overmold to achieve the grip surface. The HDI Multi-Use Plate [MUP] will slide directly into any 3" mounting track, mount to any adapter that has a 4 bolt "Rod Holder" pattern, or can be directly mounted to the gunnel with user supplied hardware.

Includes:

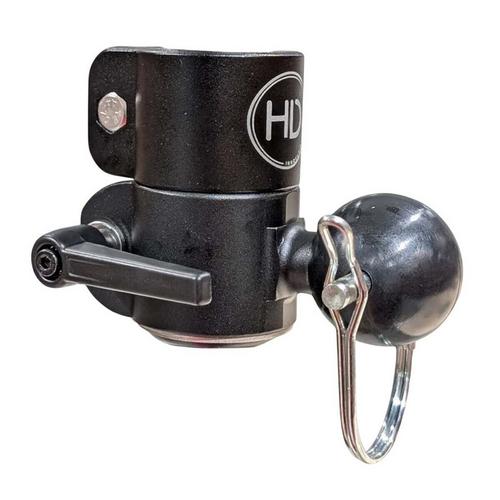

HDI UMS Pole Adapter (HDUMS-PA) with a single anti-rotation pin.
HDI Double Side Arm (HDUMS).
HDI UMS Multi-Use Plate with 1.5" Ball (HDUMS-MUP) with 3" track compatibility.
