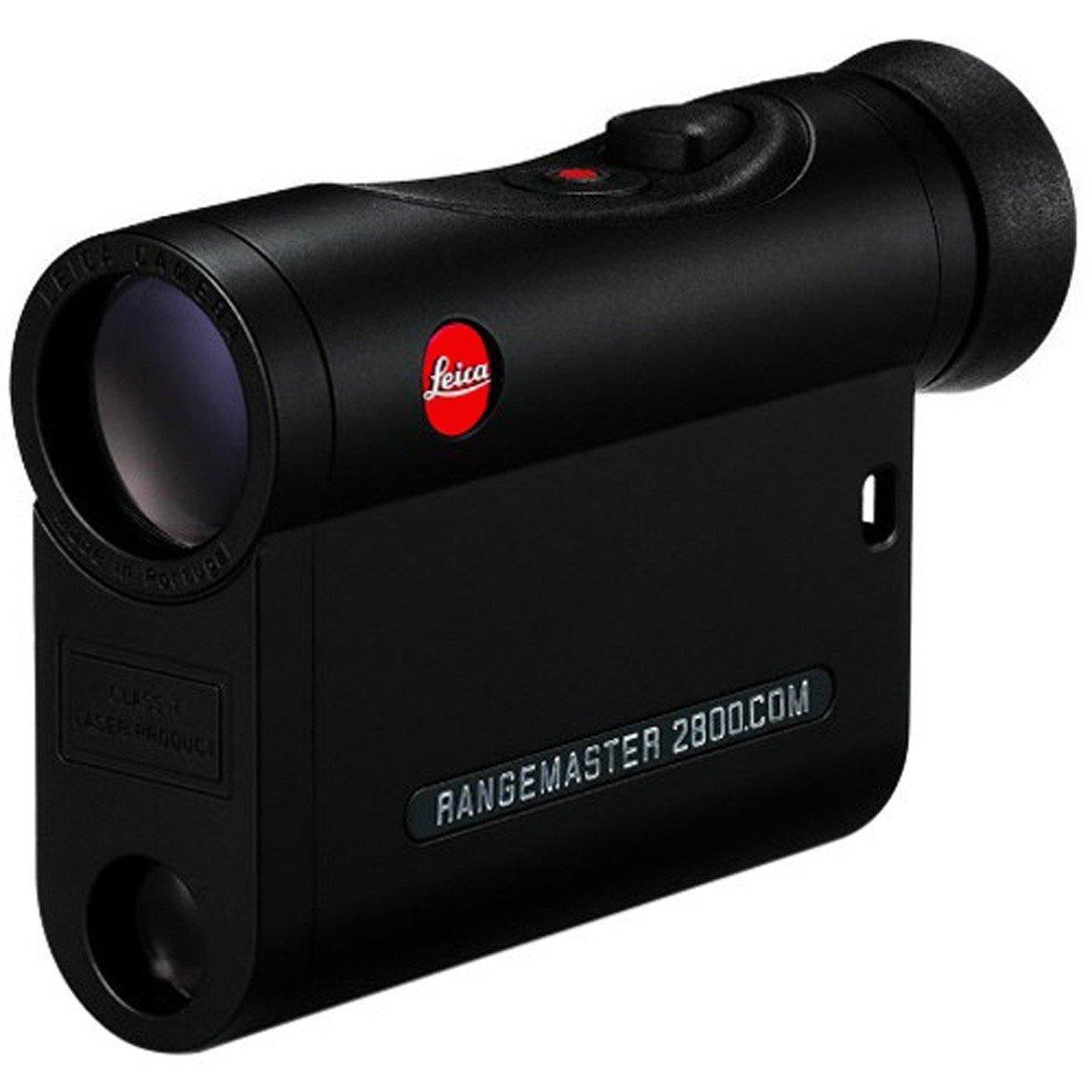

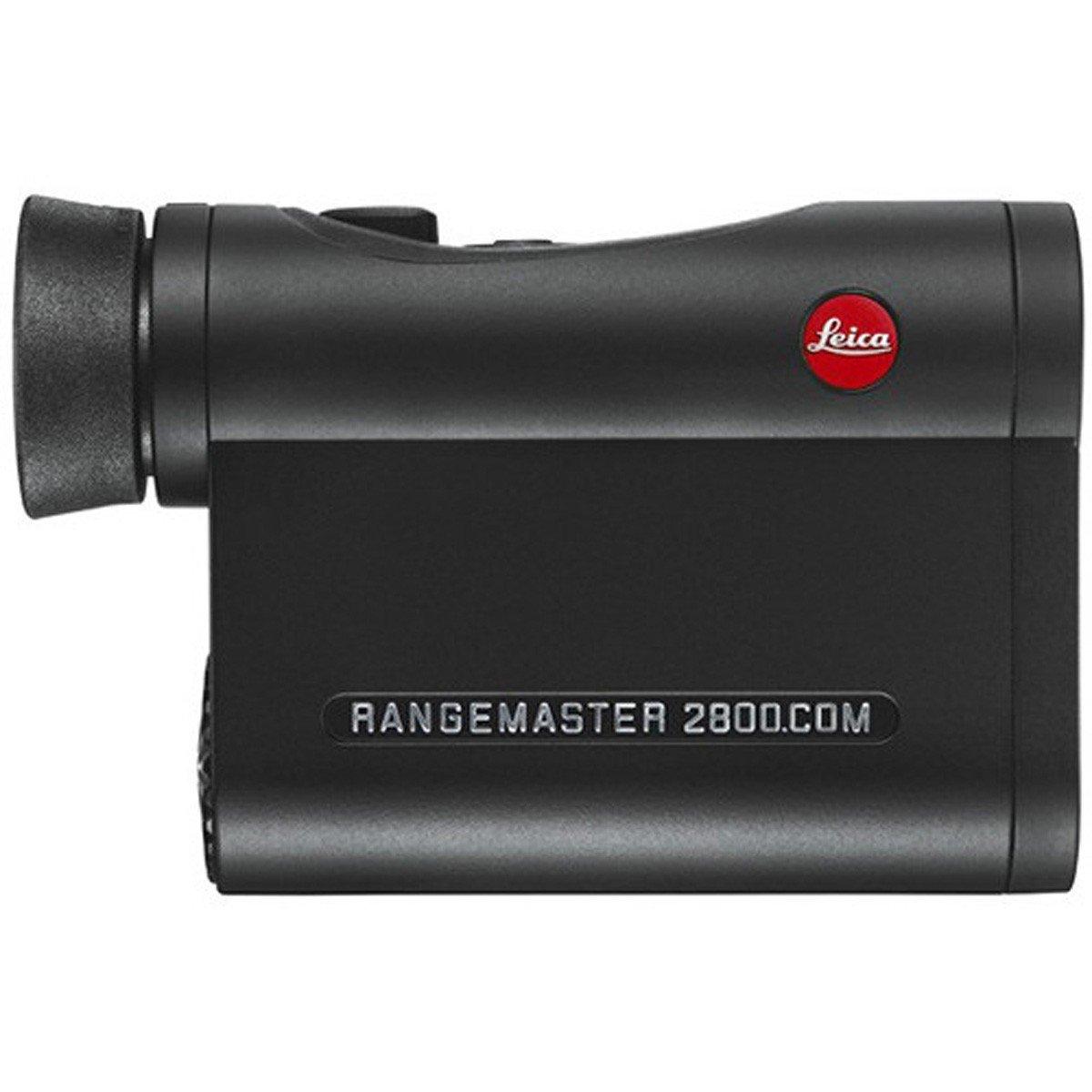

Leica Rangemaster 2800 7x24 Rangefinder

3904-40506

The Leica Rangemaster 2800 7x24 Rangefinder is a compact laser rangefinder that provides precise distance measurements up to 2,800 yards. The Leica 2800 has a compact size and weight for packability—it can even fit in most shirt pockets. The integrated LED display shows four-digit readouts and automatically adjusts to ambient light conditions. The rangefinder has both scanning and single measurement modes, as well as three output values based on clicks, EHR, or holdover. Plus, the Leica Rangemaster 2800 is compatible with the Leica Hunting smartphone app, allowing you to customize your ballistic data for even greater precision. From target shooting to hunting, the Leica Rangemaster 2800 7x24 Rangefinder offers long-range precision for archers and riflers alike.


Laser: Eye-safe invisible laser

Diopter Compensation: +/- 3.5

Dimensions: 4.5" x 2.25" x 1.25"

Coating: Aqua-Dura lens coating

Weight: 6.7 oz. (includes battery)

Coating: AquaDura® lens coating

Measuring Time: Approx. 0.3 seconds

Housing: Carbon-fiber reinforced plastic

EHR Range: 10 to 2,800 yds / 10 to 1,200 yds.

Laser Beam Divergence: Approx. 0.5x1.2 MRAD

Prism System: Roof prism with phase correction coating

Battery Life: Approx. 1,700 measurements at 68°F (20°C)

Measuring Modes: Scanning mode, single measurements

Water Resistance: Watertight to a depth of 3.2 ft. / 1 meter

Storage Temperature Range: -40°F to 185°F (-40°C to 85°C)

Operation Temperature Range: -4°F to 131°F (-20°C to 55°C)

Measuring Accuracy:

• 10–200 yds.: +/- 0.5 yds.
• 200–400 yds.: +/- 1.0 yds.
• 400–800 yds.: +/- 2.0 yds.
• 800+ yds.: +/- 0.5%

Ballistic Output:

• Leica Ballistic Curves: 10 to 875 yds.
• Custom Curves (via Leica App): 10 to 1,000 yds.
• Kestrel 5700 Elite: 10 to 2,800 yds.
