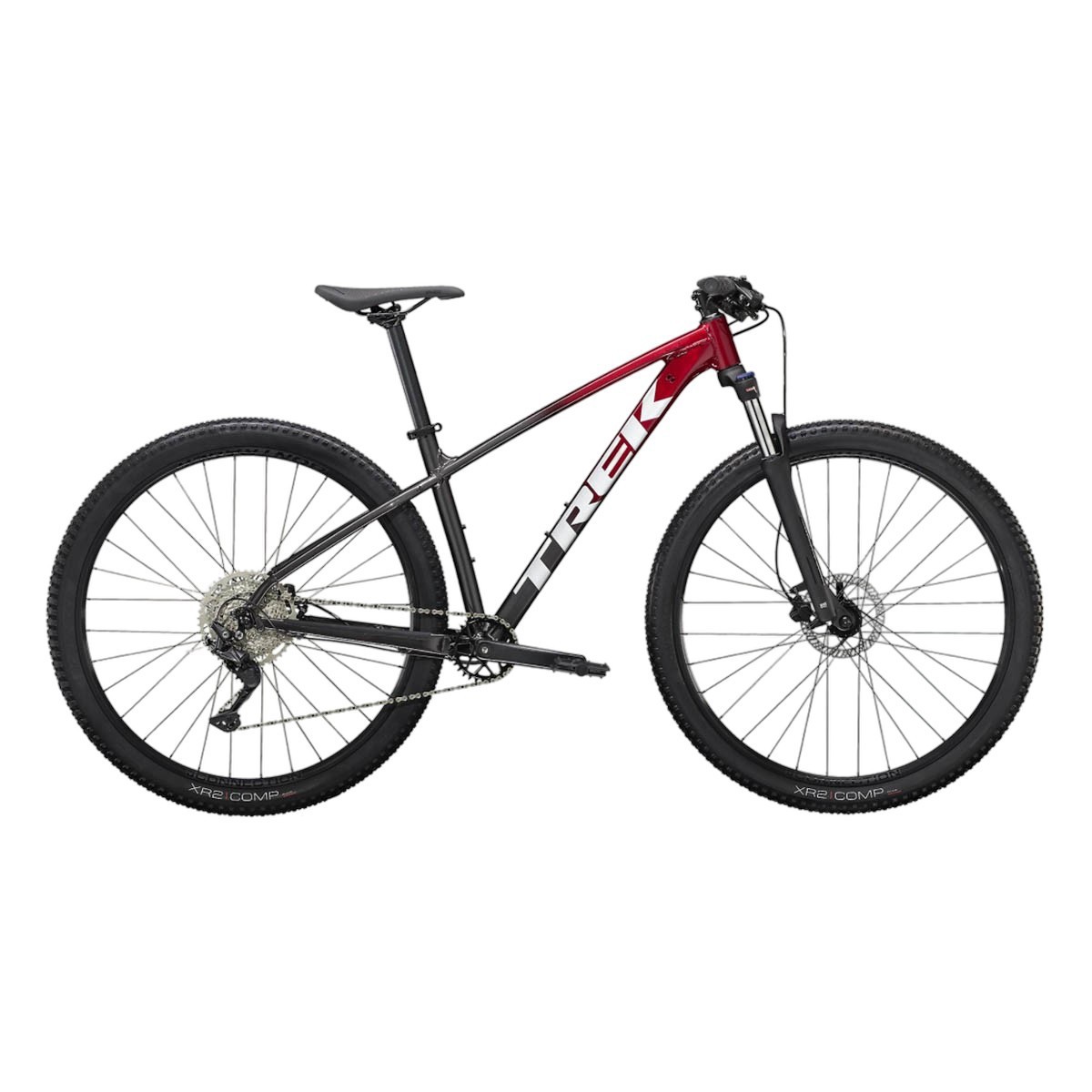

The Trek 2022 Marlin 6 Mountain Bike is perfect for those looking to take their riding from pavement to trail terrain. Featuring a lightweight aluminum frame, the Trek Marlin 6 2022 mountain bike is durable enough to withstand challenging terrain, while the suspension fork locks out for pedaling efficiency when on flat terrain. You'll enjoy the smooth gear transitions of the Shimano drivetrain that helps give you the necessary gears to power up steep climbs. Additional features like the hydraulic brakes, internal cable routing, and Blendr stem elevate the look and function of the Trek Marlin 6 2022 mountain bike. Whether you're moving your rides to the trail or looking for a solid commuter bike, check out the Trek 2022 Marlin 6 Mountain Bike.



Frameset Specs:

• Frame: Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR
• Fork:

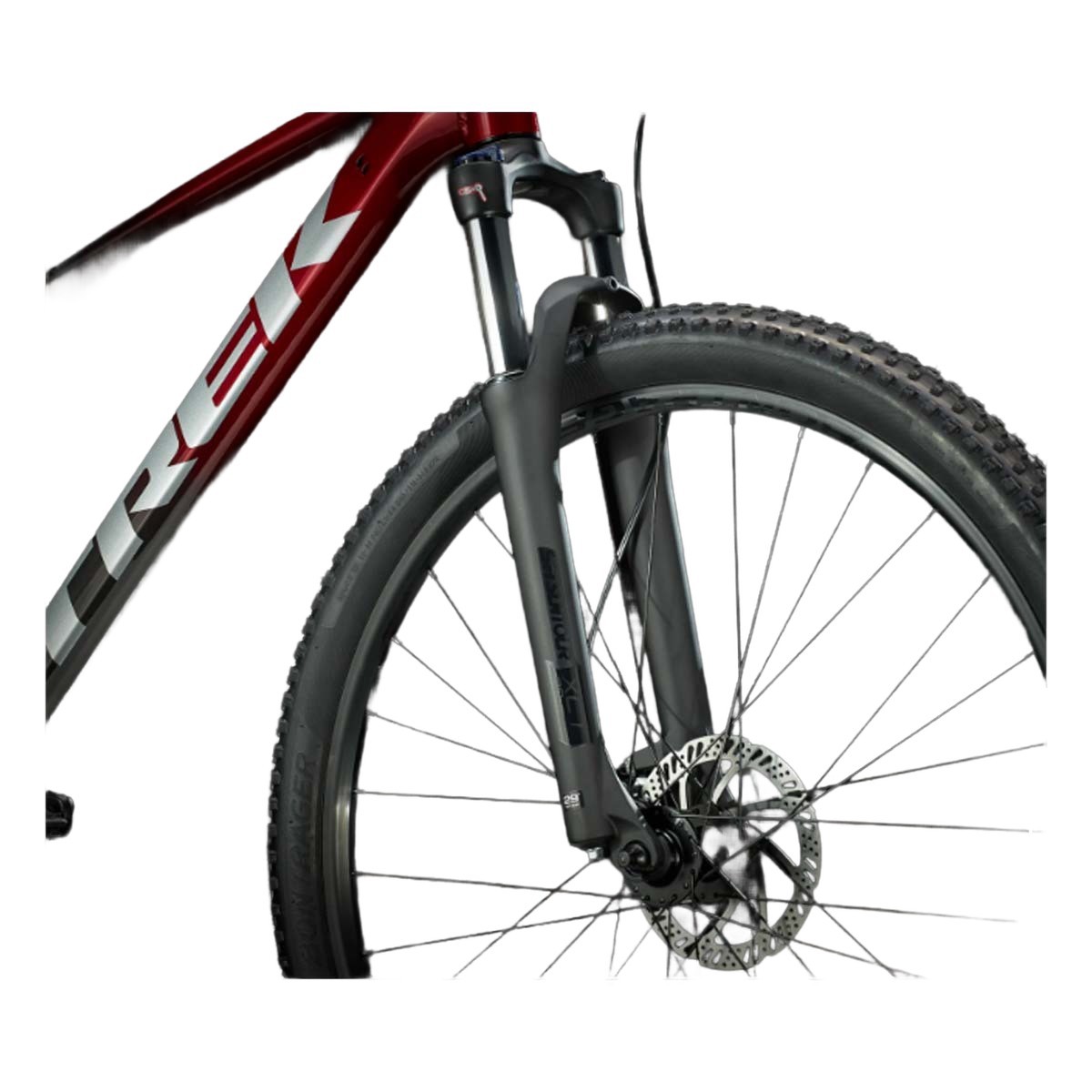

  • Size XS: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
  • Size S: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
  • Size M, ML, L, XL, XXL: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Wheel Specs:

• Spokes: 14g stainless steel
• Hub Front: Formula DC-20, alloy, 6-bolt, 5x100mm QR
• Rim: Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
• Hub Rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
• Tire:

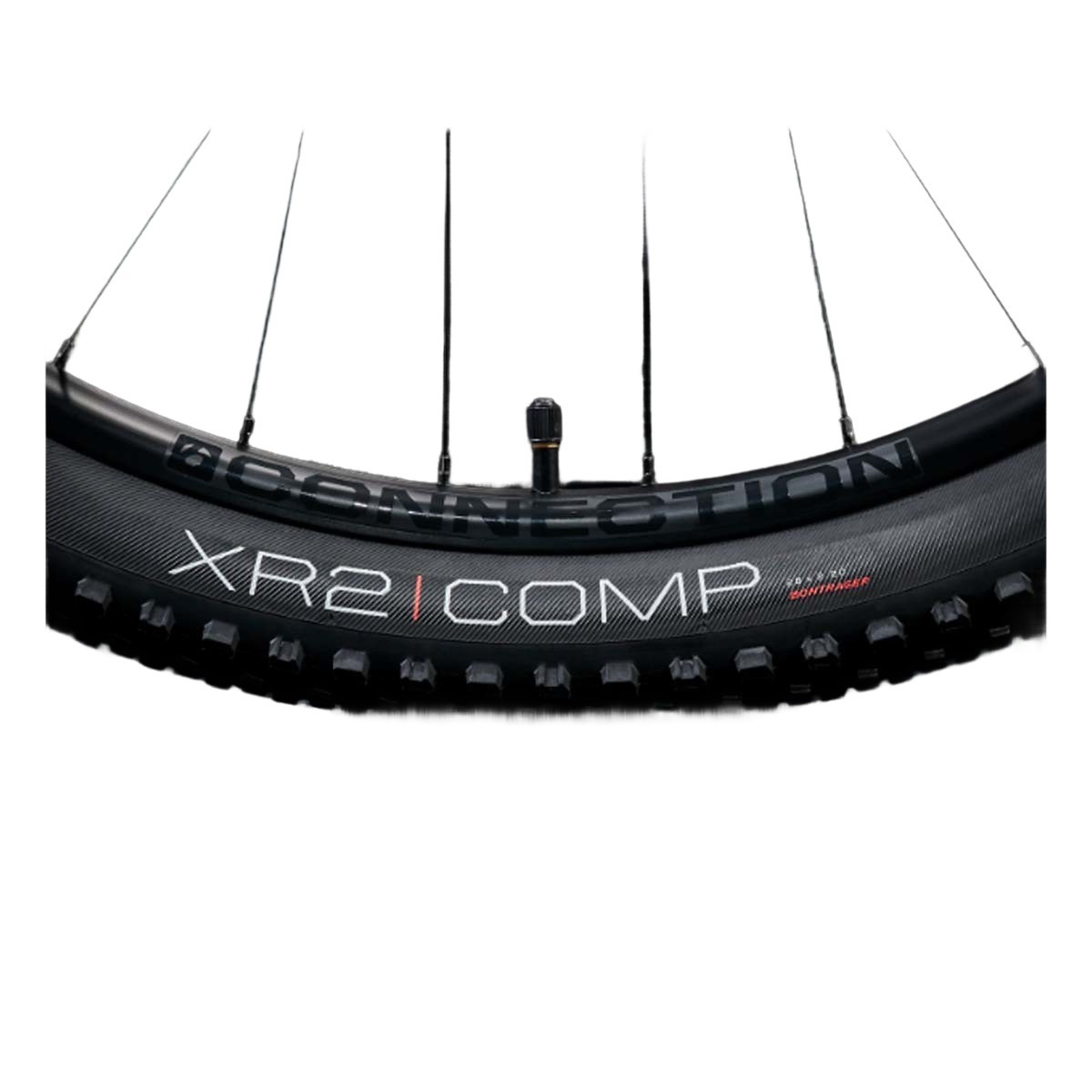

  • Size XS, S: Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
  • Size M, ML, L, XL, XXL: Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''

Drivetrain Specs:

• Chain: KMC X10, 10 speed
• Pedal: VP-536 nylon platform
• Shifter: Shimano Deore M4100, 10 speed
• Cassette: Shimano Deore M4100, 11-46, 10 speed

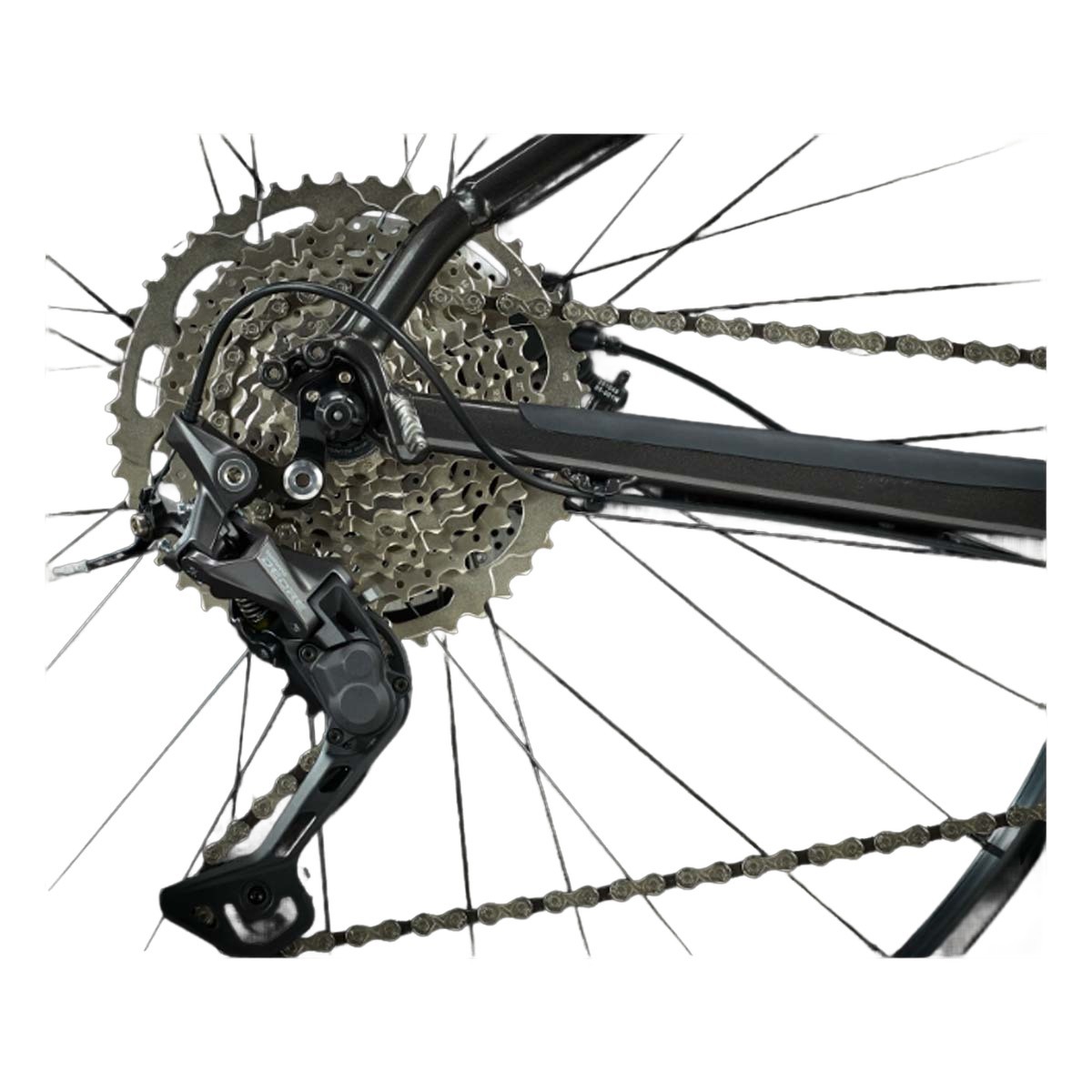

• Rear Derailleur: Shimano Deore M5120, long cage
• Bottom Bracket: VP BC73, 73mm, threaded cartridge

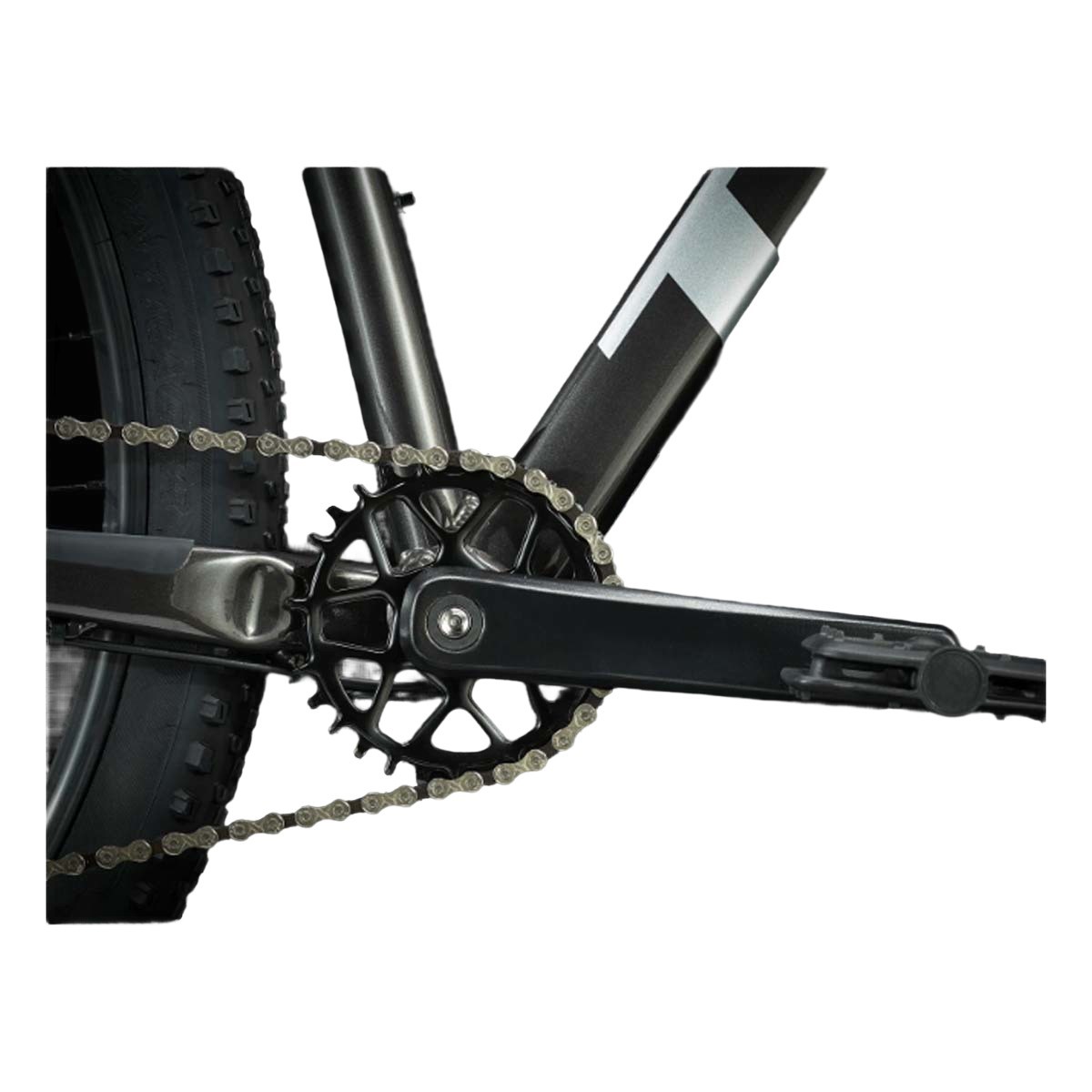

• Crank: Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length

Component Specs:

• Headset: Semi-integrated, 1-1/8''
• Grips: Bontrager XR Endurance Comp, lock-on
• Saddle: Bontrager Arvada, steel rails, 138mm width
• Seatpost:
  • Size XS, S, M: Bontrager alloy, 31.6mm, 12mm offset, 330mm length
  • Size ML, L, XL, XXL: Bontrager alloy, 31.6mm, 12mm offset, 400mm length
• Handlebar:
  • Size XS: Bontrager alloy, 31.8mm, 5mm rise, 690mm width
  • Size S, M, ML, L, XL, XXL: Bontrager alloy, 31.8mm, 5mm rise, 720mm width
• Stem:
  • Size XS: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
  • Size S: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
  • Size M: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
  • Size ML, L: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
  • Size XL, XXL: Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length

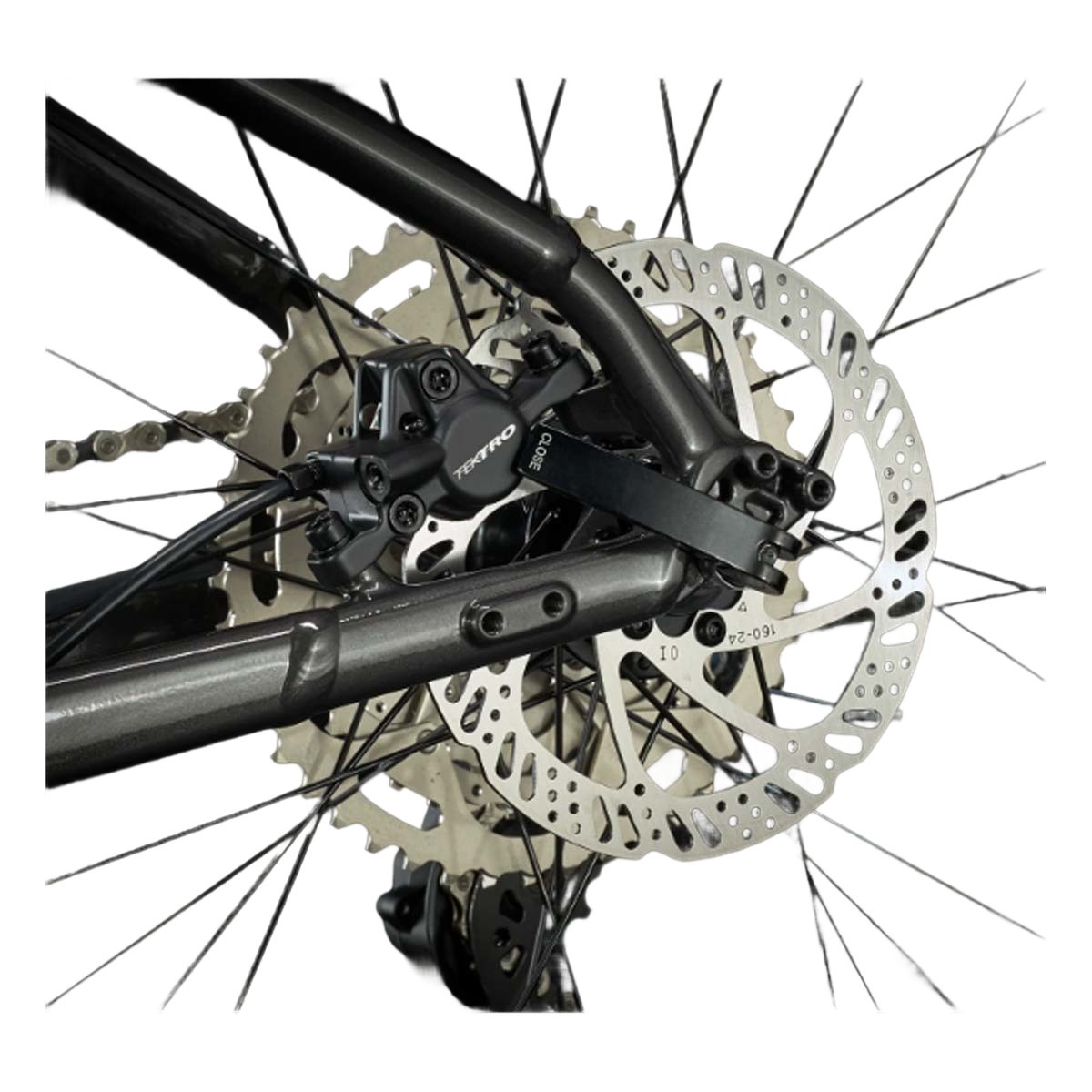

• Brake:
  • Size XS, S: Tektro HD-M276 hydraulic disc, short reach lever
  • Size M, ML, L, XL, XXL : Tektro HD-M275 hydraulic disc
