Trek

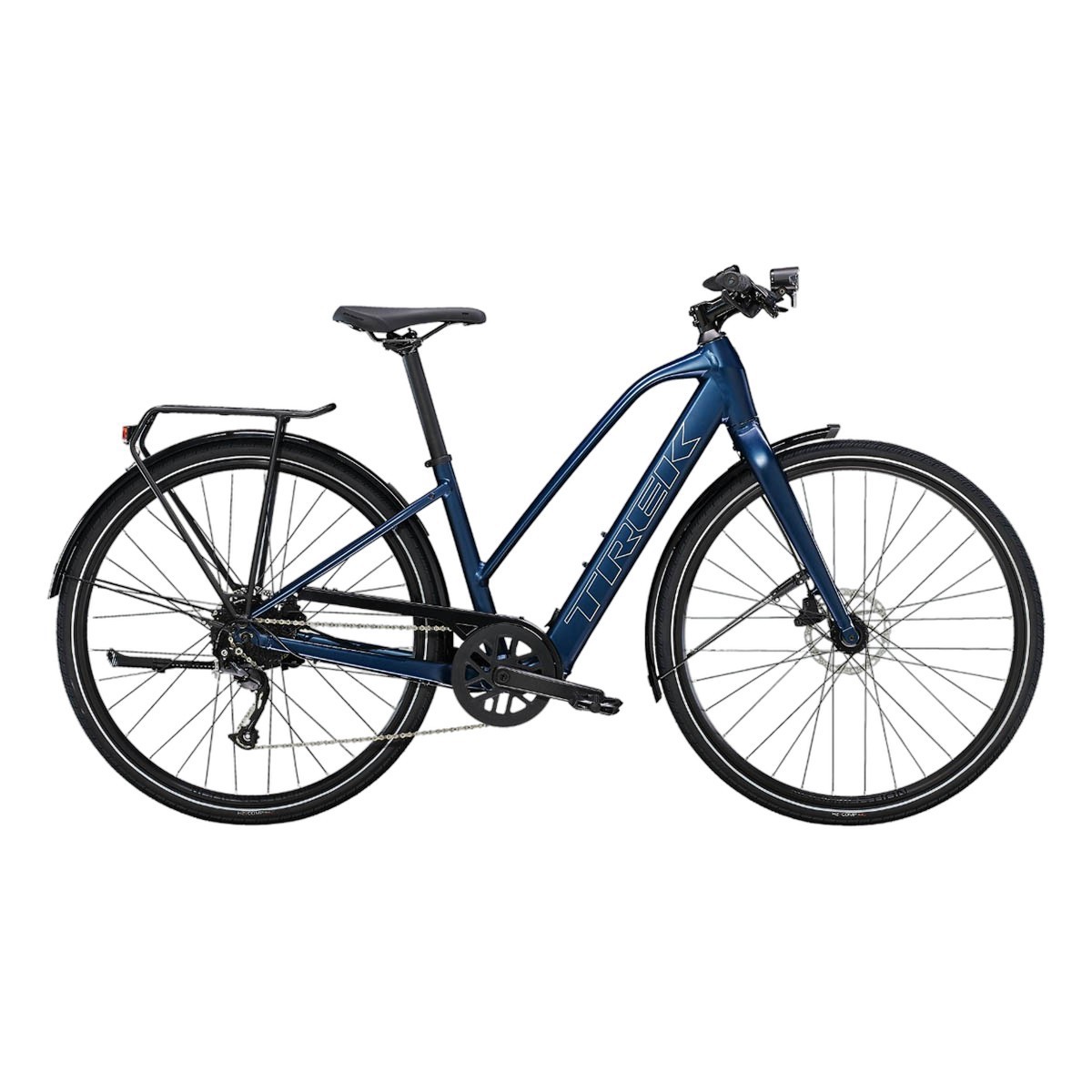

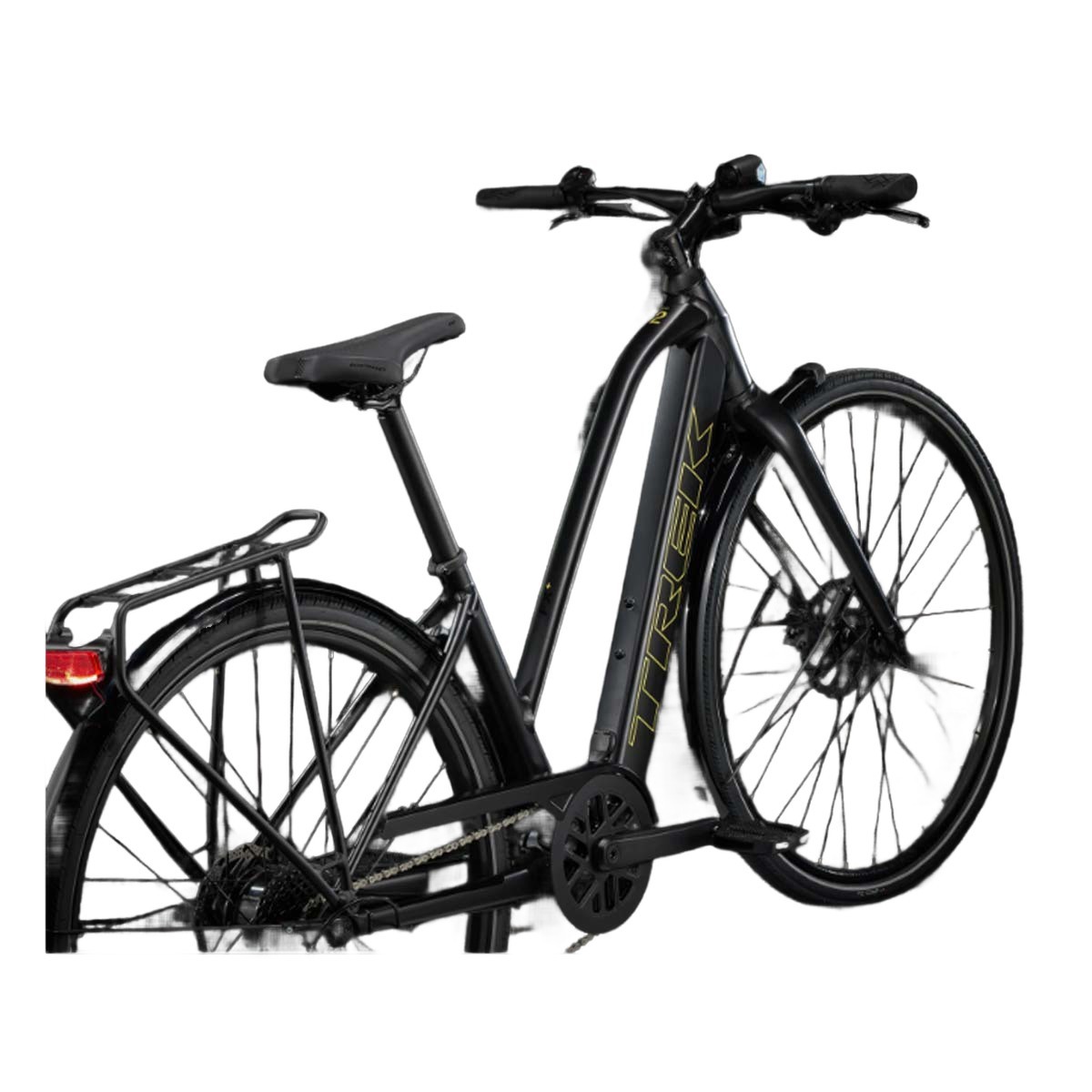

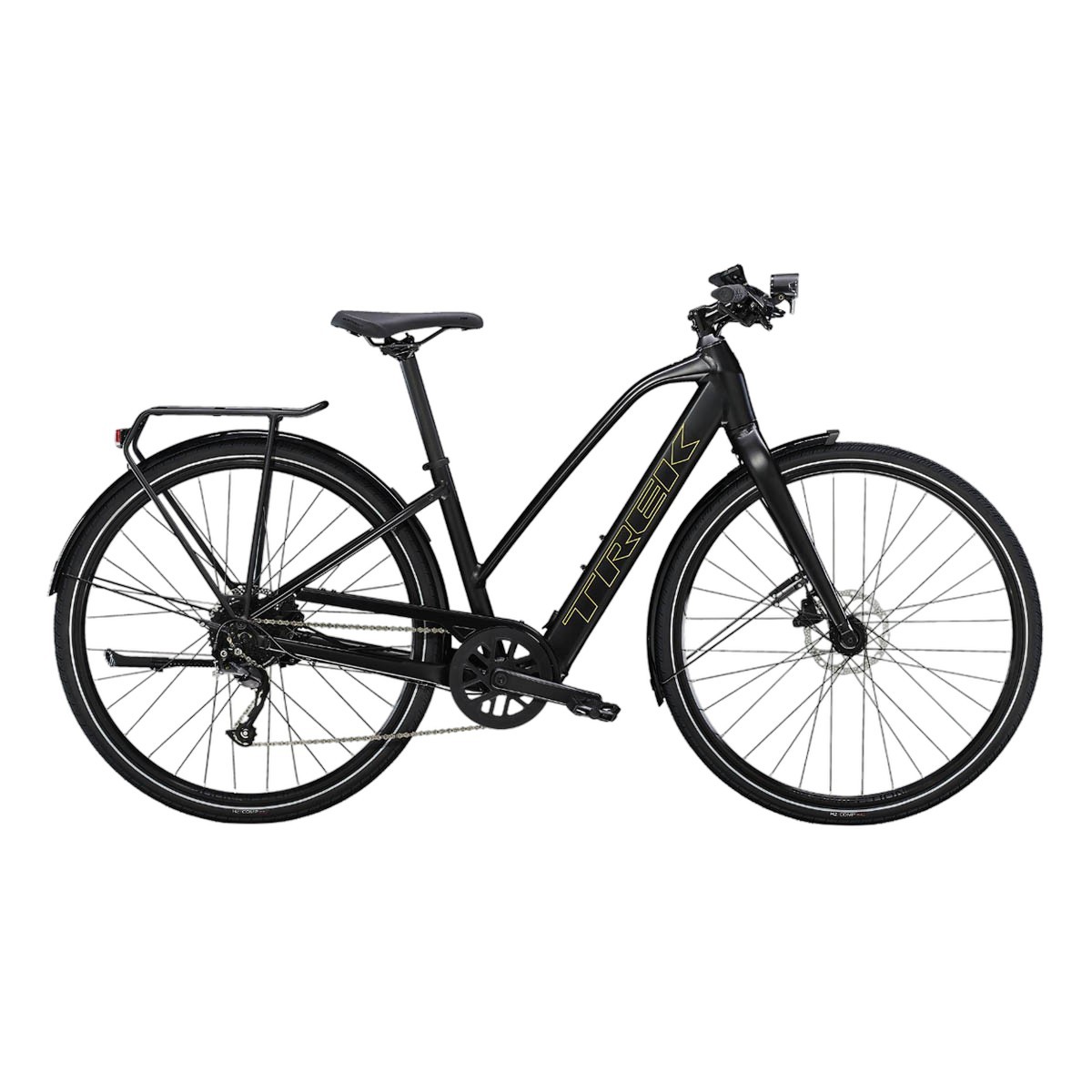

Trek 2023 FX+ 2 Stagger Electric Fitness Bike

Item No. 1643-5271671
$2,499.99

  • Select Color:

Note: Shipping is unavailable for this product.

Select Delivery Method:

Must Be 18 Years of Age

Frequently Bought With

Kuat NV 2.0 Hitch Rack

Kuat NV 2.0 Hitch Rack

Trek 2023 FX+ 2 Stagger Electric Fitness Bike

1643-5271671


Experience power, agility, and ultimate convenience with the Trek 2023 FX+ 2 Stagger Electric Bike. Featuring a lightweight and powerful 40Nm rear hub drive, intuitive on-bar controls, and an easy-on, easy-off stepthrough frame, this incredibly capable electric bike is perfect for all sorts of different rides. With an optional range extender and hydraulic disc brakes, you can take on any terrain with complete confidence. Plus, the smooth and stable tires will get you to wherever you need to go quicly and efficiently. Upgrade your ride today and explore farther than ever before with the Trek 2023 FX+ 2 Stagger Electric Bike!




Wheels:
  • Hub front - Formula DC-20, alloy, 6-bolt, 5x100mm QR

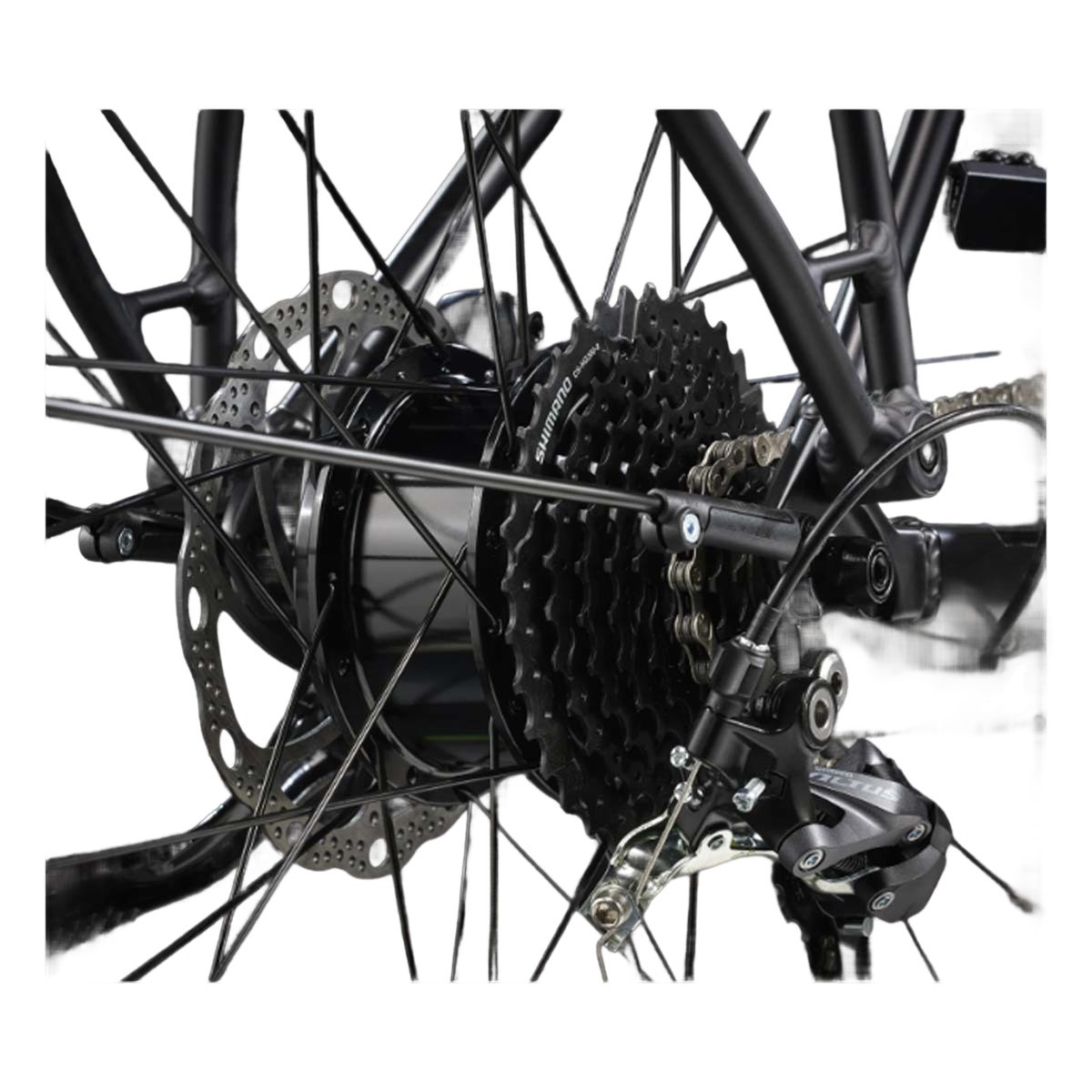

  • Hub rear - G2 hub drive
  • Rim - Bontrager Connection, alloy, double-wall, 32-hole, schrader valve
  • Spokes - 14g stainless steel
  • Tire - Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c
  • Max tire size - 50c without fenders, 45c with fenders
Drivetrain:
  • Shifter - Shimano Altus M2010, 9 speed
  • Rear derailleur - Shimano Altus M2000, long cage
  • Crank:
    • Size - S, M - ProWheel Pro alloy, 42T narrow-wide steel ring, 170mm length
    • Size - L - ProWheel Pro alloy, 42T narrow-wide steel ring, 175mm length
  • Bottom bracket - Torque sensor, T47 threaded, 122.5mm spindle
  • Cassette - Shimano HG200, 11-36, 9 speed
  • Chain - KMC X9
  • Pedal - Bontrager City pedals
  • Max chainring size - 42T
Components:
  • Saddle - Bontrager Sport Women's
  • Seatpost:
    • Size - S, M - Bontrager alloy, 31.6mm, 12mm offset, 330mm length
    • Size - L - Bontrager alloy, 31.6mm, 12mm offset, 400mm length
  • Handlebar:
    • Size - S, M - Bontrager alloy, 31.8mm, 15mm rise, 660mm width
    • Size - L - Bontrager alloy, 31.8mm, 15mm rise, 690mm width
  • Grips Bontrager XR Endurance Comp, lock-on
  • Stem:
    • Size - S, M - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
    • Size - L - Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 100mm length

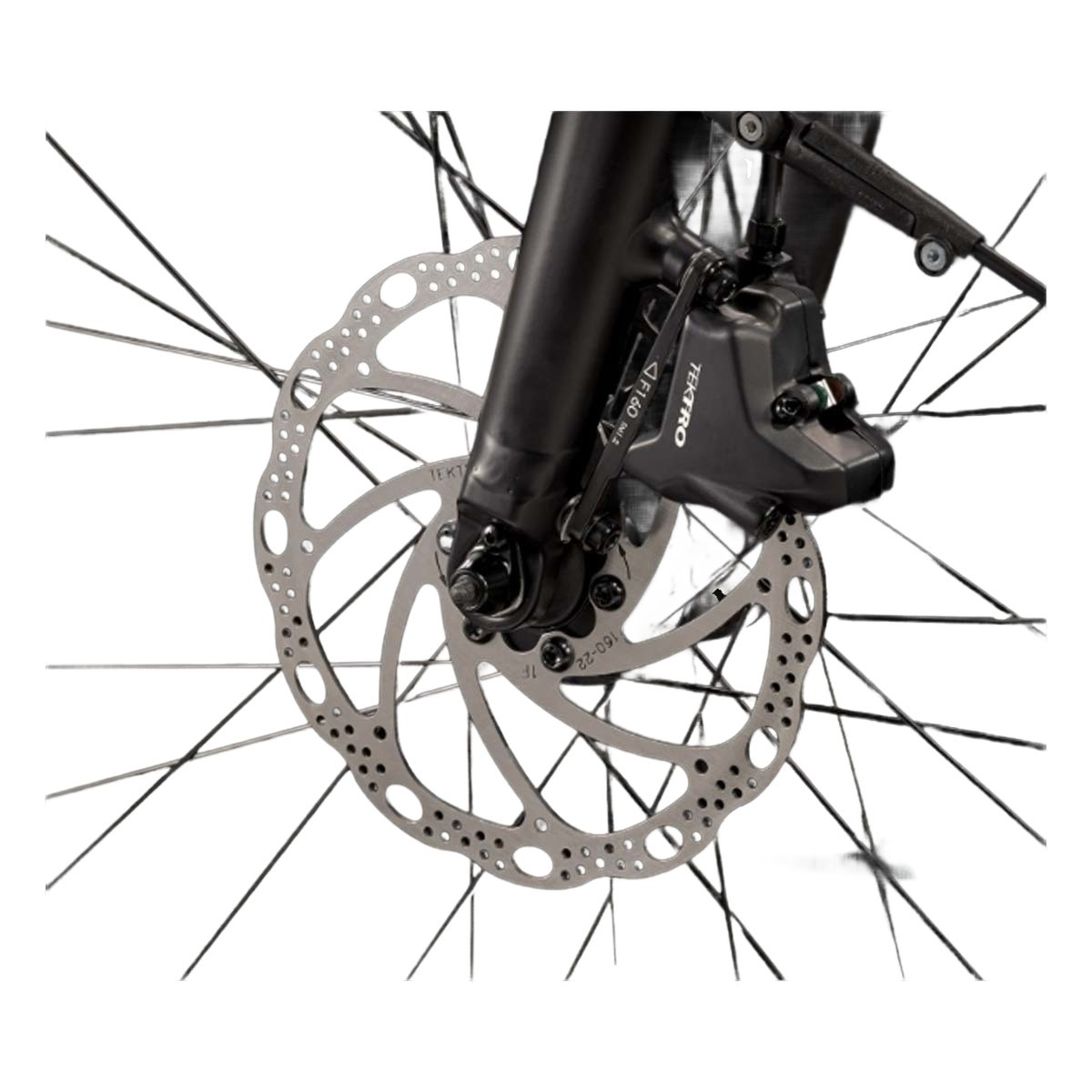

  • Brake Shimano hydraulic disc, MT200 lever, UR300 caliper
  • Brake rotor Shimano RT26, 6-bolt,160mm
  • Rotor size Max brake rotor size: 160mm
Accessories:
  • Battery - 250Wh
  • Charger - 2A, 42V output, 100V-240V AC input
  • Controller - Bluetooth display
  • Light:
  • Size - S, M, L - Herrmans MR4-E Frontlight, 40LUX, 120 lumen LED. 6-12 VDC. Without Bracket. With 50mm Power-in cable. Without Power-out cable. With Reflector (white)
  • Size - S, M, L - Spanninga Solo
  • Kickstand - Rear mount, alloy

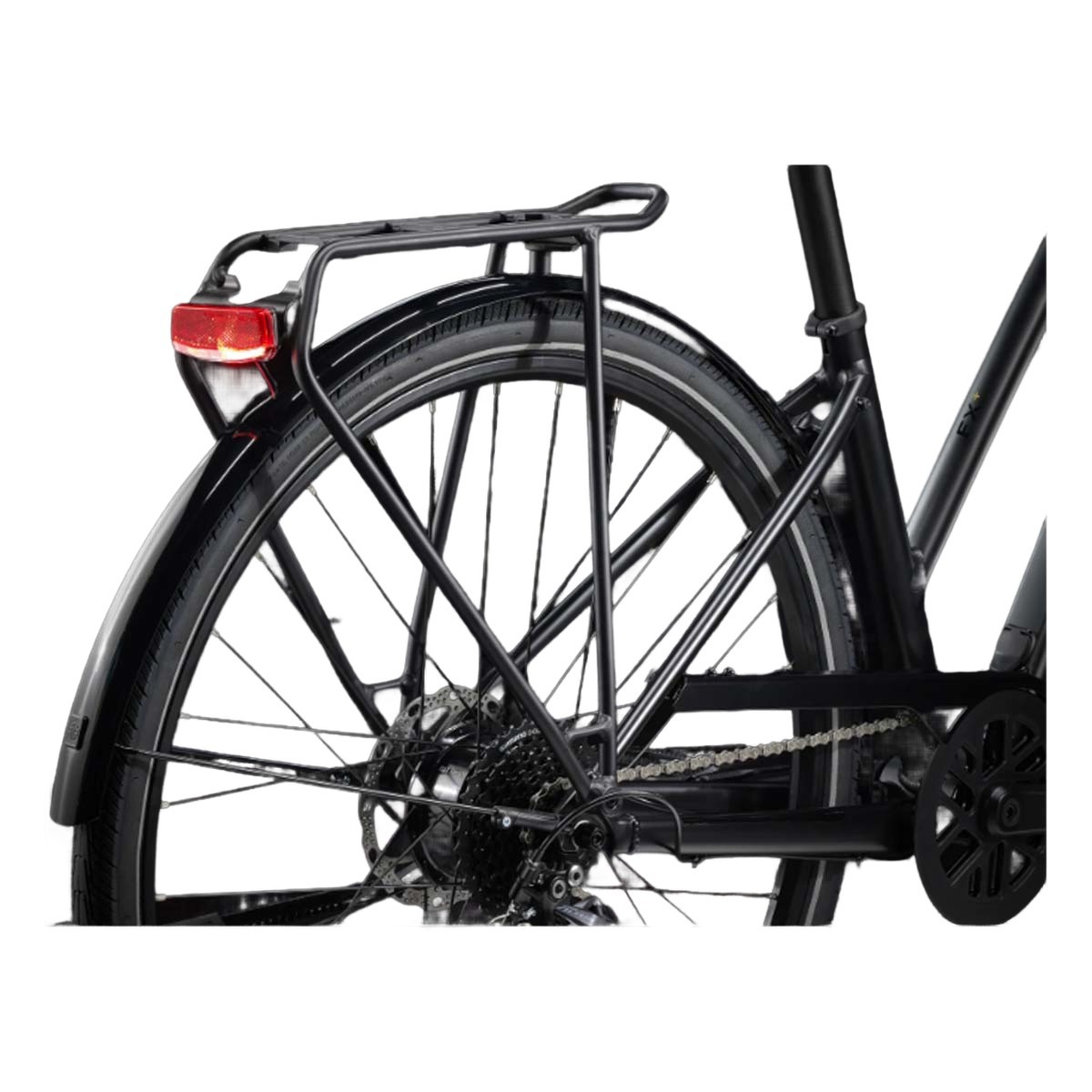

  • Cargo rack - MIK Compatible alloy rear rack
  • Fender - SKS plastic
Weight:
  • Weight - M - 18.20 kg / 40.13 lbs
  • Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Trek
  • Easy Stepthrough Frame - Easy-on, easy-off stepthrough frame is perfect for anybody not interested in slinging a leg over the top tube.
  • Hydraulic Disc Brakes - Hydraulic disc brakes offer the absolute stongest stopping power in all conditions, including wet and muddy.
  • Optional Range Extender - Double your distance and explore up to 70 miles with a supplementary 250Wh plug-and-play battery.
  • Intuitive On-Bar Controls - A simple three-button layout and easy-to-read LED indicators put a faster ride right at your fingertips.
  • Smooth and Stable Tires - 700x40c tires get you to your destination quickly and efficiently.

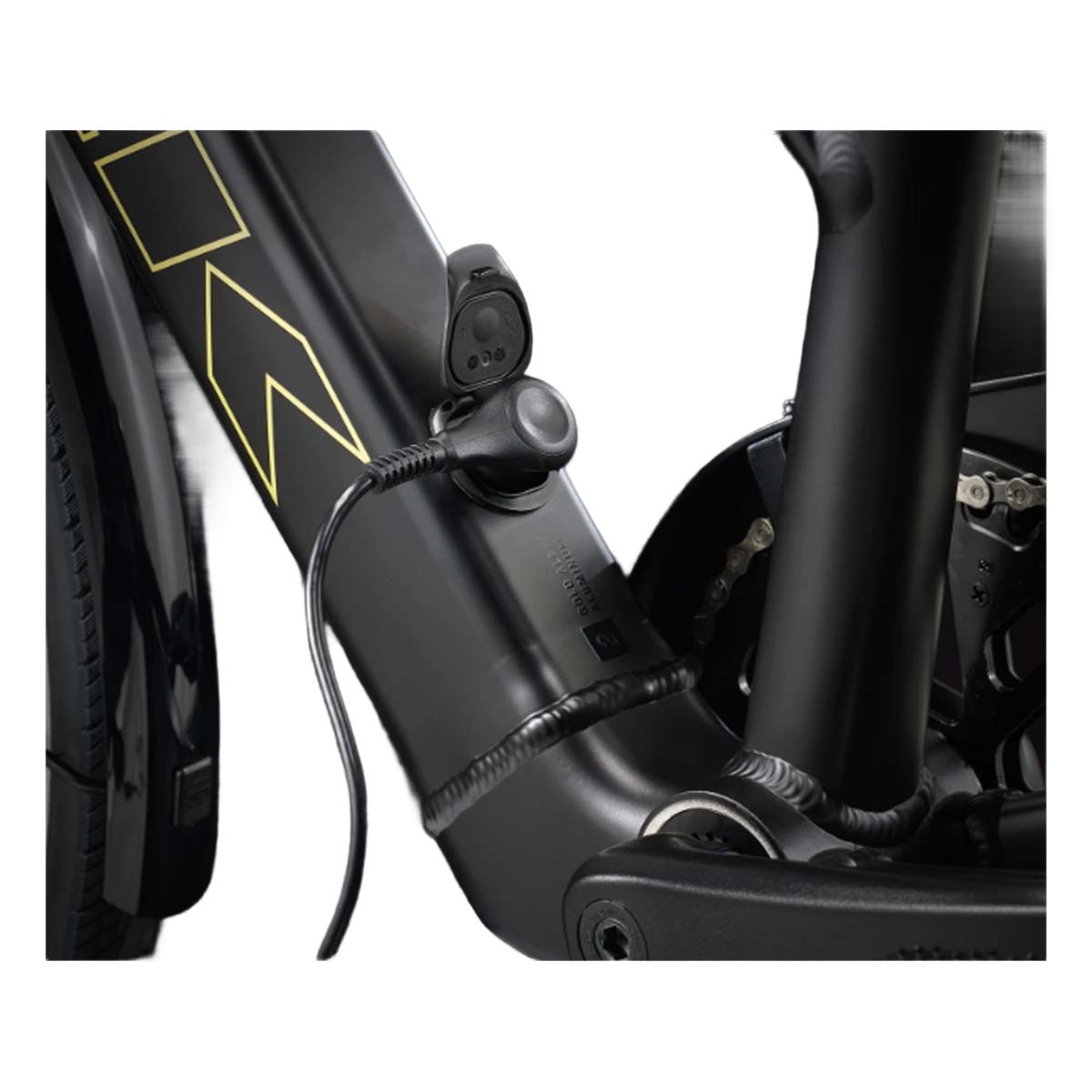

  • Sleek Hidden Battery - A reliable 250Wh internal battery system assists up to 35 miles with an easily accessible charging port right on the downtube.
  • Fully equipped frame - Integrated lights, fenders, and a rear rack mean you're always ready to ride and run errands.
  • Ultra-light design - Weighing in at just 40 pounds, FX+ is one of our lightest e-bikes ever.
  • Powerful drive system - A lightweight and powerful 40Nm rear hub drive offers confident handling and uninterrupted power.
  • Fork - FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
  • Frame - Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing
