Dillon Precision RL 1100 Reloading Press

4235-RL1100

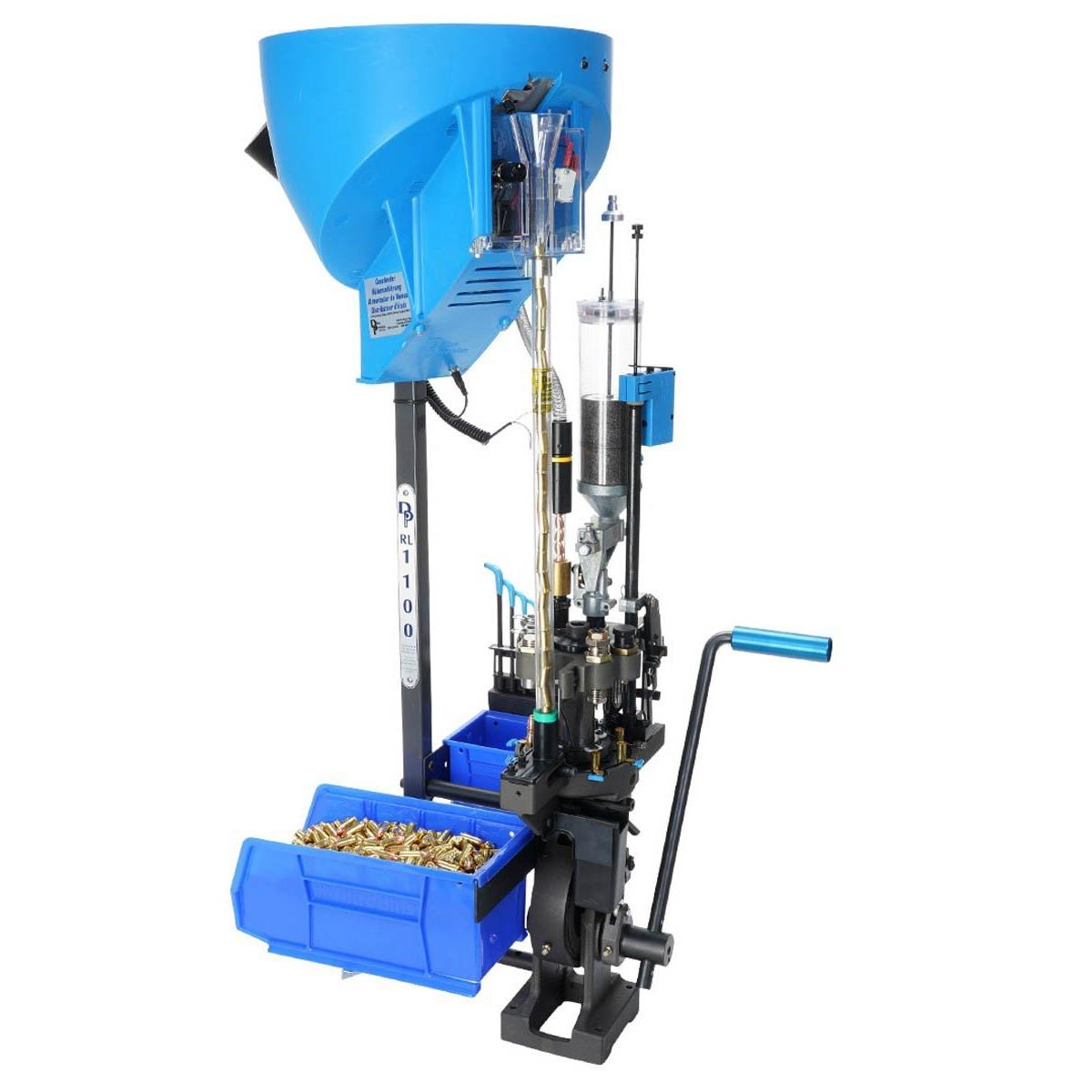

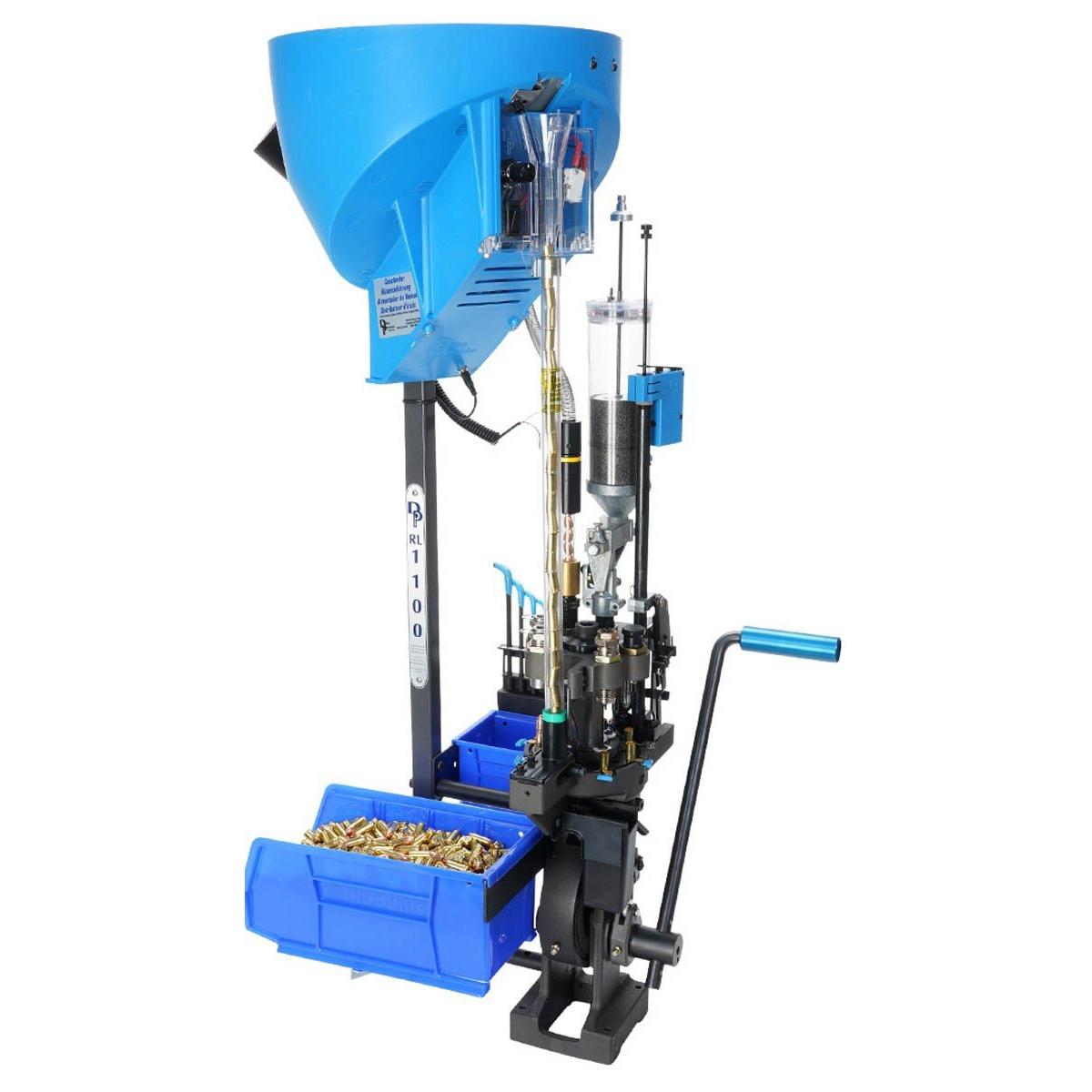

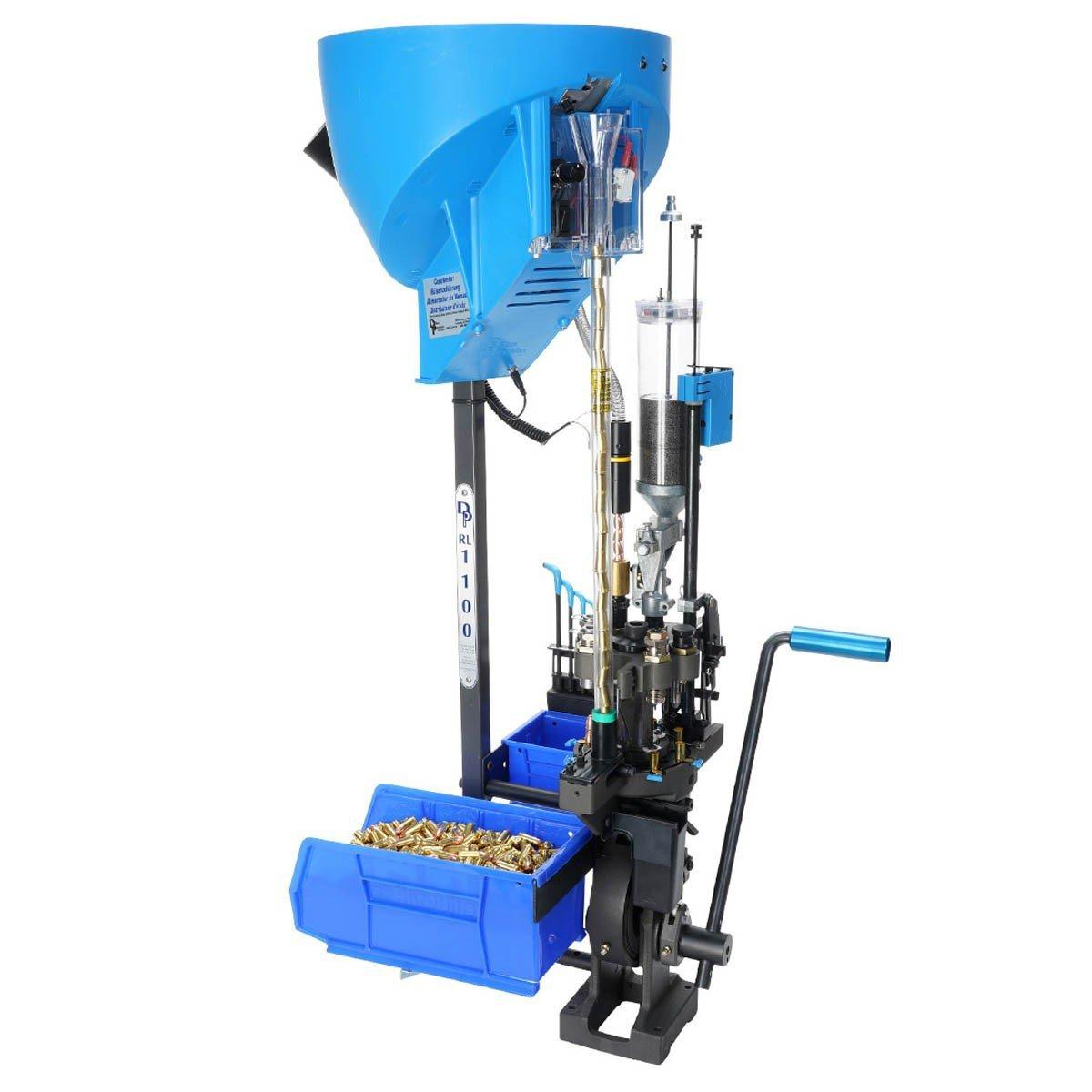

The Dillon RL1100 is the newest reloading machine in the Dillon Precision Products line. It will accommodate common cartridges from 32 ACP up through 308 Winchester, up to 2.75" overall length. The 1100 features a variable speed case feeder (included) that allows you to infinitely regulate the speed from 0 to 8 RPM.

Machine is shown with the following options SOLD SEPARATELY:

• Mr Bulletfeeder
• Toolholder with deluxe wrench set
• Low Powder Sensor

Features:

• Eccentric Roller Bearing Drive System
• Smoother Operation, Less Effort
• Heavier Frame for Greater Rigidity
• Upgraded Primer Pocket Swager
• User-Replaceable Swage Rod Tip
• Spring-Loaded Priming Station Locator
• Reinforced Toolhead Bolt & Washer
• Improved Shellplate Indexing System
• 1050 Caliber-Conversion Compatible
• Two Year Warranty

Variable speed,universal voltage case feeder:

• The speed of the casefeeder is controlled by a potentiometer on the casefeed funnel.
• It allows you to infinitely regulate the speed from 0 to 8 RPM.
• The motor features a universal power supply for both domestic and foreign voltages.
• Adaptable to either 110 or 220 Volt, 60 or 50 hz, you simply swap out the plug to the style appropriate to your region.
• The bowl has an adjustable window cuff and cases deflector, for a larger range of cartridge capability.

The basic RL1100 includes the following:

• Auto indexing shellplate
• 1 set of dies
• Built in primer pocket swager
• Automatic powder measure system
• Automatic priming system
• Electric casefeeder
• Low Primer Alarm

Recommended additional items (at minimum):

• Powder scale
• Reloading Handbook
• Dial caliper
• Primer flip tray
• Case lube(for bottleneck cartridges)

To change calibers, you will need:

• Die set for the new caliber
• Caliber Conversion Kit
• You may need a different casefeed plate. Please refer to the caliber conversion chart in the Instruction Manual.
• If changing primer sizes, you will need the appropriate primer system conversion (#66216-Small, #66217-Large)
• If you want to leave your dies preset, you'll need:
  • Toolhead
  • Powder die(#20320)
  • OR the RL1100 Quick Change, which includes a powder measure, powder die, and a toolhead. This allows you to leave your dies and powder charge set up and dedicated to a specific cartridge for faster, easier caliber changes.
