Garmin ECHOMAP Ultra 106sv GT56UHD-TM Transducer

Item No. 75375928514
Discounted Price 1499.99 $1,499.99 $2,149.99  Save $650.00
Select Delivery Method

Select Delivery Method:

Free Shipping

Est. Delivery Sat. 6/22 - Wed. 6/26

Need a gift sooner? Send an E-Gift Card


Get a $70 E-Gift Card When Instantly Approved

and use your new SCHEELS® Visa® online today.

Learn More

Product Details

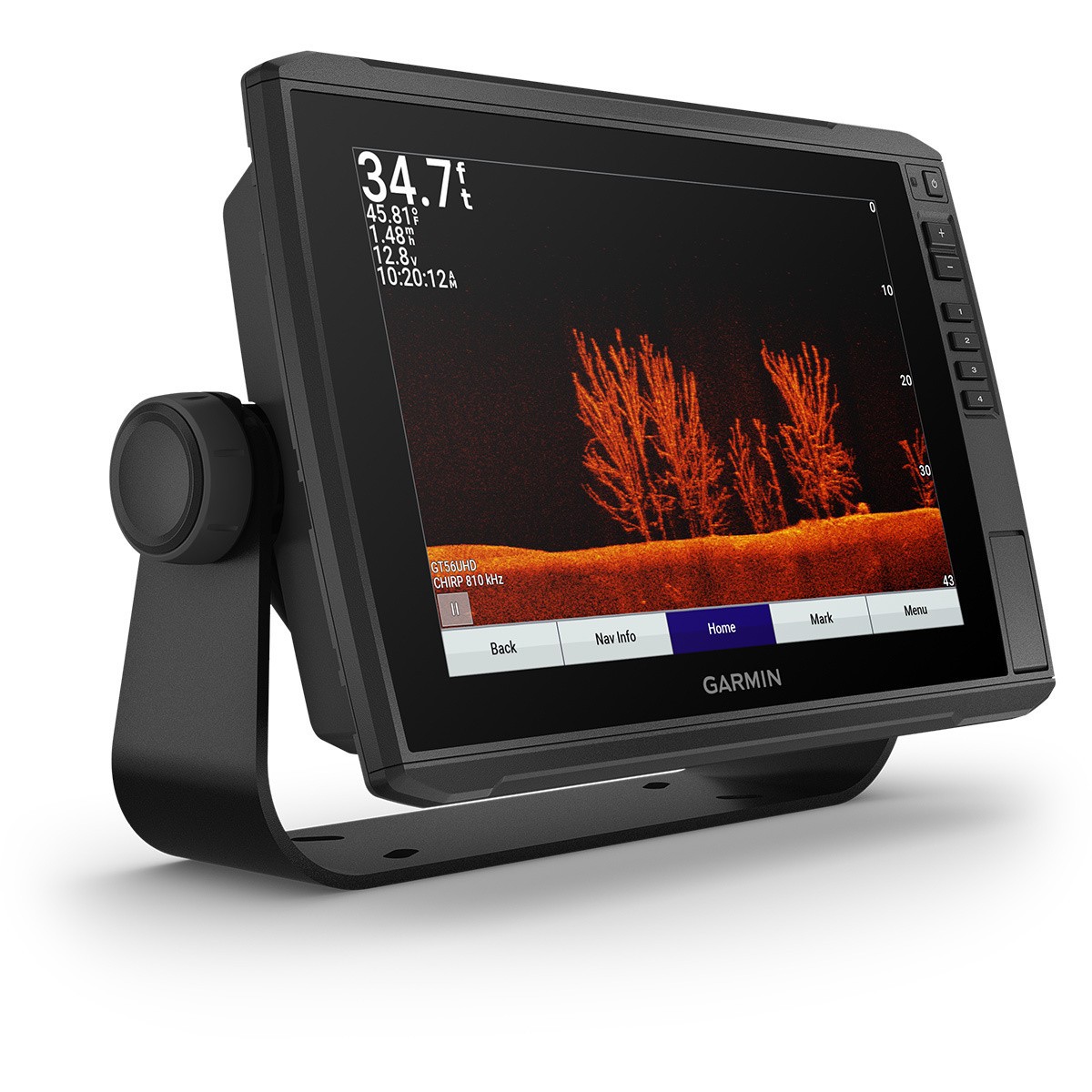

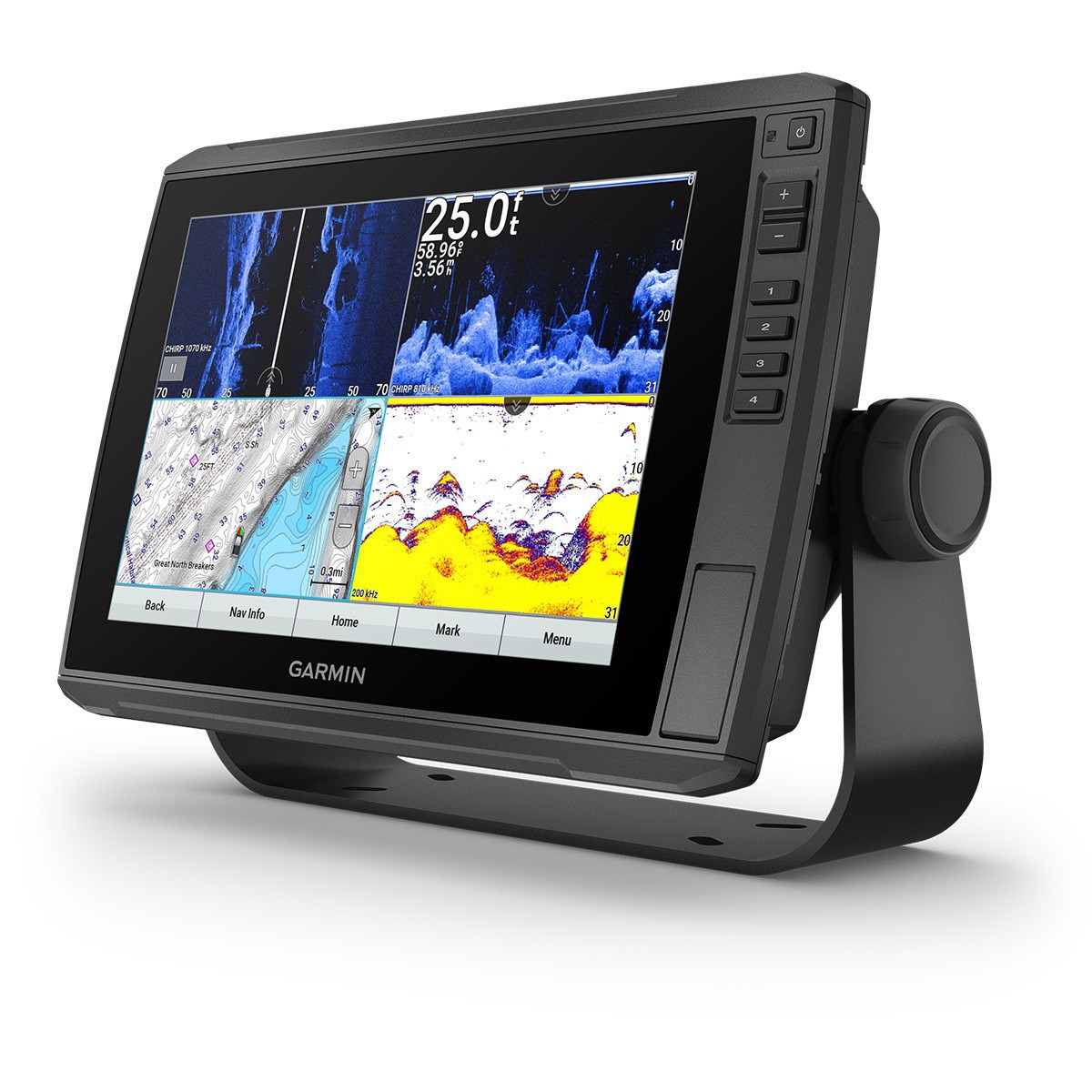

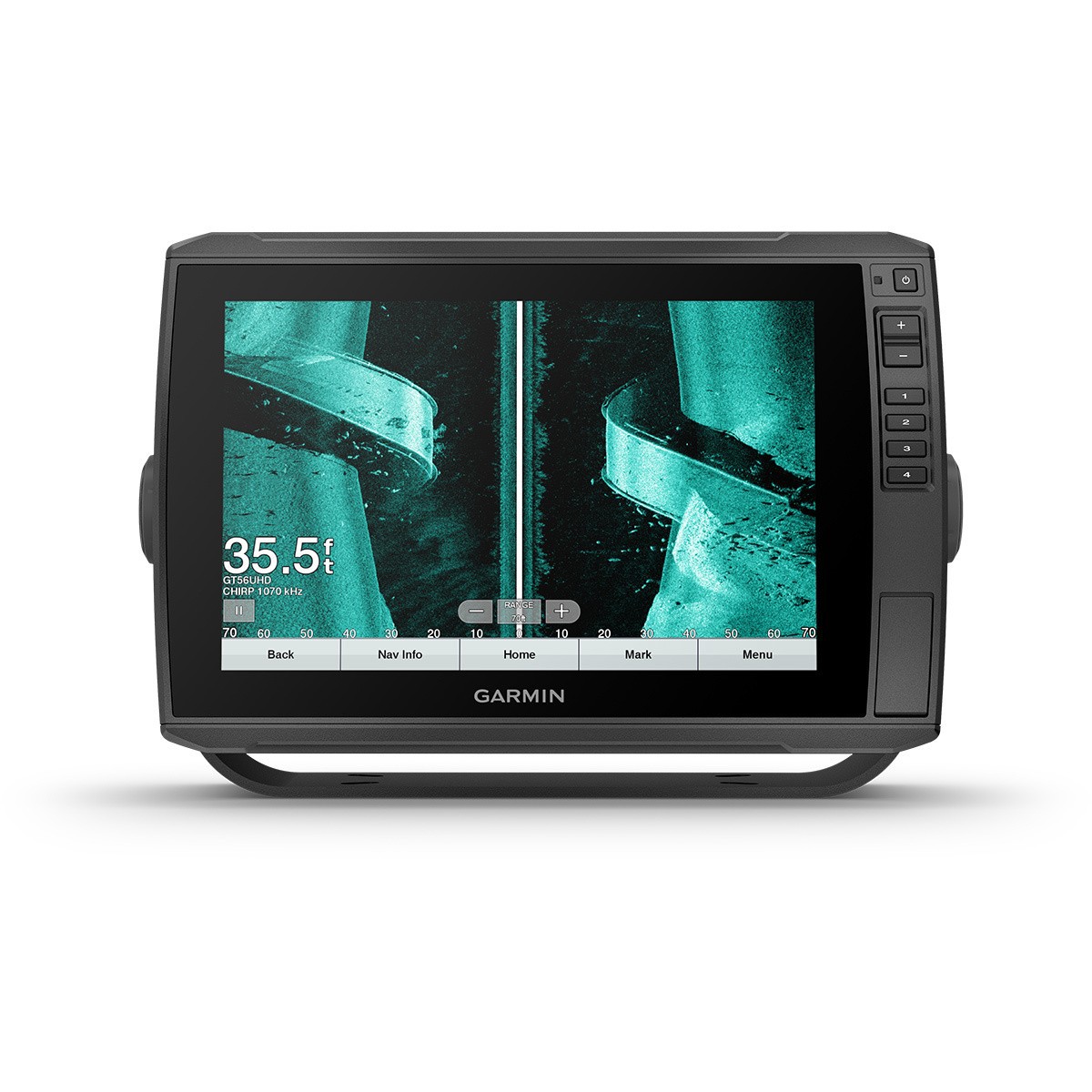

Garmin ECHOMAP Ultra 106sv GT56UHD-TM Transducer


The Garmin ECHOMAP Ultra 106sv is the perfect choice for fishfinding and chartplotting. Make navigation easier than ever with its keyed-assist 10" touchscreen and built-in Garmin Navionics+ mapping. Connect your boat to share data, sonar and charts with your other compatible devices, and enjoy ultra-crisp images of structure and fish in stunning detail with its UHD sonar and ClearVu scanning sonars. Create personalized fishing maps with 1' contours or utilize the Garmin Quickdraw Community app to share your data. Plus, its quick-disconnect bail mount makes it easy to install and remove your ECHOMAP Ultra. So, don't wait - equip your boat with a Garmin ECHOMAP Ultra 106sv and see the difference!

In the Box:
  • ECHOMAP Ultra 106sv with Garmin Navionics+
  • GT56UHD-TM transducer
  • Power/data cable
  • Tilt mount with quick release cradle
  • Flush mount
  • Protective cover
  • Hardware
  • Documentation

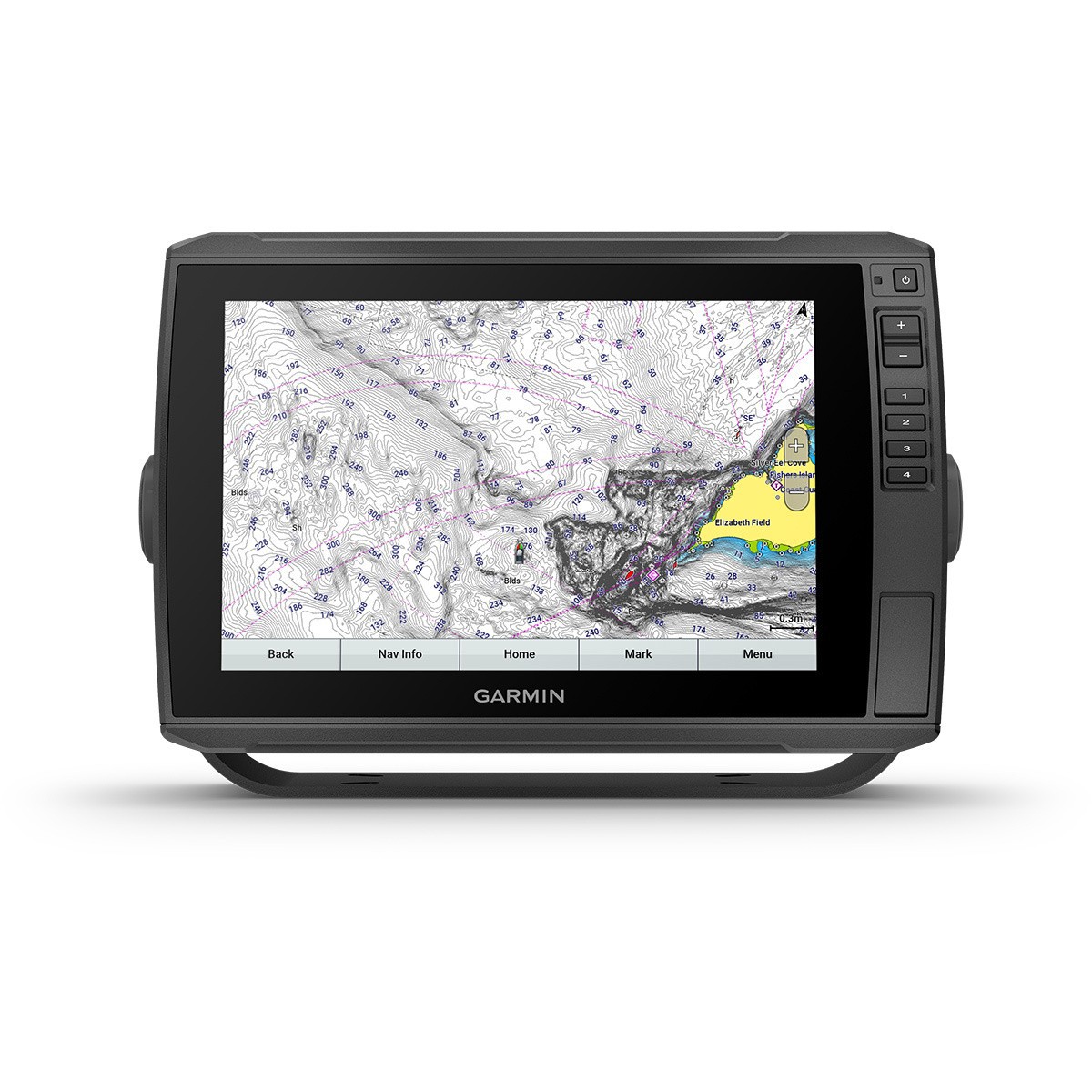

  • Navigate confidently with built-in Garmin Navionics+™ mapping.
  • High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
  • See crisp images of structure and fish in stunning detail.

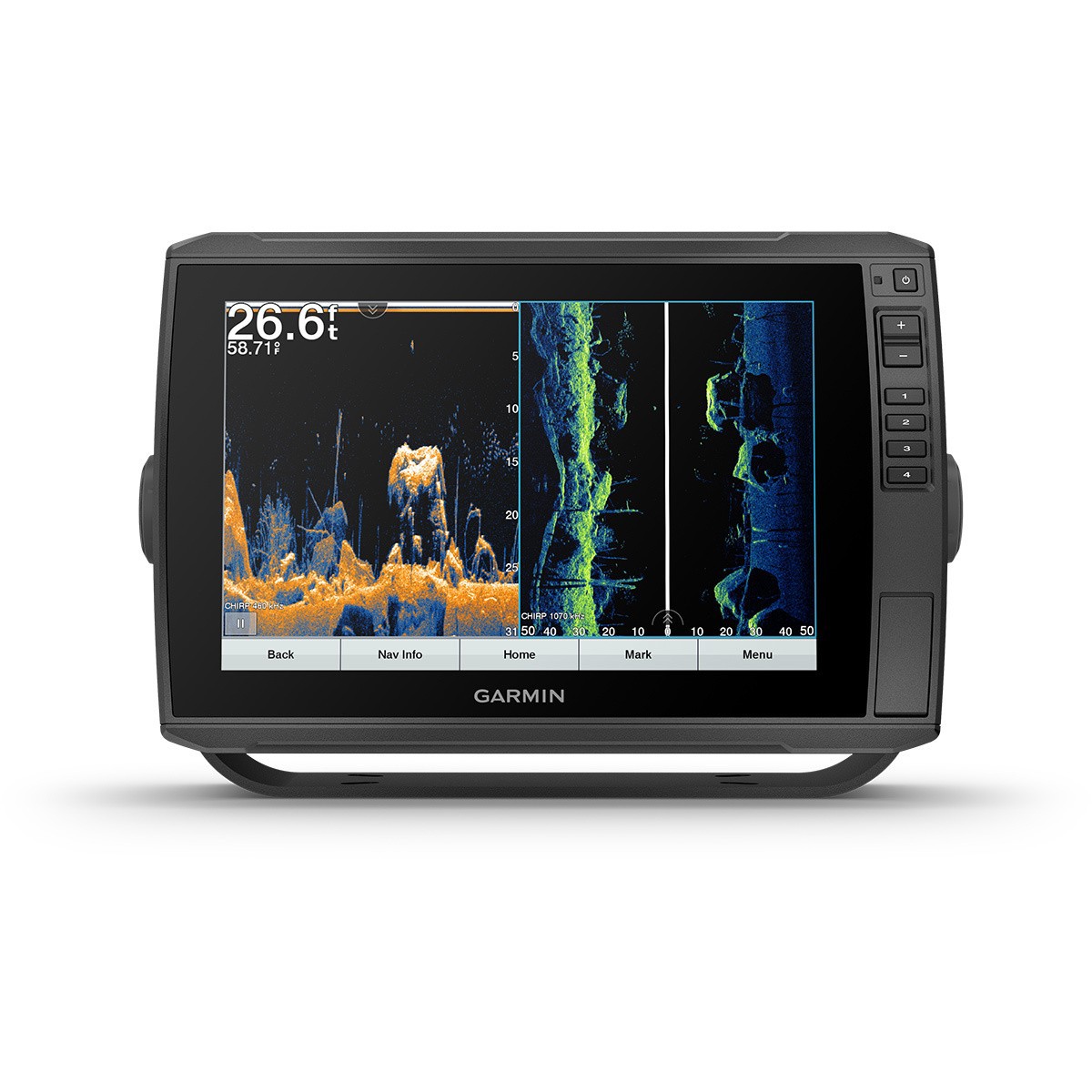

  • Built-in UHD sonar provides Garmin CHIRP traditional sonar plus Ultra High-Definition ClearVü™ and SideVü™ scanning sonars when paired with a compatible UHD transducer. Transducer bundled products include the GT56 transducers with three scanning sonar frequencies and 20% greater range for your UHD SideVü sonar.
  • Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.
  • The keyed-assist 10" touchscreen puts fishfinding know-how at your fingertips.
  • Supports LiveScope
  • Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.
  • Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.
  • If you have multiple compatible ECHOMAP Ultra 10" or 12" units or ECHOMAP Plus or UHD 7" and 9" units on your boat, you can share information — such as sonar, user data and charts — among them.
  • Connect your boat to share data, sonar and charts with your other compatible devices.
  • Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app
  • Manage your marine experience from nearly anywhere with the ActiveCaptain® app.
  • Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping with Auto Guidance+™ technology2. It comes with a 1-year subscription for downloadable daily updates and more.


  • GPS Yes
  • 12-pin Transducer Ports 1 LVS sonar; 1 12-pin scanning sonar
  • Supports WAAS Yes
  • Garmin Quickdraw Contours Yes
  • DSC Yes
  • Display Type WXGA, IPS
  • BlueChart g3 No
  • ClearVü built-in 260/455/800/1000/1200 kHz
  • NMEA 2000 ports 1
  • GCV Black Box Sonar Support No
  • Waypoints 5000
  • DISPLAY RESOLUTION 1280 x 800 pixels
  • Power output 600 W
  • LakeVü g3 No
  • Input Touchscreen with Keyed Assist
  • SideVü built-in 260/455/800/1000/1200 kHz
  • Mounting Options Bail or flush
  • Maximum power usage at 10 Vdc 24.4 W
  • OneHelm support No
  • Typical current draw at 12 Vdc 2.8 A
  • ANT+ (Connectivity) No
  • Garmin Navionics+™ Yes
  • Power Input 9 to 18 Vdc
  • LiveScope Yes
  • Garmin Marine Network Ports 2 (large connector)
  • Garmin Wi-Fi network (local connection) No
  • TOPO Yes
  • Weight 4.0 lbs (1.8 kg)
  • Built-in Auto Guidance No
  • NMEA 0183 input (Tx) ports 1
  • ActiveCaptain® compatible yes
  • Displays sonar Yes
  • Navigation Routes 100
  • Display Size 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)
  • Galileo No
  • Panoptix™ sonar Yes
  • BlueChart g3 Vision No
  • USB ports No
  • Waterproof IPX7
  • GRID (Garmin Remote Input Device) compatible No
  • Smart Mode Compatible No
  • Raster chart support No
  • NMEA 2000 Compatible Yes
  • Built-in Auto Guidance+ Yes
  • Garmin Navionics+ Inland & Coastal Yes
  • Supports Fusion-Link™ compatible radios Yes
  • Track points 50,000
  • Spoken audio alerts No
  • Has built-in receiver Yes
  • Receiver 10 Hz
  • Traditional Sonar (dual frequency/beam) Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • Maximum current draw at 12 Vdc 3.0 A
  • AIS Yes
  • LakeVü g3 Ultra No
  • LakeVu (inland) No
  • Accepts Data Cards 2 microSD™ cards
  • Model #: 010-02527-51
  • Wireless Remote Compatible No
  • Connections NMEA0183 Input Ports 1
  • NMEA 0183 Compatible Yes
  • Dimension 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)
  • BlueChart (coastal) No
  • GSD Black Box Sonar Support No
  • BLUETOOTH® pairing No
  • Touchscreen Yes
  • Garmin Navionics Vision+™ Yes
  • Standard Mapping Yes
  • Tracks 50 saved tracks
  • Tide tables Yes
  • BNC external GPS antenna port No
  • Sailing Features Yes
